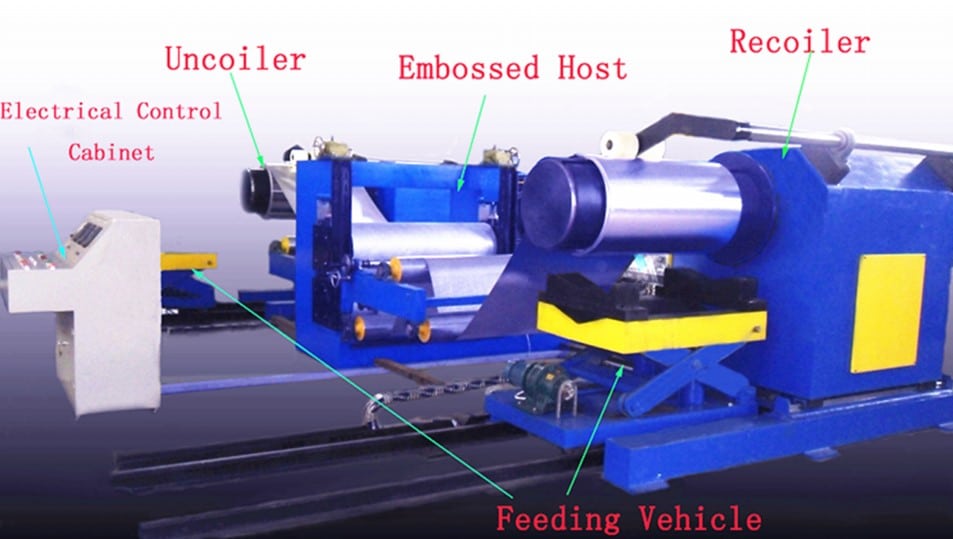

Sheet Metal Embossing Machine Metal Embosser Line is an automatic embosser line which work on the sheet metal to make different pattern, like diamond pattern embossing machine. Whole line Sheet Metal Embossing Machine Metal Embosser Line is including below parts, the de-coiler, leveling, feeding system, embossing machine, and re-coiling system. From the Sheet Metal Embossing Machine Metal Embosser Line working process, you can see that the embossed metal sheet is used as the raw material for some metal products, such as the floor, the wall panel and so on.

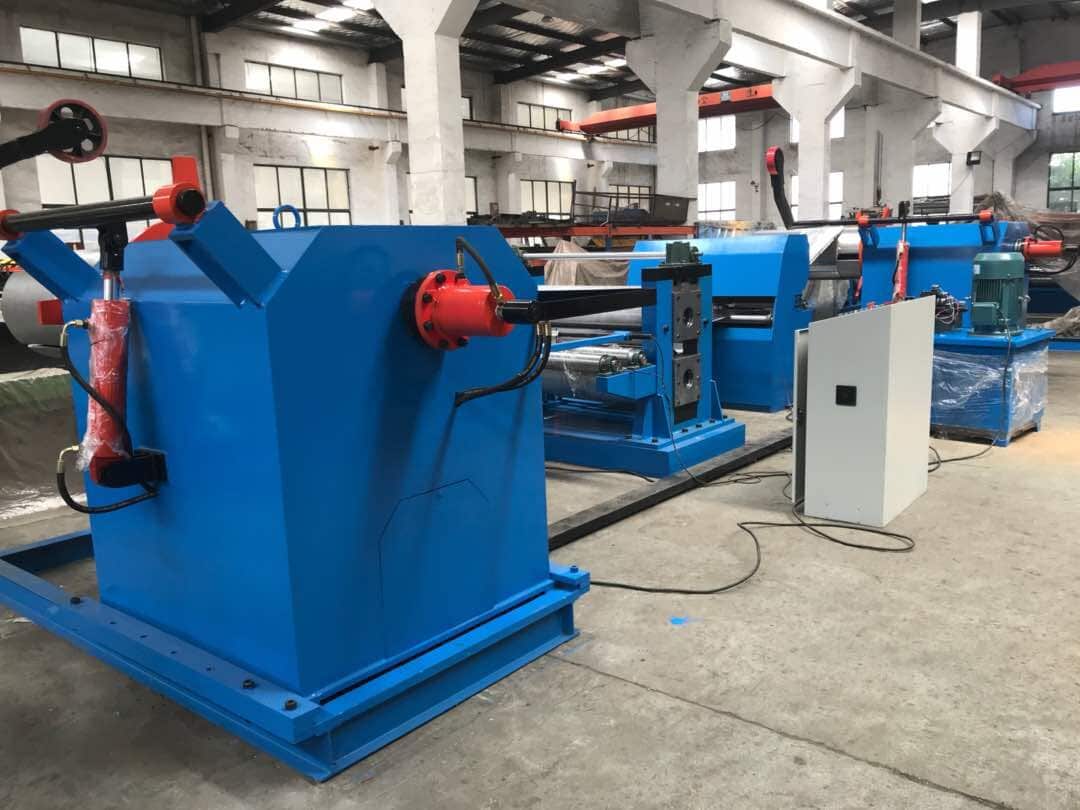

Below are some pictures of the Sheet Metal Embossing Machine Metal Embosser Line for your reference:

Material：GI Coiled steel
Thickness： 0.3-0.5mm ( 25 gauage to 29 gauage)
Max width：1066mm

2.1 Rollers:
The material:60CrMnMo
Specifications:Ø375*1250mm 2Pc
Roller surface hardness:HRC63-64
The pattern making: according to the buyer to provide the sample pattern
Take the roll surface hard chromium plating
Suitable for pressing plate: 0.2-0.6 mm
2.2 Drive
1. Cycloid speed reducer:BWED74-391-22KW 3P 1
2.Main Motor:22KW-3P
3. A turbine reducer :WPWKO 80 i=60 2
2.3 Machine control
Speed: 0-60m/min
Linear velocity:0-60m/min Frequency control of motor speed
Pressure: A turbine reducer screw compaction
Safety shield shell
Generous beauty of appearance
Flowers flange fine-tuning pattern
2.4 Electrical appliances
22 kw China famous brand fu ling inverter
The button, ac contactor and intermediate relay
adopt China famous brand zhengtai electric
