Shutter Door Rail Rolling Machine is a device used for producing rolling shutter door guide rails, mainly used in the manufacturing of rolling shutter doors in industrial plants, civil buildings, warehouses and other places.
Here we share a shutter door rail rolling machine with raw materials of 0.6-1.2mm, and the size can be set according to your requirements.
The profile drawing:
The pictures for the finished product:
Working process:
Decoiler-leveling- Rolling Forming- Shearing system with punching- runout table.
Packing list of the Shutter Door Rail Rolling Machine:
| No. | Name | Quantity |
| 1 | decoiler | 1 set |
| 2 | Drilling machine | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | PLC control station | 1 set |
| 5 | Hydraulic system | 1 set |
| 6 | Product collect table | 1 set |
The technical specifications of the Shutter Door Rail Rolling Machine:
| Item | Name | Specifications |
| 1 | Raw material | GI&PPGI |
| 2 | Raw material thickness | 0.6-1.2mm |
| 3 | Decoiler | 5T |
| 4 | Felt device | Available |
| 5 | Roller station | 12stations |
| 6 | Roller material | 45# steel |
| 7 | Shaft diameter | 60mm |
| 8 | Shaft material | 45# steel |
| 9 | Transmission | By gear |
| 10 | Motor power | 18.5kw |
| 11 | Machine frame | steel plate welded with grinding |
| 12 | Cutting type | Hydraulic cutting |
| 13 | Hydraulic power | 3kw |
| 14 | Cutting blade material | Cr12 quenched |
| 15 | Cutting tolerance | +/1mm |
| 16 | Control system | Delta/ Siemens PLC |

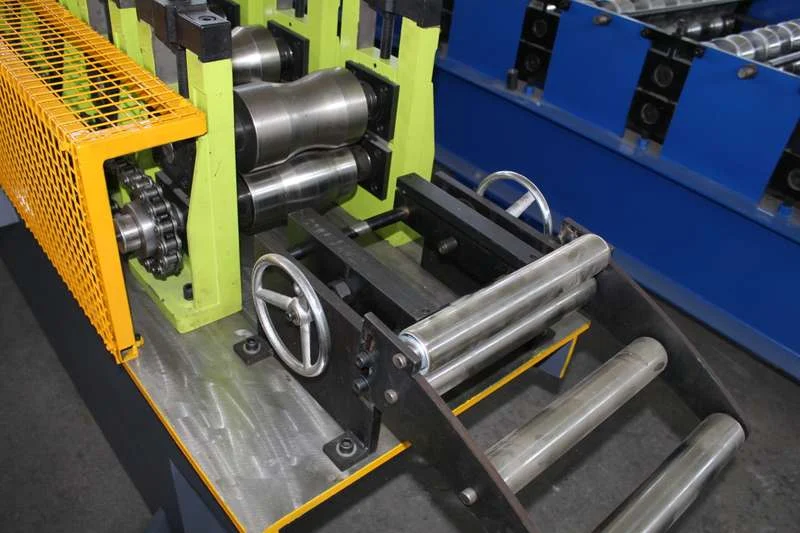

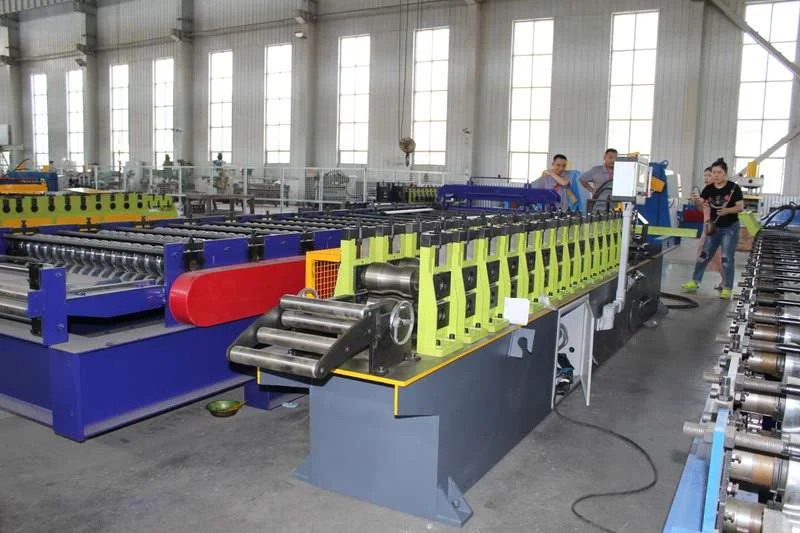

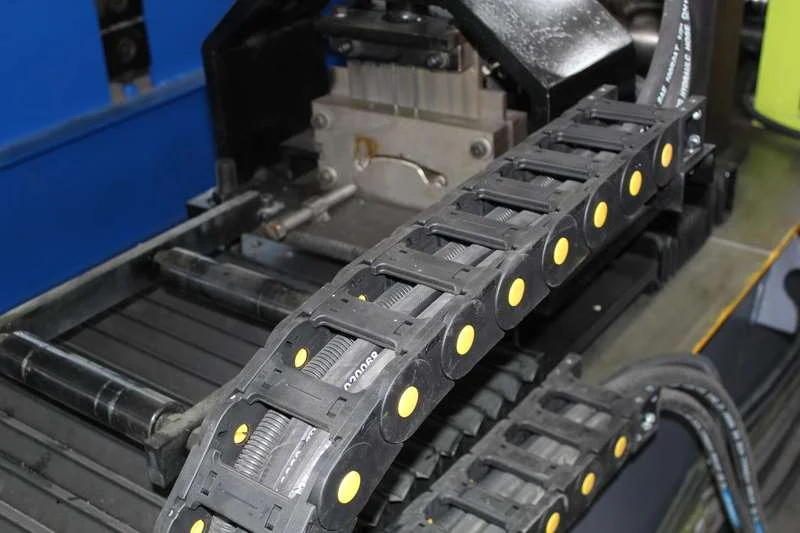

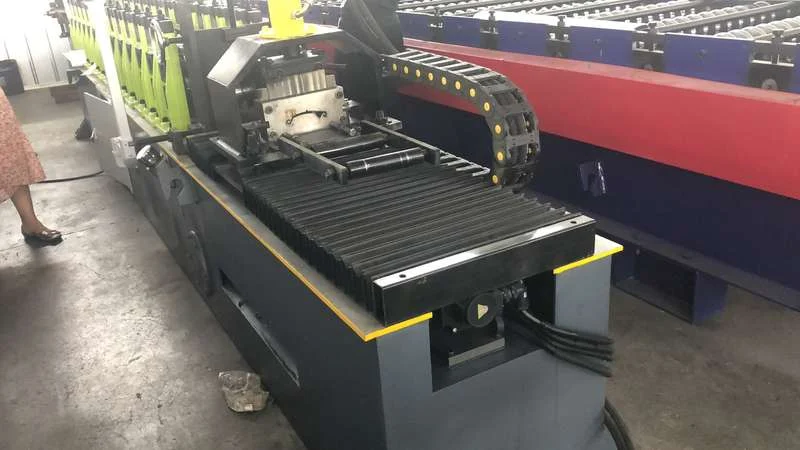

Main Machine Pictures for your reference:
