The Australia Type Roller Shutter Rolling Forming Machine is the core equipment for producing roller shutter panels in the door and window industry. The entire machine typically consists of components such as a manual material feeding rack, an intake guiding platform, a forming host, an automatic computer-controlled length-cutting device, a hydraulic system, and a PLC electrical control system. Through CNC rolling forming technology, the machine processes raw materials into seamless, integral door panels, completely transforming the traditional roller shutter panel structure prone to deformation at the joints.
Core Features：
- Highly automated and intelligent:
Equipped with PLC programmable control systems (such as Schneider, Mitsubishi, etc.) and variable frequency speed regulation technology, it achieves automatic feeding, forming, length measurement, counting, and cutting. The operation is simple, production efficiency is high, and dimensions are precise, significantly reducing manual intervention and material waste. - Excellent forming quality:
The equipment rollers are typically made of high-quality 45# steel or Cr12 die steel, precision-machined and hard chrome-plated for wear resistance and durability. The produced door panels feature a flat surface, clear peaks and valleys, no warping or scratches, with tight interlocking and high structural strength. - Stable and efficient operation:
The machine features a robust structure (often constructed with heavy-duty welded I-beams), primarily utilizing gear and chain transmission for smooth operation. The forming speed typically ranges from 8 to 20 meters per minute, adjustable to meet production requirements.

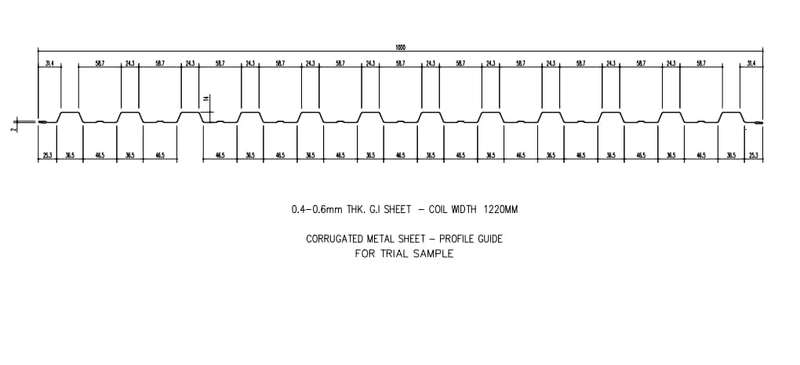

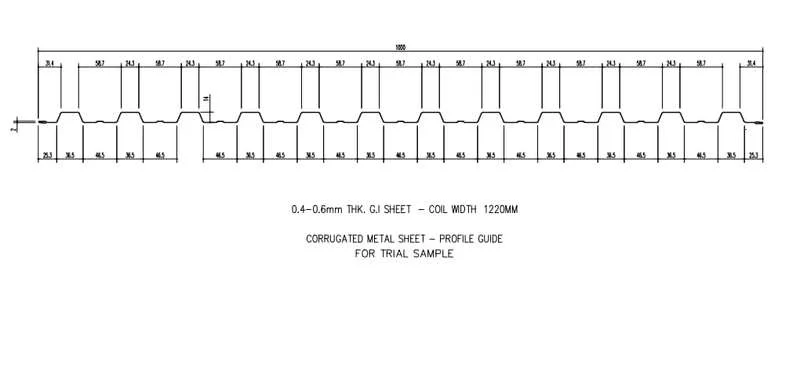

Pattern diagram:

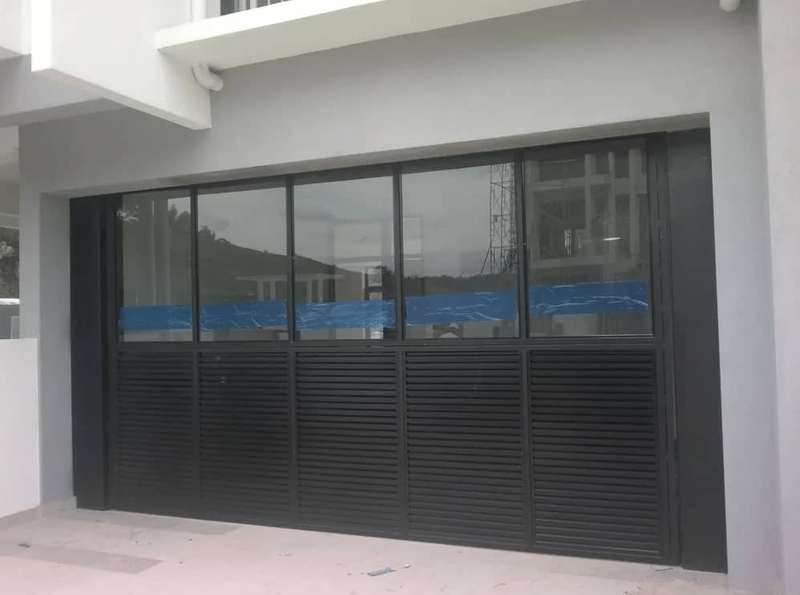

Application scenarios：
- Commercial venues:
various types of shops, supermarkets, shopping malls, convenience stores, banks, hotels, etc. - Industry and Logistics:
Industrial plants, warehouses, workshops, logistics facilities, etc. - Residential and public buildings:
Private residential garages, villas, schools, hospitals, stations, and office building corridors.
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm Width:1220mm/1450mm(customized as drawing) | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 26 rows(As your requirement) | ||
| Diameter of shaft | 90mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 400 H steel | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 12500*1800*1600(customize) | |||
| Weight | 10.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 15-20m/min | The speed is adjustable | ||

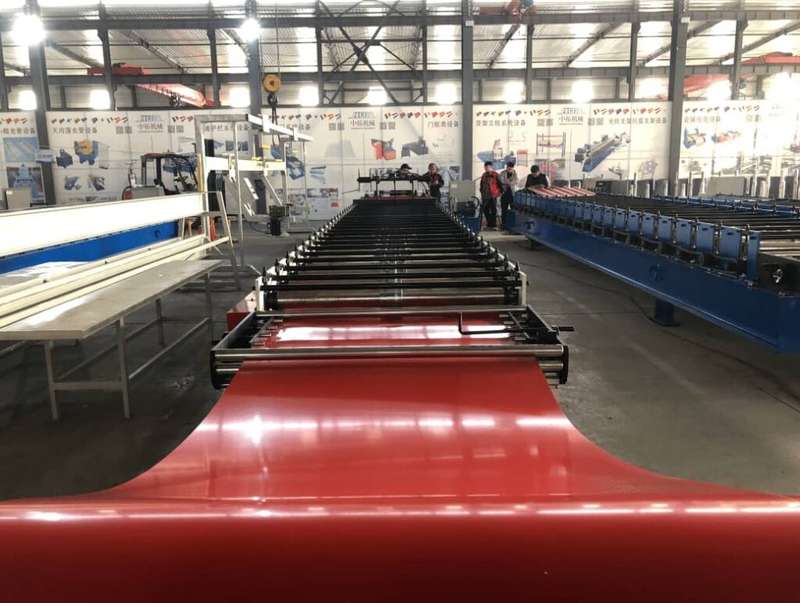

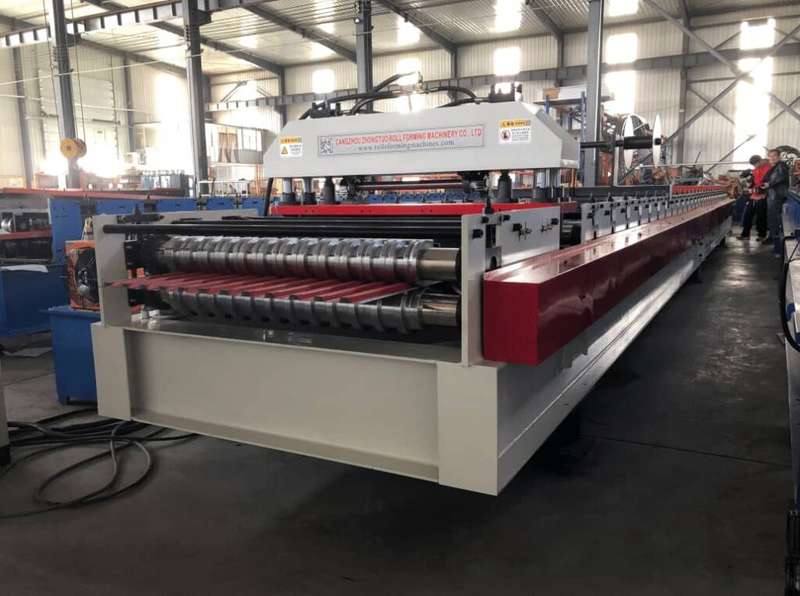

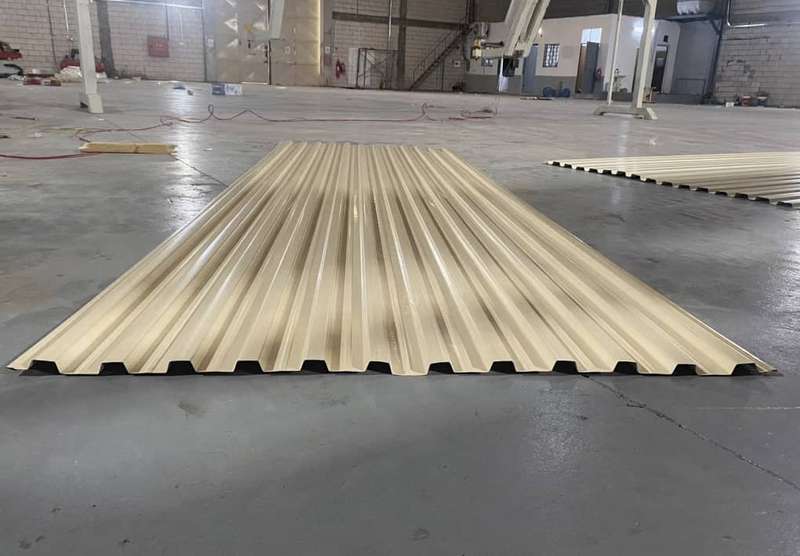

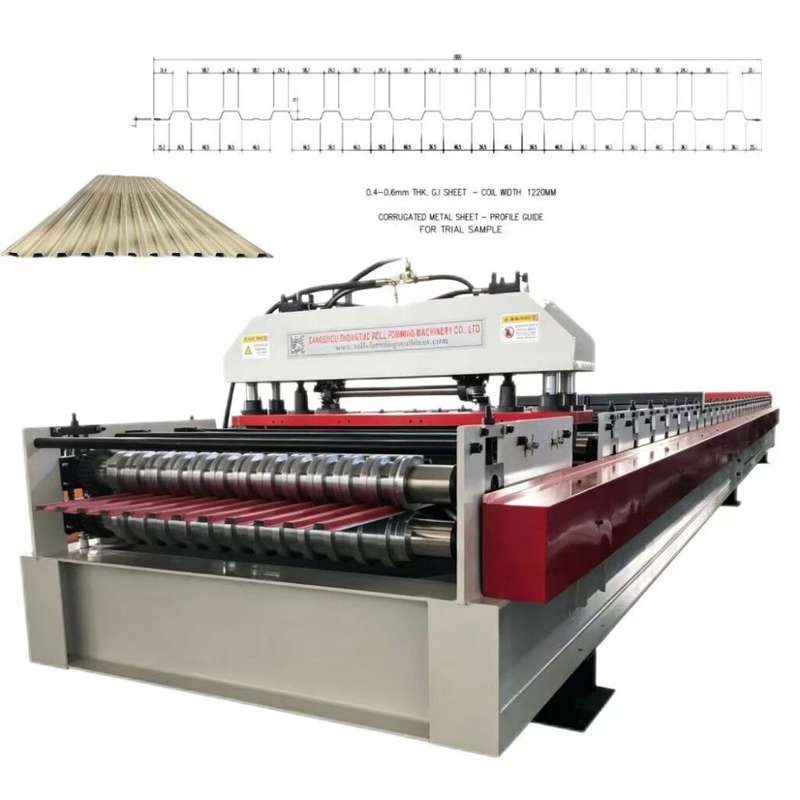

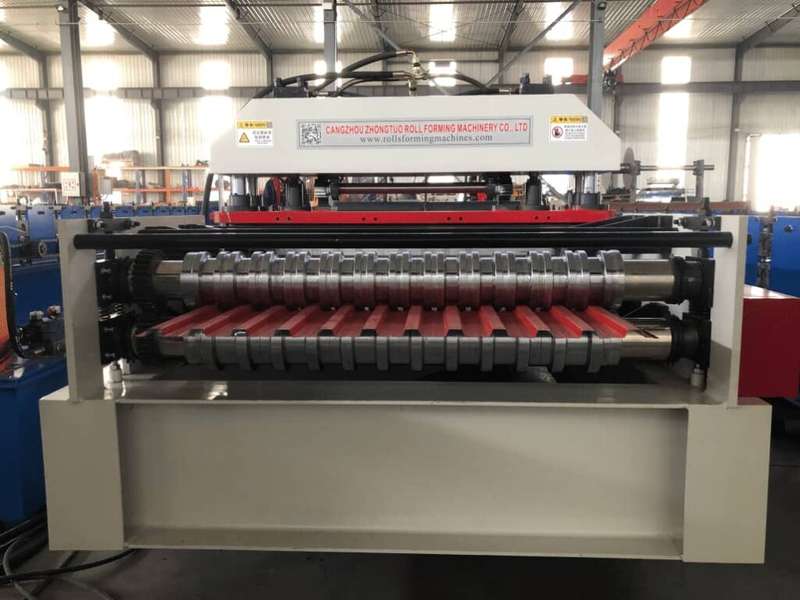

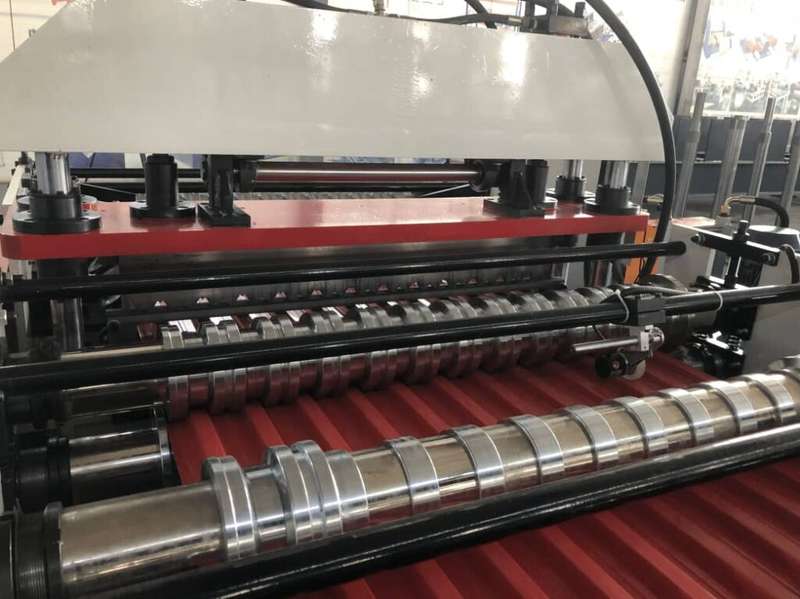

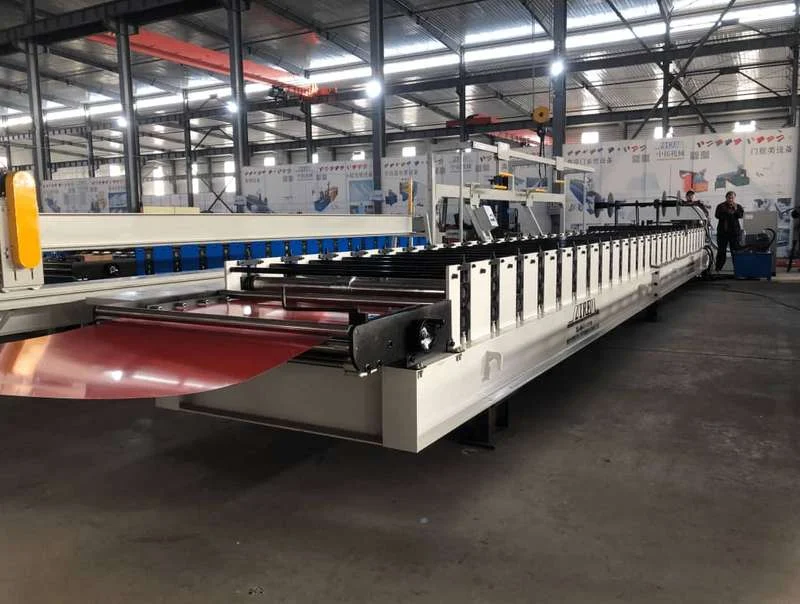

Products Display：
