Soffit Panel Roll Forming Machine is a type of automated equipment designed specifically for the production, molding, and processing of ceiling panels. It is widely used in building decoration, steel structure construction, and mass production of ceiling factories. It can achieve mechanized operation in the entire process or key links from raw material processing to finished product molding, greatly improving the efficiency, accuracy, and stability of ceiling panel processing.
Pattern diagram:
Applicable scenarios:
1.In the field of home decoration：
small molding machines and plywood machines are suitable for personalized processing of home ceilings, flexibly responding to the styling needs of double eyelid ceilings, curved ceilings, and other types of ceilings.
2.Tooling project:
Large production lines and molding equipment are used to serve bulk ceiling projects in hotels, office buildings, and activity rooms, meeting efficient supply needs.
3.Factory mass production:
Extrusion production lines and automated plywood equipment are used for ceiling panel production enterprises to achieve standardized and large-scale production capacity output.
Product Attributes ：
| Main frame | 350mm H beam structure | |||
| Material of rollers | High grade 45 high quality steel by CNC machining and hard chrome coating | |||
| Forming stations | 18 stations | |||
| Diameter of shafts | Φ80mm solid(Guaranteed) | |||
| Material of shafts | High grade 45#,with heat treatment | |||
| Forming speed | About 0-30m/min | |||
| Voltage | 220V/50HZ/3P | |||
| Transmission way | By gear box transmission | |||
| Main motor | 5.5kw | |||
| Cutting blade material | Cr12Mov quenched treatment to improve hardness | |||
| Cutting type | Hydraulic cutting | |||
| Driving method | By motor,5.5 kw | |||
| Cover | Whole cover for roll former,without cutter.2 parts can slide side to side easily. | |||

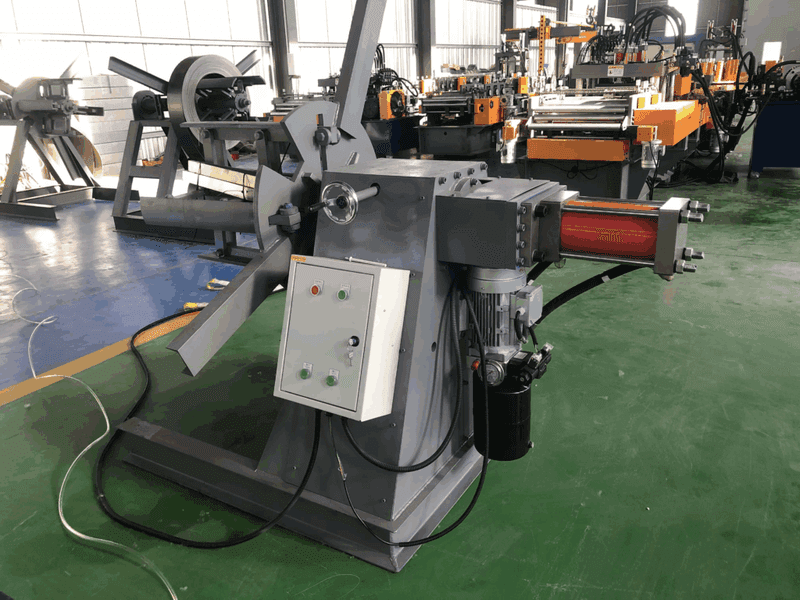

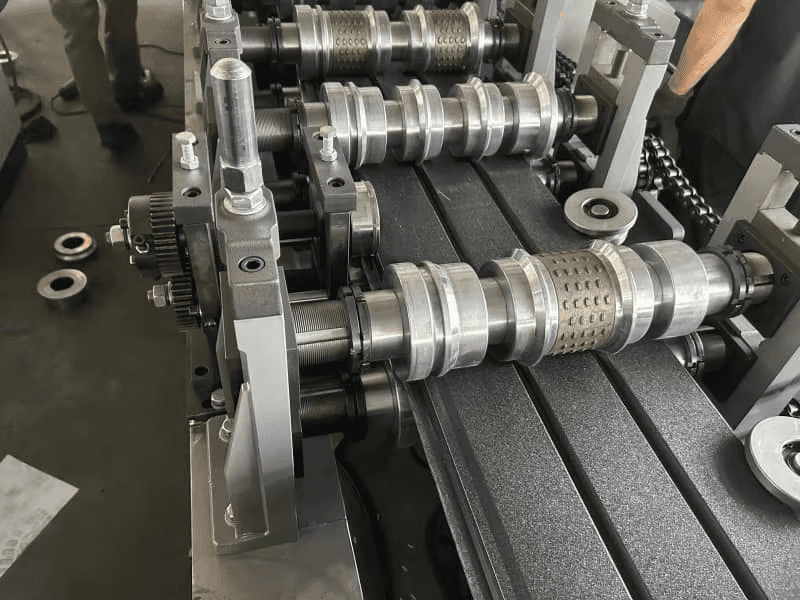

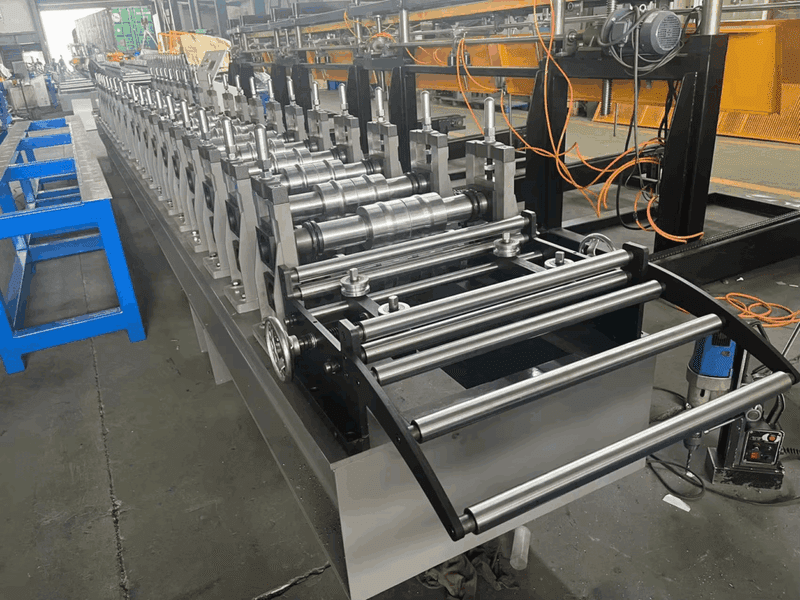

Machine image:
