The Solar Strut Channel Roll Forming Machine is a key production equipment in the upstream of the photovoltaic industry chain, specifically designed to produce C-shaped and U-shaped support frames for securing and fixing photovoltaic modules through continuous cold bending and rolling processes using metal coils such as galvanized steel and aluminum alloy. Essentially, it is a highly automated production line capable of completing all processes including material feeding, leveling, continuous punching, cold bending, and precision cutting in a one-stop manner
Characteristics of core equipment：
1.Flexible intelligent changeover:
In the past, changing product specifications took a long time, but now advanced equipment focuses on “one click changeover” or “infinite changeover” technology, which can quickly and automatically switch within a certain range, producing various specifications of brackets, greatly improving flexibility.
2.High precision and high speed:
The equipment generally adopts PLC control system and servo motor to ensure the accuracy of punching and cutting. At the same time, production efficiency is constantly improving, with conventional molding speeds reaching 10-15 meters per minute, and some equipment using non-stop cutting technology can even reach 25-35 meters per minute.
3.Durability and stability:
Photovoltaic brackets are commonly used outdoors and require high strength. Therefore, the rolling mill molds of the forming machine often use high hardness materials such as GCr15 bearing steel and undergo quenching treatment. The body is also often made of cast iron or steel plate welded and tempered to ensure that the equipment can operate stably with high strength for a long time.

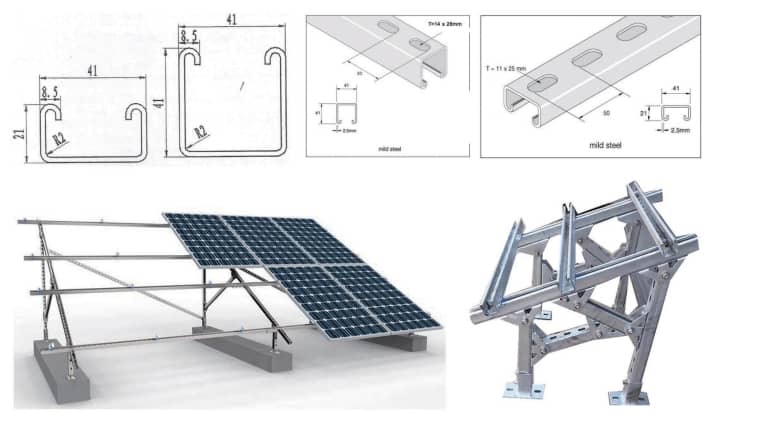

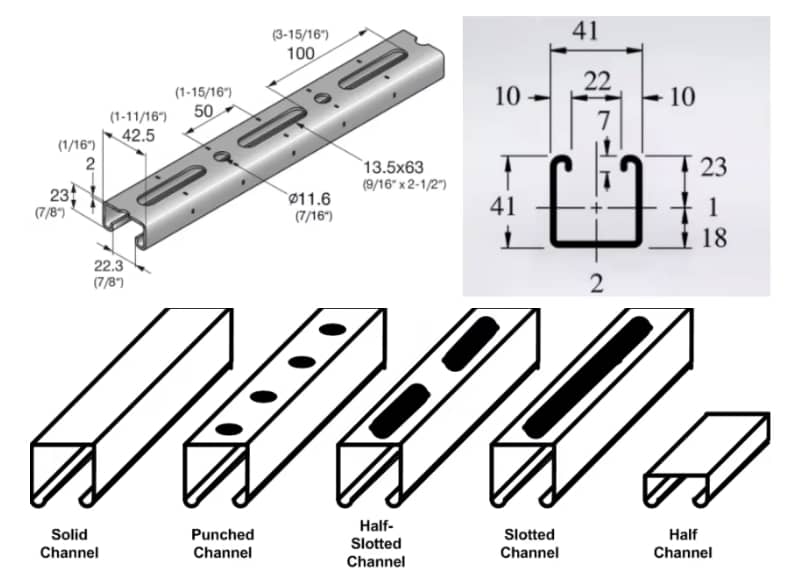

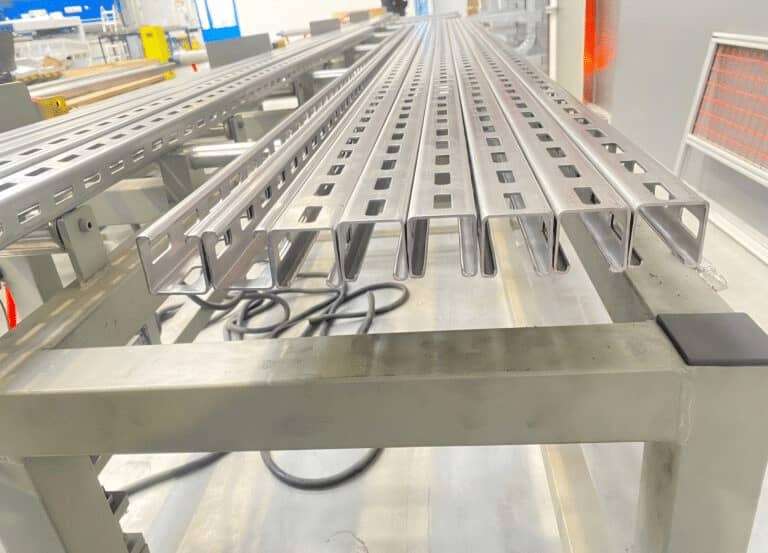

Pattern diagram:

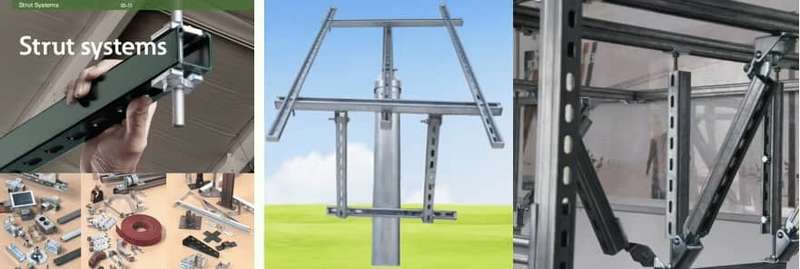

Main application scenarios:
- Large scale ground photovoltaic power stations:
This is the main application scenario, such as centralized photovoltaic power stations on vast deserts and Gobi deserts, which require a large number of standardized and high-strength brackets. - Distributed photovoltaic projects:
including rooftop photovoltaic systems for industrial plants, commercial buildings, and residential buildings, which have higher requirements for the diversity of bracket sizes and the ability to adapt to different roof structures. - Agricultural photovoltaic complementary and fishery photovoltaic complementary projects:
Installing photovoltaic panels above farmland and fish ponds usually requires the design of special height and span brackets, and flexible transformation equipment has obvious advantages in such non-standard projects.
Product Attributes :
| 1.Formed Material | GI | Thickness:1.5-2.5mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | 14 rows(As your requirement) | ||
| Diameter of shaft | 120mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gearbox transmission | |||
| Dimension(L*W*H) | customize | |||
| Weight | About 6.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 11KW | ||
| Hydraulic system power | 7.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 20m/min(customized) | Speed is adjustable according to customer’s request | ||

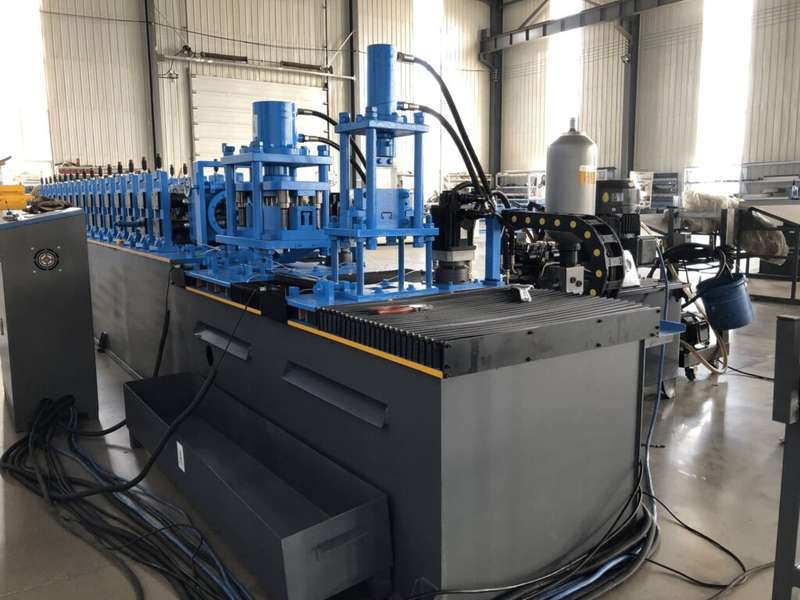

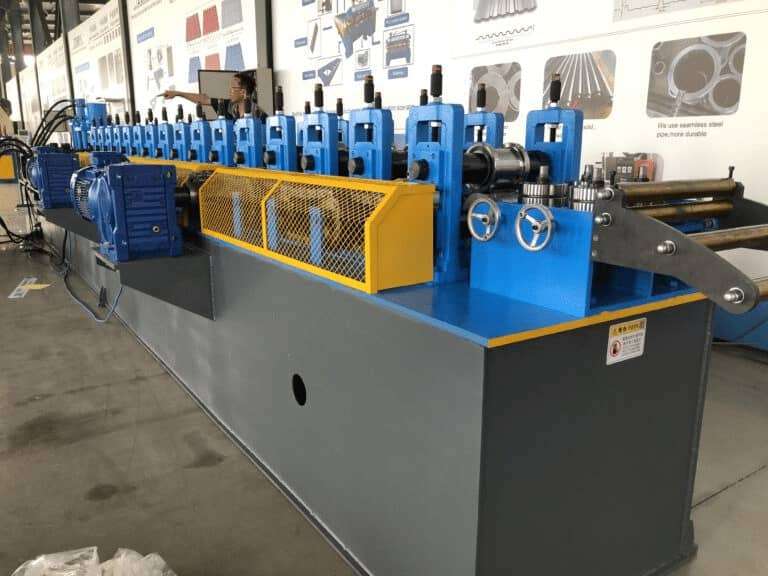

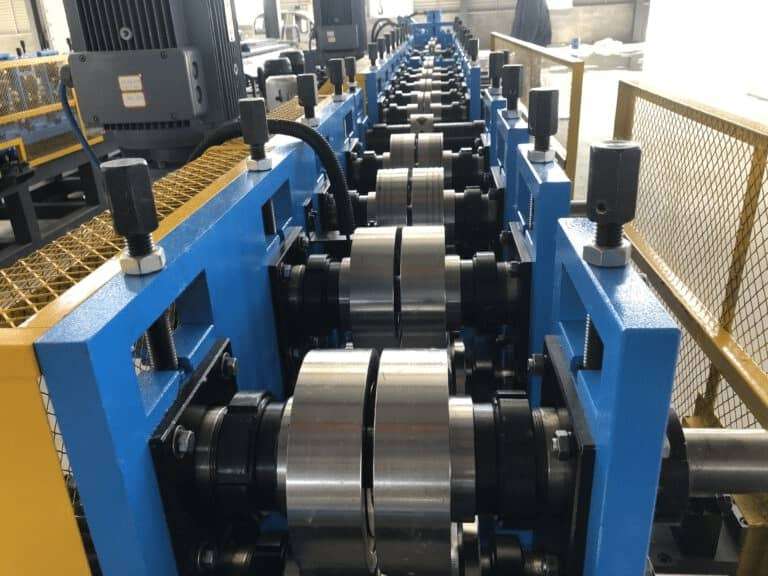

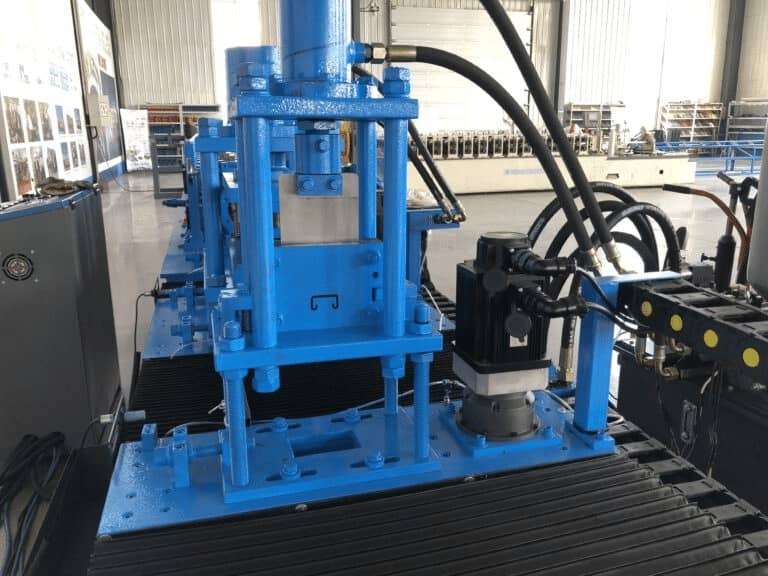

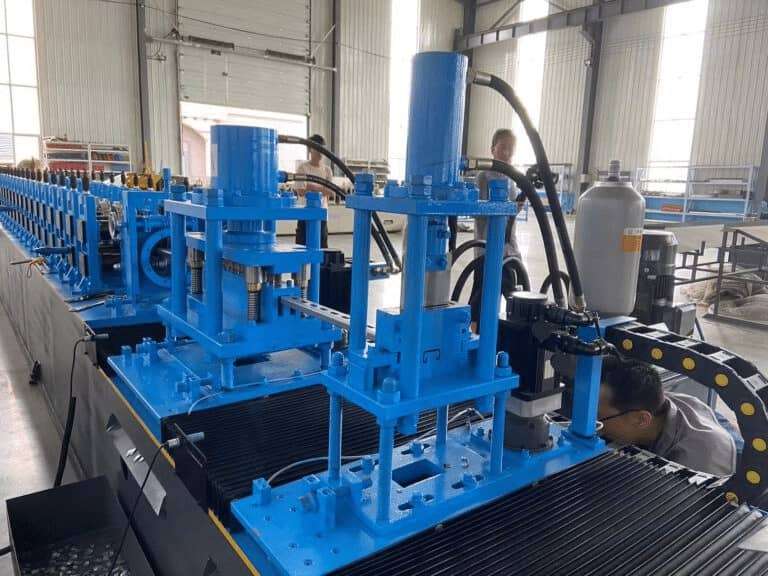

Machine image:
