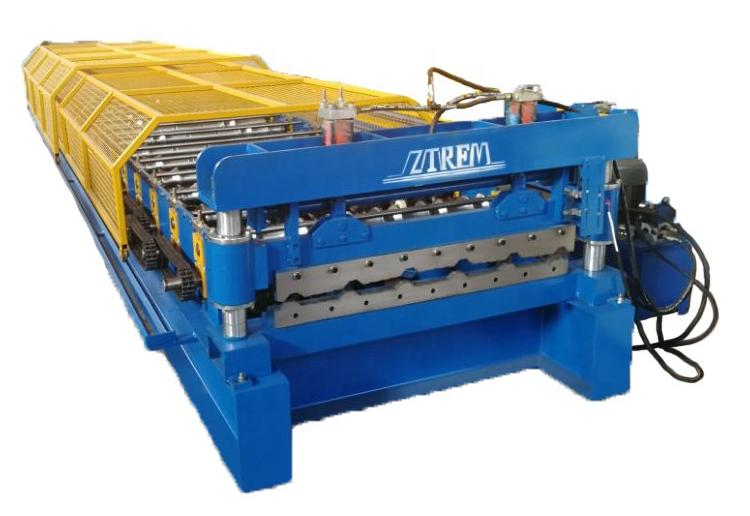

Introduction of Solid Six Rib Metal Profile Rolling Forming Machine for New Zealand

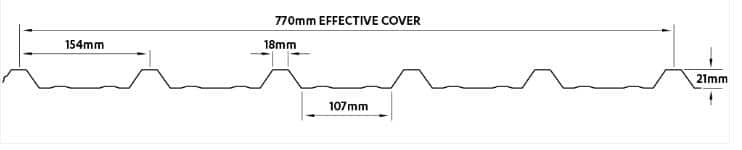

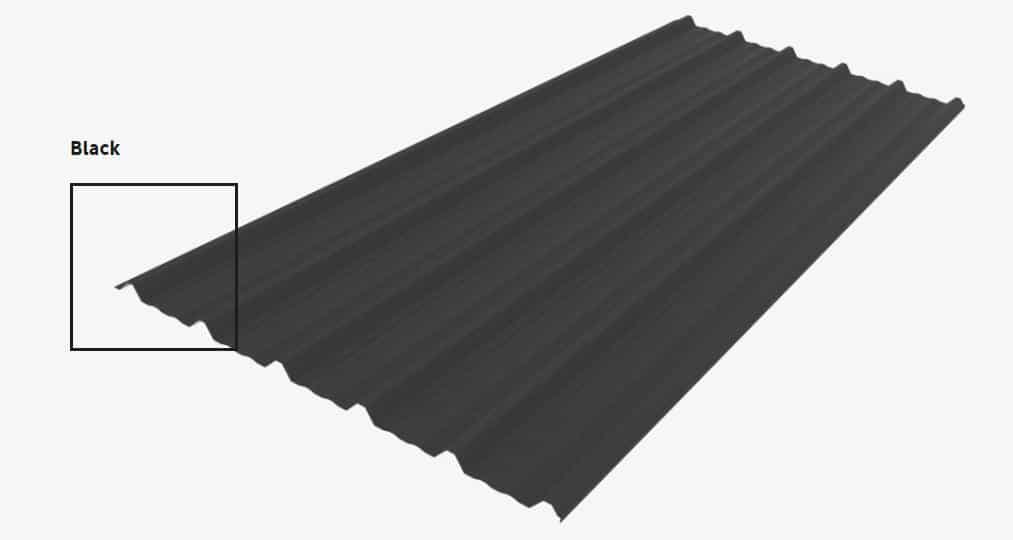

Solid Six Rib Metal Profile Rolling Forming Machine for New Zealand is specially designed to produce the six rib metal profiles. The Solid Six Rib Metal Profile is a six-ribbed trapezoidal profile with a 21mm high rib and 770mm effective cover. Six Rib is typically utilised in domestic roofing and cladding or commercial roofing and cladding applications where spanning ability is not a prime requirement.

Parameter of Solid Six Rib Metal Profile for New Zealand

Roller Material: EN31 with Hard Chrome

Forming Speed: 15-20MPM

Shaft Diameter: 90mm

No. of Roller Station: 22

Decoiler Type: Hydraulic

Operating Voltage: 3Ph,415V,+15%, -10%

Controller Type: PLC

Accuracy: ±1mm

Advantages of Solid Six Rib Metal Profile for New Zealand

(1) Strength

The rib height and rib spacing of Six Rib makes it amongst the strongest roofing profiles in its class, suitable for low pitch roofing.

(2) Long Run

Modern roll forming technology allows Six Rib roofing and cladding to be manufactured in continuous lengths.

(3) Crimp Curving

Six Rib can be crimp-curved.

(4) Pan Swage

The pan swage enhances appearance.

(5) Roofing Accessories

A full range of accessories including rainwater goods, flashings, underlays, fasteners and matching translucent sheeting are also available.

(6) Colour Choice

A wide range of standard colours is available with additional colours and coatings available on request.

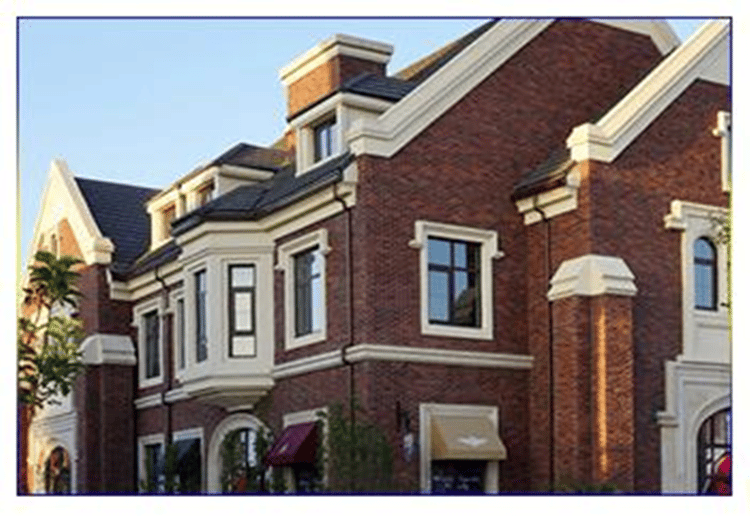

Application of Solid Six Rib Metal Profile Rolling Forming Machine for New Zealand

Fashioned for maximum strength, Six Rib roofing is suitable for a variety of domestic, commercial and industrial uses. Six Rib roofing works well with both steep and low-pitched roofs. Six Rib roofing has an extra rib compared to most other products, giving it a distinctive profile and greater rigidity.
