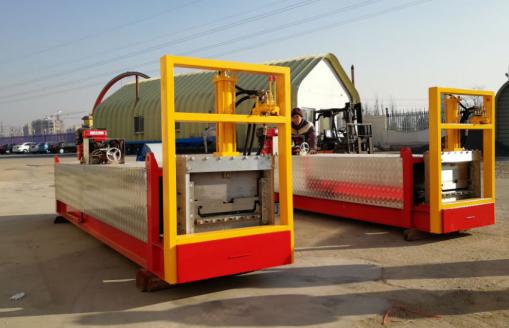

Standing seam machine, movable rolling forming machine

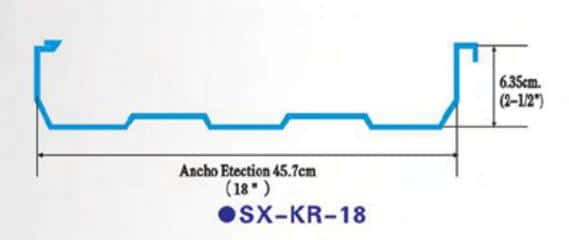

Standing seam machine, movable rolling forming machine is designed to use on the working area. It is movable, the power of the machine is hydraulic and it does not depends on the electricity, so you can take the machine to any place then it can work very well. This type standing seam machine, movable rolling forming machine is good for whose who want to make the project at port.Here we take U45/K18 drawing profile for your reference.
For Standing seam machine, now we have two machine design for your reference:
Option A: rolling forming machine and bending machine are separated.
Option B: Whole set of rolling forming and bending machine.
| ITEM | Quantity |
| Forming Machine | 1set |
| Bending Machine | 1set |
| Cutting System | 1set |
| PLC Controlling system | 1set |
| Decoiler | 1pc |
| Seamer | 1pc |
| Lock pliers | 1pc |
| Instruction book | 1pc |
Specification and Scope of Application
| Specification | Scope of Application | ||
| Power | 5.5KW+3.0KW | Thickness | 0.4-0.8mm |
| Hydraulic motor | 3.0KW | Material | Steel，Aluminum，Al-Mn-Mg alloy board |
| Drive | Chain and gear | Feeding width | 610MM |
| Steps of rollers | 9 | Finished width | 457mm |
| size | 5.8m×2.2m×1.8m | Speed | 12m/min |
| Material of cutting blade | Cr12 1 Mov | Electrical
Standard |
380V/50HZ/3PH |
| Material of rollers | 45#CNC manufactures with chrome quenching | Controller | PLC auto control |
| mobile type with trailer | |||

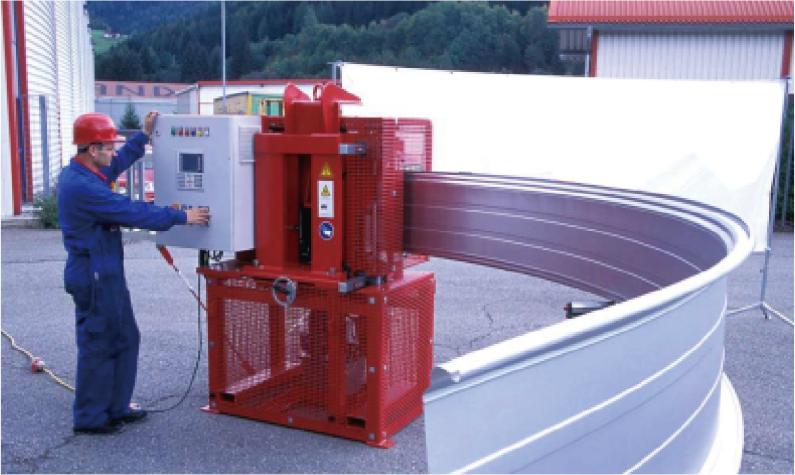

Here is the standing seam bending machine parameters and pictures for your reference:

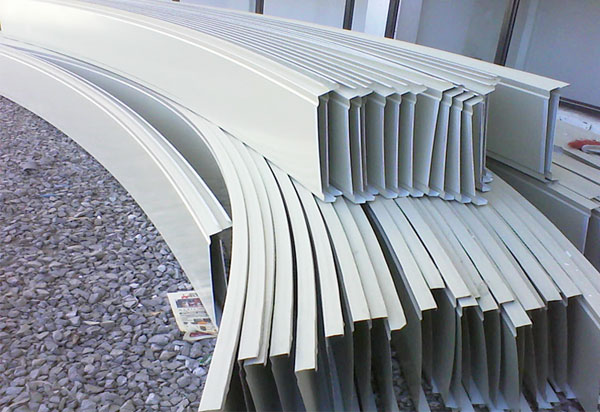

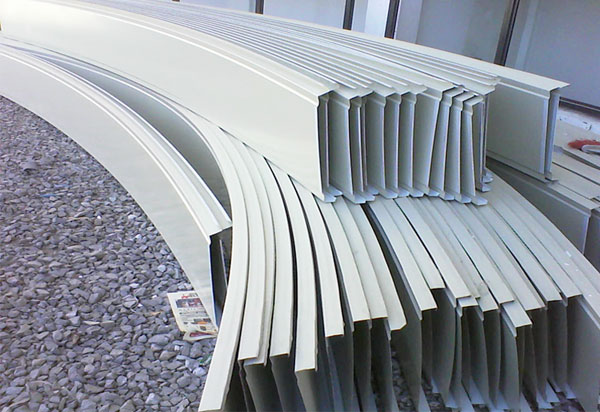

After bending:

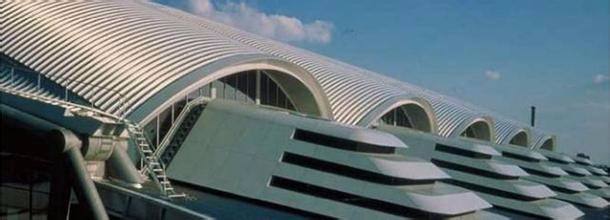

When using in our daily life:
