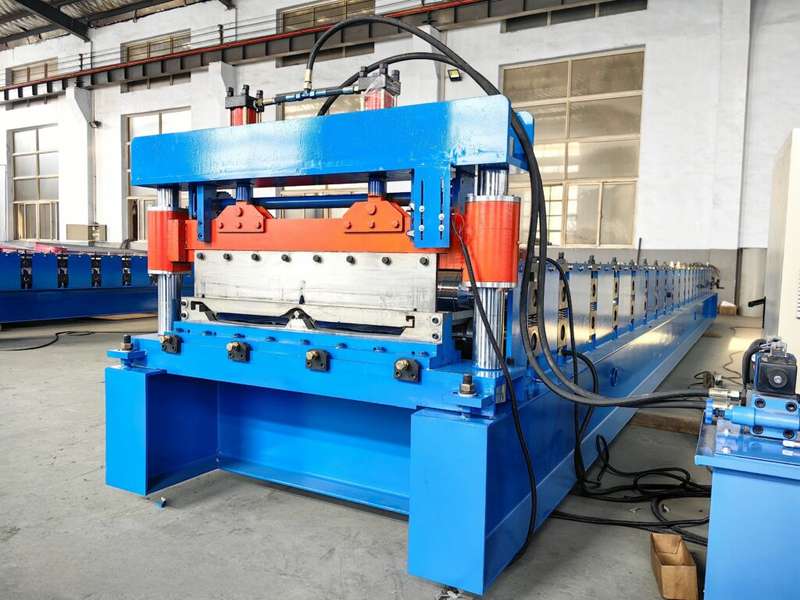

In the field of modern building roofing engineering, Standing Seam Metal Roofing Sheets have become the preferred roofing material for many high-end buildings due to their excellent waterproofing, durability, and aesthetics. As an automated equipment specialized in producing Standing Seam Metal Roofing Sheets, the Standing Seam Metal Roofing Sheet Roll Forming Machine provides stable and high-quality roof tile solutions for the construction industry with efficient molding capabilities and precise processing technology. It is widely used in various construction projects such as industrial plants, large venues, and residential buildings.

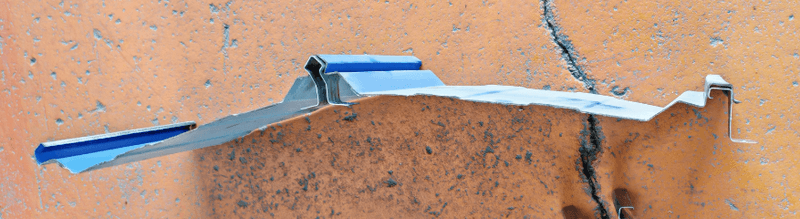

Pattern diagram:
Performance advantages：
- High efficiency and high yield, cost reduction and efficiency improvement:
Adopting continuous roll forming technology with a speed of 5-15m/min, the production efficiency is 8-10 times higher than traditional methods. Taking 6m roof tiles as an example, the production rate is 50-150 pieces per hour, with a daily output of 400-1200 pieces. Automated production only requires 1-2 people to operate, saving 60% of labor costs. - Excellent precision and stable quality:
High precision forming rollers and servo conveyor systems control dimensional accuracy within ± 0.1mm, far exceeding industry standards. Automated production eliminates problems such as deformation and warping, ensuring a 20-30 year service life and excellent wind and waterproof performance of roof tiles. - Flexible customization, adaptable to diverse needs:
It can quickly adjust parameters to produce vertical seam tiles of different specifications and shapes, and complete product switching within 30 minutes. Support various raw materials such as color steel plates and aluminum magnesium manganese alloy plates to meet different building needs. - Easy to operate, safe and intelligent:
The touch interface is equipped with parameter memory and fault diagnosis functions, and can be mastered after 1-2 days of training. Automation completes the entire production process, with key components equipped with protective devices and emergency stop buttons.

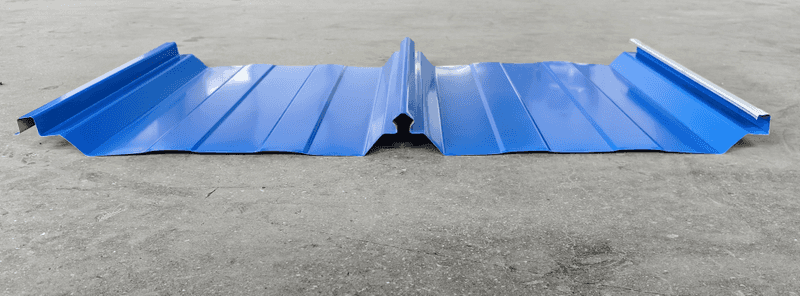

Finished product image:
Product Attributes ：
| 1.Formed Material | PPGI,PPGL,AI,Etc. | Material Thickness:0.4-0.8mm | ||
| 2.Decoiler | Hydraulic decoiler(optional) | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | Due to your requirement profile | ||
| Diameter of shaft | Due to your requirement profile | |||
| Material of rollers | High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm) | |||
| Machine body frame | Due to your requirement profile | |||
| Drive | gear and Double Chain transmission/gearbox transmission optional | |||
| Dimension(L*W*H) | Due to design | |||
| Weight | Due to design | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW(normally) | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | As your requirement | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | Support multiple languages | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 0-80m/min | Provide customized | ||

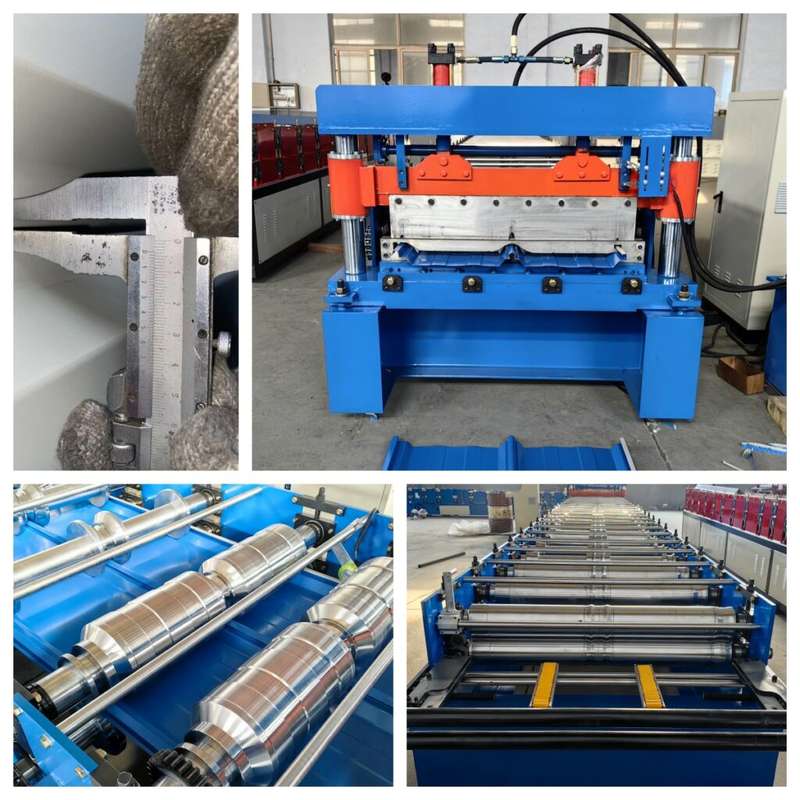

Product images：
