Snap Lock Standing Seam Metal Sheet Roll Forming Machine

The Snap Lock Standing Seam Metal Sheet Roll Forming Machine converts metal coils into interlocking standing-seam roof tiles through a continuous cold-forming process. The metal coil is first fed into the machine by an uncoiler, flattened by a leveler, and then passed through a series of forming stations. In these stations, the metal sheet is gradually cold-formed into the desired tile shape. Finally, a seam welder folds and presses the seams together, creating a secure standing seam. The entire process is precisely controlled by a PLC control system, enabling automated production.

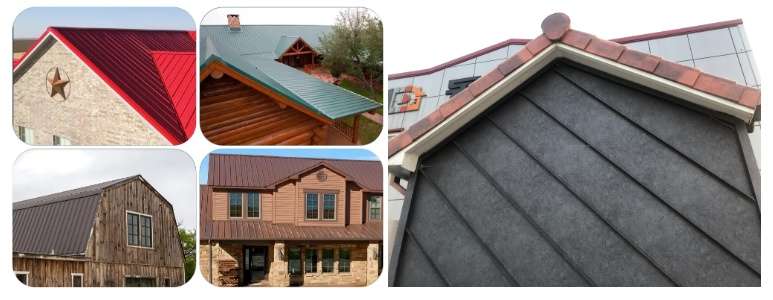

Applicable Scenarios：

1. Roof Waterproofing: Suitable for roofs with gentle slopes. The standing seam design enhances waterproofing and prevents rainwater seepage.
2. Lightweighting: Commonly used in weight-sensitive buildings such as residential areas, individual tiles are lightweight and easy to install.

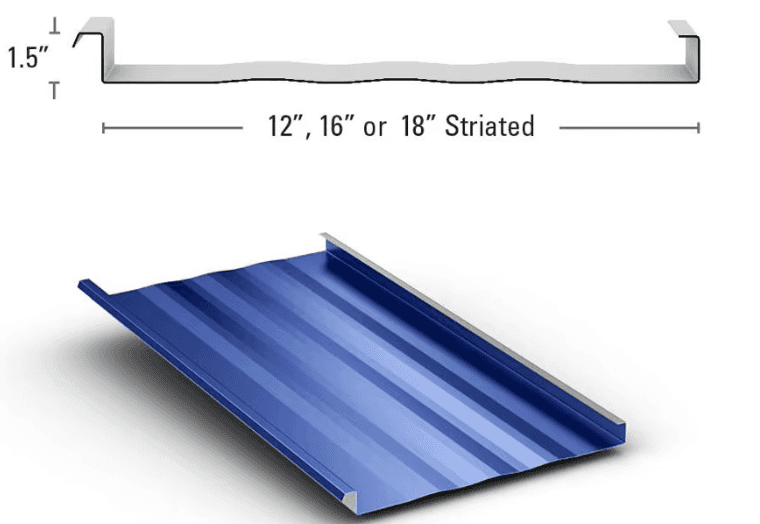

Pattern drawing:

Product Attributes ：

1.Formed Material	PPGI,PPGL,AI,Etc.		Material Thickness:0.4-0.8mm
2.Decoiler	Hydraulic decoiler(optional)		Manual decoiler(will give you as free）
3.Main body	Roller station		Due to your requirement profile
	Diameter of shaft		Due to your requirement profile
	Material of rollers		High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
	Machine body frame		Due to your requirement profile
	Drive		gear and Double Chain transmission/gearbox transmission optional
	Dimension(L*W*H)		Due to design
	Weight		Due to design
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW(normally)
	Hydraulic system power		5.5KW
6.Voltage	As your requirement		As your requirement
7.Control system	Electric Box		Customized(famous brand)
	Language		Support multiple languages
	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	0-80m/min		Provide customized

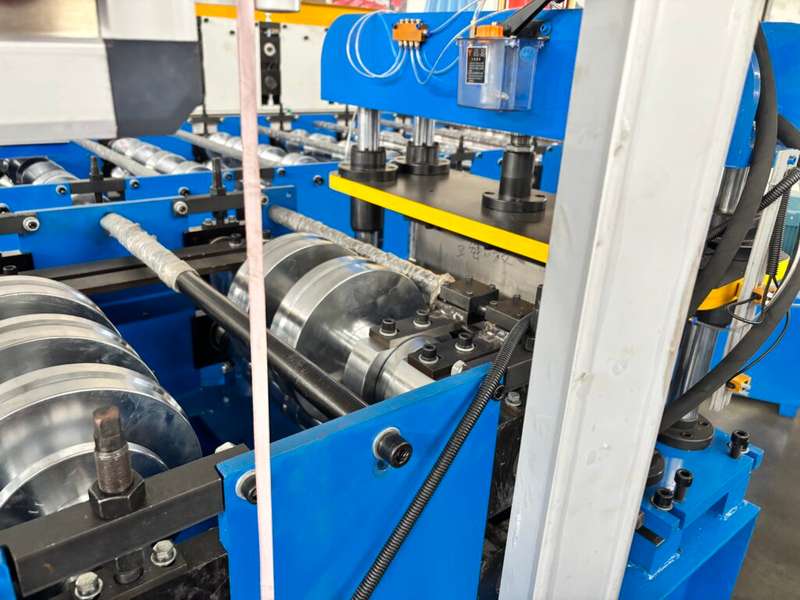

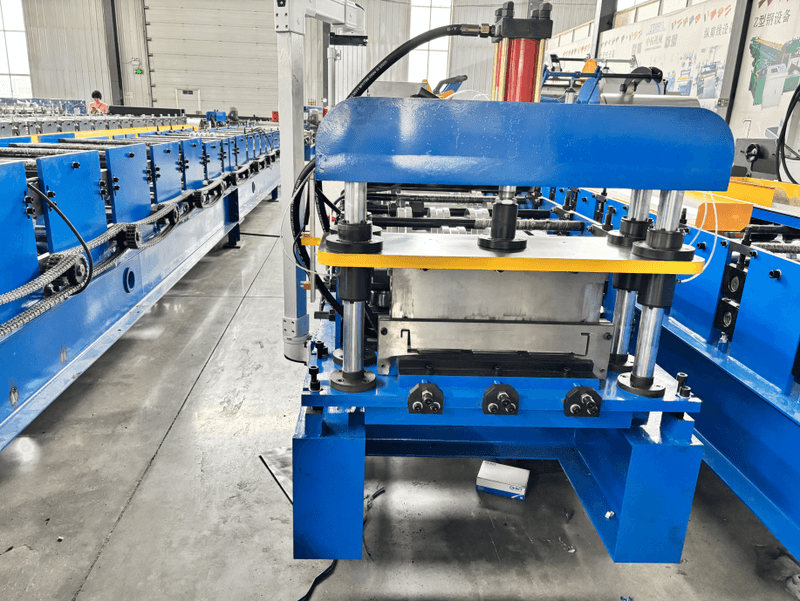

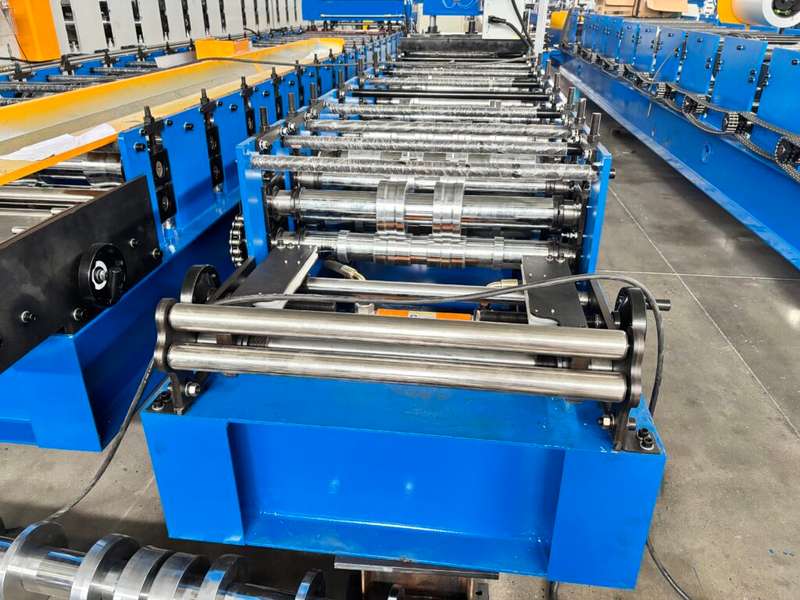

Product images：
