Materail thickness: 2.5mm

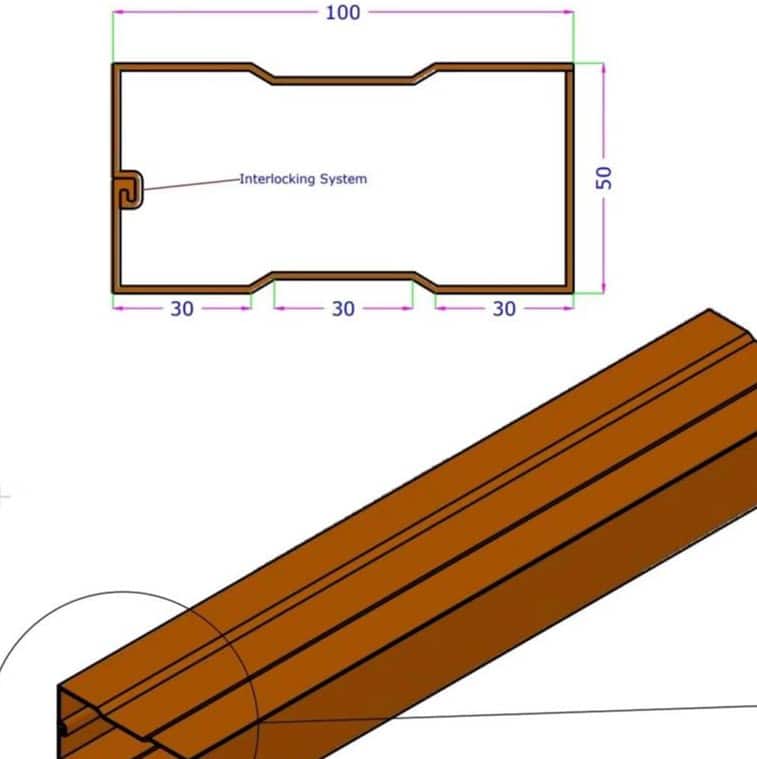

Size: 40*70 50*100 50*125

The machine is composed by the following elements:
Un-coiler (3 tons ) MANUAL, leveling and Roll former system, Hydraulic cutter, PLC control cabinet, Output table with rollers(6 meters), Gear box with universal joint transmission.

Un-coiler
1. Capacity: 3 tons
2. Material: #45 steel quenched
3. Inner diameter: 410~ 580mm
Level device
1. roller: 7
2. Material: Cr12 steel quenched
3. diameter: φ150mm

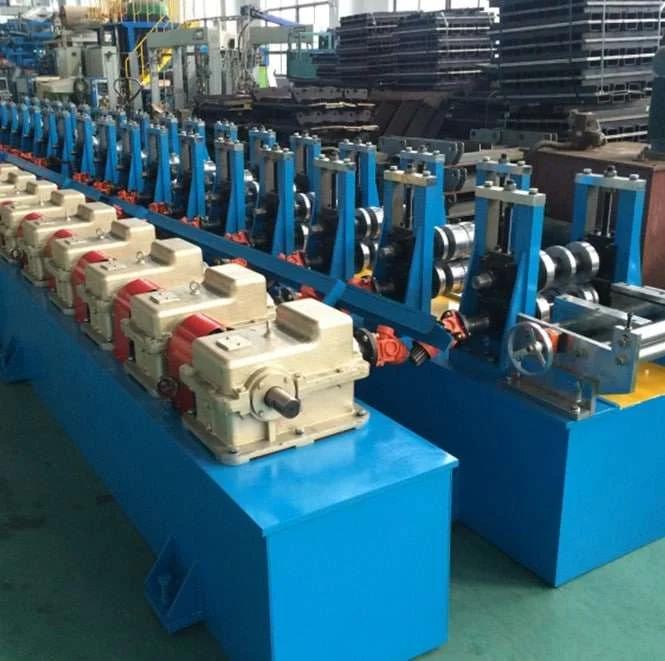

Mainroll former
1. stations of rollers : 22
2. Rollers material: CR 12; HRC 60. Chrome coated: 0.03~0.05mm. the Strength in Mpa :70
TON,800 MPA
3. Shaft material: Diameter: 80mm, material is #45 steel. Quenched: hot treatment. The strength
of the Main Shaft in Mpa:70 tons, 650MPA
4. Bearing brand: FAG Germany
5. Main Motor: 15KW X 2 sets, 380V, 50HZ
6. Gear box with universal joint transmission system
CHAMICAL COMPOSITION

PLC Control Cabinet:
1. Touch screen brand: DELTA
2. PLC brand: DELTA
3. Inverter brand: DELTA
4. Main components for low pressure electricity: Schneider Germany
Output table
1. Length: 6 meters
2. Drive type: Rollers
CUTTING PLATFORM
1. Cutting type: Hydraulic cutter
2. Motor: 3KW;380V;50HZ
3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950
