The strut channel cable tray rollforming machine is designed to produce different sizes of strut channel cable trays through punching moulds. This kind of machine is manufactured by ZhongTuo Machinery cable tray roll forming machine line. We can also manufacture cable ladder making machine, solid bottom cable tray making machine and so on. If you are interested in our machines, please do not hesitate to contact us!

Here is a video of our machine for your reference:

The basic strut channel sizes are: 41*41. 21*21, and there are also some customized shapes.

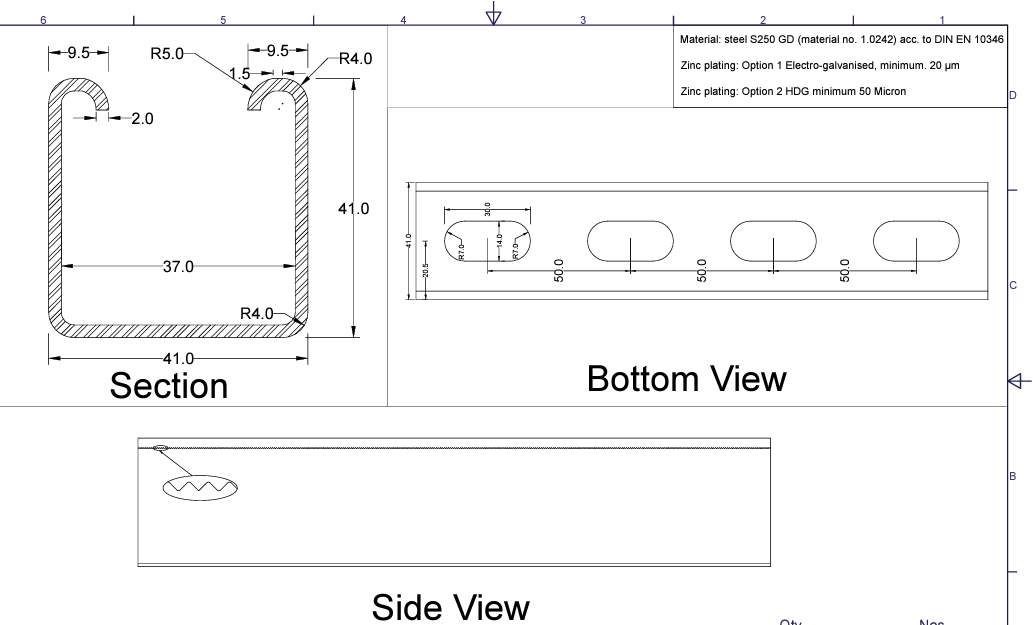

Here are pictures of drawing profile and finished product show for your reference:

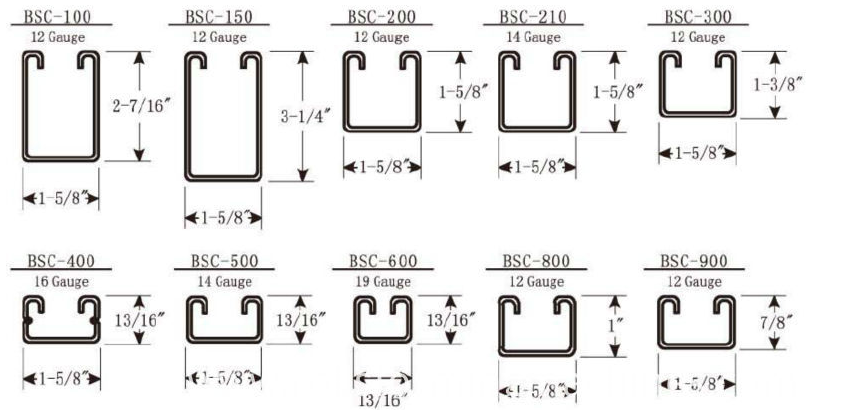

Here are some other sizes of strut channel cable trays:

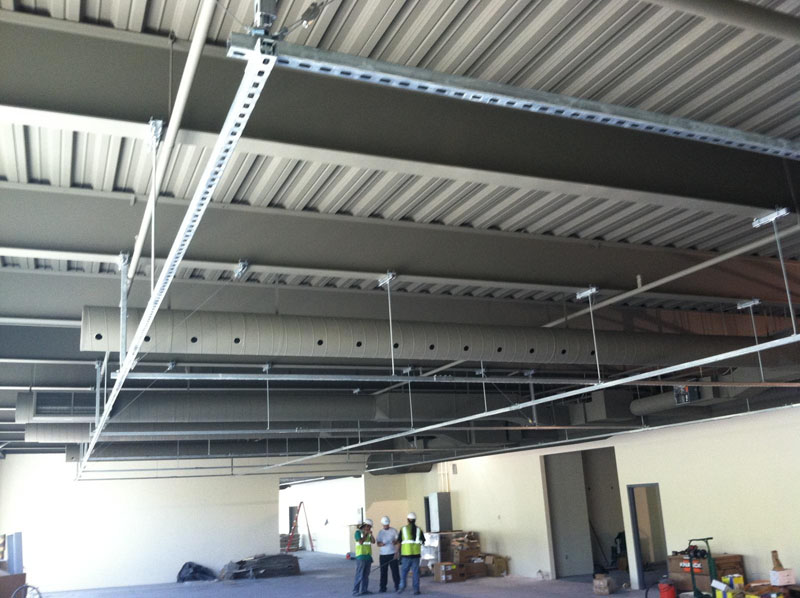

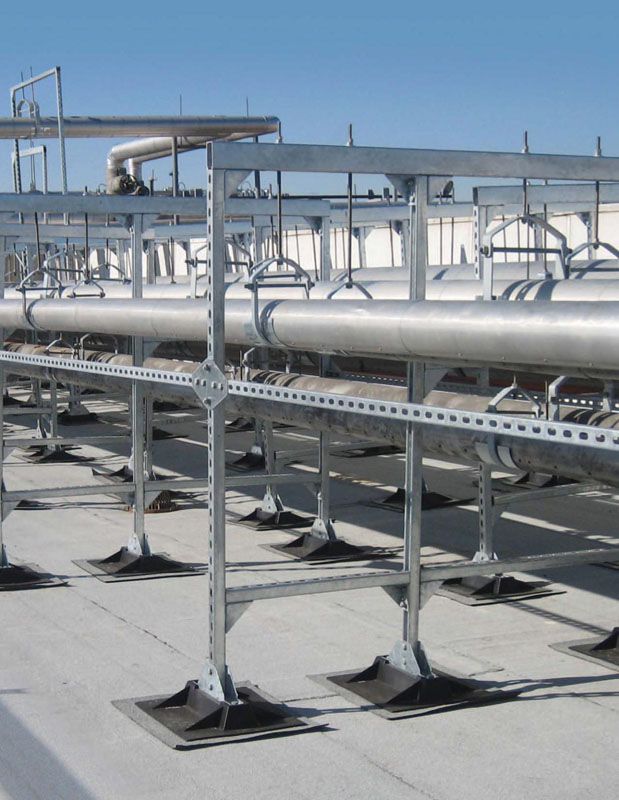

The applications of the strut channel cable tray:

The features of strut channel cable tray roll forming machine:

1. Structure of the machine is simple and easy to install.
2. The machine is at a light weight and in a beautiful shape.
3. The machine is at a lower cost and will help save labor cost.
4. The machine can be installed into different types, such as suspended type, vertical type, side wall type, unilaterla type and so on, under different environmental conditions.

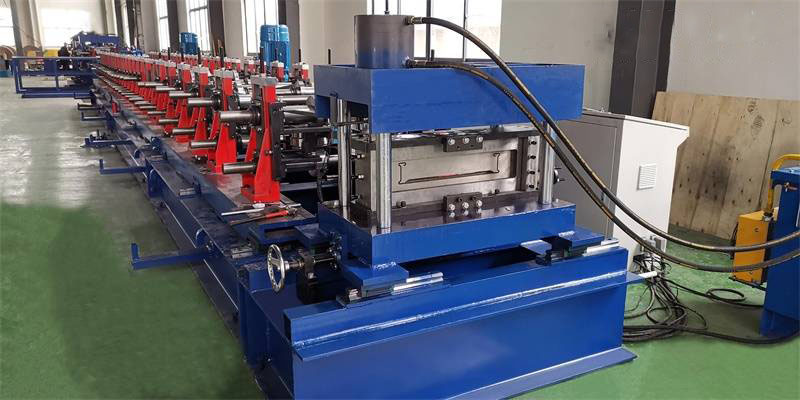

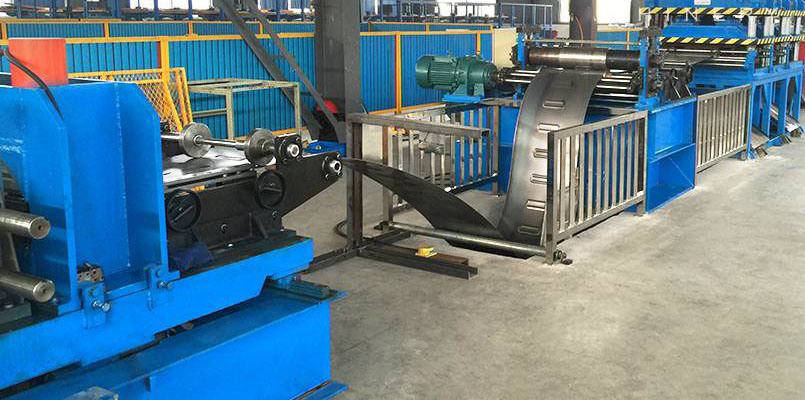

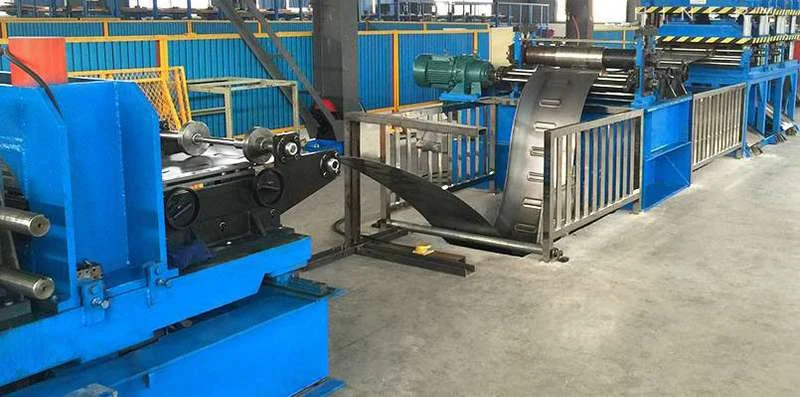

Here are some pictures of our machine for your reference:

The main elements of the strut channel cable tray rollforming machine:

1. 3 ton manual vertical decoiler one set
2. Feeding&leveling device one set
3. Punching machine with mold one set
4. Roll forming system one set
5. Hydraulic cutting device with cutters
6. PLC control system
7. Product receiving table one set

The specifications of the strut channel cable tray rollforming machine:

• Raw material thickness: 1.5mm-2.5mm
•  Rolling stations: 21 stations
• Shaft diameter size: 60mm
• Shaft material: 40Cr tempering treatment
• Forming speed: 15m/min
• Driving motor power: 18.5kw
• Hydraulic motor power: 7.5kw
• Punching pressure: 80 tons
