Supermarket Storage Rack Shelf Panel Making Machine is a specialized cold bending machine used for producing the core load-bearing component of storage shelves – columns. It is widely used in manufacturing fields such as logistics warehousing, supermarket display shelves, and industrial shelves. This type of equipment achieves automated continuous production of shelf columns through processes such as uncoiling, leveling, punching, roll forming, and cutting to length. It has the characteristics of high precision, high efficiency, and strong customizability.
Main functions and process characteristics:
1.High precision punching and forming
The equipment integrates servo feeding and hydraulic punching systems to ensure consistent hole spacing and meet the precise hanging requirements of shelf crossbeams. Some high-end models adopt 18 sets of roller forming technology to ensure stable column cross-sectional dimensions and enhance overall structural safety.
2.Widely applicable materials
Cold rolled steel plates or C-shaped steel with a thickness between 0.6mm and 3.0mm can be processed to meet the production needs of light, medium, and heavy-duty shelves.
3.High degree of automation
Equipped with a fully automatic material receiving and stacking system, such as an electric permanent magnet handling device, to achieve unmanned stacking and improve production efficiency.

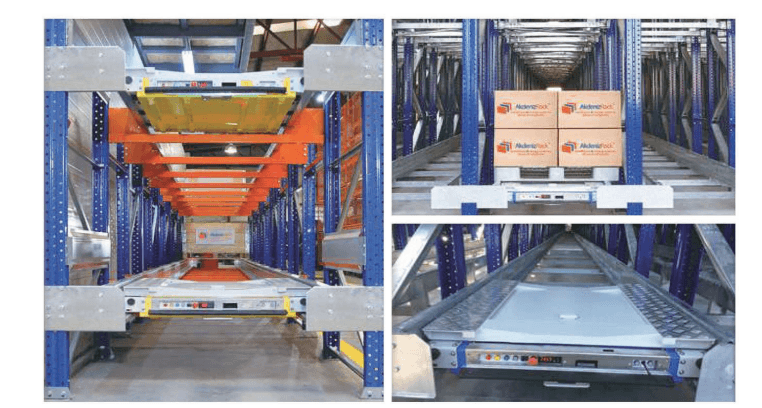

Application scenarios and structural adaptation:
- Supermarket shelves:
The columns are mostly made of C-shaped steel double-sided punched structures with a hole spacing of 50mm, making it easy to adjust the shelves. - Cantilever shelving:
The columns are often made of H-shaped steel or cold-rolled steel, and prefabricated holes are used to connect the cantilever beams, suitable for storing materials of equal length such as pipes and plates. - Heavy duty storage shelves:
The columns are bent from hot-rolled plates, equipped with adjustable hole spacing, and can be freely adjusted in height with crossbeams. A single set of columns can bear several tons of weight.

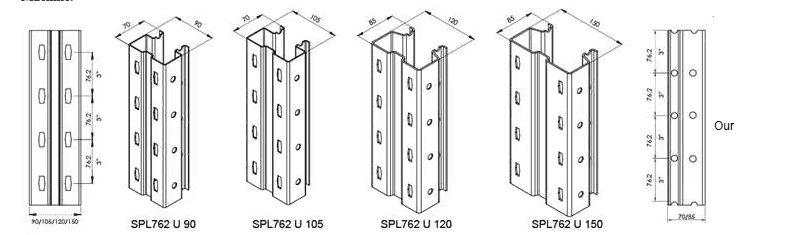

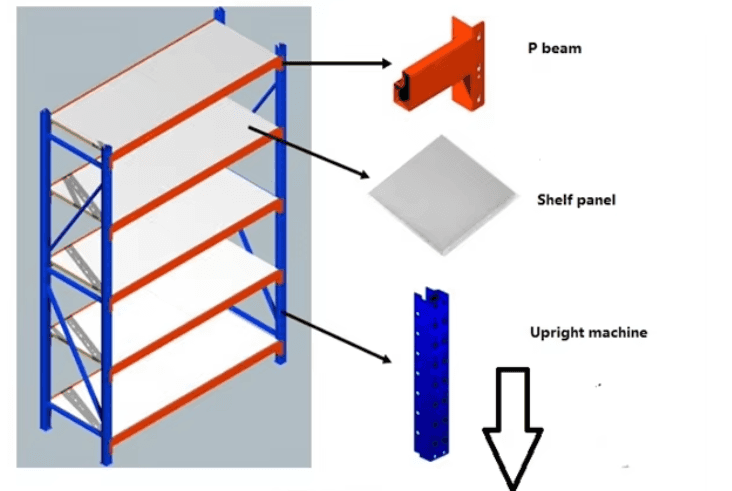

Pattern diagram:
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:1.5-2.7mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 16 rows(As your requirement) | ||
| Diameter of shaft | 70mm solid shaft | |||
| Material of rollers | Cr12 with quenched treatment | |||
| Machine body frame | Metal steel welded | |||
| Drive | gearbox transmission | |||
| Dimension(L*W*H) | 7500*1200*1400(customize) | |||
| Weight | About 8T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 2*11KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 15m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

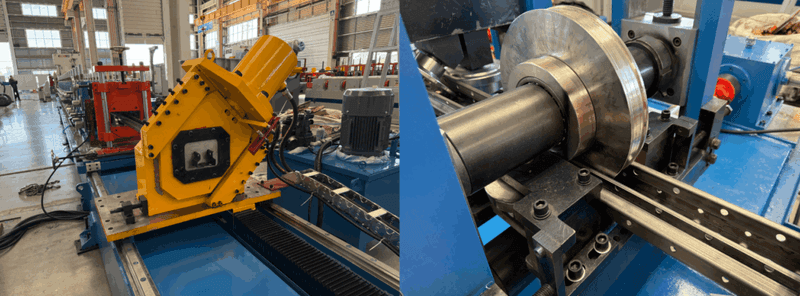

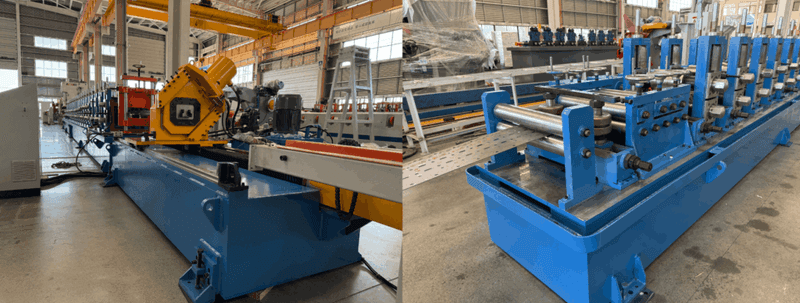

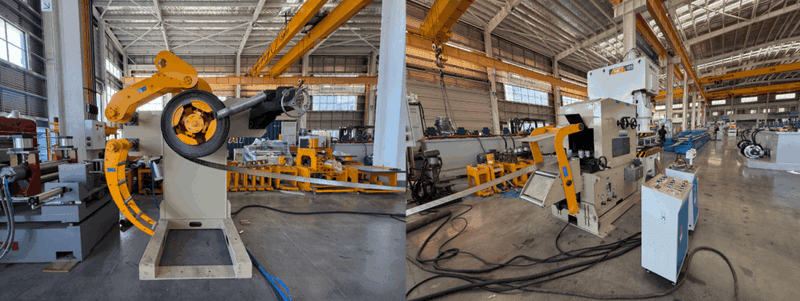

Machine photo:
