Description of TR4 TR5 TR6 Trapezoid Profile Roll Forming Machine For Peru

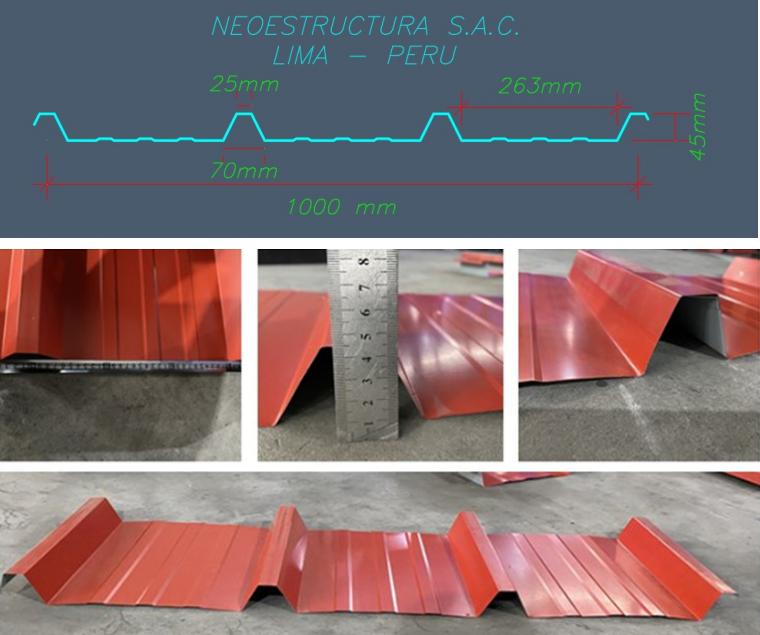

The TR4 TR5 TR6 Metal Roofing Sheet Trapezoid Profile Roll Forming Machine For Peru is designed to make the Trapezoid roofing sheet in batch for the Peru market. TR4 TR5 TR6 Aluzinc Roof Sheet Roll Forming Machine for Peru Market is one most popular type of roll forming machines in Peru Market. It makes different shape of color steel roof sheet, which is used for buildings roof, factory, supermarket ect. For this machine, it suit coil width is 1200&1250 mm, thickness range is from 0.3mm to 0.8mm.

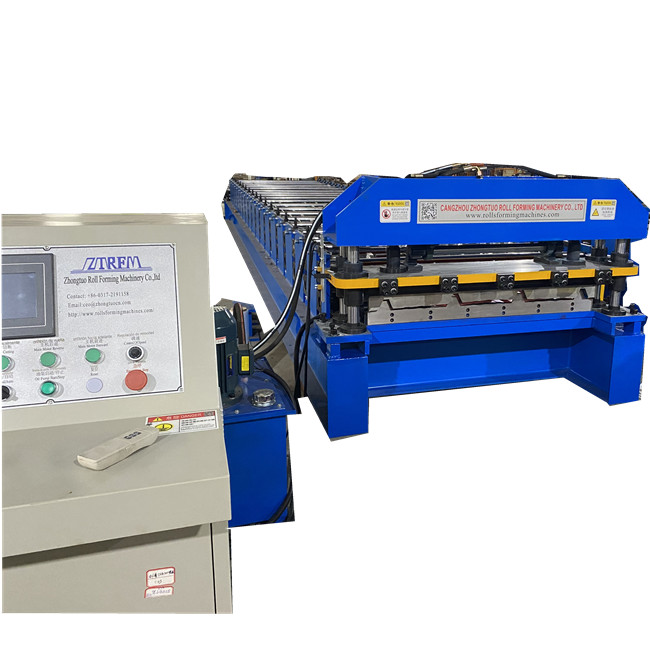

Pictures of TR4 TR5 TR6 Metal Roofing Sheet Trapezoid Profile Roll Forming Machine

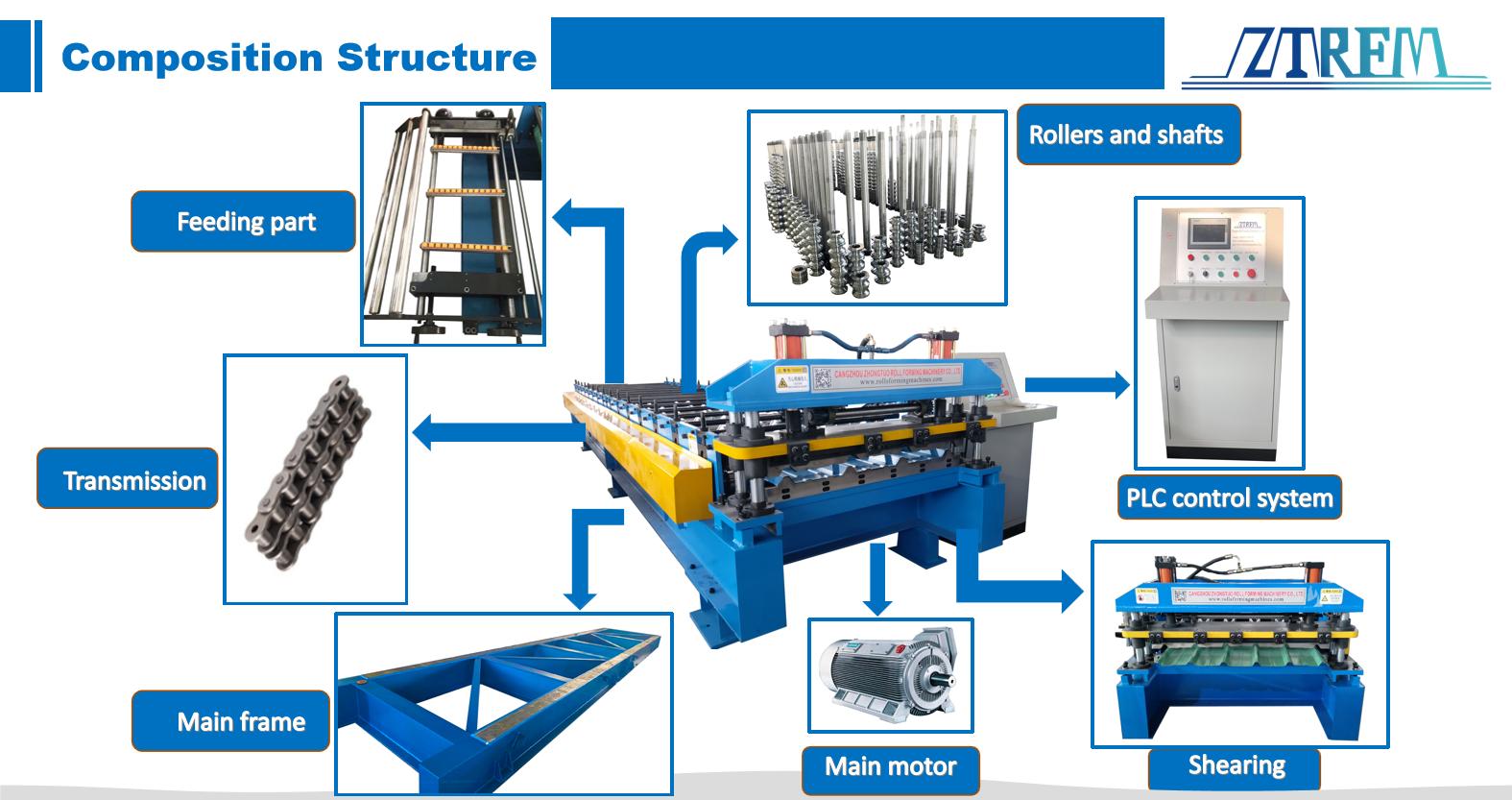

Elements of TR4 TR5 TR6 Metal Roofing Sheet Trapezoid Profile Roll Forming Machine:







(1) For the feeding part, we use the roller design to protect the surface of the coil.

(2) For the transmission, we use the double chain.

(3) For the base frame, we use the strong with more supporting to make sure the machine working more steady.

(4) For the main motor we use Siemens, if you need we can customize according to your needs.

(5) For the shearing part, we use two pillar supporting shearing to make sure the shearing more accuracy and long time to use.

(6) PLC more friendly using touch screen interface.

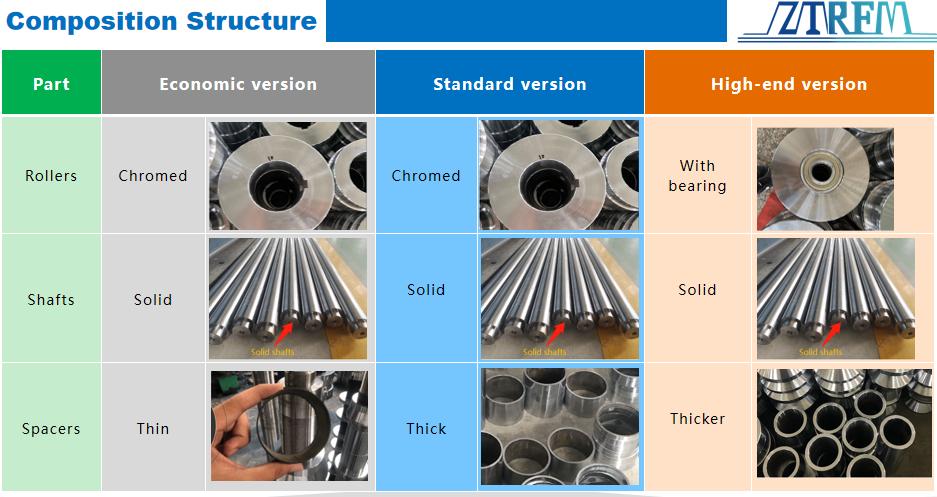

(7) For the rollers are with the key note and good chroming to make sure long time to use.

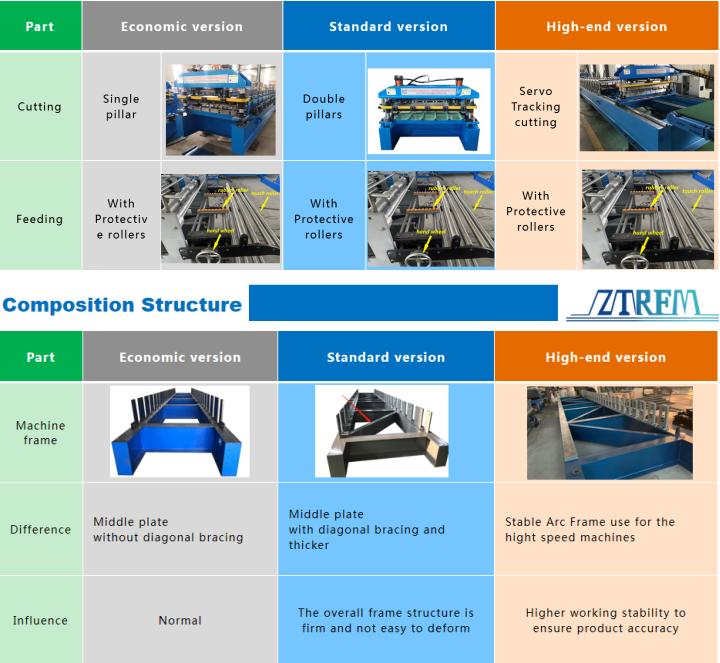

Through those different versions, you can choose the better one for all elements. Either higher speed or normal speed, we can both customize for you.

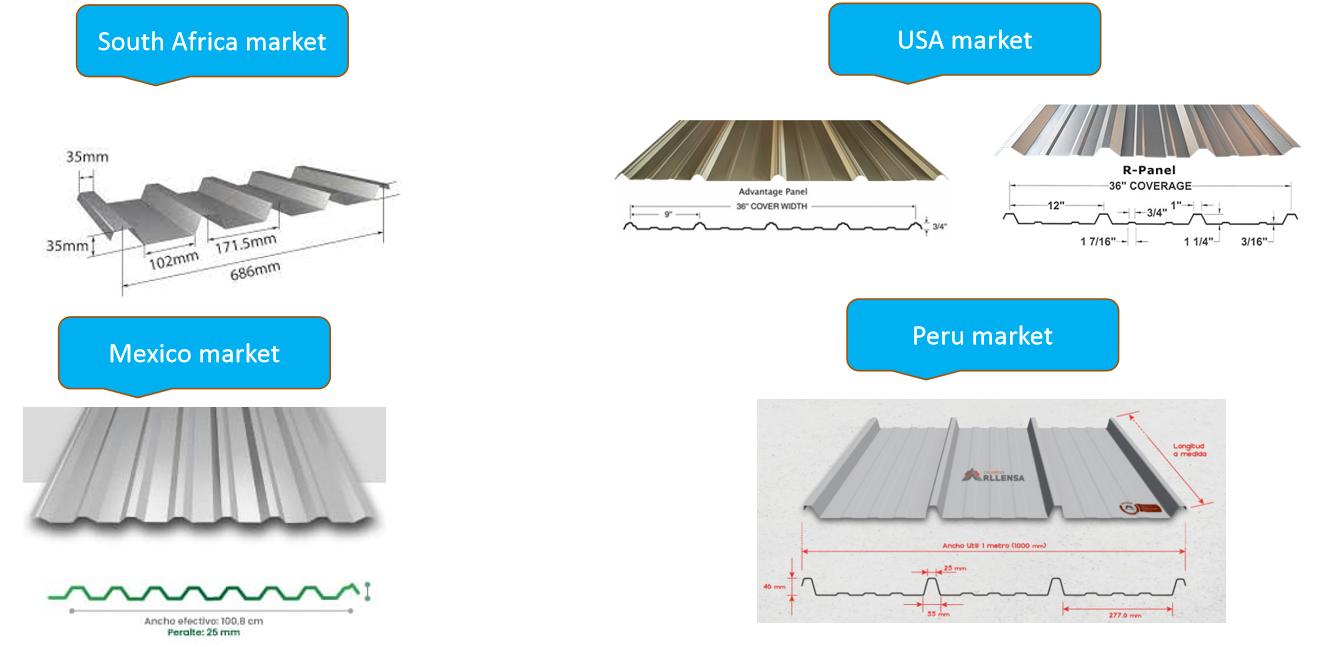

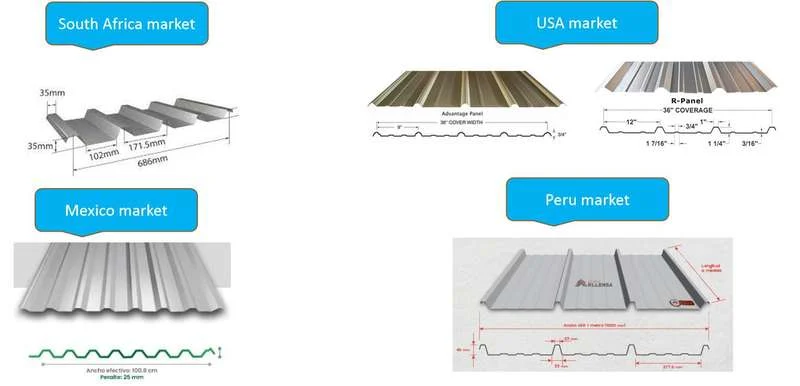

For the south American, there are more popular designs for your reference:
