Trapezoidal roof tiles are widely used in industrial plants, rural self built houses, municipal platforms, resettlement housing communities, and other scenarios due to their stable structure, tight overlap, and high cost-effectiveness. Traditional trapezoidal tile production relies heavily on manual cutting of metal sheets or single process molding equipment, often resulting in problems such as irregular tile edges and corners, poor overlap groove accuracy, high water leakage hazards, and inability to keep up with orders. Trapezoid Tile Roof Wall Panel Roll Forming Machine, with its core design of “automated molding+precise shape control”, completely solves the pain points of traditional production and has become an essential equipment for large-scale and high-quality production of trapezoidal tiles.

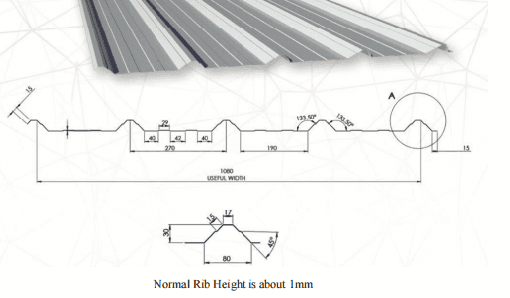

Pattern diagram:
Key advantages:
- Fully automated production, doubling production capacity and improving efficiency
- Multi specification compatibility, quick production change
- Energy conservation, cost reduction, and efficiency improvement
Product Attributes ：
| 1.Formed Material | PPGI,PPGL,AI,Etc. | Material Thickness:0.3-0.8mm | ||
| 2.Decoiler | Hydraulic decoiler(optional) | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | Due to your requirement profile | ||
| Diameter of shaft | Due to your requirement profile | |||
| Material of rollers | High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm) | |||
| Machine body frame | Due to your requirement profile | |||
| Drive | gear and Double Chain transmission/gearbox transmission optional | |||
| Dimension(L*W*H) | Due to design | |||
| Weight | Due to design | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW(normally) | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | As your requirement | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | Support multiple languages | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 0-80m/min | Provide customized | ||

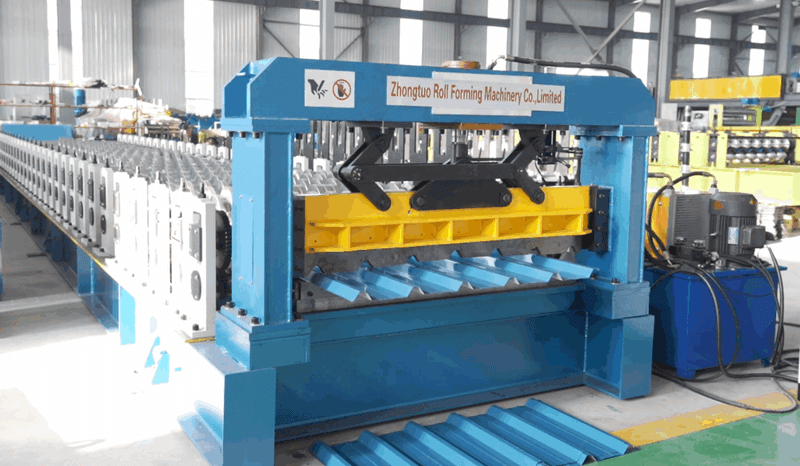

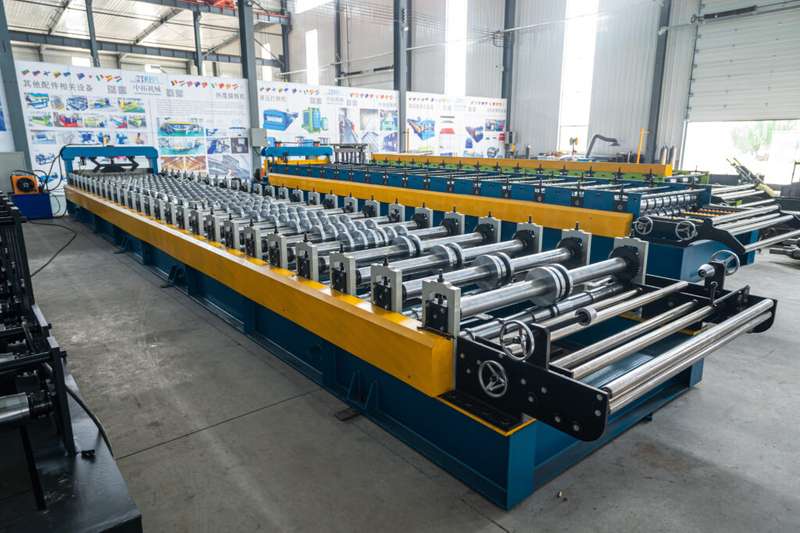

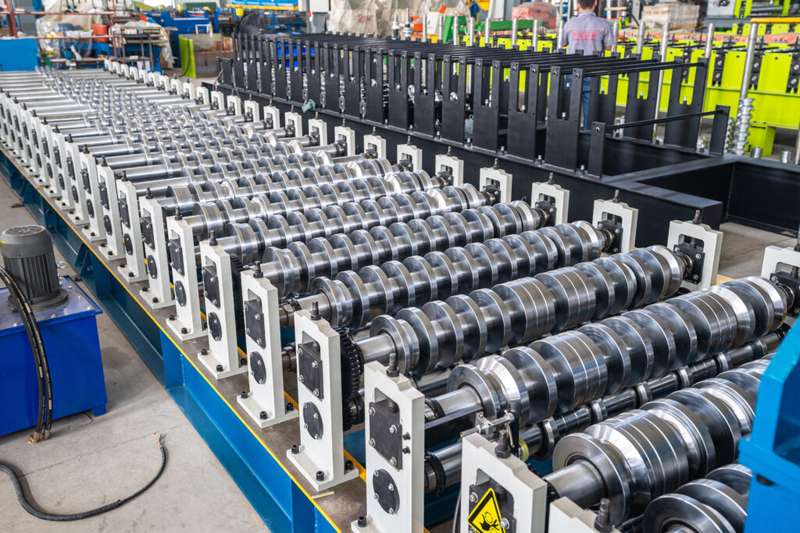

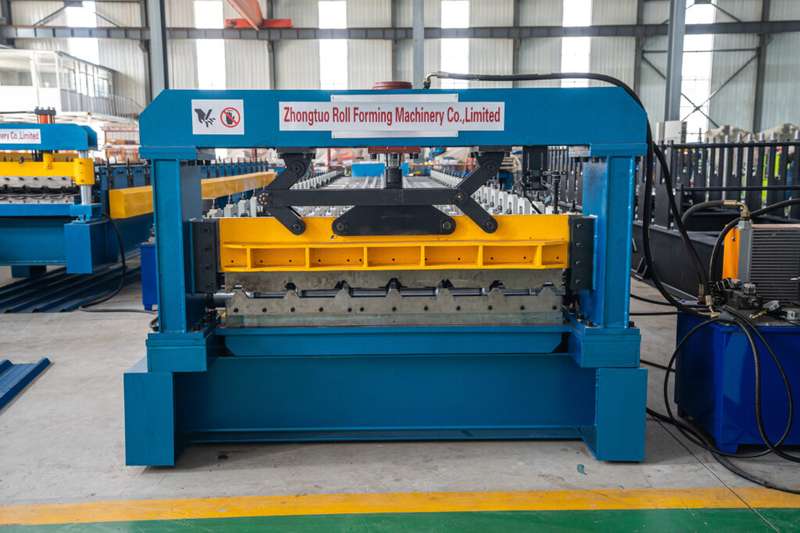

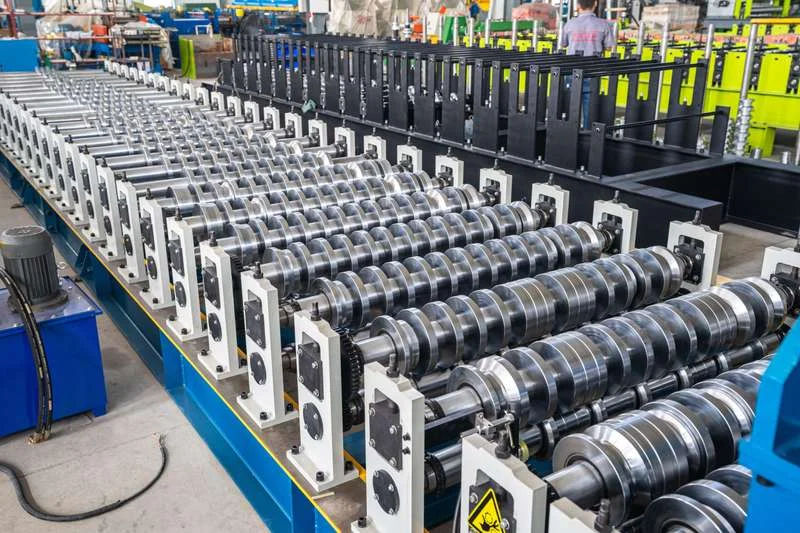

Machine image:
