The U Channel Machine UD Strut Channel Roll Forming Machine, also known as the U Channel cold bending forming machine or the U Channel roll forming machine, is a specialized piece of equipment that processes strip steel into U-shaped cross-section Channel profiles through a continuous cold rolling forming process. As an important member of the keel machine family, this equipment uses galvanized steel or aluminum strip as raw material and completes the fully automated production of U-Channels in one go through multiple processes including uncoiling, cold bending, punching, and cutting to length.
Product Features of U Channel Machine ：
- Fully automatic intelligent control; one person can operate the entire production line.
- High-precision molding; stable and reliable quality.
- Robust and durable structure; strong load-bearing capacity.
- High-efficiency production; significantly increased production capacity.
- Flexible form changeover; multi-purpose machine.
- Energy saving and consumption reduction; green production.
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.35-0.6mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 16 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gear transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 4.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW*2 sets | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-45m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

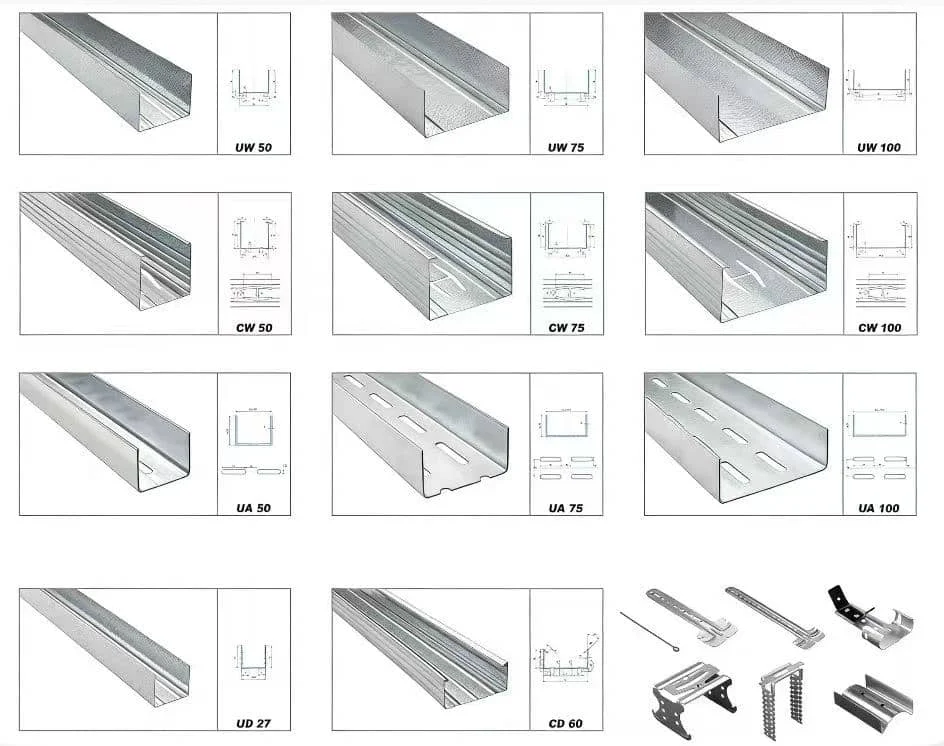

Pattern drawing：

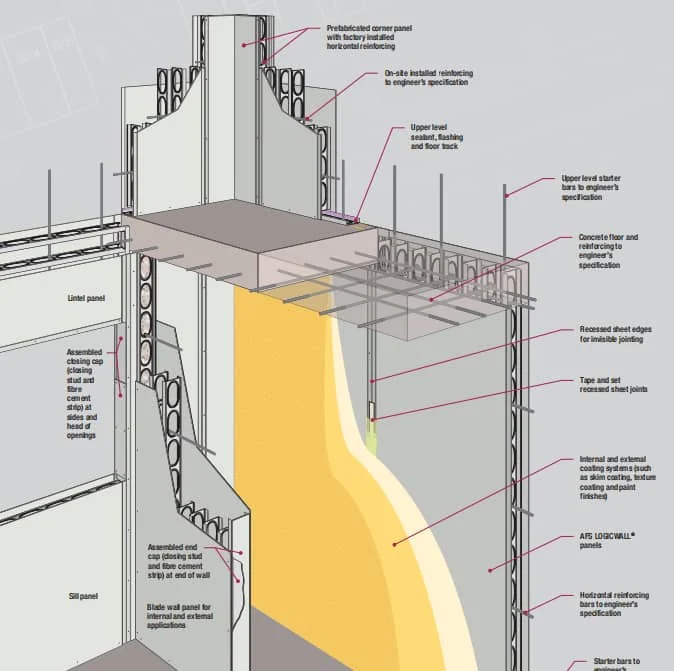

Application Scenarios：
- Building Partition Wall Systems
- Ceiling Decoration Projects
- Light Steel House and Villa Construction

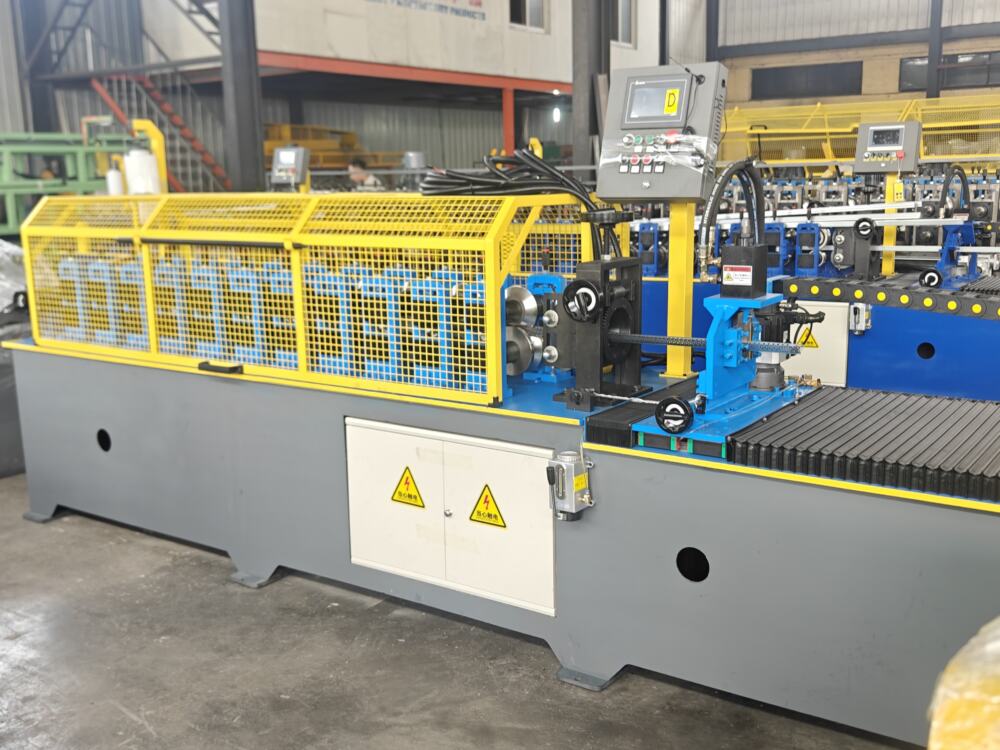

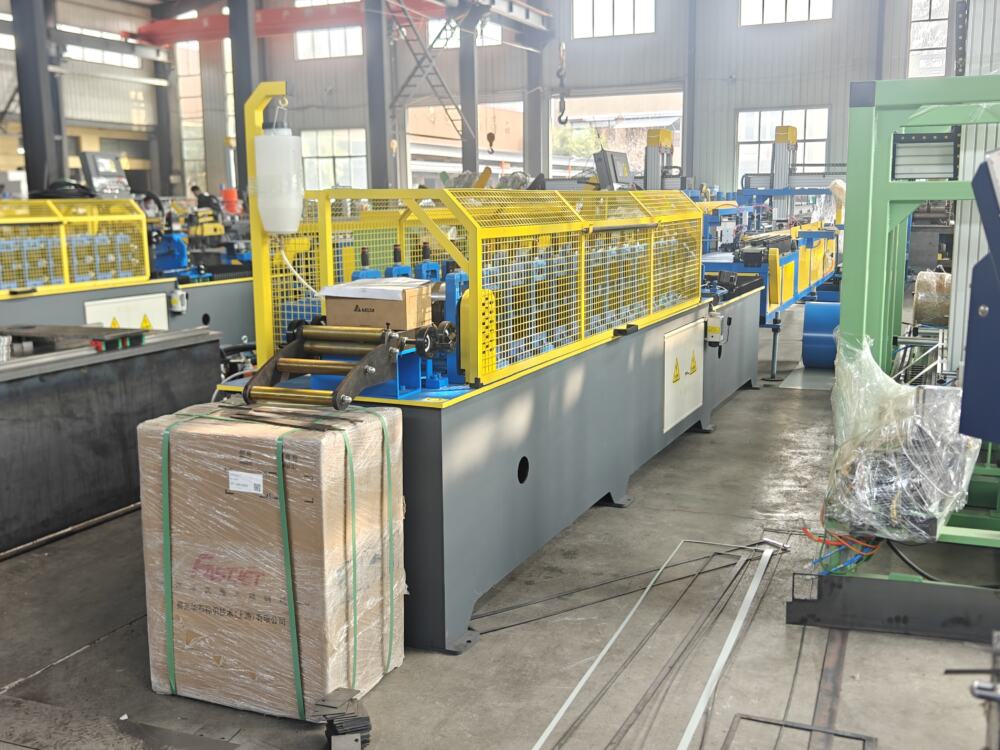

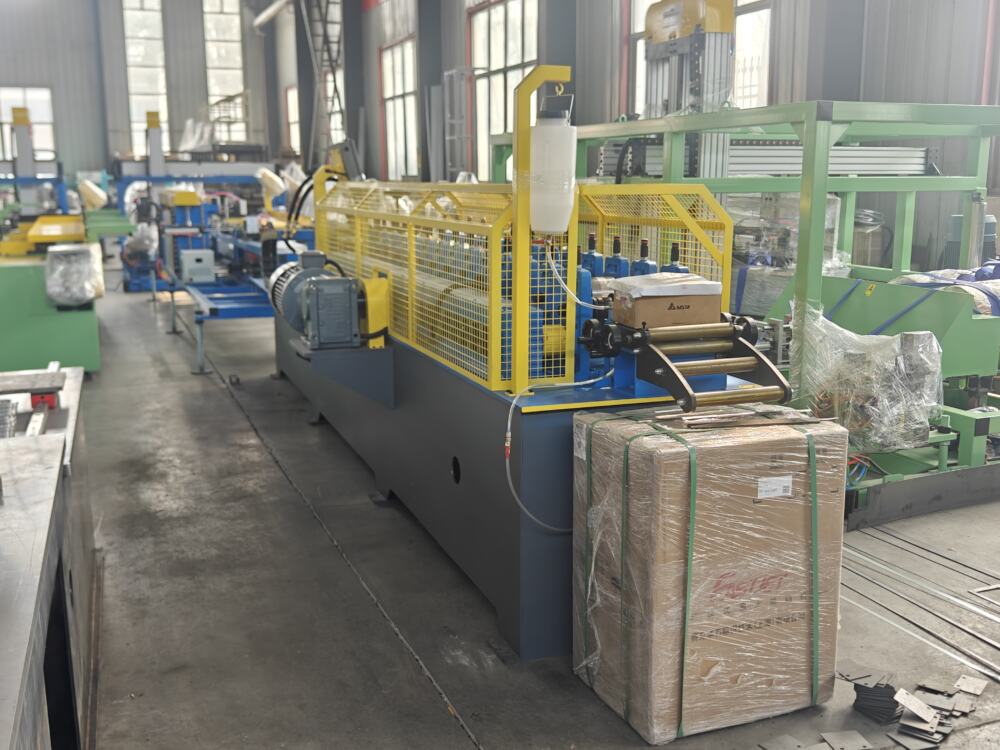

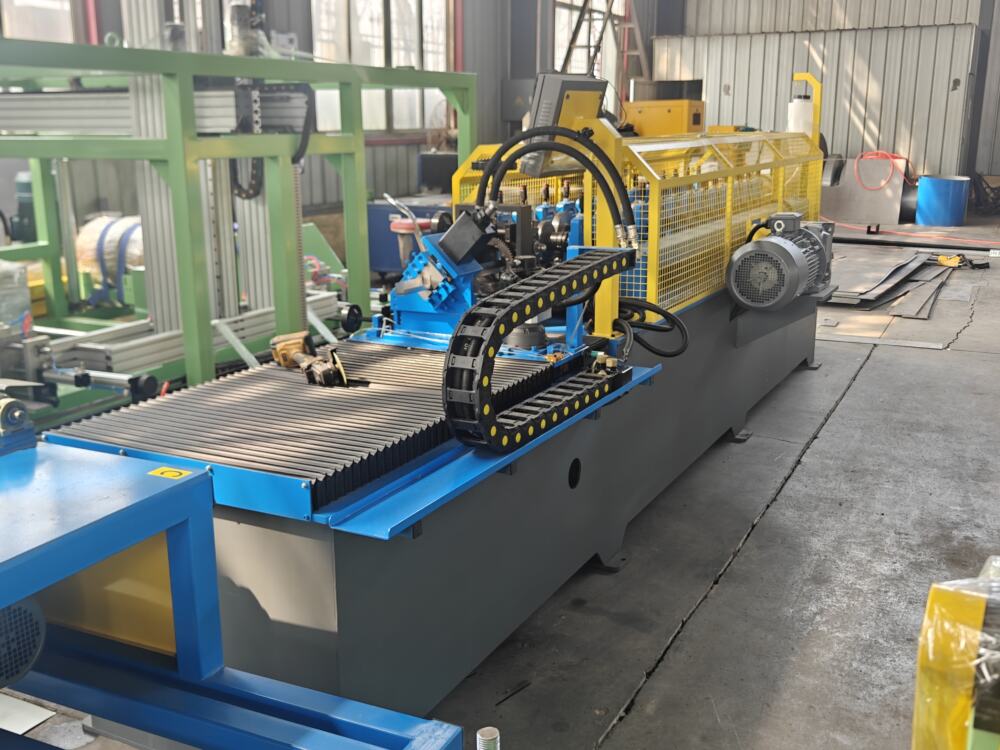

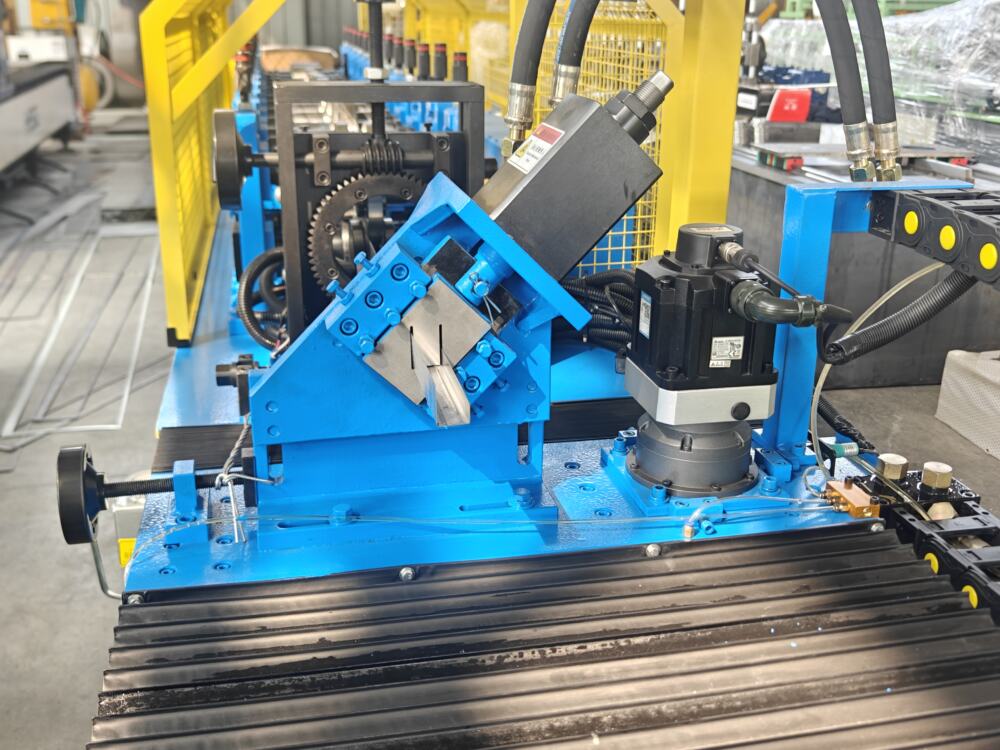

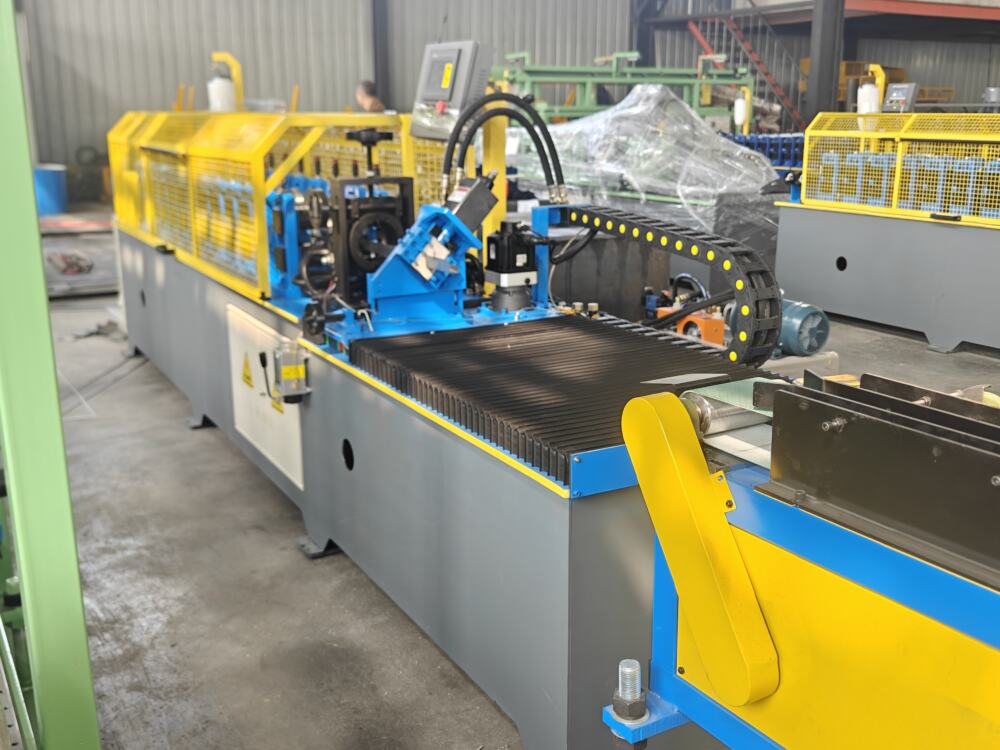

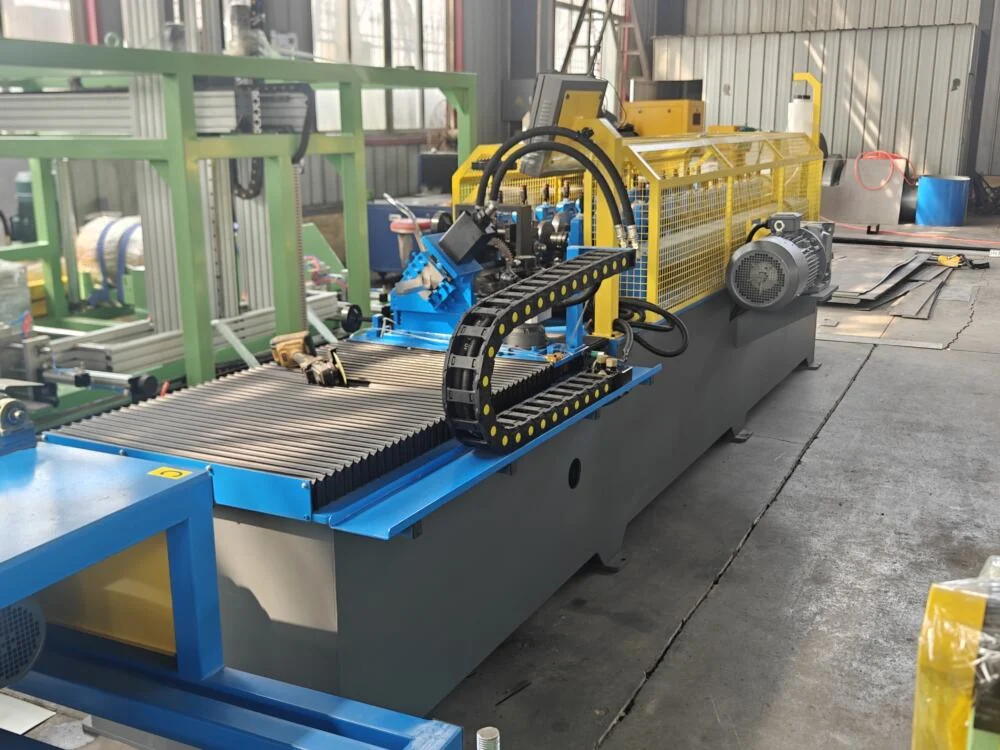

Machine photos:
Contact Us：
The U channel forming machine, with its outstanding advantages of intelligent control, high-precision forming, efficient production, and flexible changeover, has become the core equipment for light steel keel production enterprises to reduce costs, increase efficiency, and enhance market competitiveness. With the vigorous development of prefabricated and green buildings, the U channel forming machine will surely usher in a broader market prospect.
