U Channel Metal Stud and Track Making Machine for Drywall Profiles is the core equipment for producing light steel keels for buildings, and is widely used in the manufacture of non-load-bearing partition wall systems and ceiling keel frames. It is usually composed of core components such as an uncoiler, forming host, hydraulic cutting system, hydraulic pump station, electrical control system (PLC) and discharge rack.
Key Features：
- High degree of automation and intelligent control
- High-efficiency production and high precision
- Robust and durable structural design
- Broad material compatibility and customizability
Product Attributes:
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-1.0mm | ||

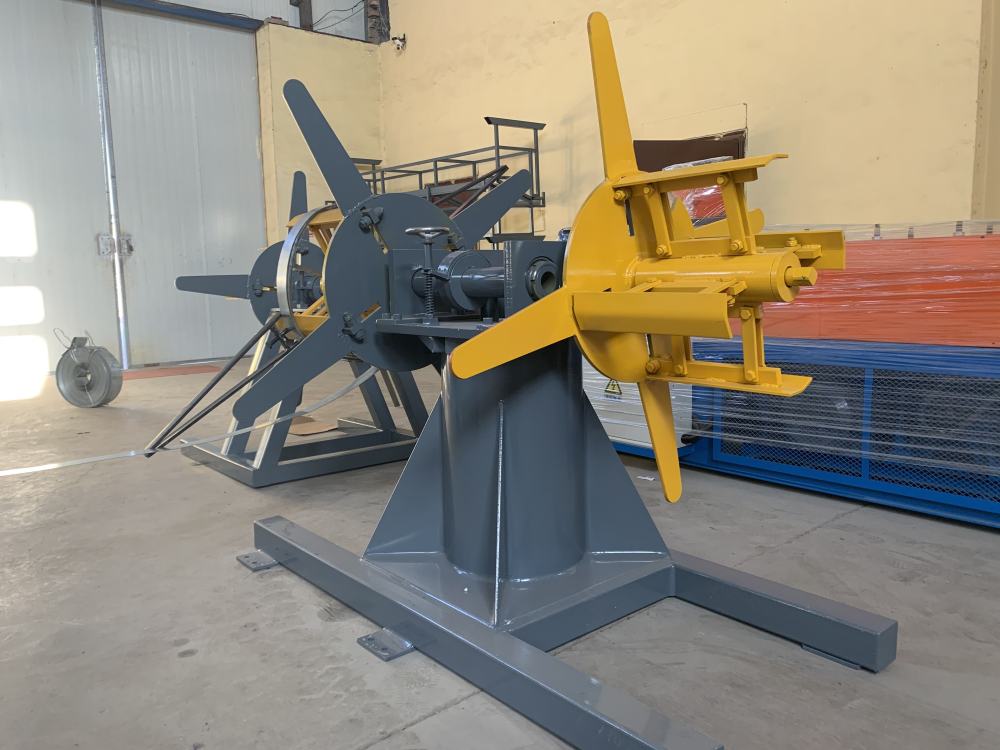

| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chains transmission | |||
| Dimension(L*W*H) | 7800*800*1200(customize) | |||
| Weight | About 4.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW*2 sets | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-100m/min(customized) | Different speed designs for options. | ||

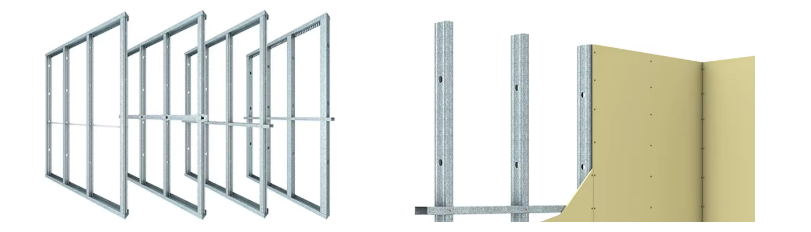

Application Scenarios：
- Non-load-bearing partition wall systems
- Ceiling keel frame
- Interior decoration and finishing

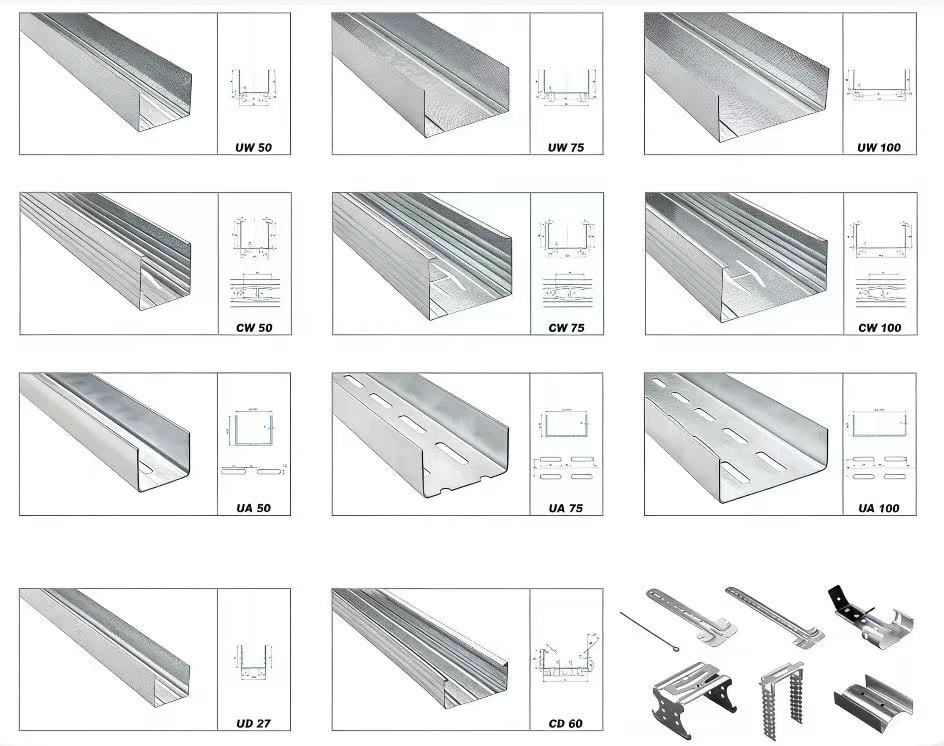

Pattern diagram:

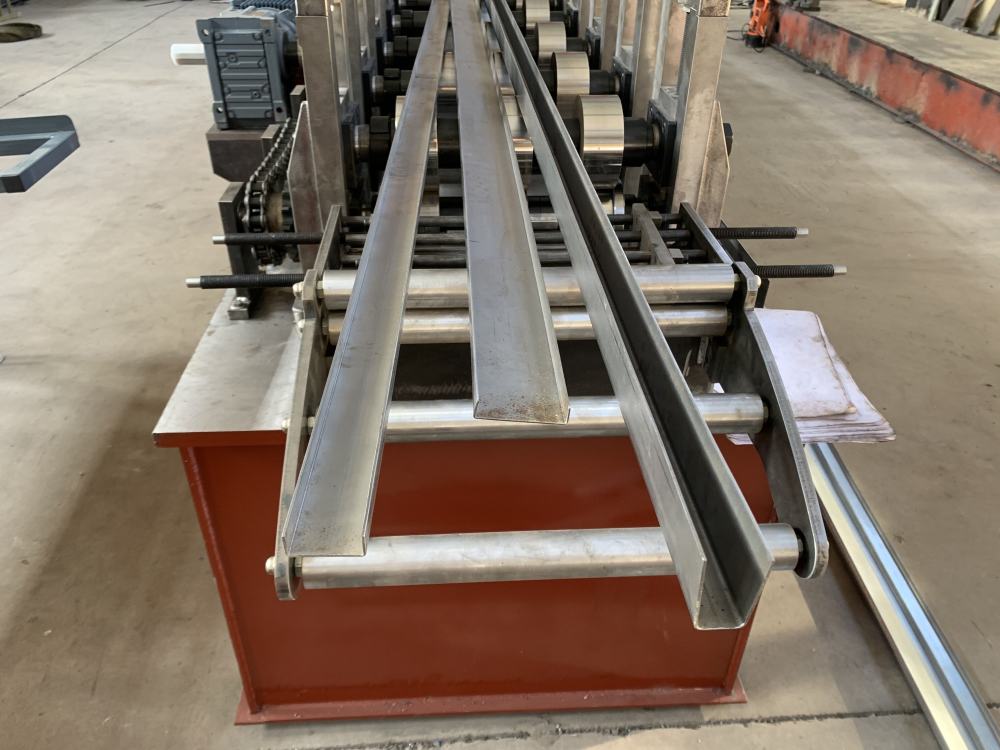

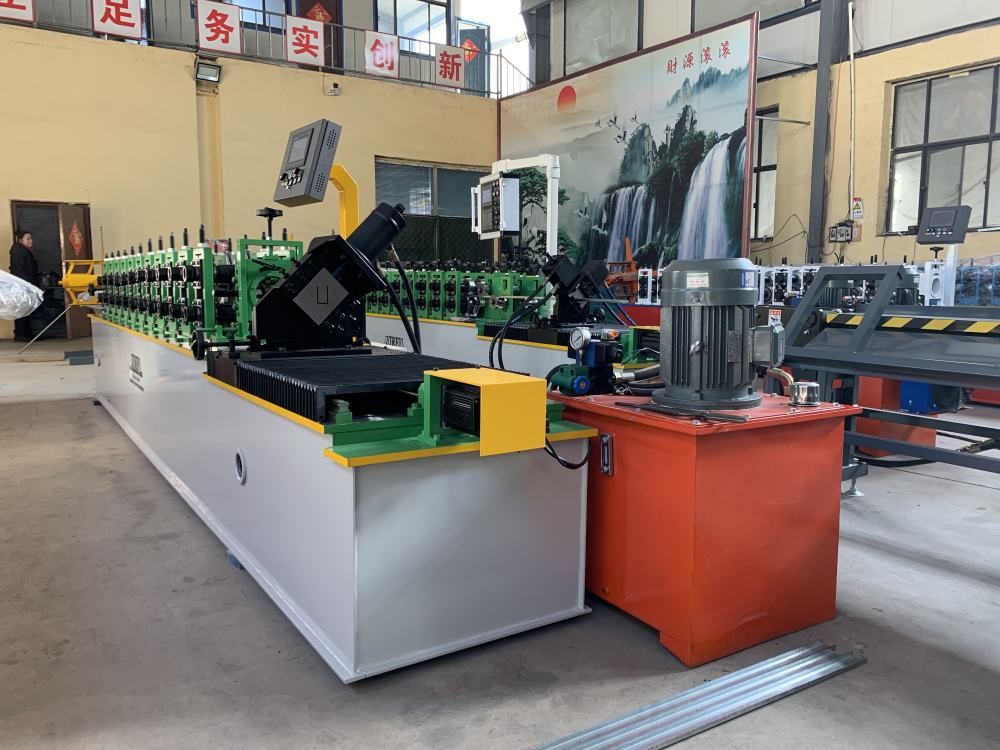

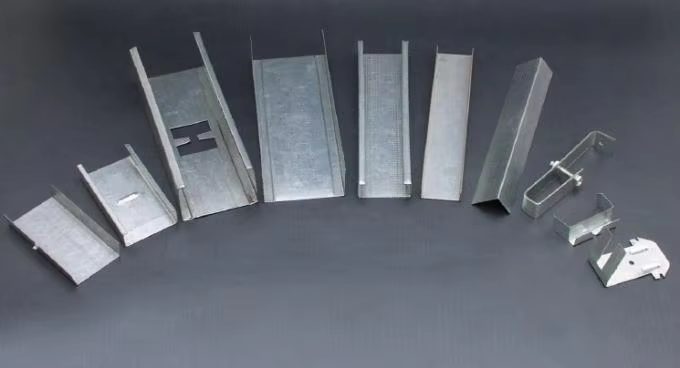

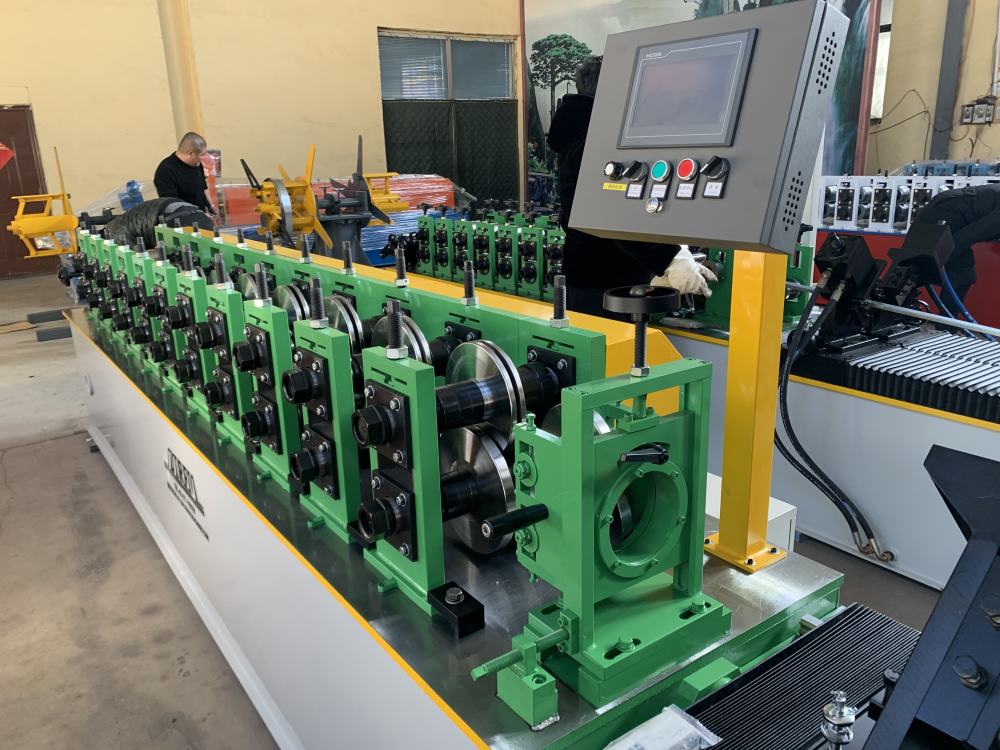

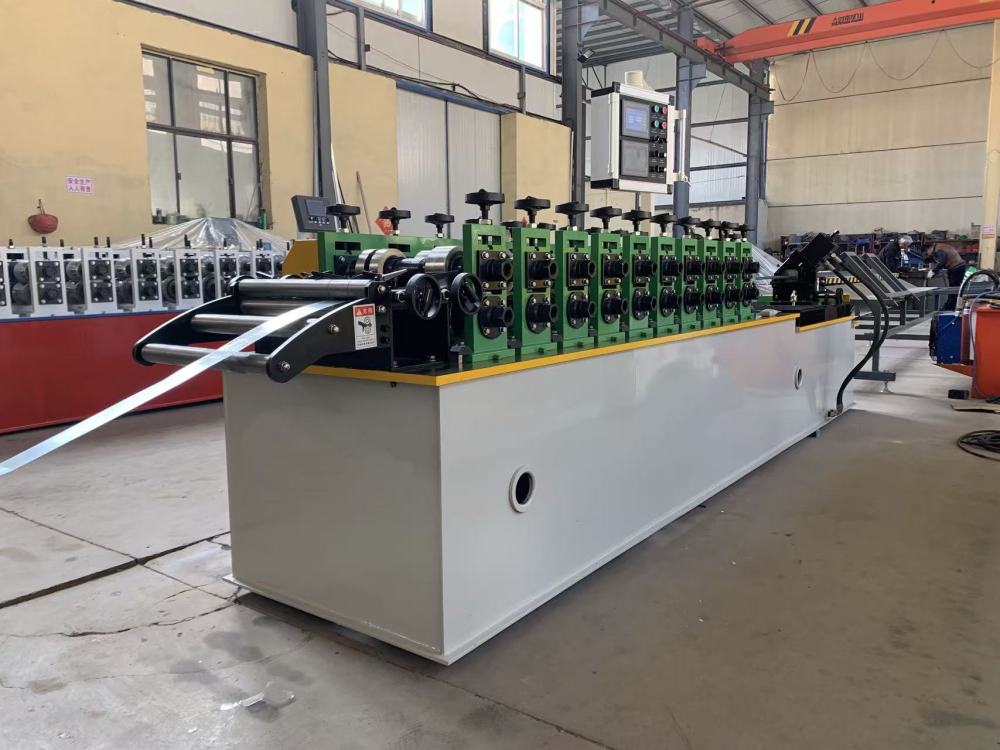

Products Display:
Contact Us：
In summary, the U Channel Metal Stud and Track Making Machine is a key piece of equipment for producing U Channel s for construction. Through automated cold bending forming technology, it efficiently and accurately produces core metal components for non-load-bearing partition walls and ceiling systems, making it an indispensable supporting equipment in modern building interior decoration and partitioning projects.
