The Metal U Track Profile Slotted U Channel Rolling Forming Machine is an automated forming machine designed specifically for the building materials processing industry. Its core function is to process metal coils (such as cold-dip galvanized steel strips, hot-dip galvanized steel strips, etc.) through a continuous automated process into U-shaped load-bearing studs commonly used in building ceilings and partition systems. It is widely used in building materials production, decoration projects, hardware accessories processing, and other scenarios.

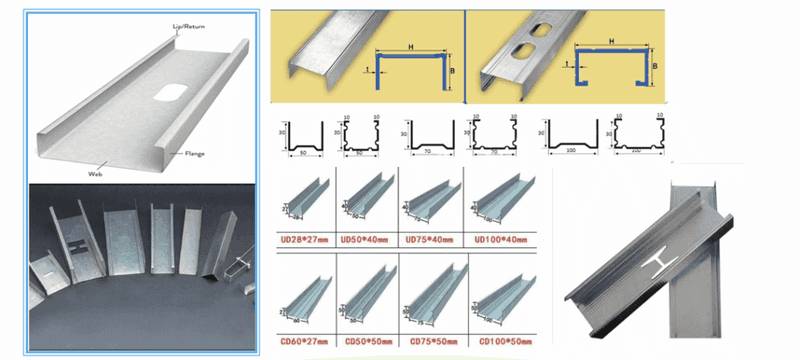

Pattern drawing:
Applicable scenarios:
1.Building materials manufacturers:
They can establish fully automated production lines to achieve large-scale production of U-shaped keels, meeting market demand for bulk supply.
2.Decoration project sites:
Small, mobile machines can be deployed on-site for real-time processing based on construction dimensions, avoiding deformation and damage during transport and shortening construction schedules.
3.Hardware processing:
They can precisely process U-shaped keels with holes, facilitating subsequent accessory assembly and ensuring product stability.

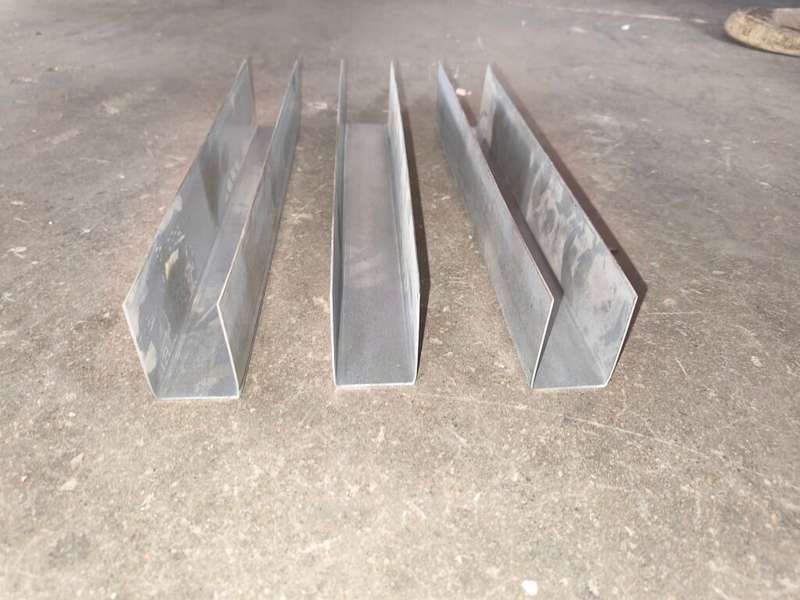

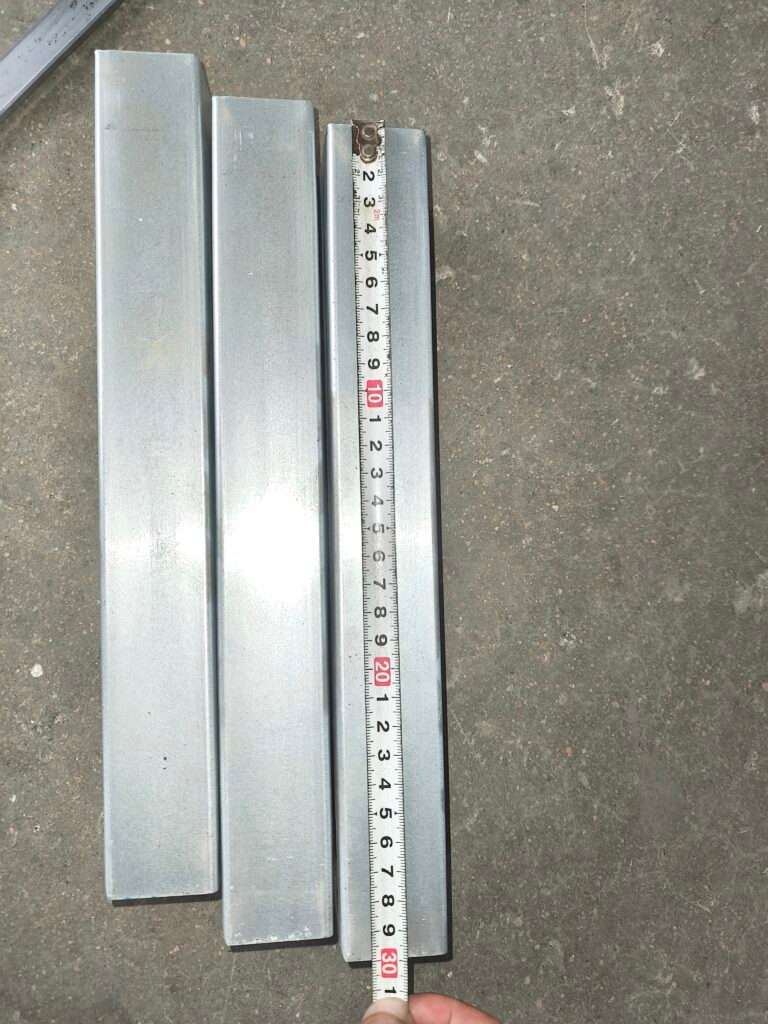

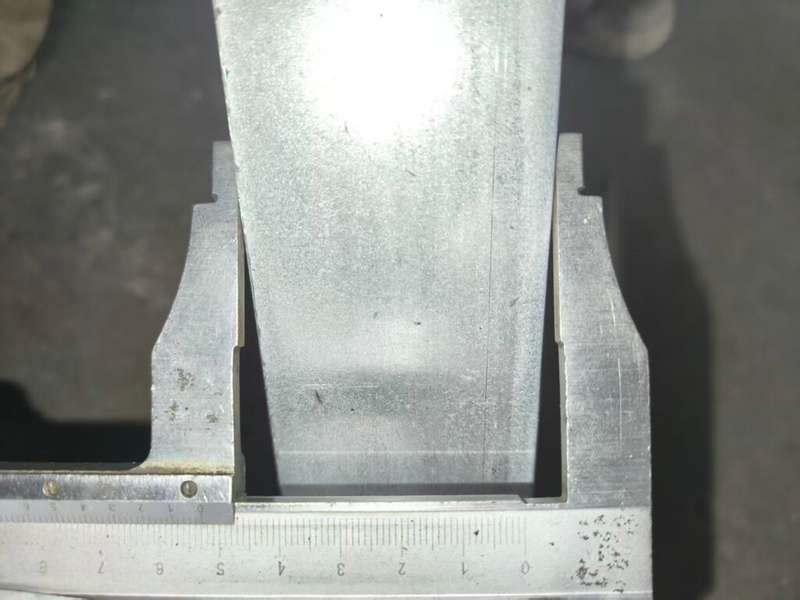

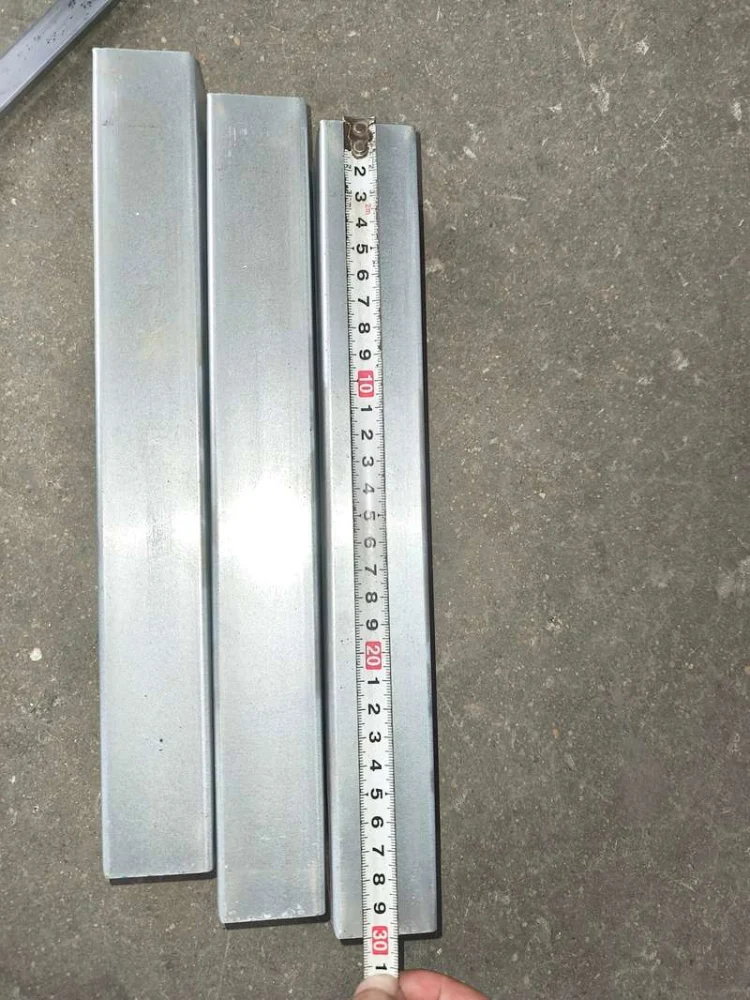

Finished product image:
Product Attributes :
| 1.Formed Material | GI | Thickness:0.8 to 1.8 mm (standard) | ||
| 2.Decoiler | 3 Tons decoiler | 3 Tons Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 16 rows (As your requirement) | ||
| Diameter of shaft | 60 mm solid shaft | |||
| Material of rollers | Gcr15 | |||
| Machine body frame | 400 H steel | |||
| Drive | Gear and chains transmission | |||
| Dimension(L*W*H) | 15000*1800*1600(customize) | |||
| Weight | 5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW*2 sets,Siemens brand | ||
| Hydraulic system power | 15 KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 25 m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

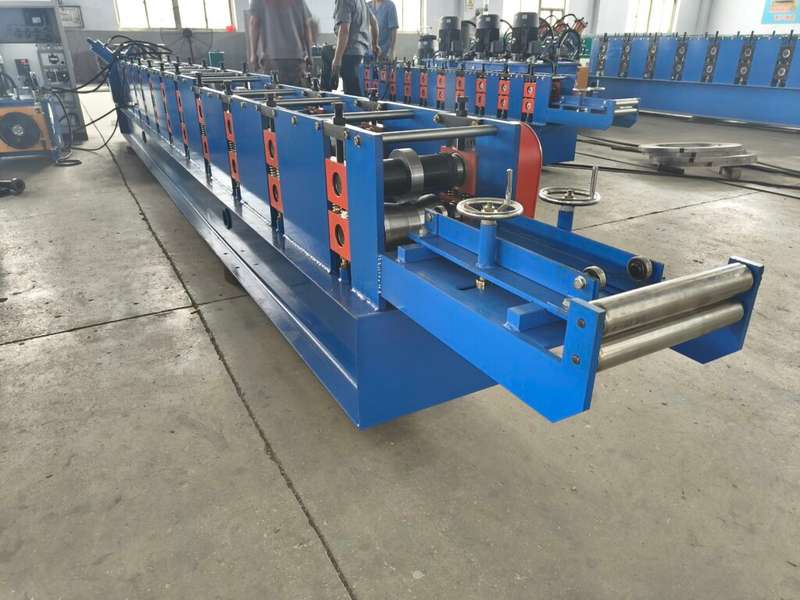

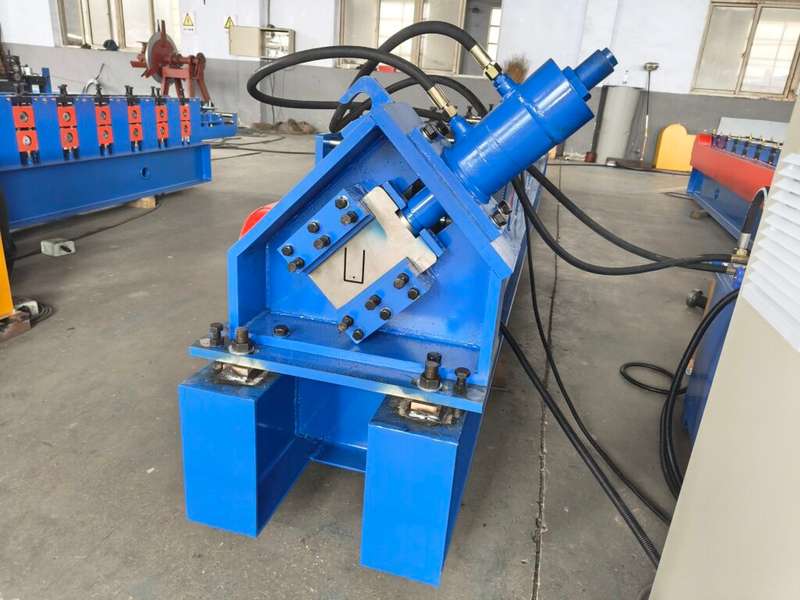

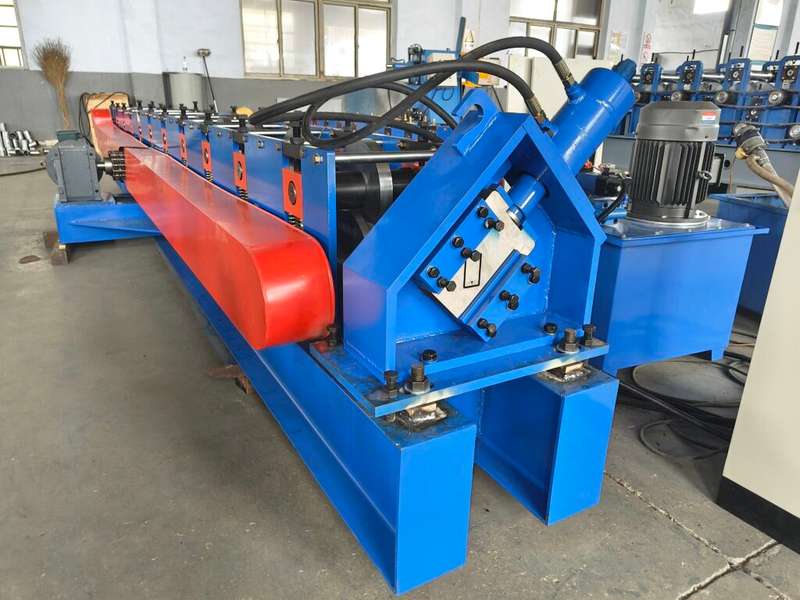

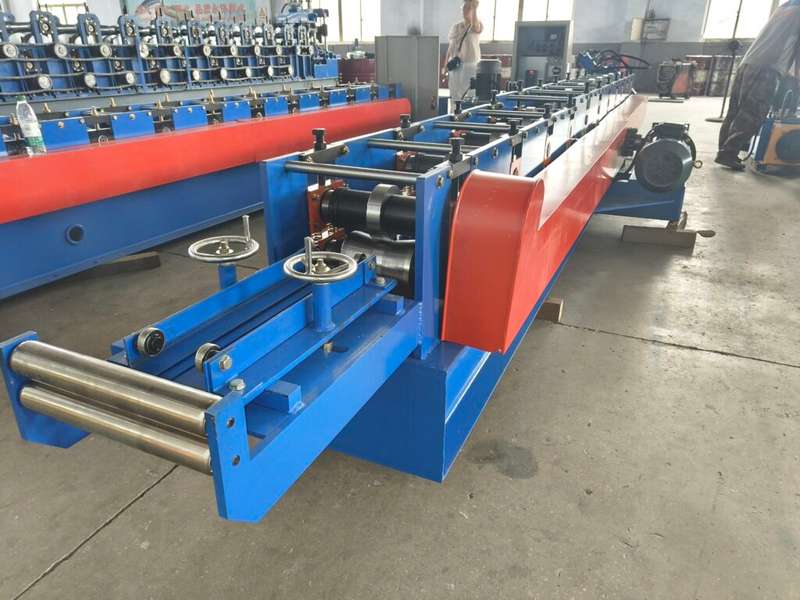

Product images：
