Universal teardrop rack upright rack rolling forming machine is designed to make the universal teardrop rack upright rack in batch fully automatically. Teardrop rack is the most popular style of rack in the industry. It is considered the universal rack system and most manufacturers make a Teardrop style rack. Most teardrop style racks are compatible. The term teardrop comes from shape of the holes on the face or front of the upright column.

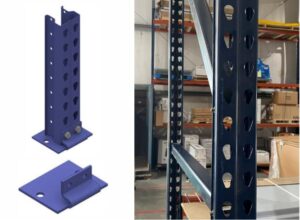

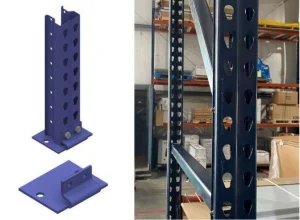

Here are some finished product pictures for your reference:

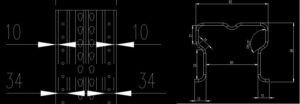

Universal teardrop rack upright drawing profile for your reference:

Universal teardrop rack upright rolling forming machine design:

Machine working flowof Universal teardrop rack upright rolling forming machine:

Main Roll Forming Machine of Universal teardrop rack upright rolling forming machine:

1) Number of rolling stations: 16 rolling stations

2) Shaft diameter: 90mm

3) Shaft material: 45# steel after quenching.

4) Roller material: 45# steel after quenching.

5) Transmission method: by China

6) Chain width: 1.25mm

7) Machine working speed: 5-10m/min

8) Working speed: 5-10m/min

9) Motor Brand: Chinese famous brand MengNiu

10) Voltage: 380v, 50Hz, 3 phases

11) Machine size: :9.5*1.5*1.2m

12) Machine frame: Middle plate

13) Machine frame thickness: 20mm

More detail part of the Universal teardrop rack upright rolling forming machine:

1. With more side rollers to make sure the shape good and shape angles.
2. The rollers need to be processed accurately.
3. We use the middle plate frame to lower down the machine cost.
4. Use the GCR15 rollers to make sure the machine cost lower but the machine quality more better.

Universal teardrop rack upright rolling forming machine Features:
1.Teardrop uprights roll forming machine can make primary components of teardrop pallet rack accurately in beautiful shape.
2.The machine we designed in high quality but more economic.

3.The machine working speed is around 15 to 20 meter per minute.

4.As to the punching part, you can choose to use the normal punching machine or high quality type.

5.The machine designed with lots of side rollers and vertical rollers to make sure the good shape.

For the Universal teardrop rack upright rolling forming machine, if you want to know more information, please contact us at any time.
