The Villa Light Gauge Steel Roll Forming Machine is a cold-bending forming equipment specifically developed for producing keel structural components for light steel villas. It can continuously roll-form various types of light steel keels, such as C-shaped keels, U-shaped top and bottom keels, reinforced keels, and various non-standard connectors. The entire machine typically consists of a feeding rack, a leveling device, a servo feeding system, multi-pass roll forming, hydraulic punching and cutting, and an intelligent electrical control system. It can process galvanized steel strips into keel finished products with precise dimensions and accurate hole positions in one go, which can be directly used for the assembly of walls, floors, and roof trusses. It is an indispensable core machine in the light steel villa production line.
Product Features: Intelligent, efficient, stable, and reliable
1.High-precision molding for enhanced structural safety
2.Intelligent CNC for flexible production
3.Multi-functional machine for rapid changeover
4.Robust and durable with low-wear operation
5.High-efficiency production, saving labor and reducing costs

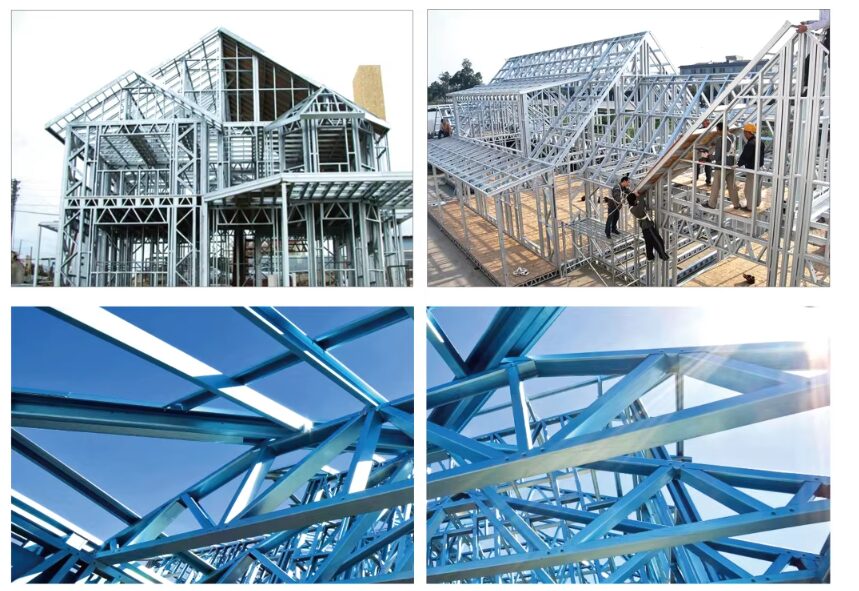

Application Scenarios: Full-Scene Coverage, Building Quality Spaces
- High-End Private Villas:
For personalized European, American, and Neo-Chinese style light steel villas, the equipment can precisely produce various irregularly shaped keels and curved roof keels, perfectly realizing complex shapes and firmly supporting century-old architectural dreams. - Resorts and Scenic Area Housing:
In complex terrains such as mountains, lakesides, and woodlands, the lightweight transportation of light steel structures allows for rapid assembly using keels produced on-site or nearby by the villa keel machine. This avoids damaging vegetation, promoting environmentally friendly construction and providing a sturdy core for luxury hotels, stargazing rooms, and wooden cabins. - New Rural Self-Built Houses and Resettlement Housing:
For unified rural planning and construction, the standardized mass production advantages of the keel machine are fully demonstrated. It can quickly replicate livable farmhouses with high earthquake resistance and thermal insulation, significantly shortening the construction period and allowing farmers to move into their safe new homes sooner.

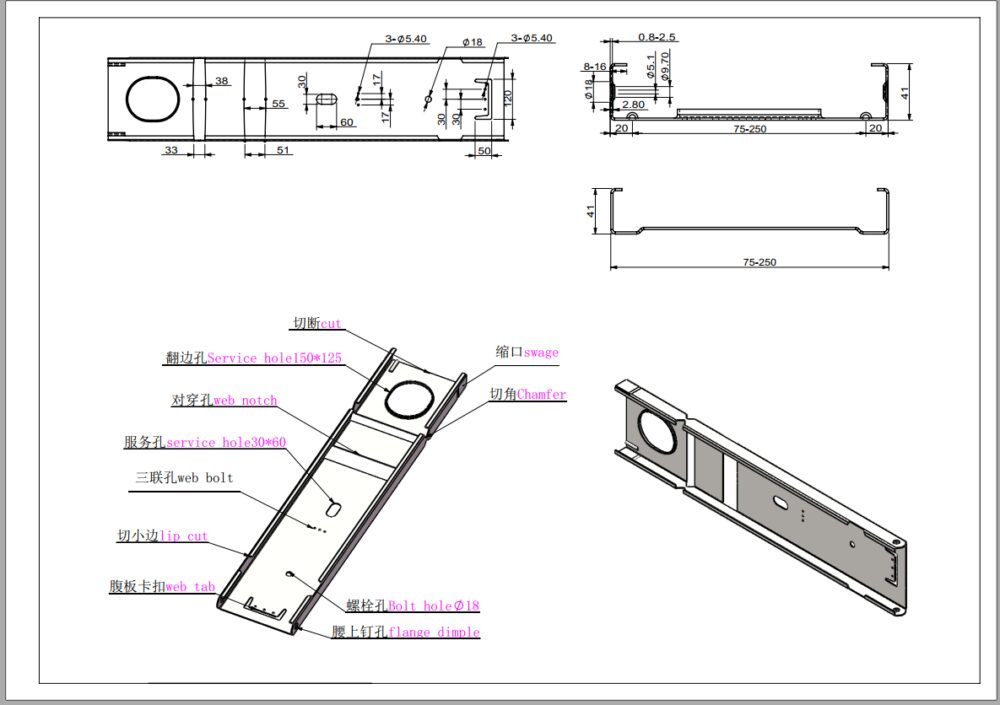

Pattern diagram：
Product Attributes :
| 1.Formed Material | PPGI,GI | Thickness:0.8-2.0mm |

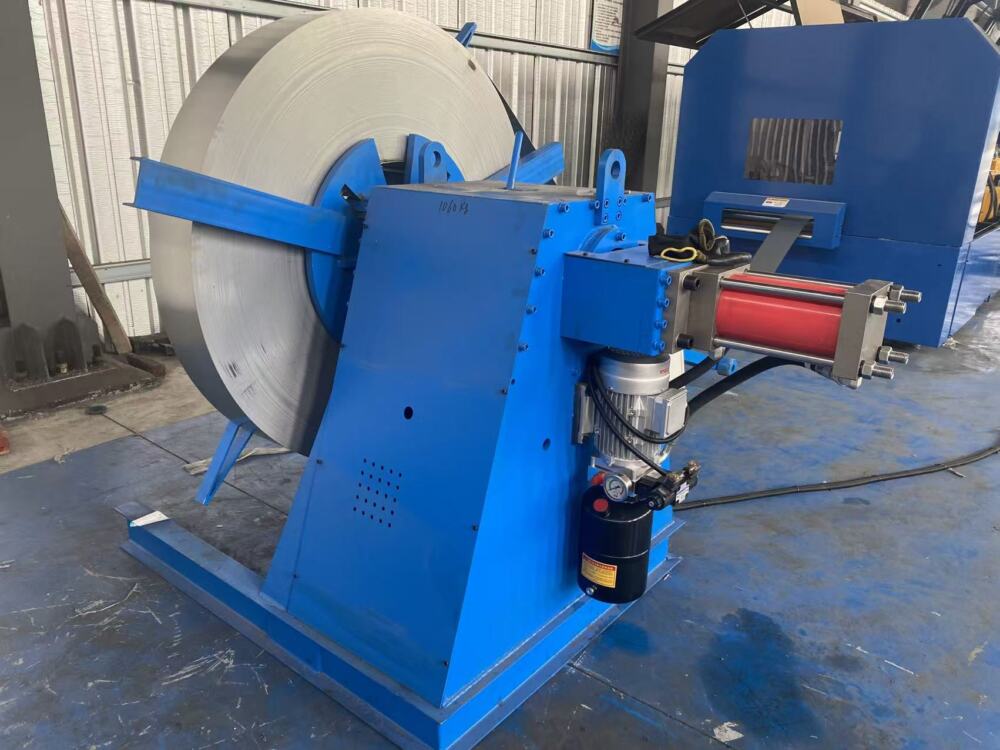

| 2.Decoiler | Hydraulic decoiler | 6 tons |

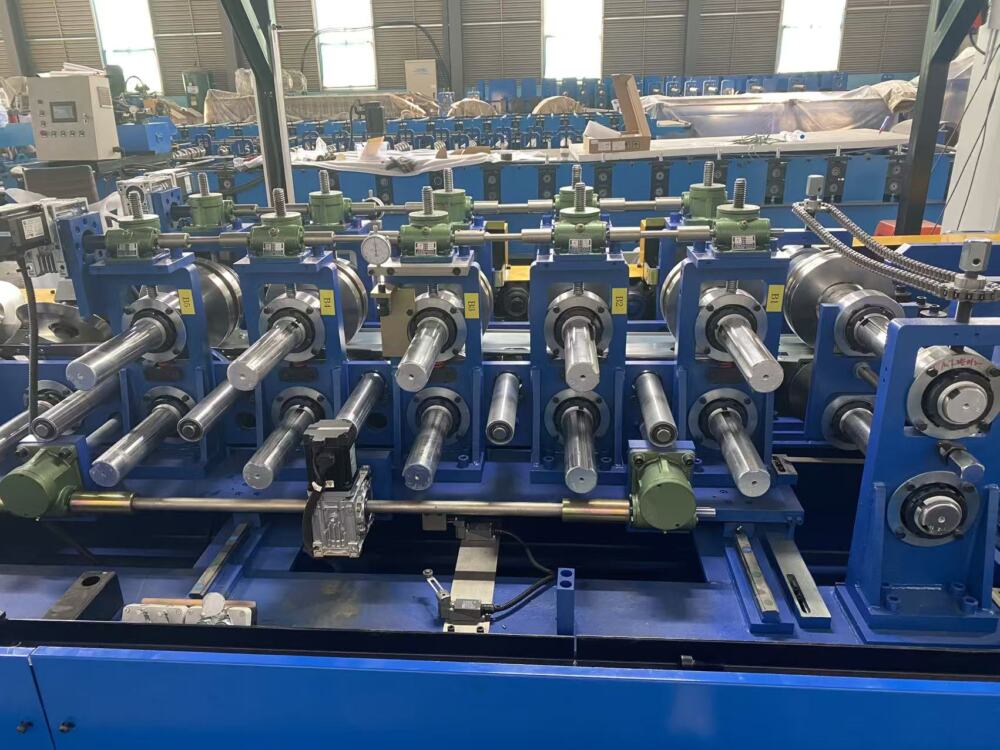

| 3.Main body | Roller station | 19 rows(As your requirement) |
| Max width of strip steel | 400 mm | |
| Shaft material | 40Cr, after CNC processing | |

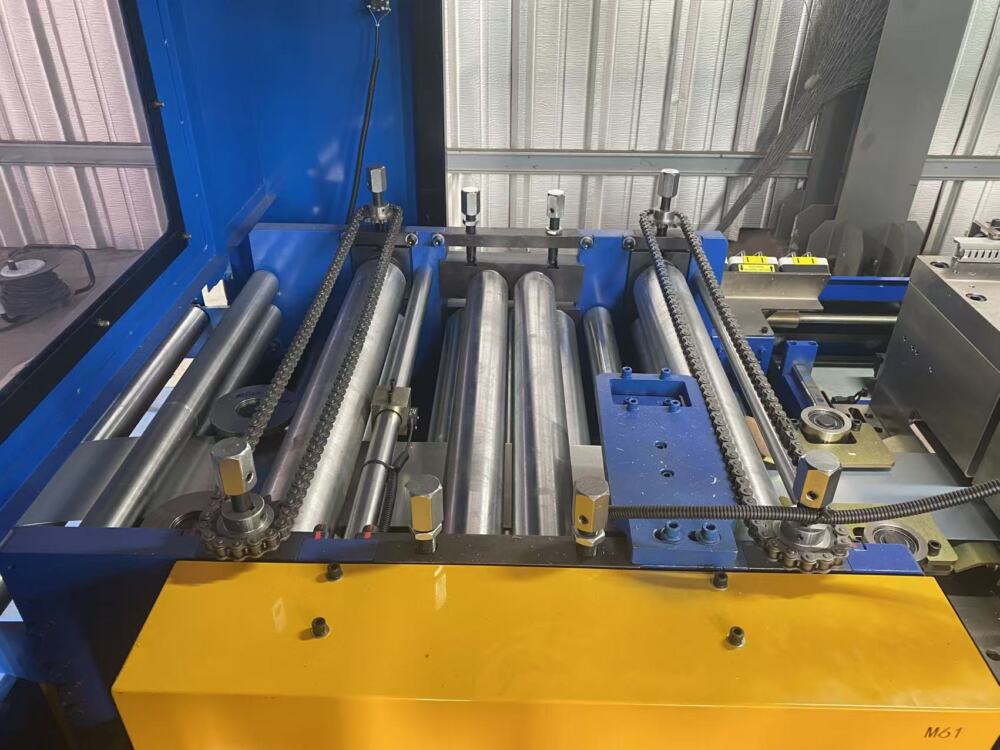

| Leveling device | 2 groups for upper and 3 groups for down | |
| Drive | chains with tension stabilization device | |
| Dimension(L*W*H) | 9500*1600*1600mm | |
| Weight | 6T | |
| 4.Cutter | Automatic | Gcr12 steel |
| 5.Power | Motor Power | 7.5KW |
| Hydraulic system power | 11KW | |
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | Support multiple languages | |
| PLC | Can set batch, length, quantity, etc. | |
| 18.Forming Speed | 15-20m/min | The speed is adjustable |

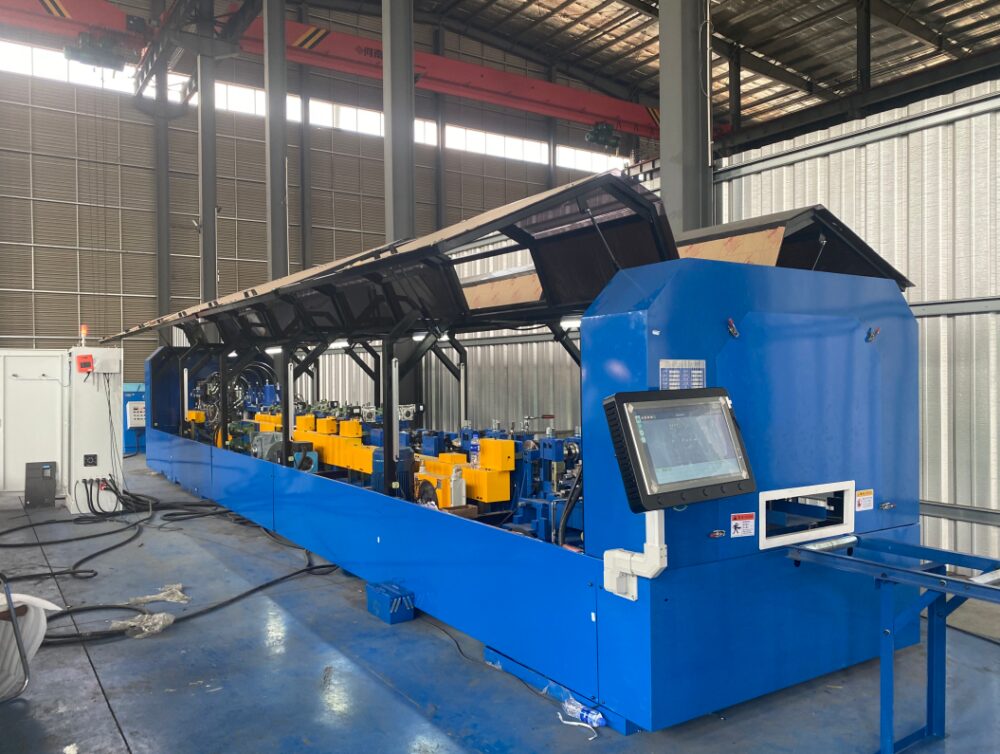

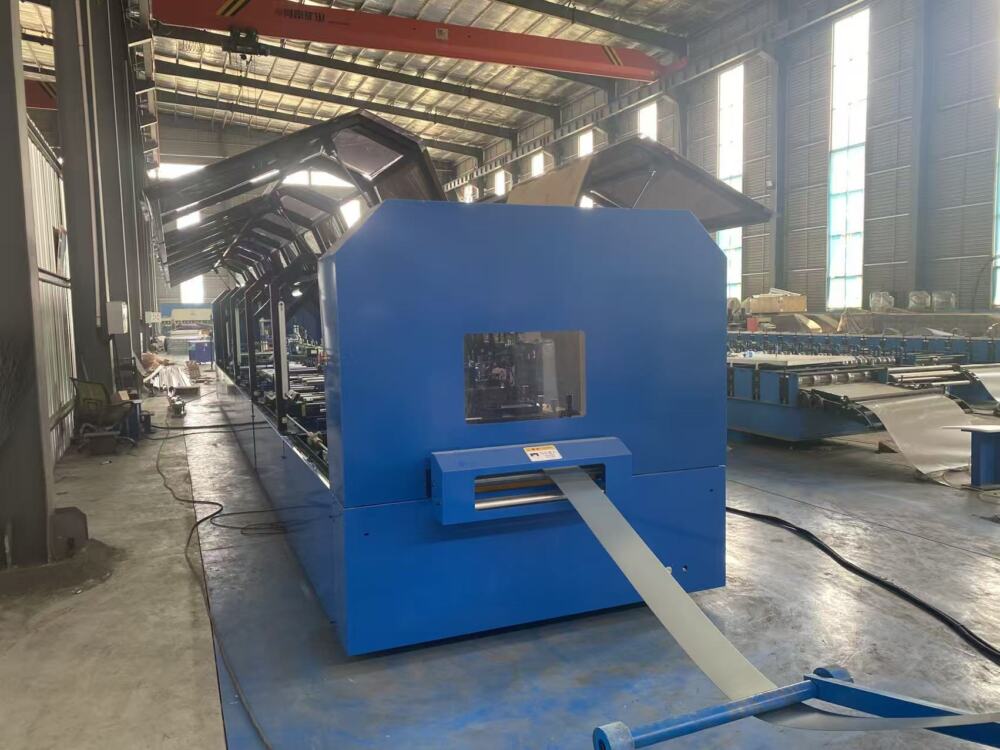

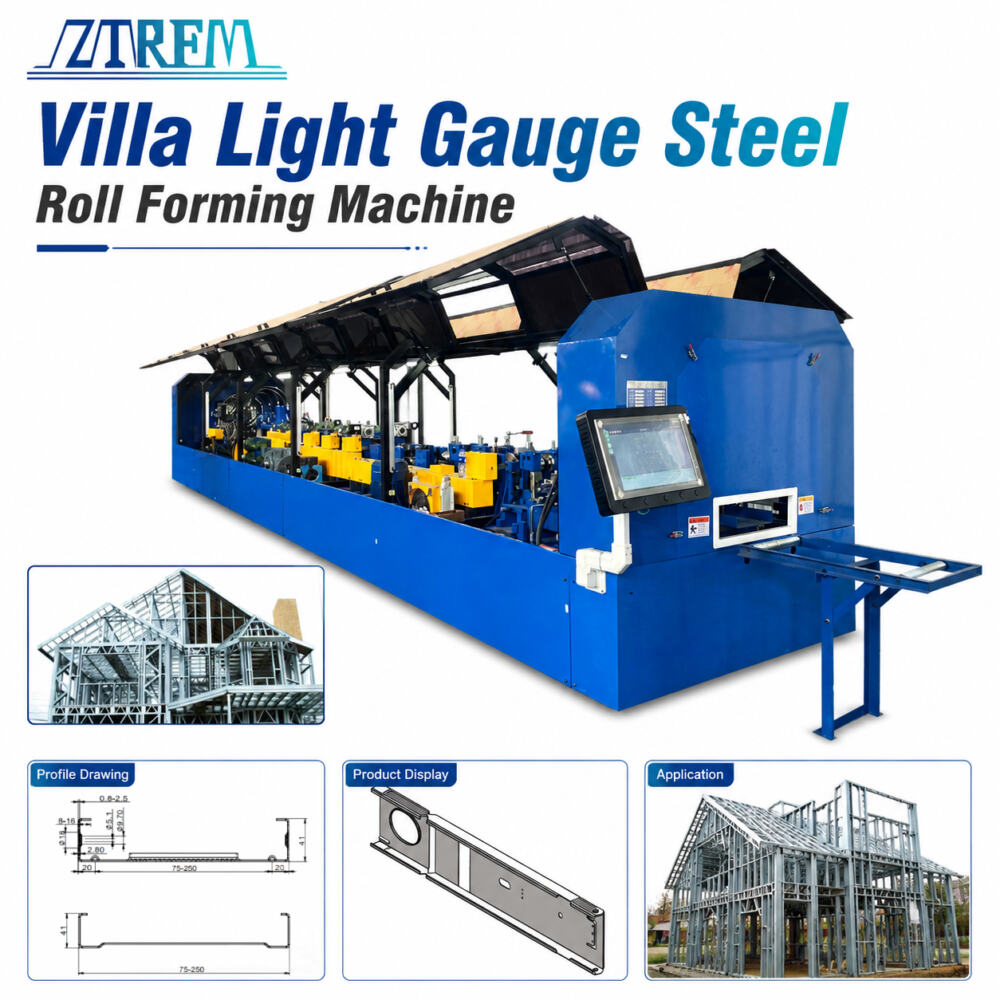

Machine image:
Contact Us：
Choosing a high-quality villa keel machine is choosing a fast track to intelligent light steel manufacturing. Whether you're a startup venturing into the light steel industry or a large-scale enterprise seeking technological upgrades, our keel machines, with their stable, efficient, precise, and durable performance, help you construct a safe and comfortable spatial framework, giving you a competitive edge in the blue ocean of prefabricated construction. Contact us now to obtain a customized production line solution and start your intelligent manufacturing future!
