Under the guidance of the “dual carbon” target and the continuous increase in the penetration rate of prefabricated buildings, the construction industry is undergoing a profound transformation from traditional construction to industrialization, intelligence, and greening. As the core equipment for the production and installation of new wall materials, the wall panel machine has become a key lever to solve industry pain points and activate industry momentum. The 20m/min Wall Cladding Metal Roll Forming Machine, with technological breakthroughs and scene adaptation capabilities, have redefined the efficiency, quality, and environmental standards of wall construction, injecting strong impetus into construction enterprises, investors, and urban construction.

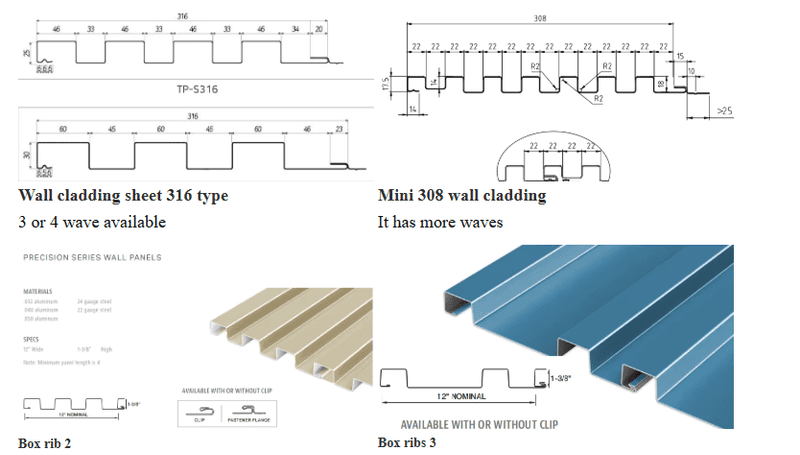

Pattern diagram:
Application Scenarios ：

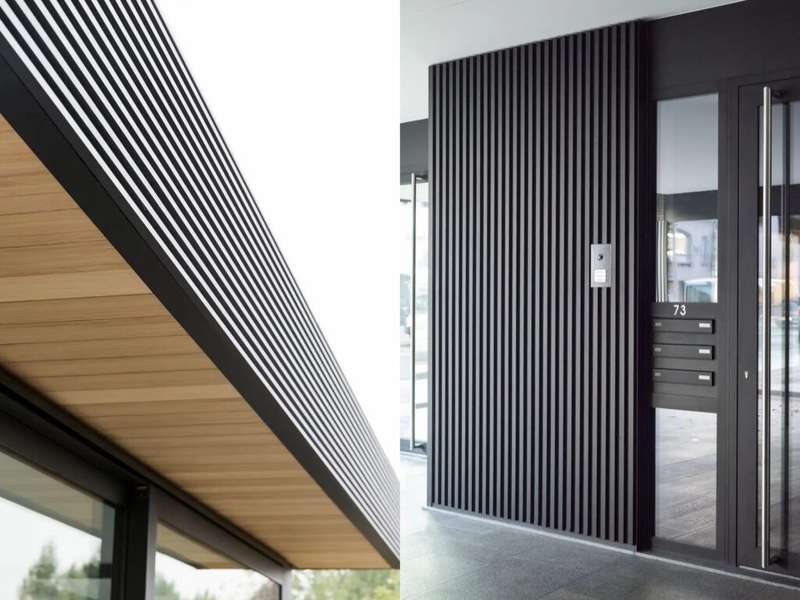

- Residential construction field
Has excellent seismic and sound insulation performance, suitable for the comfort needs of residential spaces. Whether it is indoor partition walls, partition walls, or integrated construction of external wall insulation, it can achieve rapid assembly and quality assurance, and has become the preferred equipment for industrial construction of residential buildings.
- Commercial and public building sectors
The composite wall panels produced by the wall panel machine have a fire rating of Class A, a fire resistance limit of ≥ 2 hours, and a sound insulation level of up to 45dB, which can effectively meet the safety and comfort needs of public spaces; And with efficient installation and no dust or noise pollution, construction can be carried out without affecting the surrounding environment, meeting the needs of rapid opening of commercial buildings and timely delivery of public buildings.

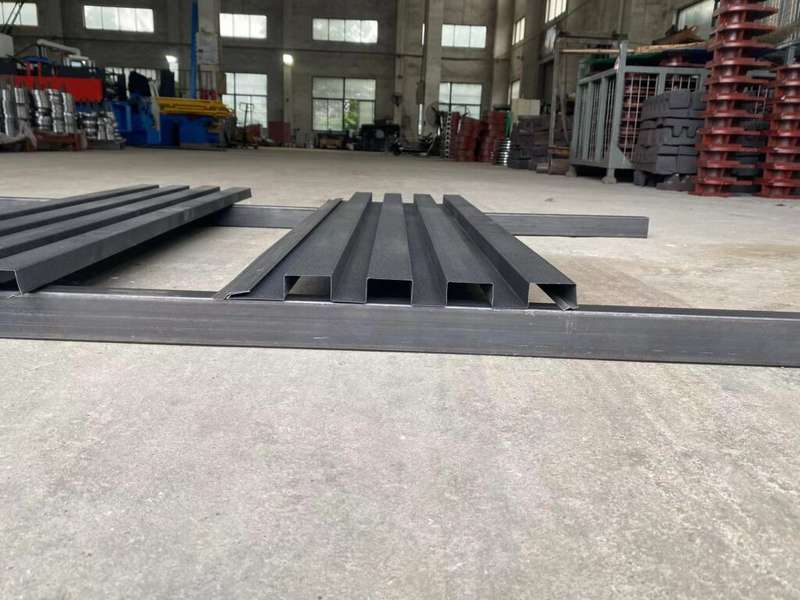

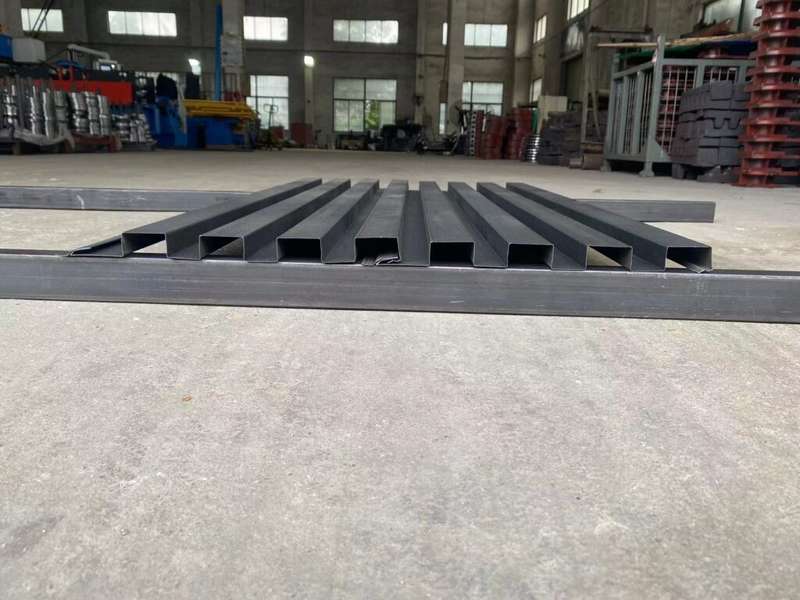

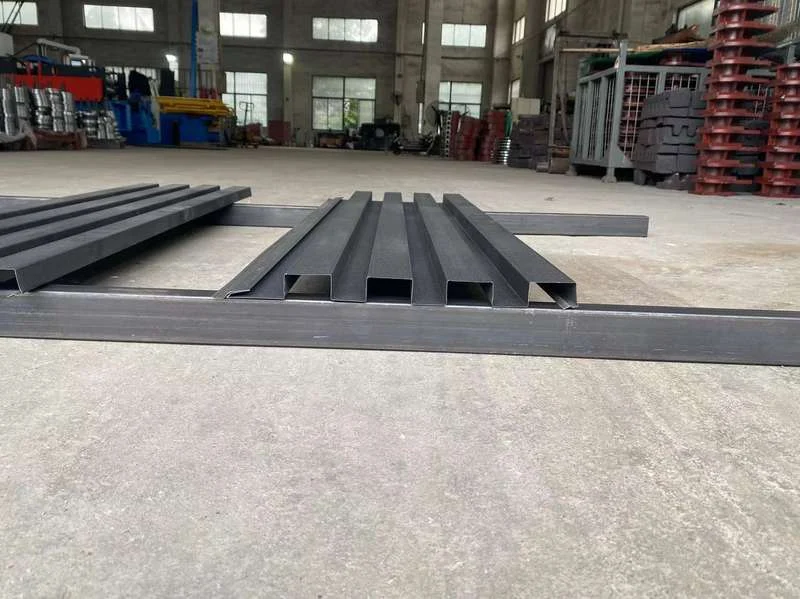

Finished product image:
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.5-0.8mm | ||
| 2.Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 28 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine frame | 350 H steel | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 9500*1600*1600mm | |||
| Weight | 7.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW | ||
| Hydraulic system power | 4KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | Support multiple languages | |||
| PLC | Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 15-20m/min | The speed is adjustable | ||
Key Features：
1、 Efficient mass production, significantly reducing the construction period
2、 Green and environmentally friendly, in line with the dual carbon goals
3、 Controllable quality, adaptable to diverse needs
3、 Controllable quality, adaptable to diverse needs
