Zhongtuo metal roof tile rolling forming machine strong version

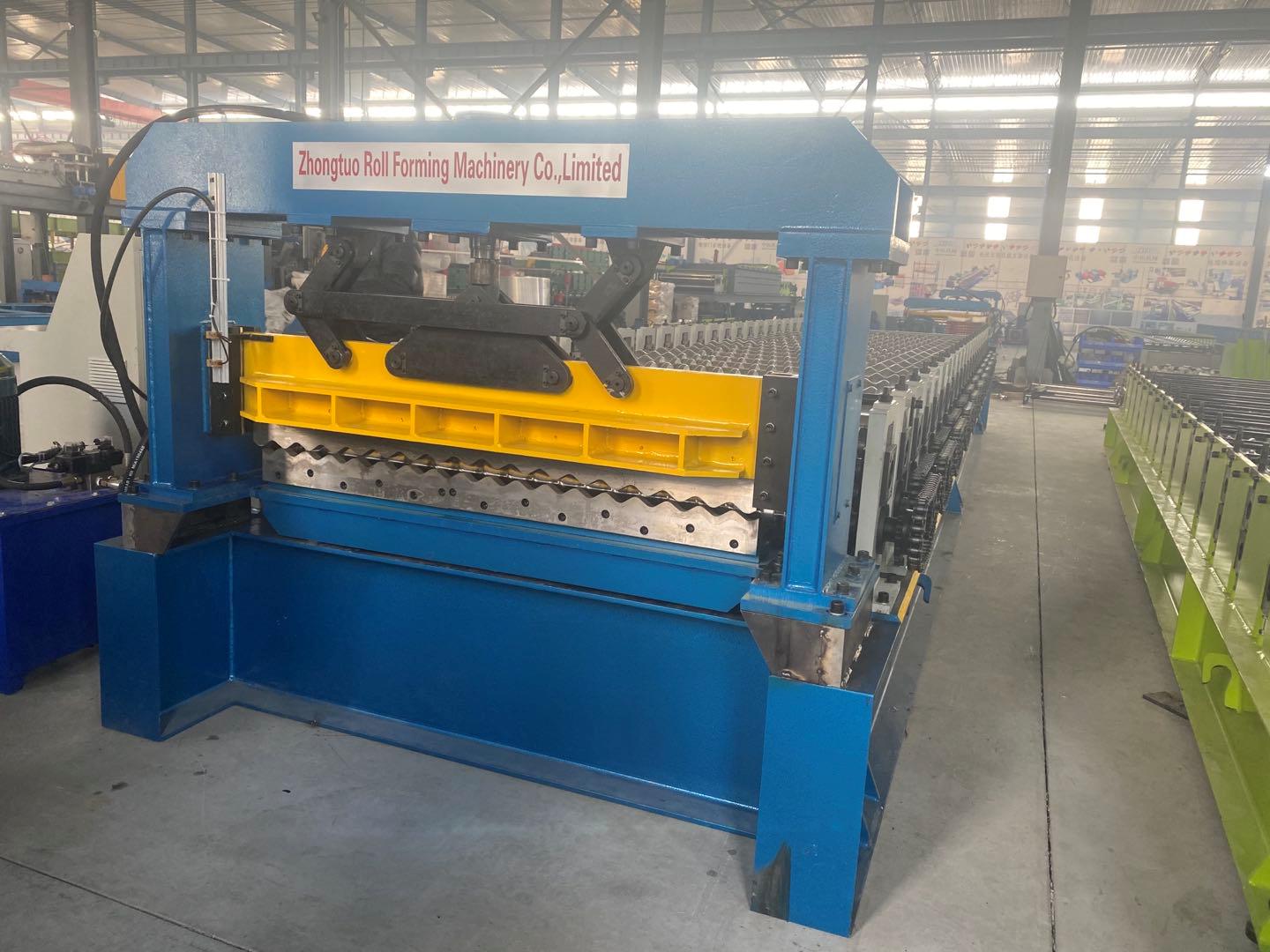

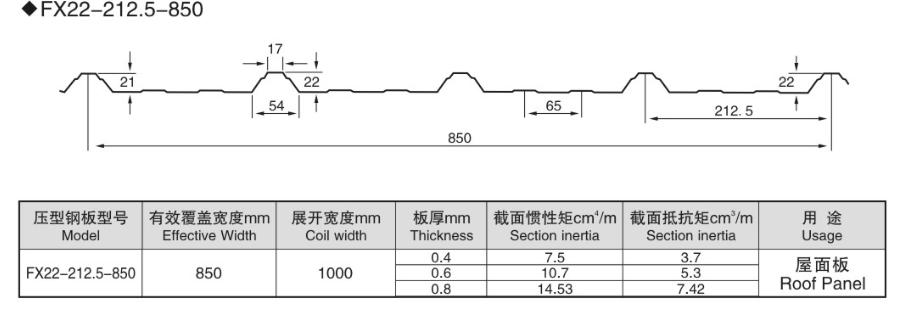

Zhongtuo metal roof tile rolling forming machine strong version is designed to make the metal roofing tiles in batch fully automatically. In the following parts, we will take a random drawing profiles to show you details of this machine:
Zhongtuo metal roof tile rolling forming machine strong version：
Why we call it as metal roof tile machine strong version:

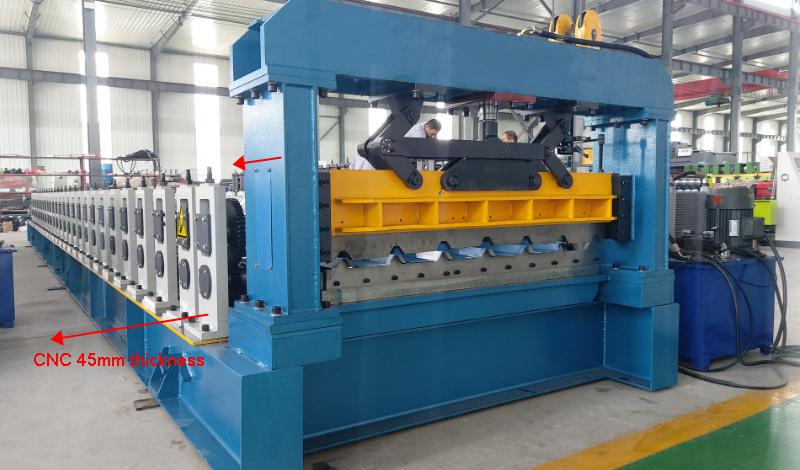

- We use the molding frame of 45mm.
- The shaft we use 80 to 90mm.
- The machine totally weight is around 15 ton.
- The rollers are designed by separated rolling, rolling station is around 24 roller station.
- By those heavy points, you can process thickness to 1.2mm in the speed of 25 meter per minute.

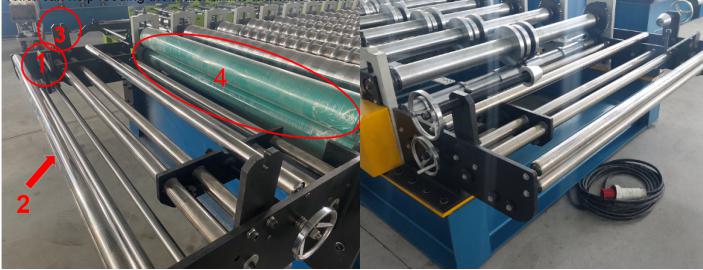

Feeding table or leveling beach of strong metal tile rolling forming machine:
- Pre-manual cutter to cut at any length or cut the start of untidy part.
- Carrier roller can protect your coil from scratch.
- Film device can loading plastic film and covered on the roof sheet
- The rubber roller can help feeding the material into machine faster.
- The machine can roll forming 1220 mm & 1450 mm two kind of width. Here has hand wheel on one side to adjust the feeding width.
More details of Zhongtuo metal roof tile rolling machine:

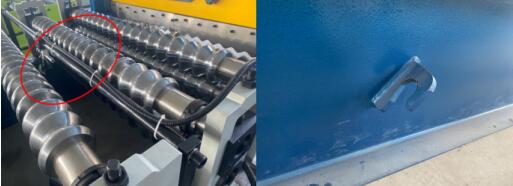

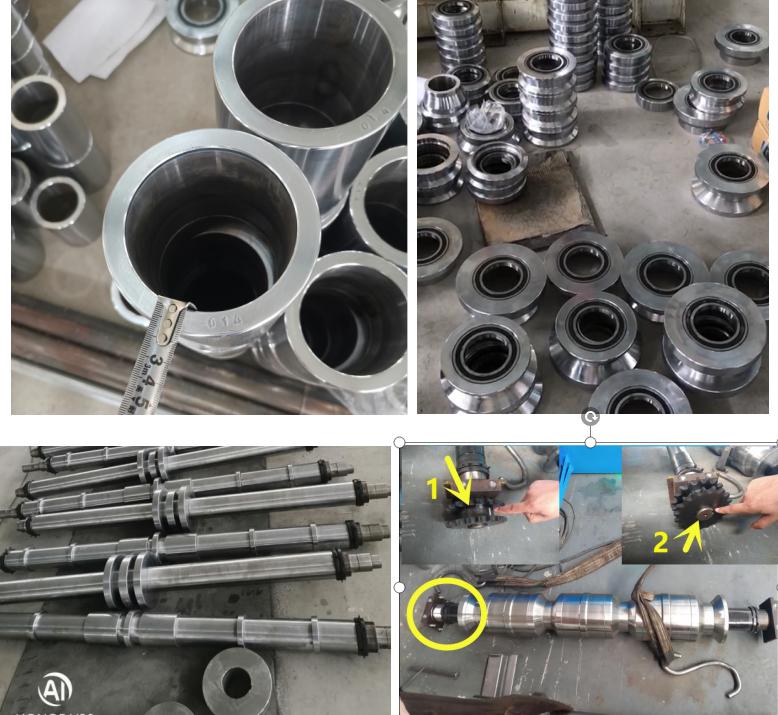

- Each side of the roller shaft we add thrust pad to prevent the roller shaft loose.

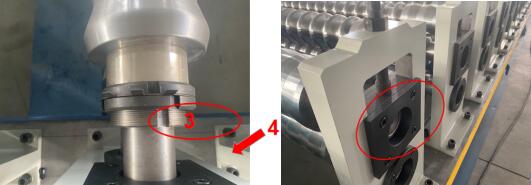

- The roller and roller shaft have key-note, then they can locked together to prevent from roller abrasion.
- The tile box also add two pcs to cover on it to ensure connected together more tightly.
The counter we use Omron brand, it's easily buy from your market. And we use a pull rod to holding the counter and prevent it loose. The lifting hook help loading the machine easily.
Designs of rollers:
The hydraulic cutting system we use mechanical type, no easy broken.
Compared with the pillar pole system, this design is more easy to fix and seldom has problem

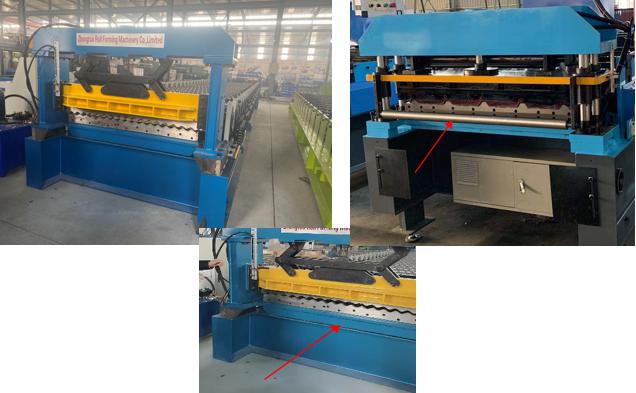

There is no more broad and then the sheet can down to the ground easily, even if there is no stacker, it good to use. If the pillar pole type, we will design with receiving rollers like picture with arrow.
| Packing list-roof profile machine | ||||
| No. | Name | Unit | Quantity | Remark |
| Part 1 | 5T decoiler | set | 1 | Manual |
| Part 2 | Leveling beach with manual cutting | set | 1 | |
| Part 3 | Main roll former | set | 1 | Chains drive |
| Part 4 | PLC control station | set | 1 | Delta brand |
| Part 5 | Cutting system | set | 1 | Hydraulic |
| Part 6 | Hydraulic pump station | set | 1 | With cooling system |
| Part 7 | Product collect table | set | 1 | Regular type/3m length |

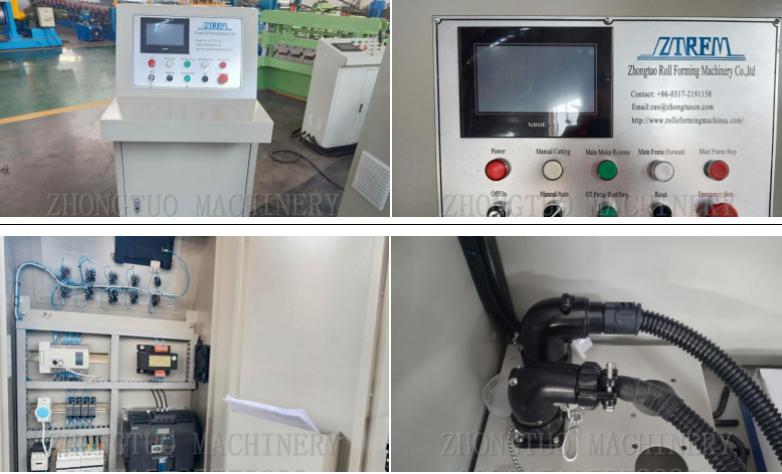

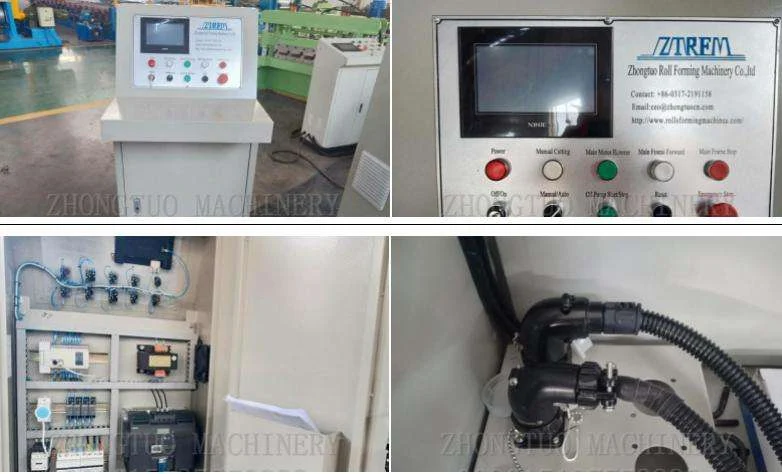

Control station with aviation plug:
Meanwhile strong version of molding frame it could be used to any type design of profiles for example corrugated metal tiles is also possible:
Please check the machine working video here:
