Zip Lock Bemo Type Standing Seam Profiling Machine is designed to make the standing seam roofing tiles in batch fully automatically.

Here is a video of the machine working process for your reference:

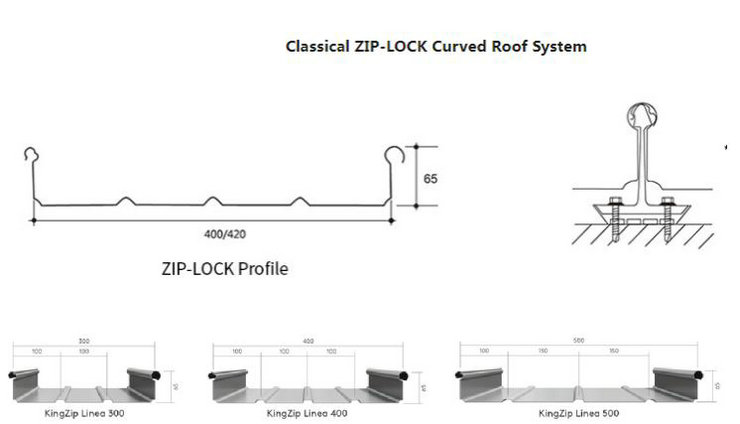

Here I will take the following drawing profiles for your reference:

Zip Lock Bemo Type Standing Seam has the following features:

1. Concealed interlocking; anti-leaking; air tightness; roof pitch≥1.5°
2. Good bulking design; excellent wind uplift resistance ability. lt can resist 200km/h wind speed when purlin space is 1.5m.
3. Allow sliding due to expansion and contraction; on-site shaping; no need of overlapping,length can reach more than 100m.
4. Both sides can be curved.Min radius≥1m.Transition panels(min 230mm,max 600mm)for different roofs.
5. Zip Lock means it is easy for locking.

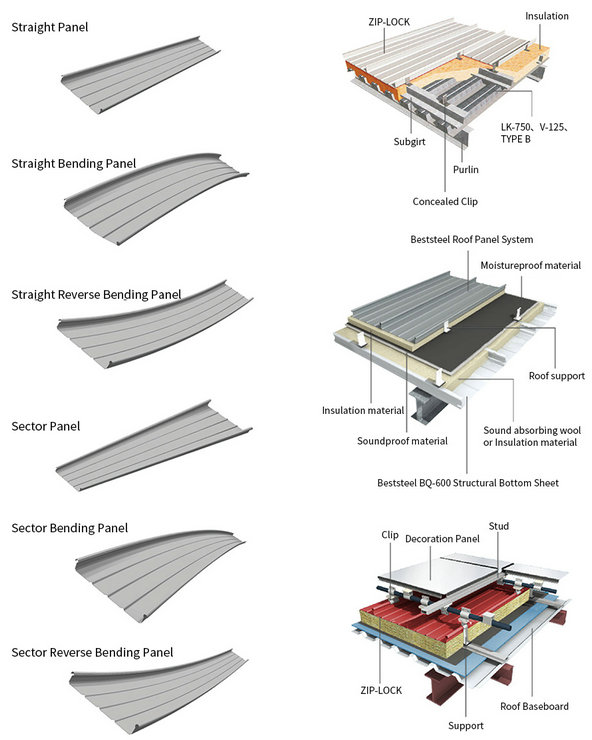

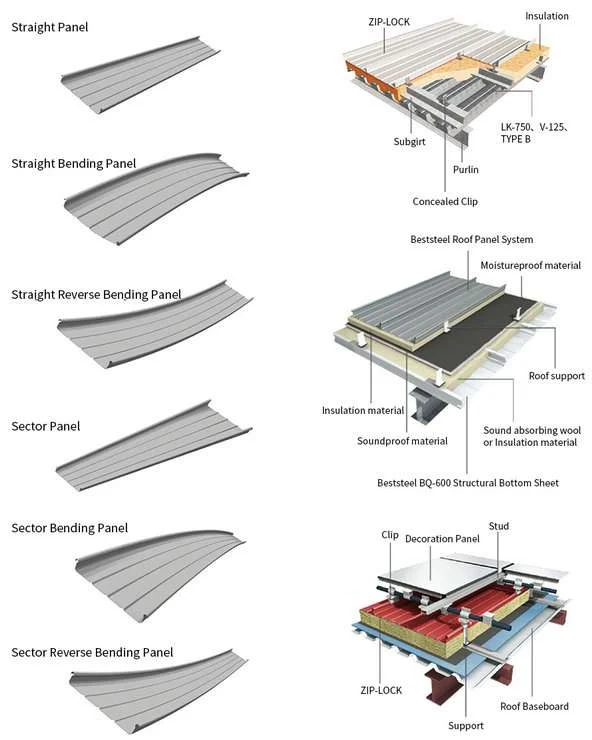

Now let us check how the standing seam roofing tiles are used in construction.

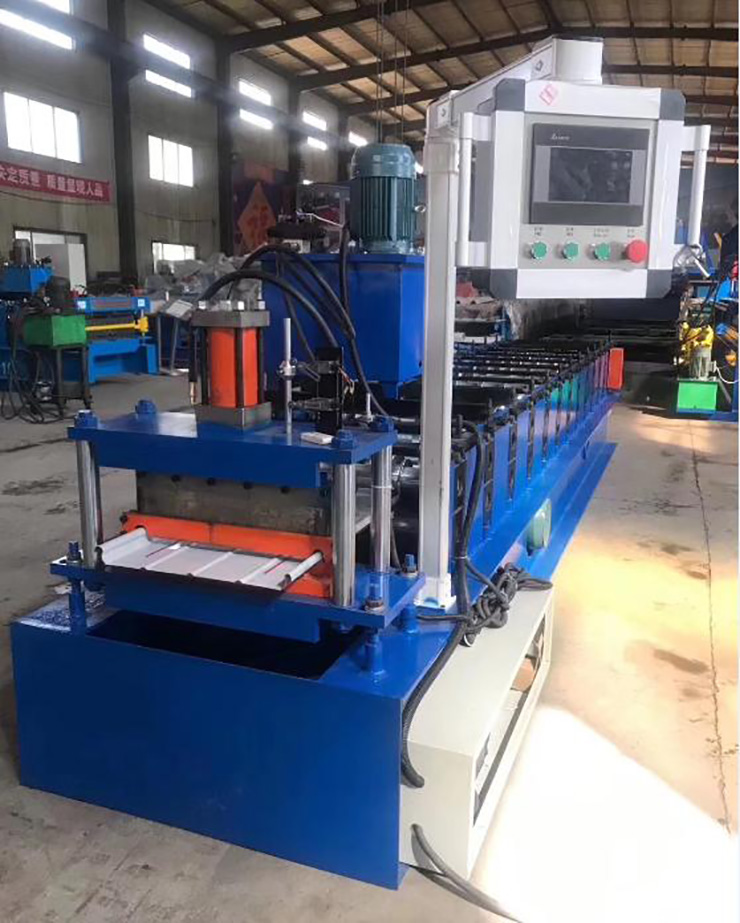

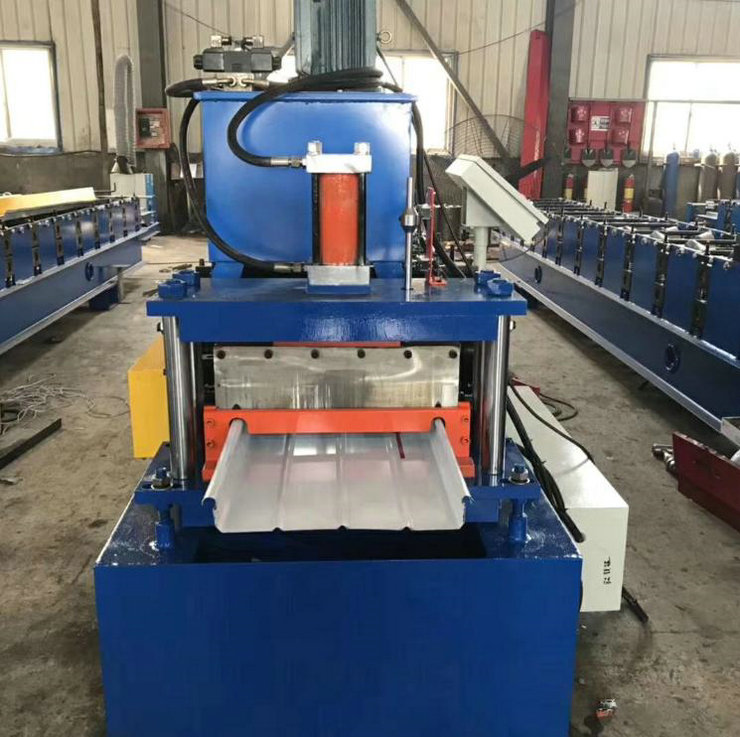

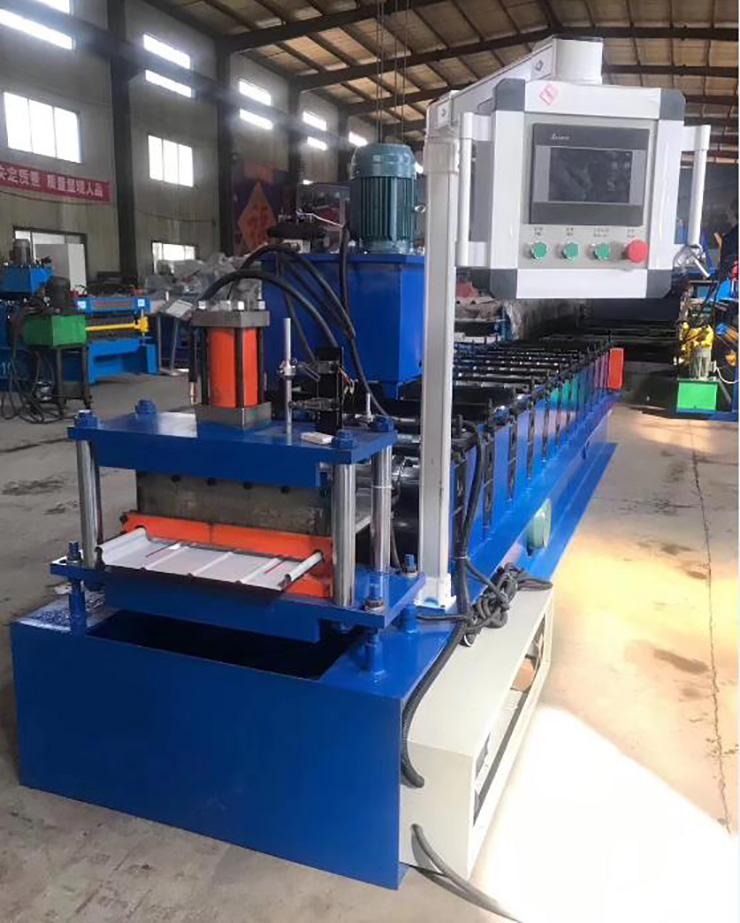

Zip Lock Bemo Type Standing Seam Profiling Machine Design and how it works:

Features of Zip Lock Bemo Type Standing Seam Profiling Machine:

1. One machine can make two, three or more type standing seam profiles by rolling forming machine and by adjusting the spacer.
2. Machine working speed can reach 25 meter per minute.
3. Easy for installation. We will use the portable PLC and put the hydraulic station on the top of the machine, so once the machine arrives and then simple connect the main electricity wire and then okay.
4. Standard profiles and standard rolling forming machine, use the world famous brand elements then it is easy to learn and easy to do the maintain.

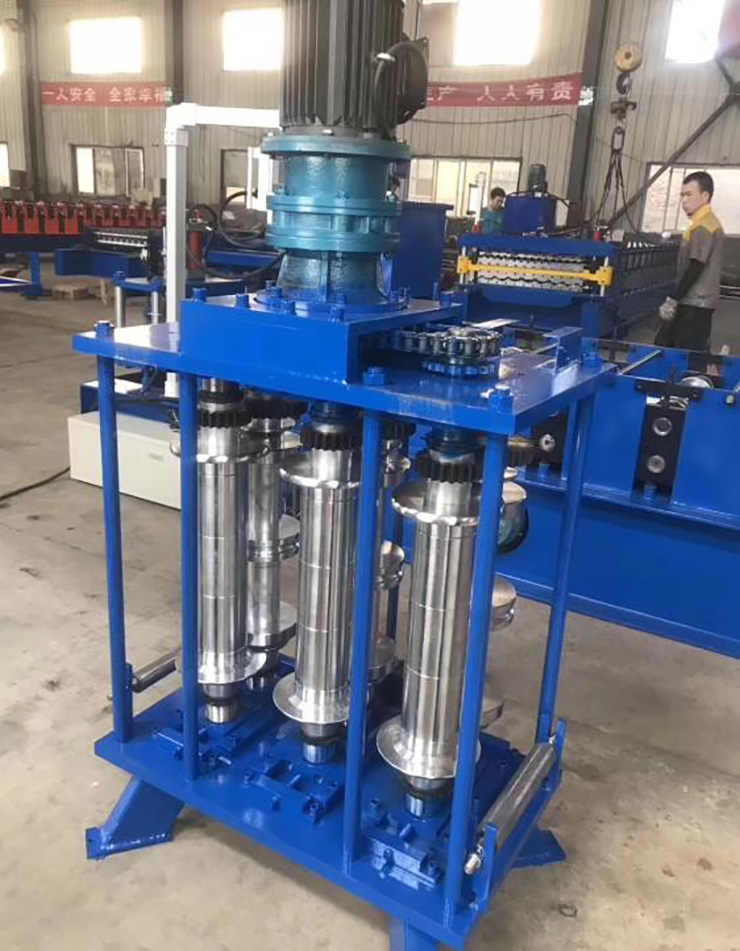

Normally this type standing seam profiles need locker and bending machine, we also can supply for you.

Here are some types for your reference:

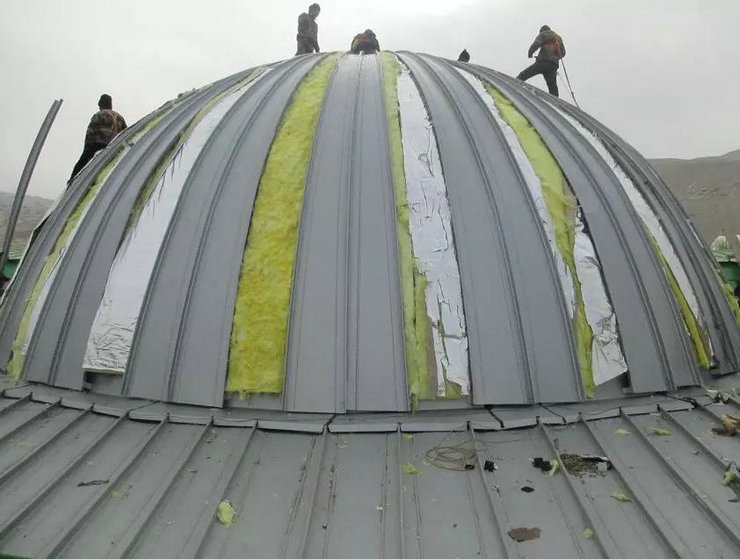

Here is the application of the finished product for your reference:

\

ZhongTuo Machinery has more standing seam designs types, we will share more on our website. If you are interested in our machines, please click here to contact us at any time!
