In modern building systems, lightweight steel keel partition walls and ceilings have become the preferred solution for commercial spaces, residential interiors, and prefabricated buildings due to their advantages such as dry construction, earthquake resistance, crack prevention, and flexible partitioning. The C-shaped Channel, ceiling main keel, and various C-shaped reinforcing components, which form the core of the wall framework, directly determine the installation speed and wall flatness of the project based on their forming precision, punching accuracy, and production efficiency. The C strut Channel Roll Forming Machine is specifically designed for these critical components—it integrates uncoiling, leveling, punching, cold bending, and length cutting into a fully automated production line, redefining the manufacturing standards of C-shaped Channels with digital control and precision molds.
Key Features:
- Fully automatic precision punching with zero spacing deviation
- One-time forming of reinforcing ribs, doubling structural strength
- Intelligent digital control, "zero-threshold" operation
- High-speed continuous production, multiplying efficiency
- Flexible changeover, one machine covers the entire series
Product Attributes :
| 1.Formed Material | GI | Thickness:0.7-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | will give you as free | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 3KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 45m/min(customized) | Speed is adjustable according to customer's request | ||
Application Scenarios：
- Interior Partition Wall Systems:
Whether for partition walls in office buildings, hotels, hospitals, or residential interiors, C-shaped vertical Channels are used in conjunction with U-shaped Channels along the ceiling and floor. C-shaped Channel forming machines can provide a large quantity and stable supply of high-precision vertical Channels, ensuring lightweight, high-strength, fire-resistant, and sound-insulating partition walls, facilitating the large-scale industrial production of light steel keel walls. - Ceiling Load-Bearing Keel (Main Keel):
In mineral wool board and gypsum board ceilings, C-shaped main Channels (such as the 38 and 50 series) form the framework supporting the upper components. The C-shaped main Channels produced by our equipment have good straightness and matching interfaces, can be used with standard extension pieces, and allow for quick on-site construction, making them particularly suitable for suppliers of large public space ceiling projects.

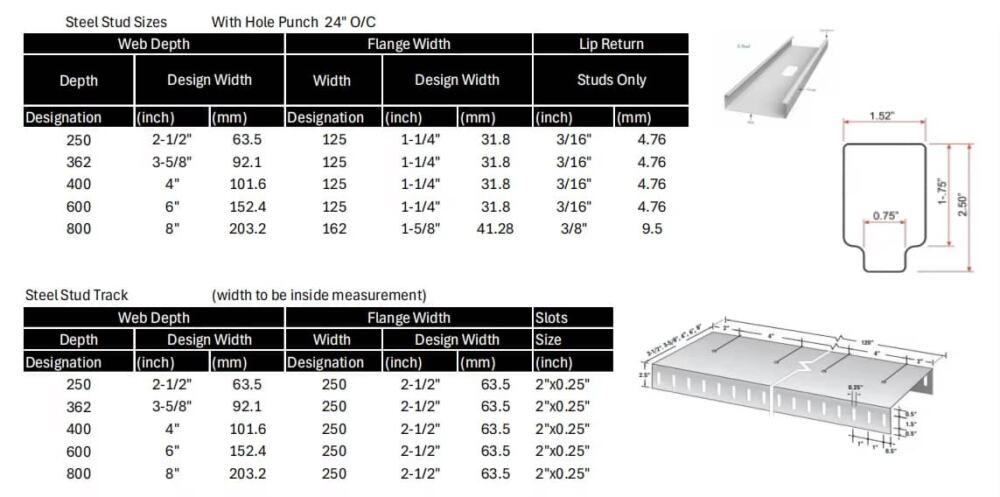

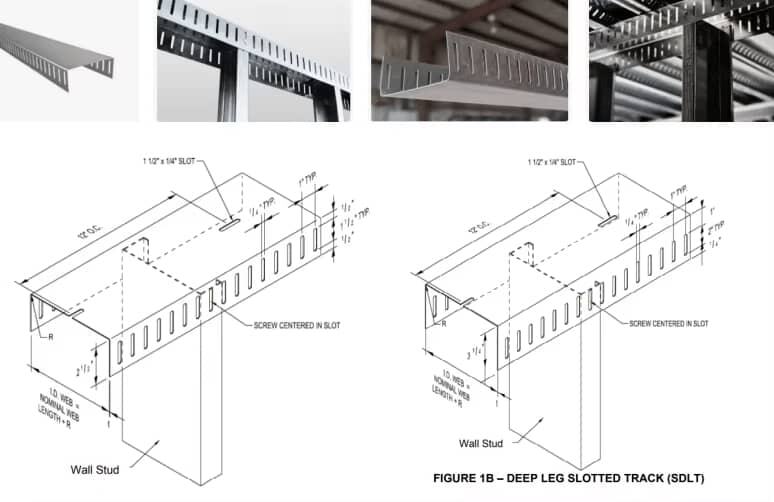

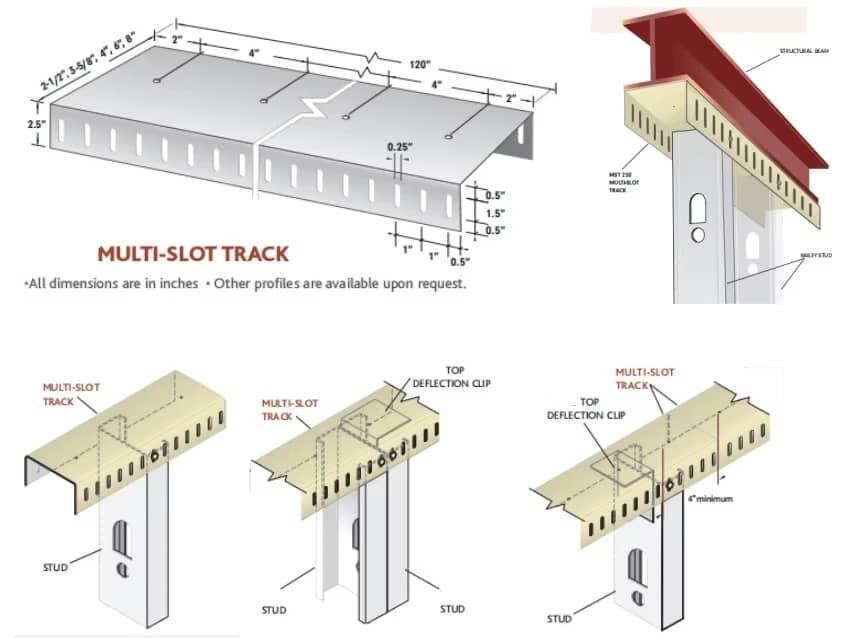

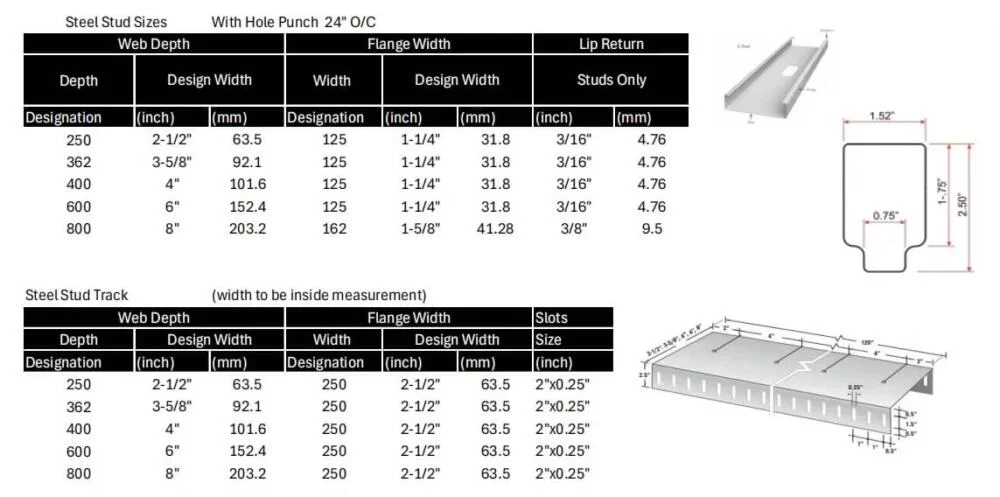

Pattern Diagram:

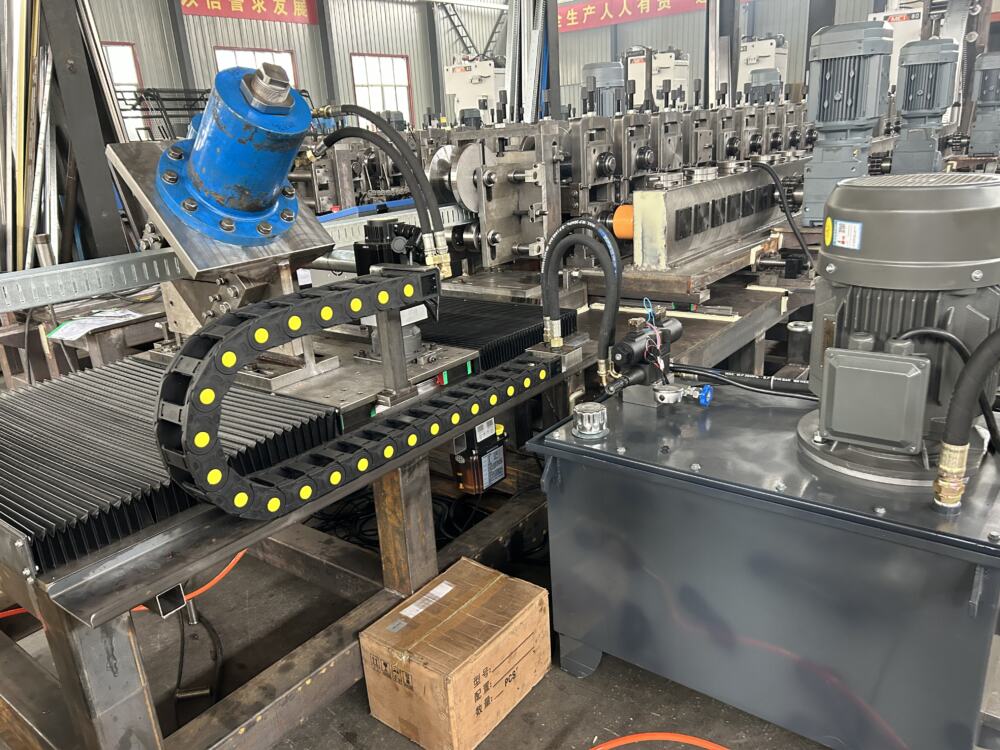

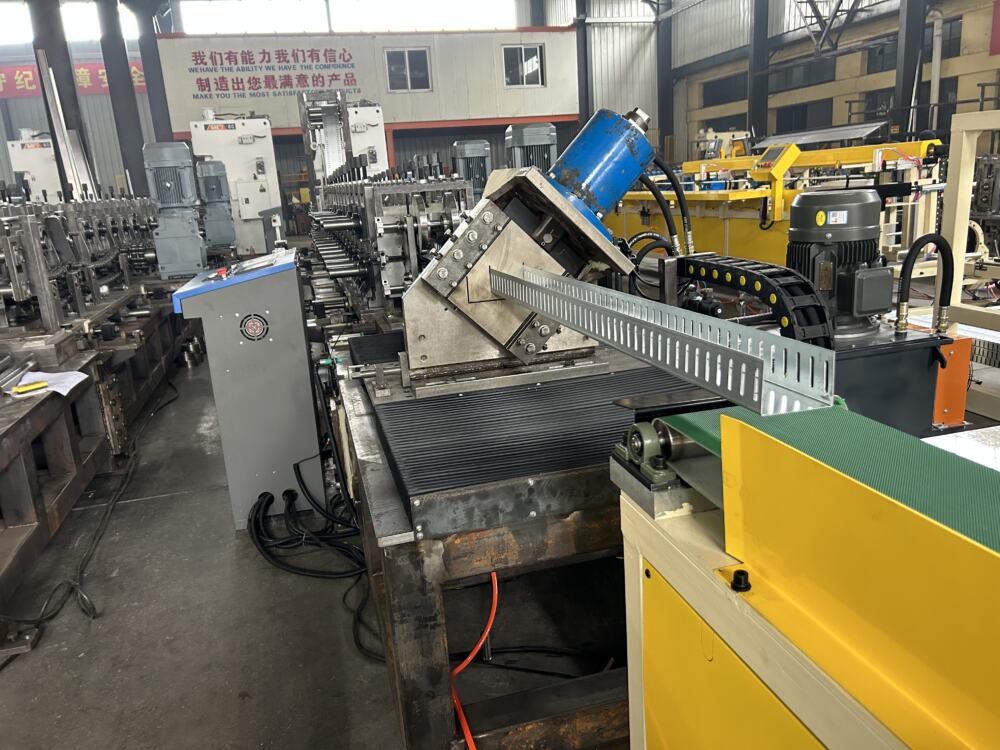

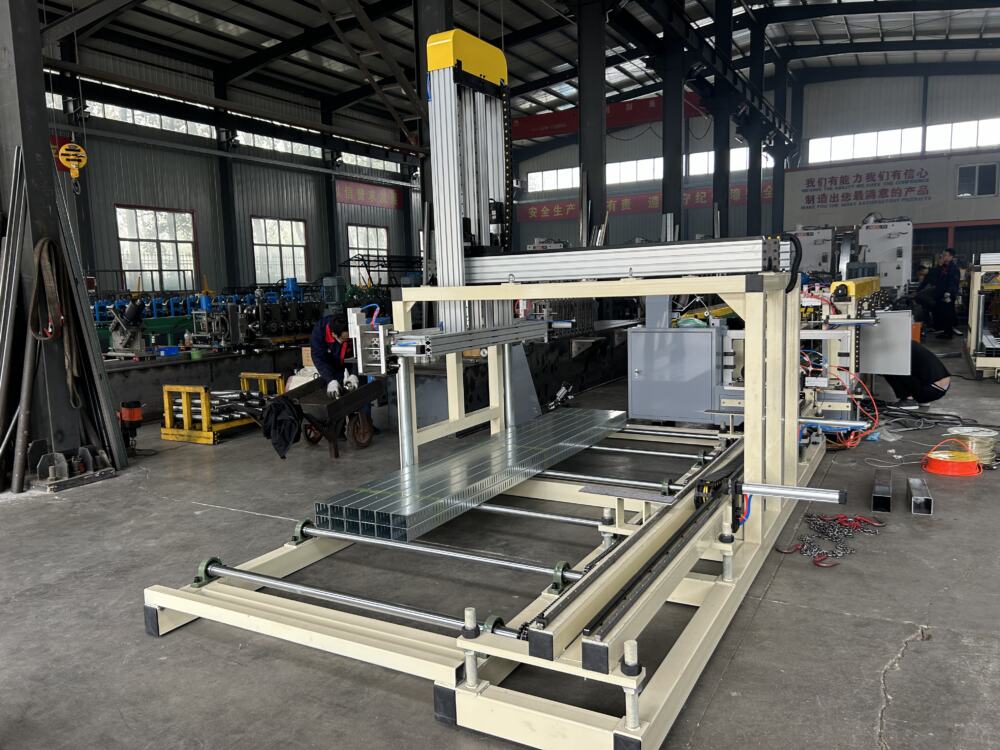

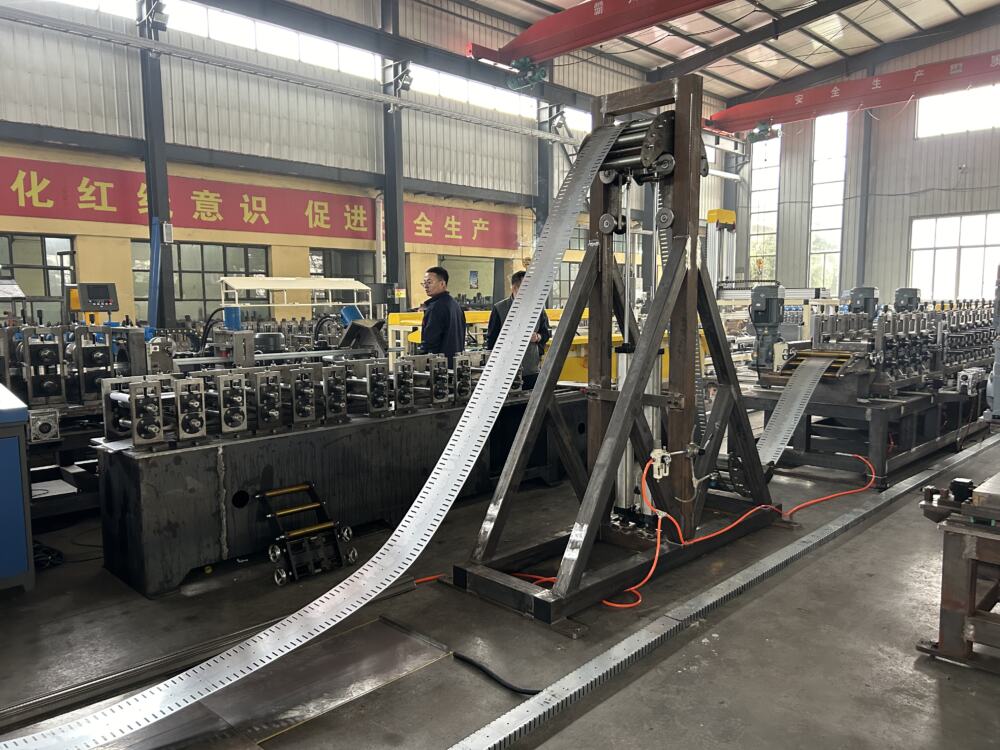

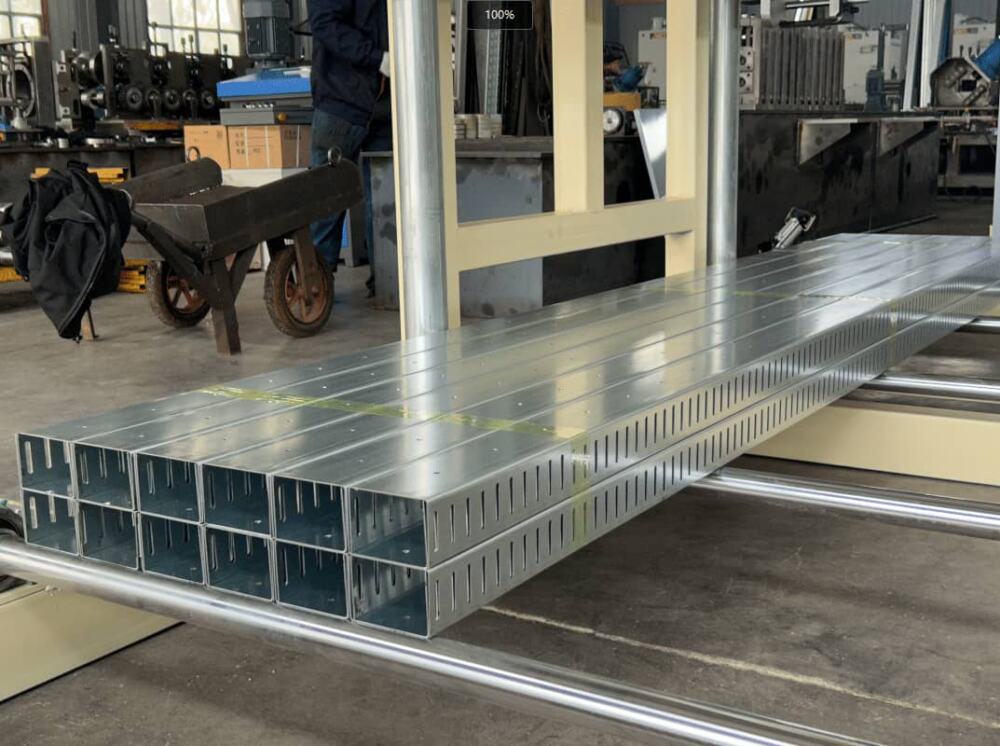

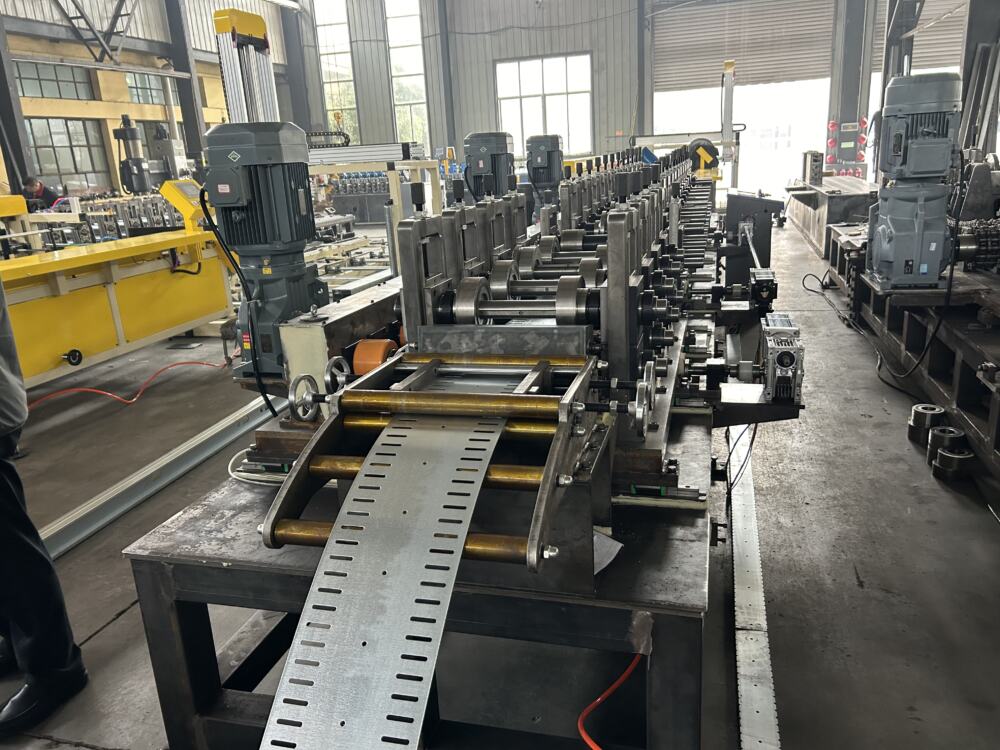

Machine image:
Contact Us：
The C-type channel forming machine is not only a 24/7 "keel intelligent manufacturer" in the factory, but also your core competitive advantage in seizing the light steel construction market. We have a complete product matrix, from basic models to fully automated punching and cutting integrated intelligent production lines, supporting customization of special hole shapes and cross-sectional depths. Welcome to contact us now to obtain a customized solution and trial production. Together, let's make every C-type channel an industry benchmark.
