The C Channel Drywall Stud and Track Roll Forming Machine is a fully automatic metal cold bending production line that integrates material feeding, leveling, multi pass cold bending forming, online punching, fixed length cutting, and finished product conveying. It can continuously roll cold-rolled galvanized steel strip, aluminum zinc coated steel strip and other coil materials into light steel keel profiles with a "C" cross section, which are widely used in building partition vertical keels, ceiling load-bearing keels, as well as wall beams, purlins and other steel structure buildings.
Six core characteristics of C Channel Machine:
- One machine with multiple specifications, flexible quick change type
- Precision molding, with straight and upright keel lines
- Online punching and precise cutting
- Intelligent electronic control, one person on duty
- Heavy duty rack, long-lasting and stable production
- Flexible expansion, seamless connection to subsequent sections
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.5-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 60mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gear transmission | |||
| Dimension(L*W*H) | 7800*800*1200(customize) | |||
| Weight | About 4.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-100m/min(customized) | Different speed designs for options. | ||
Pattern drawing：
Multiple application scenarios,:building infinite space
- Prefabricated building interior partitions
star rated hotels, office buildings, and residential decoration projects extensively use light steel keel partitions. The matching production of C-shaped vertical channel and U-shaped sky and earth channel requires diverse specifications and fast delivery. A C-shaped channel forming machine can allocate multiple specifications of orders within one day, completely relieving the stocking pressure of partition wall contractors. - Integrated ceiling system
Public places such as shopping malls, airports, hospitals, etc. have a huge ceiling area, which requires extremely high dimensional accuracy and surface quality of the main and auxiliary keels. The C-shaped load-bearing channel produced by the equipment has good rigidity and complete coating, meeting the safety and aesthetic requirements of large-span suspended ceilings. - Steel structure factory buildings and warehouses
Steel structure wall purlins and roof purlins often require C-shaped sections of different heights and thicknesses. The forming machine supports high-speed forming of steel strips with a thickness of 0.5~1.2mm, and can continuously produce purlins several meters long. The cut is straight and can be directly installed, greatly improving the self-sufficiency of steel structure processing plants.

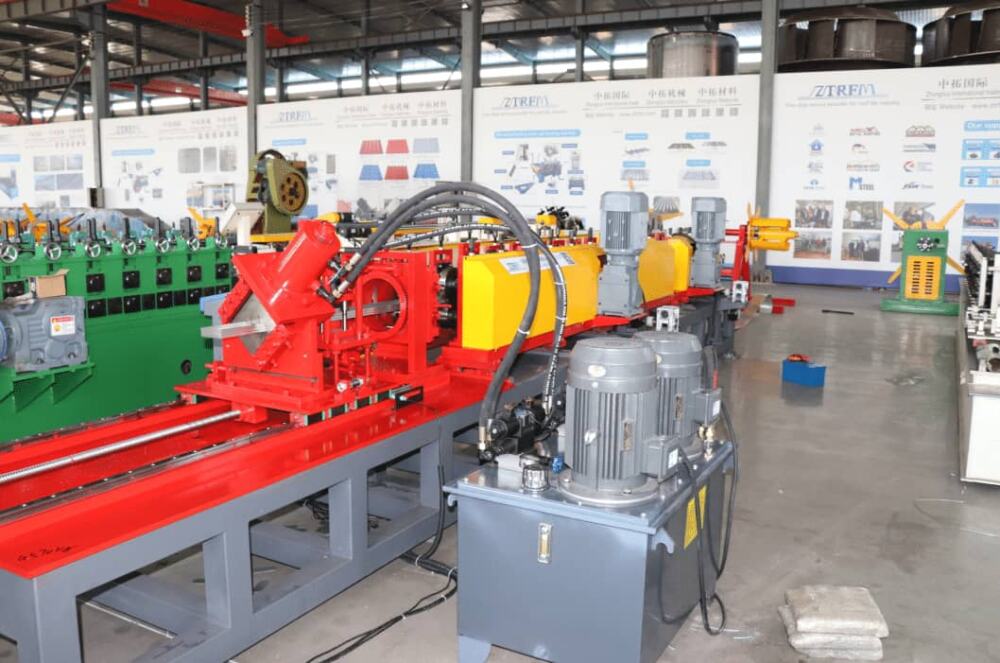

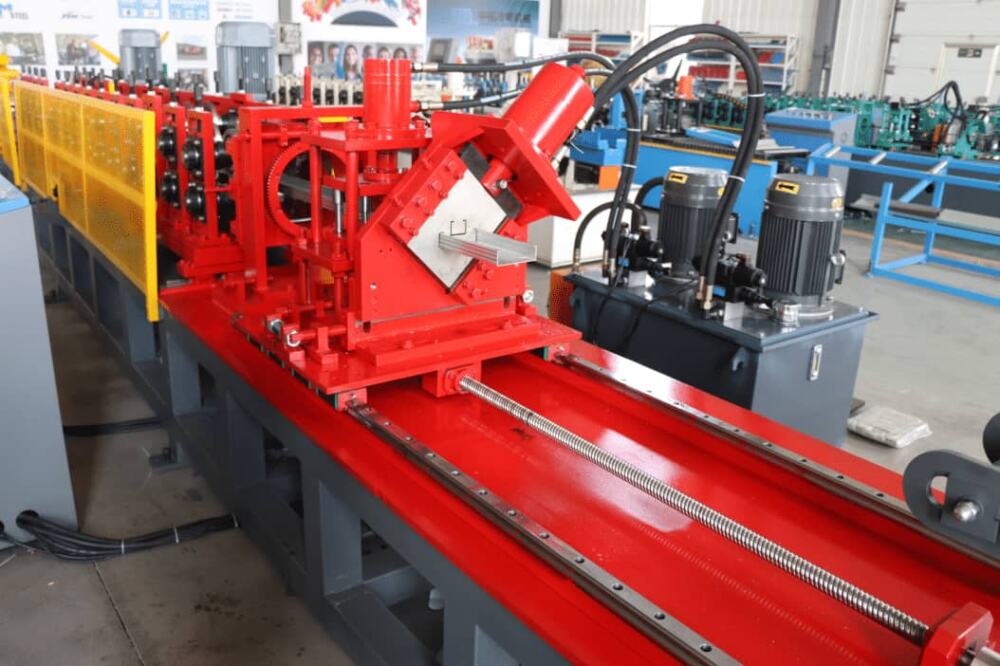

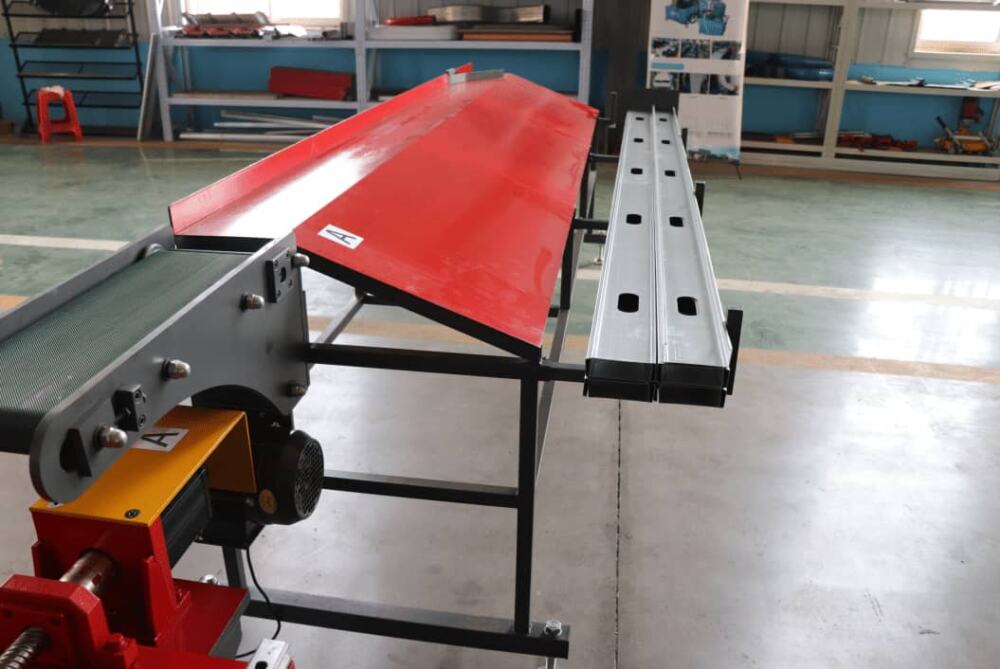

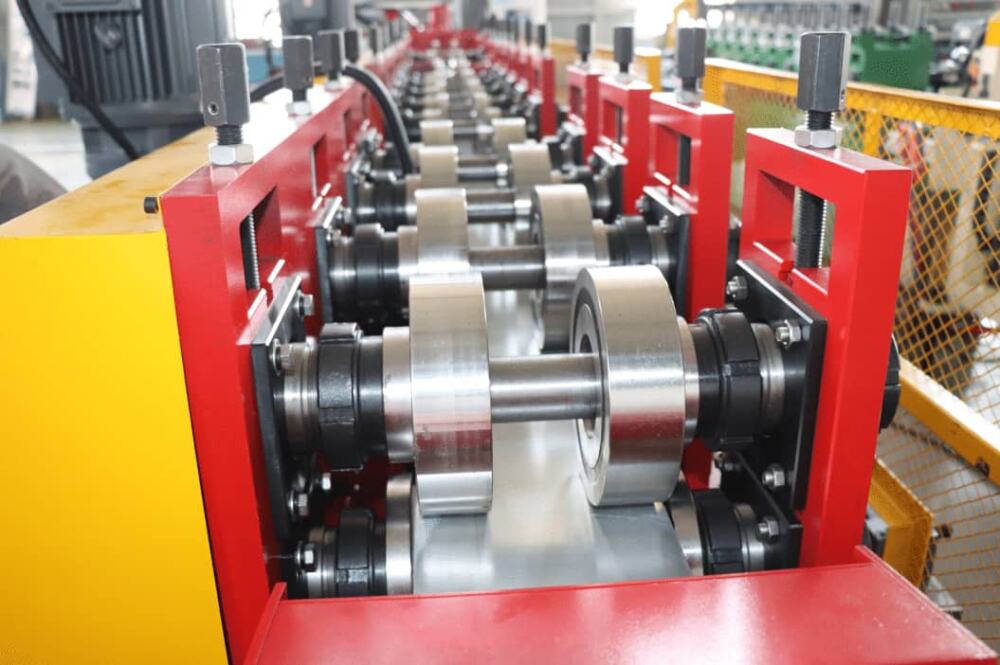

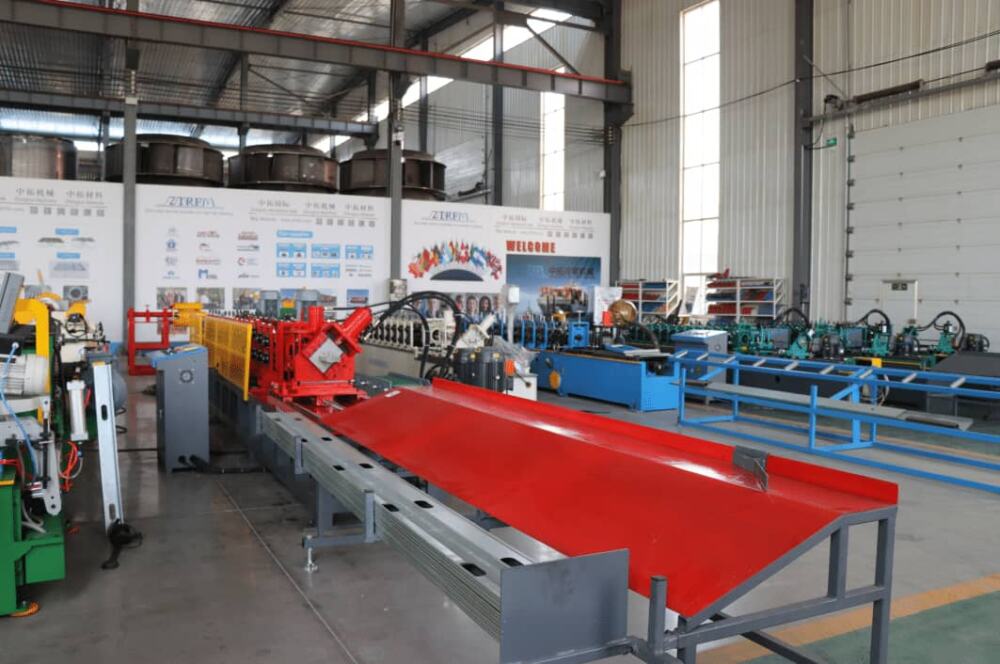

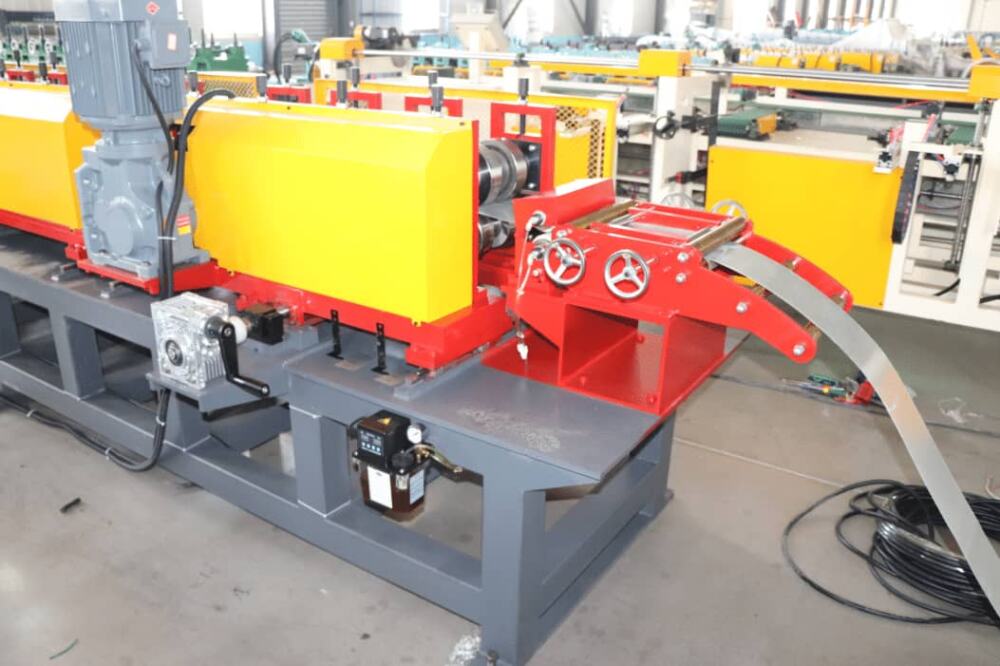

Machine photo:
Contact Us：
From a roll of steel strip to the lightweight steel frame that supports thousands of buildings, the C-shaped channel forming machine makes everything simple, efficient, and reliable. It is not only a production equipment, but also the core cornerstone for you to build a competitive advantage in the field of light steel building materials. Choose us, choose the perfect combination of precision and versatility, and together open a new chapter in the large-scale intelligent manufacturing of light steel buildings.
Contact us immediately to obtain your exclusive production plan and real-time quotation, making every dragon bone your spokesperson for quality!
