In the fields of steel structure construction, storage shelves, photovoltaic brackets, etc., CZ Purlin, as a key load-bearing component, has become an indispensable basic material in modern manufacturing industry due to its advantages of reasonable cross-section, high strength, and material saving. The core equipment that supports efficient and precise production of CZ Purlin, the fully automatic CZ Purlin machine, has completely changed the traditional situation of low production efficiency, poor accuracy, and dependence on manual labor by integrating cold bending forming, automatic cutting, intelligent control and other technologies. It has become the core force driving the industrialization and large-scale development of the cold bending steel industry.

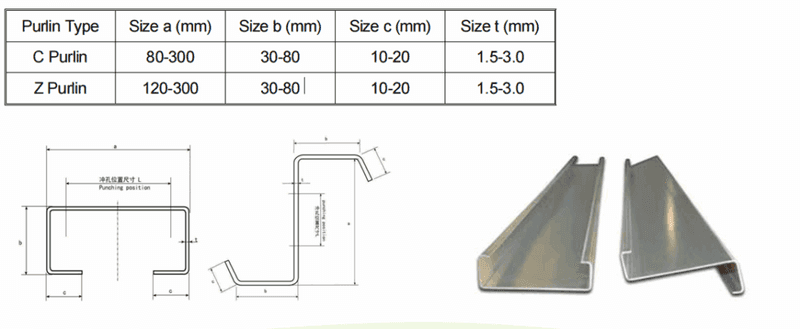

Pattern diagram:

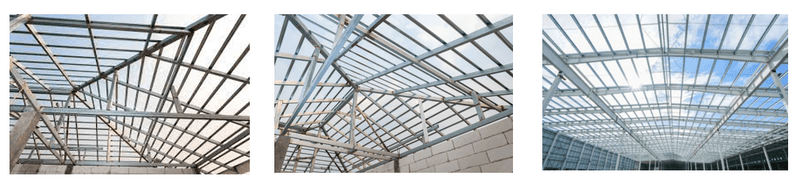

Application Scenario:
- Steel structure buildings
- Photovoltaic bracket
- Storage shelves
- Transportation facilities
Product Attributes ：
| 1.Formed Material | GI | Thickness:1.5-3 mm (standard) | ||
| 2.Decoiler | 3 Tons Hydraulic automatic decoiler | 3 Tons Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 20 rows (As your requirement) | ||
| Diameter of shaft | 80 mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 400 H steel | |||
| Drive | Gear and chains transmission | |||
| Dimension(L*W*H) | 15000*1800*1600(customize) | |||
| Weight | 15T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 11KW*2 sets,Siemens brand | ||
| Hydraulic system power | 15 KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 25 m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

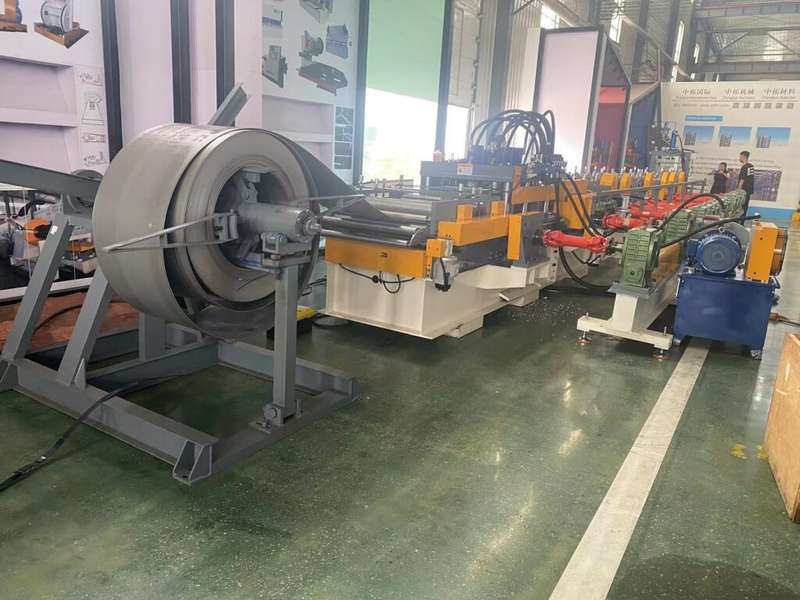

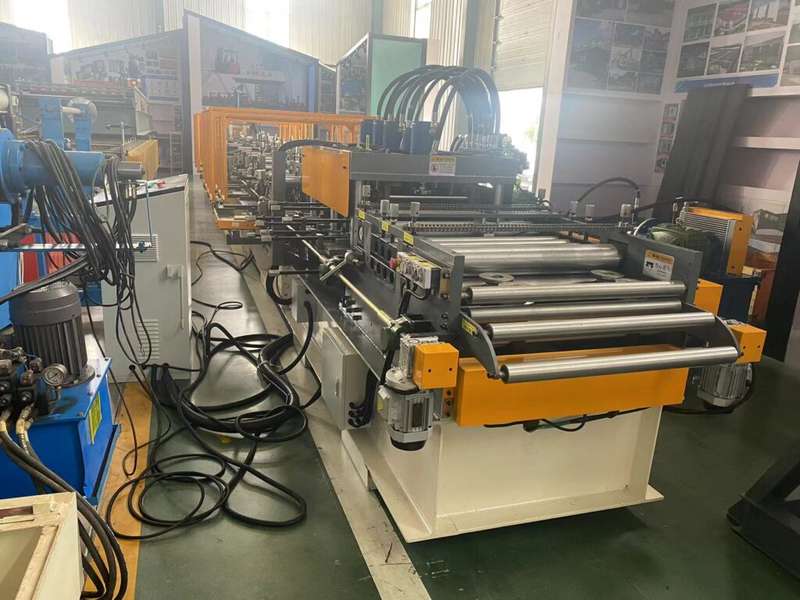

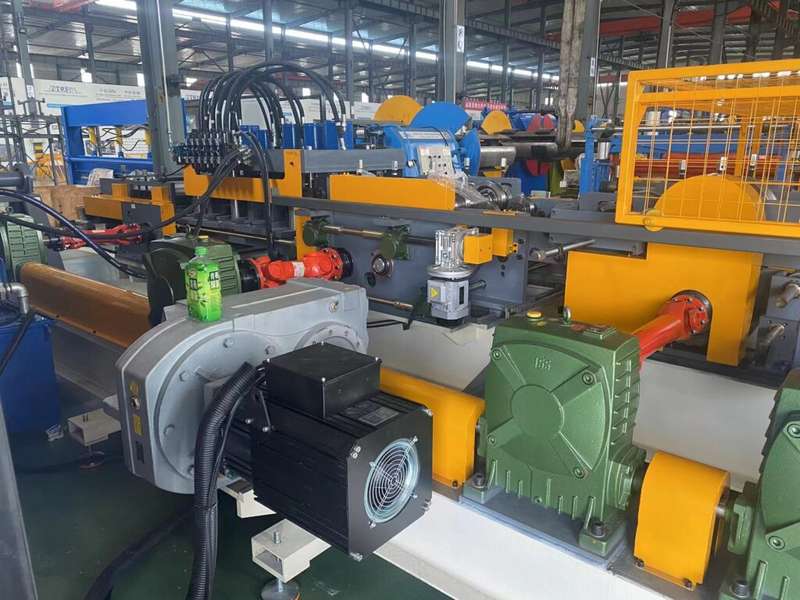

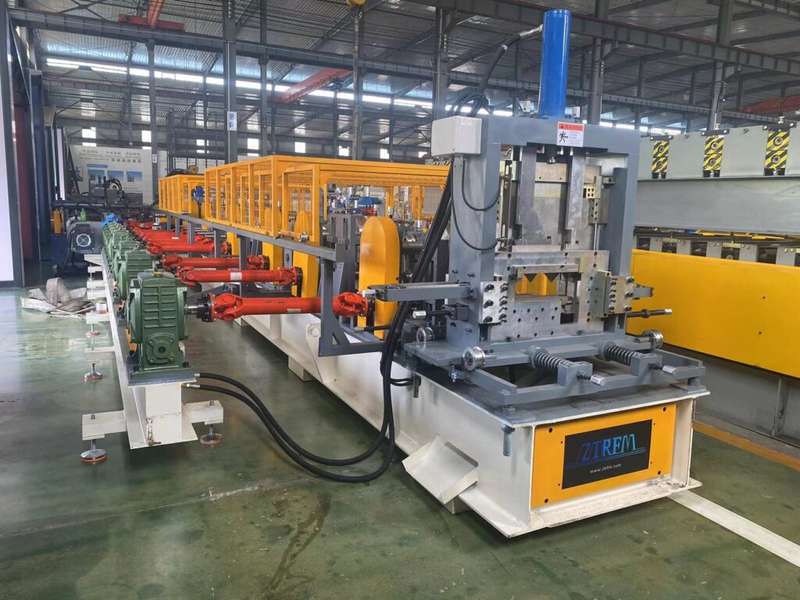

Machine image:
