With the rapid development of industries such as steel structure construction, warehousing and logistics, and photovoltaic brackets, the demand for processing efficiency, precision, and diversification of steel sections is increasing day by day. As a professional processing equipment that integrates automation and intelligence, the Non Stop Cutting C Z Purlin Roll Forming Machine has become the core equipment in the field of modern steel processing due to its flexible ability to produce both C-shaped steel and Z-shaped steel, as well as its efficient and precise processing capabilities. It provides strong support for the supply of steel in various industries.

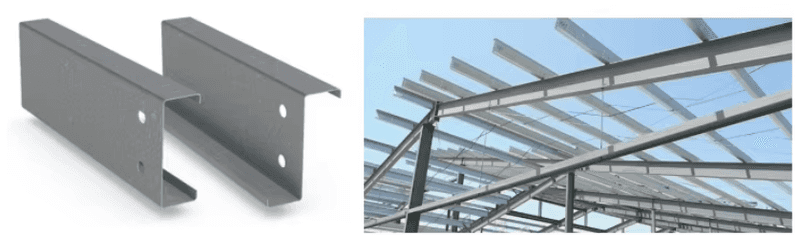

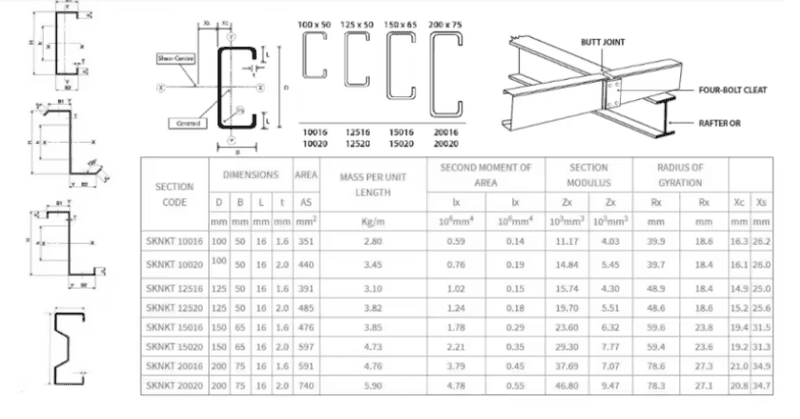

Pattern drawing:
Applicable Scenarios：
- Steel structure construction industry
The fully automatic CZ steel processing machine produces steel with precise dimensions and excellent load-bearing capacity, which can enhance building stability. - Warehousing and logistics industry
The fully automatic CZ steel machine can quickly process steel according to shelf specifications, meeting diverse needs.
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:1.5-3mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 24 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | Gcr 15 with quenched teeatment | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 9500*800*1200(customize) | |||
| Weight | About 14T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 15KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 60-70m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

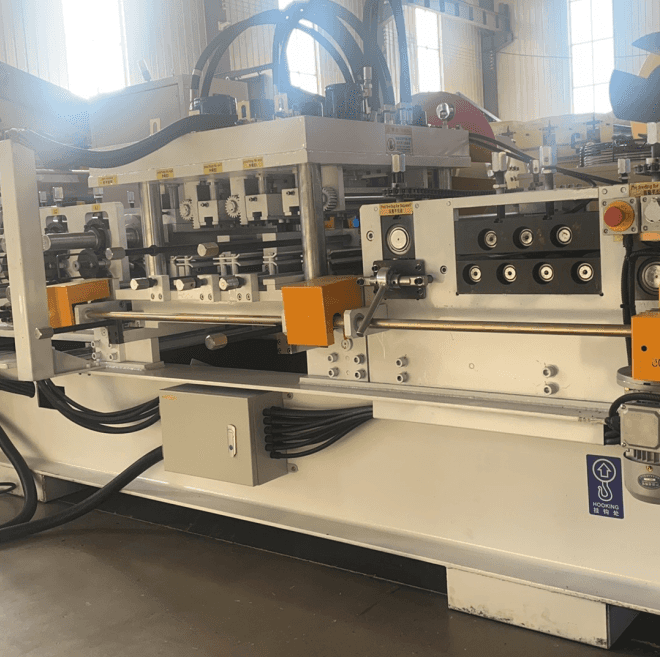

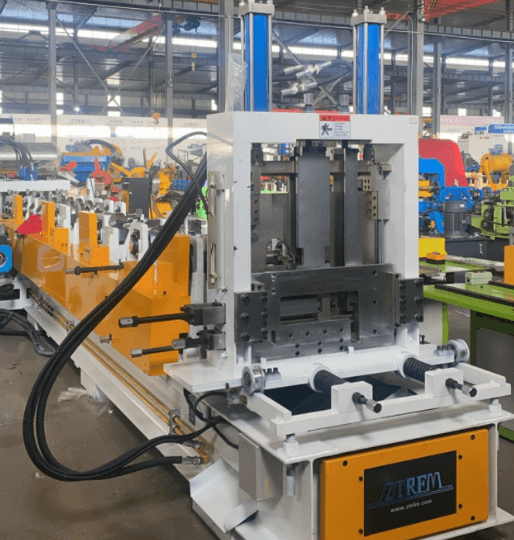

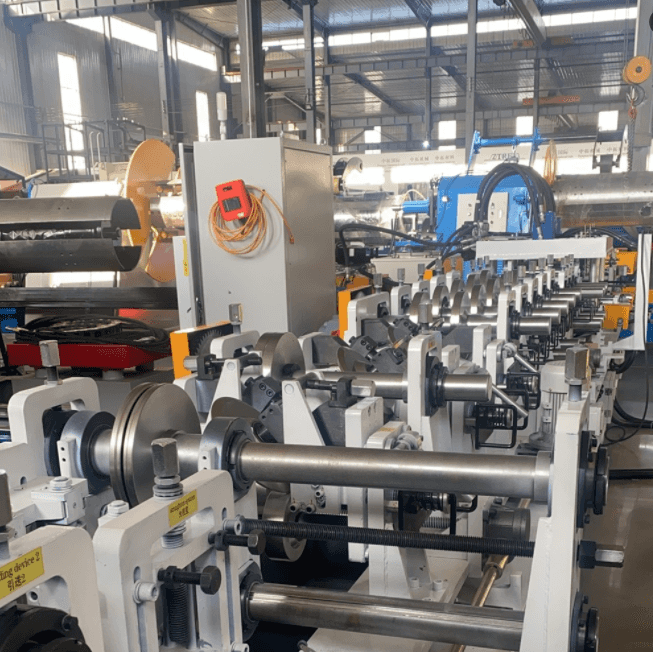

Machine image:
