C Z Purlin Roll Forming Machine is a multifunctional automated processing equipment upgraded from traditional single Z Purlin Roll Forming Machine or C Purlin Roll Forming Machine. Its core feature is the modular design of a set of equipment, which enables flexible switching production between C-shaped cold-formed steel and Z-shaped cold-formed steel, without the need to purchase two separate sets of equipment. It meets the processing needs of both types of profiles and is an efficient production equipment in the fields of steel structure buildings, photovoltaic brackets, storage shelves, etc.

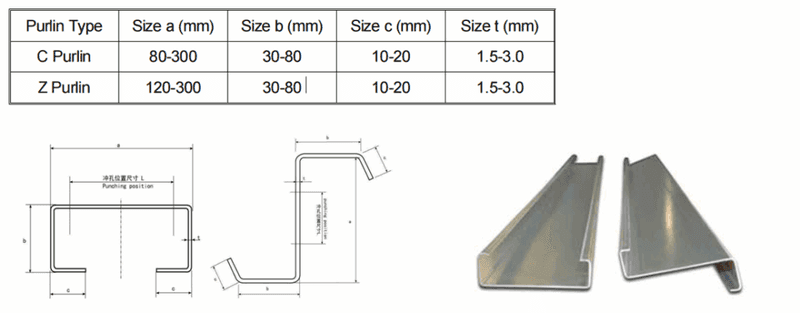

Pattern diagram:

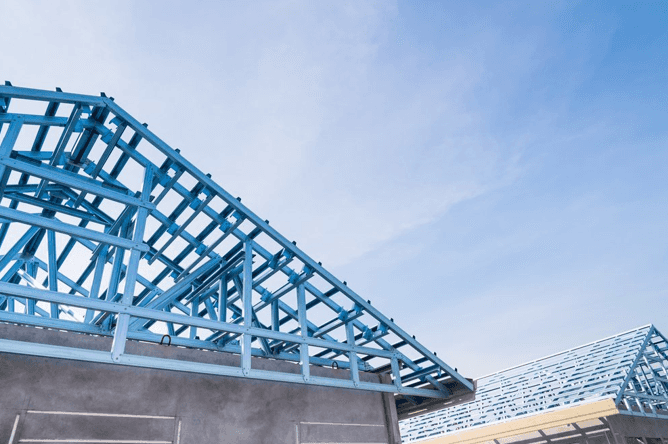

Applicable scenarios:
- Small and medium-sized steel structure processing enterprises:
- Comprehensive building materials suppliers:
- Photovoltaic bracket/storage rack production factory:
- Engineering site processing points:
Product Attributes ：
| 1.Formed Material | GI | Thickness:1.5-3 mm (standard) | ||
| 2.Decoiler | 3 Tons Hydraulic automatic decoiler | 3 Tons Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 20 rows (As your requirement) | ||
| Diameter of shaft | 80 mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 400 H steel | |||
| Drive | Gear and chains transmission | |||
| Dimension(L*W*H) | 15000*1800*1600(customize) | |||
| Weight | 15T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 11KW*2 sets,Siemens brand | ||
| Hydraulic system power | 15 KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 25 m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

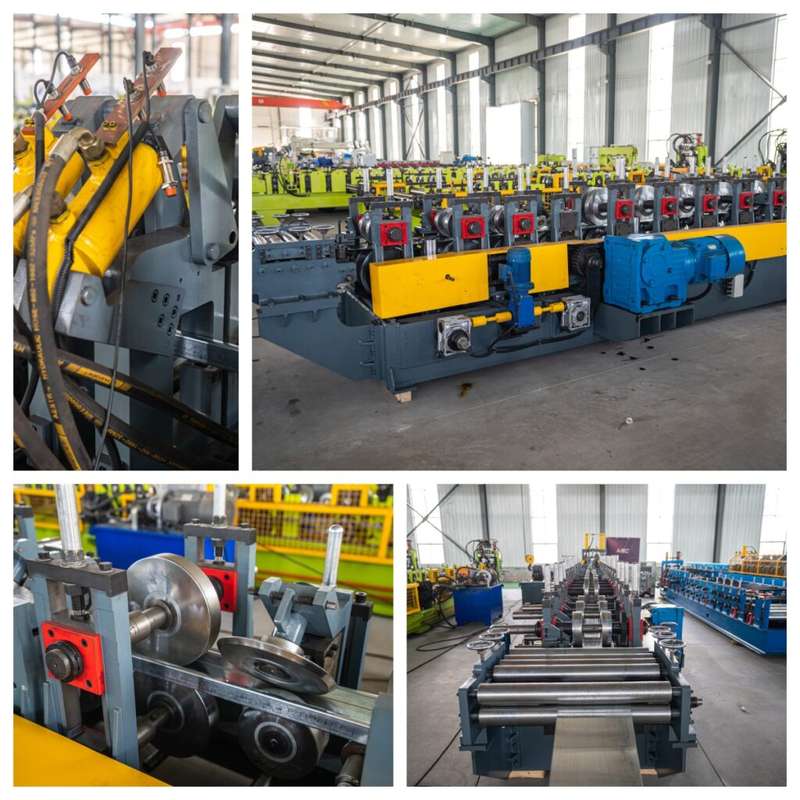

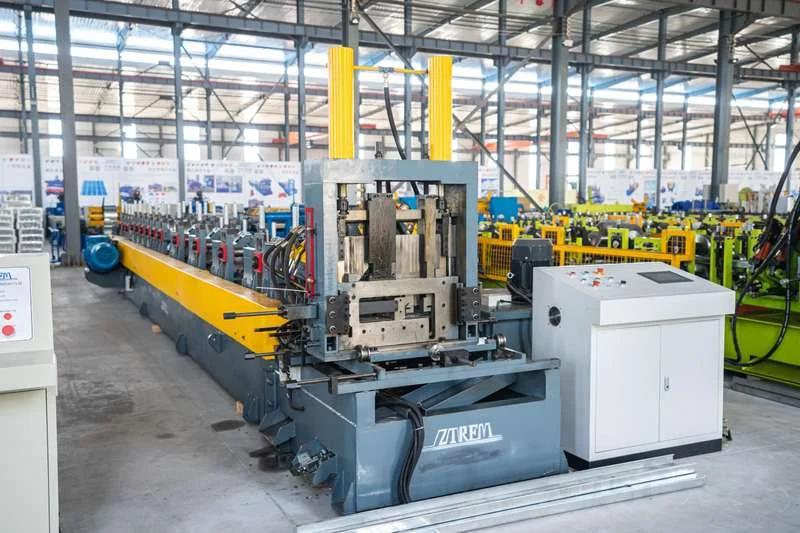

Product images：
