In today’s rapidly developing metal processing industry, enterprises have increasingly high demands for product accuracy, efficiency, and personalization. A high-performance metal embossing machine is not only the core equipment on the production line, but also a key support for enterprises to enhance their market competitiveness. Our new generation metal embossing machine, with advanced technology, stable performance, and efficient output, has become the first choice for many metal processing enterprises, injecting new vitality into the industry.
Hard core technology creates excellent quality:
- High precision embossing, restoring the beauty of details
- Strong power, efficient and stable operation
- Intelligent control system, easy to operate and worry free
Other design

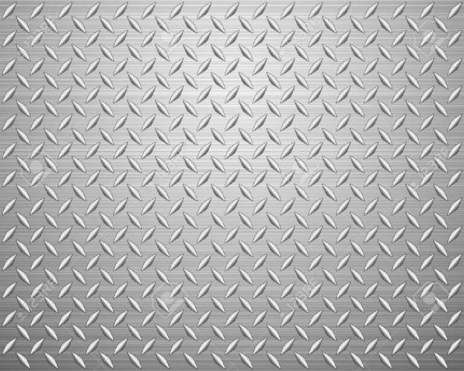

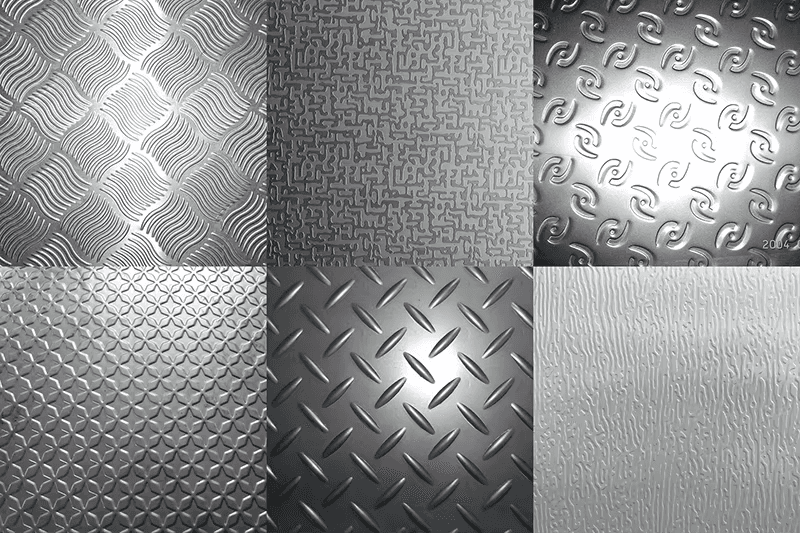

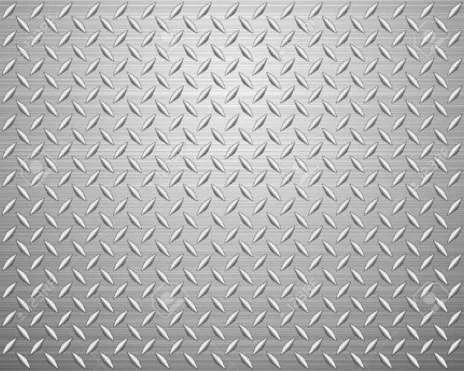

Different designed patterns can be embossed by changing the designing of roller dies on the embossing machine. A metal sheet embosser produce the patterns on each every fed piece of metal sheets, while a metal sheet embossing machine line can produce designed patterns continuously on uncoiled or unrolled metal sheet and after the embossing process, the embossed metal sheet will be re-rolled or re-coiled for other purposes.
Product Attributes ：
| 1. formed material | stainless steel/ galvanized steel/ carbon steel | thickness:0.5-3mm 3-6mmwidth: max 1500mm (customize for you) |

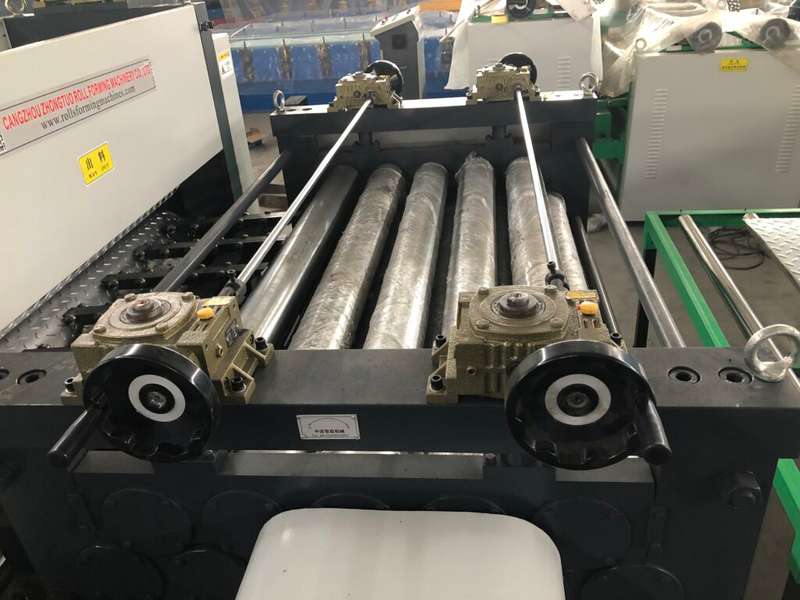

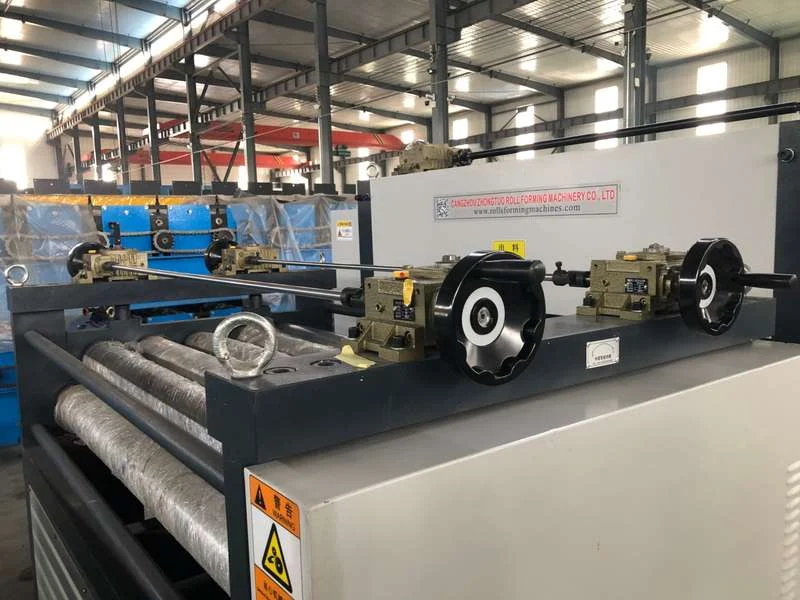

| 2. leveler | leveling roller | 9 rollers, up 4 down 5 |
| roller diameter | 120mm | |
| power | 5.5kw | |

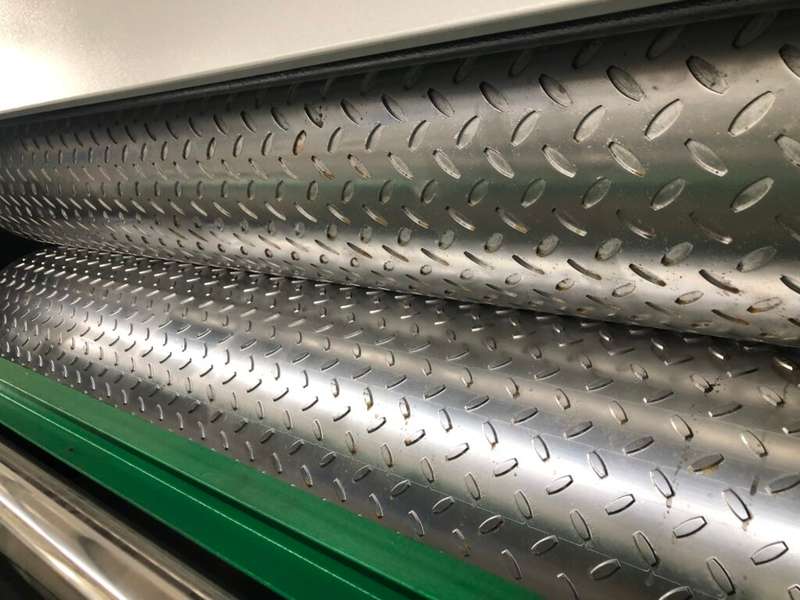

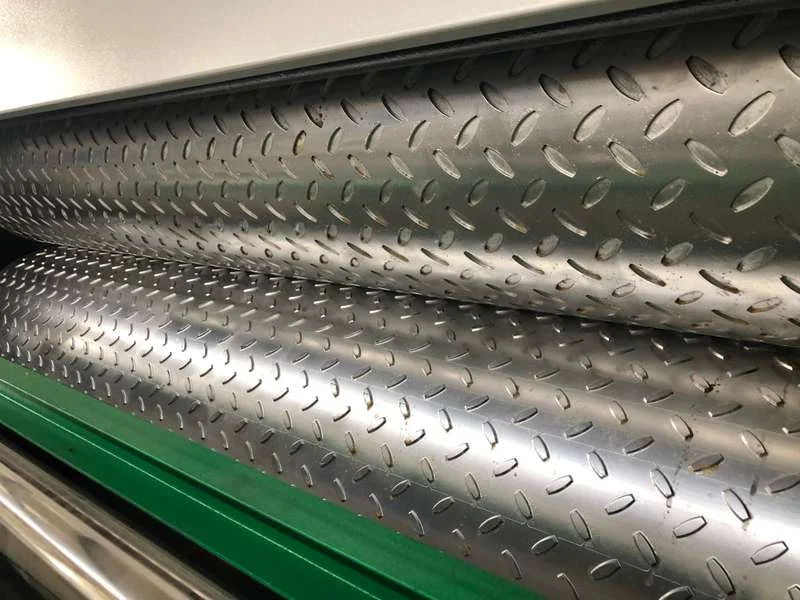

| 3. main body | embossing roller diameter | 450mm |
| embossing roller material | 9Cr2Si | |
| power | 15kw | |
| drive | by gear | |
| speed | 0-10m/min | |
| dimension | 10500*2200*1800mm | |
| weight | 11.5t | |
| 4.voltage | 380v50hz3ph | customize for you |
| 5.control system | electric box | customize for you |
| language | English (support multiple languages) | |
| PLC | automatic production of the whole machine,can set batch, length, quanty,etc | |

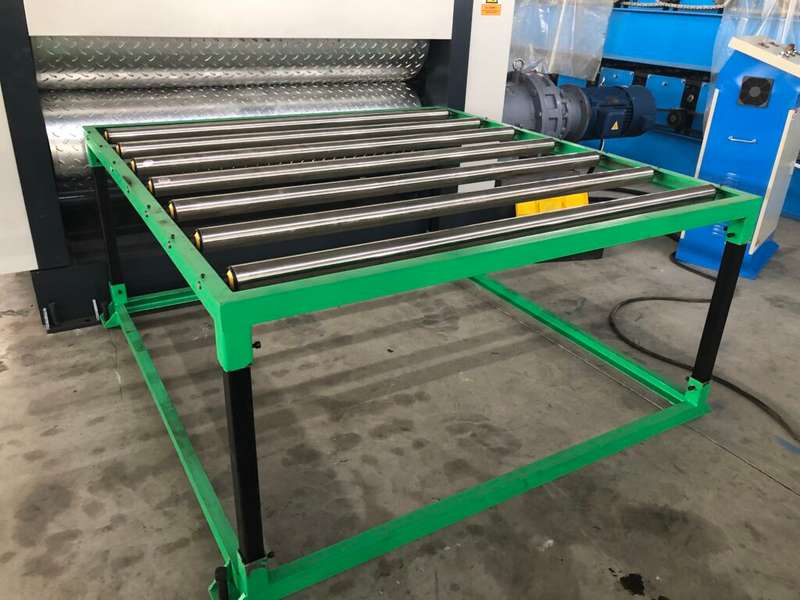

| 6.table | receive table | length; 3 meters |
| 7.forming speed | 30-35m/min | the speed depends on the shape of the tile and the thickness of the material |

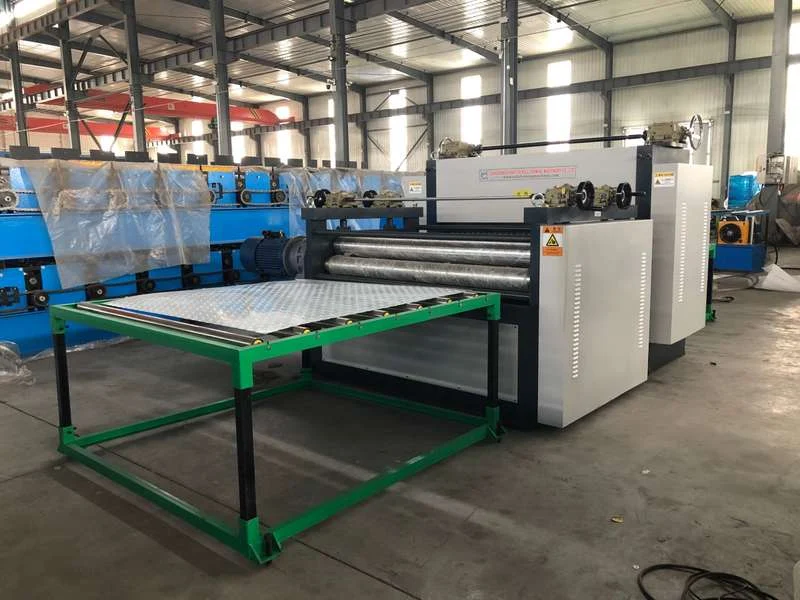

Product images：
