In the rapidly developing steel structure construction industry, the traditional steel production mode is facing many pain points such as low efficiency, insufficient accuracy, high labor costs, and single product specifications, which seriously restrict the production capacity improvement and market competitiveness of enterprises. The emergence of fully automatic C Z Purlin Roll Forming Machine has completely broken this deadlock, with the core advantages of “integration, automation, high precision, and high flexibility”, becoming a key equipment to promote the transformation and upgrading of steel structure production, injecting strong development momentum into the vast number of production enterprises.

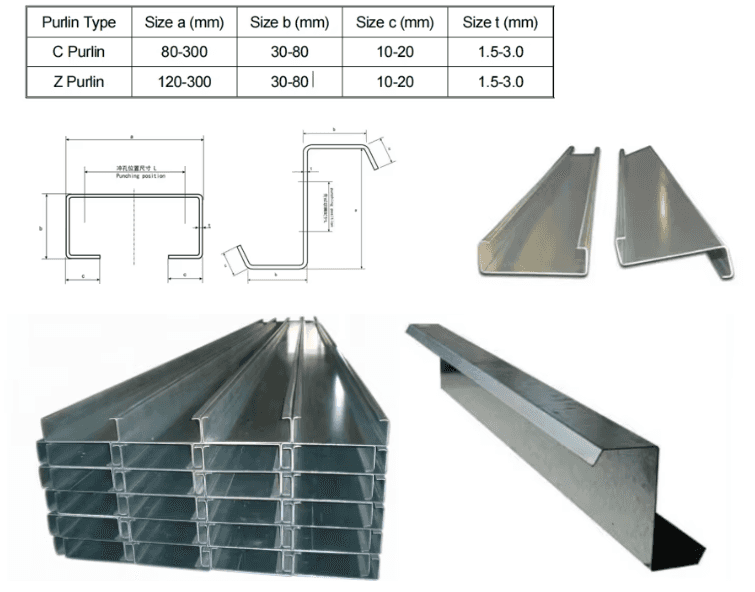

Pattern diagram:
Core features:
1.Accuracy and Adjustment：
（1）Precision straightening system: using a ten roll dedicated straightening device to ensure product squareness and right angle accuracy.
（2）Millimeter level adjustment: Parameters such as belly plates and flanges can be precisely adjusted in millimeters to meet diverse specification requirements.
2.Material and Durability：
（1）High strength rolling mill: made of bearing steel (GR15) material, combined with forging and annealing process to enhance wear resistance.
（2）High hardness base: The 310H steel base is matched with a leveling device to ensure molding accuracy.
3.Applicability and safety：
（1）Multi functional design: supports processing of steel with a thickness of 1.5-3mm, and can customize thicker plates; Equipped with safety protection devices to reduce operational risks.
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:1.5-3mm | ||

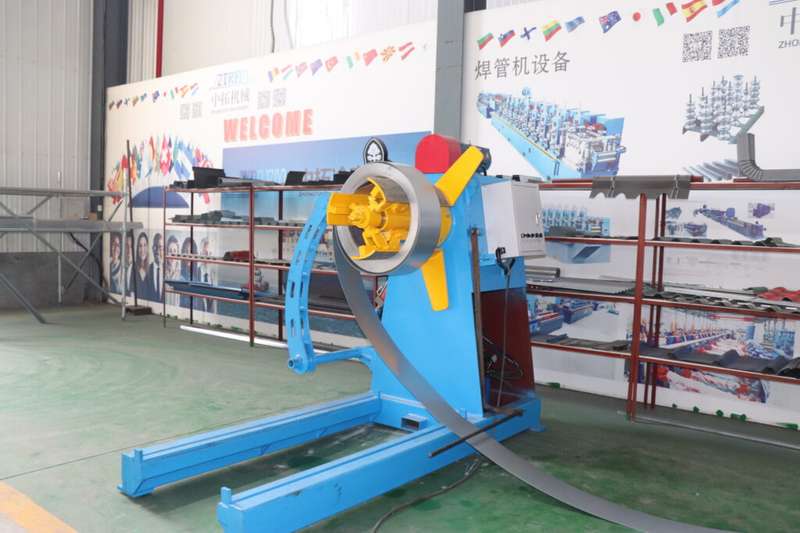

| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | Gcr 15 with quenched teeatment | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 9500*800*1200(customize) | |||
| Weight | About 7T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 15KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 60-70m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

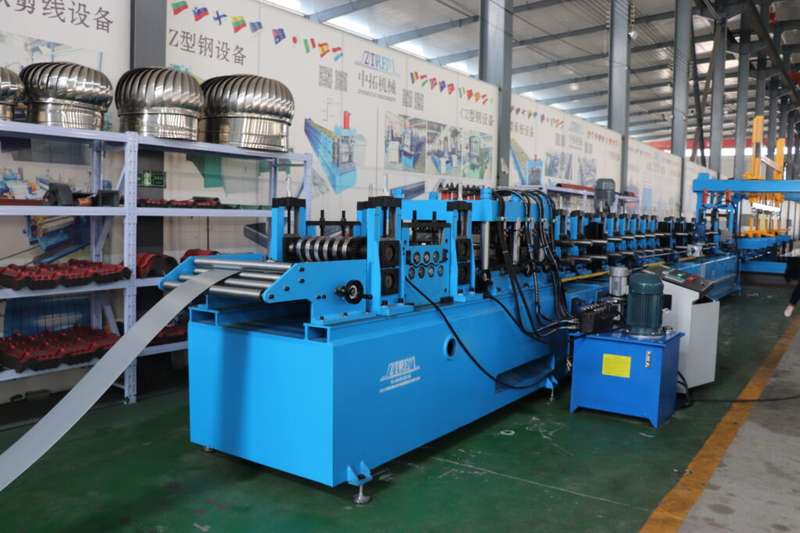

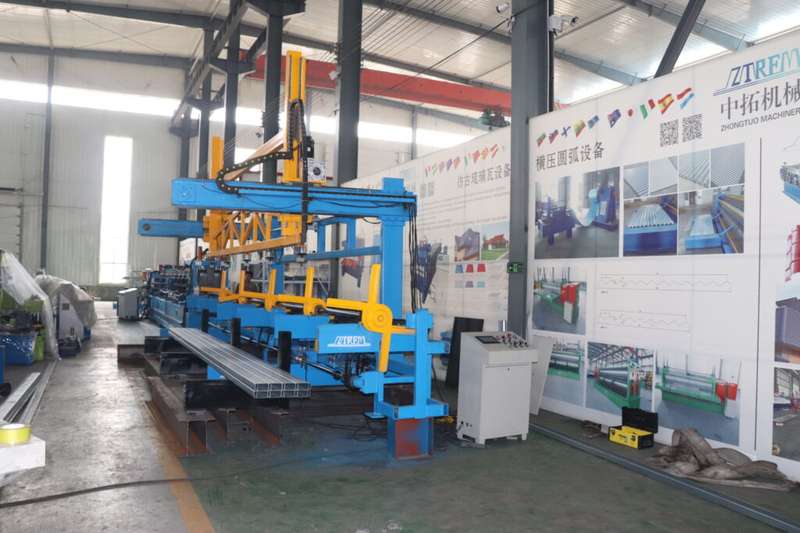

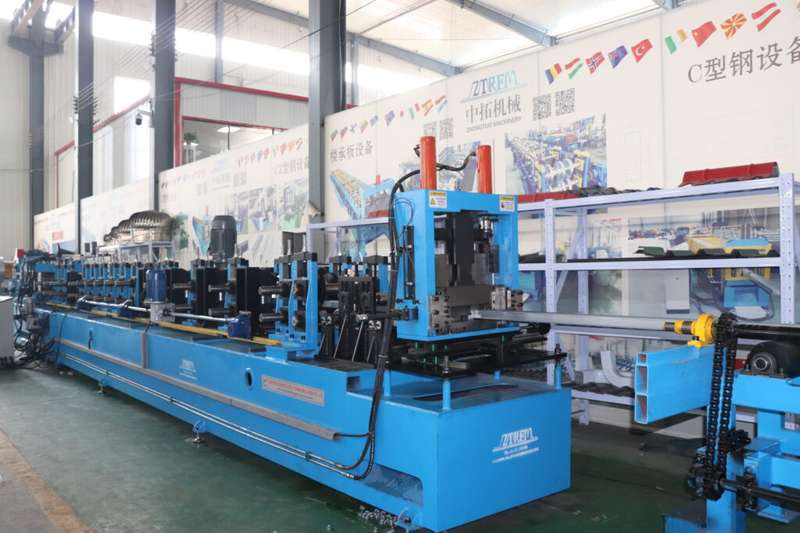

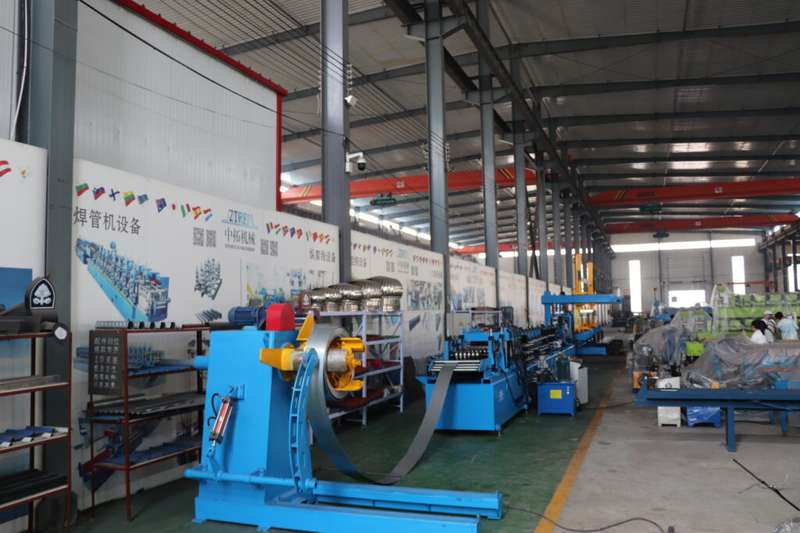

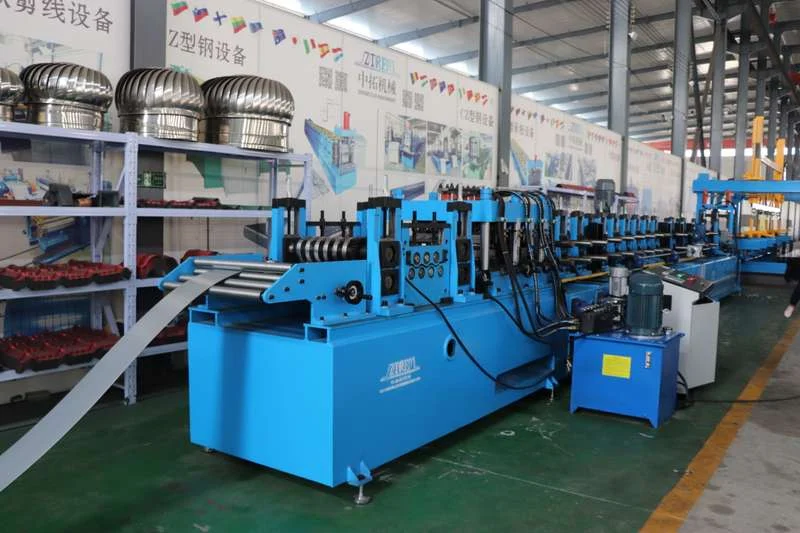

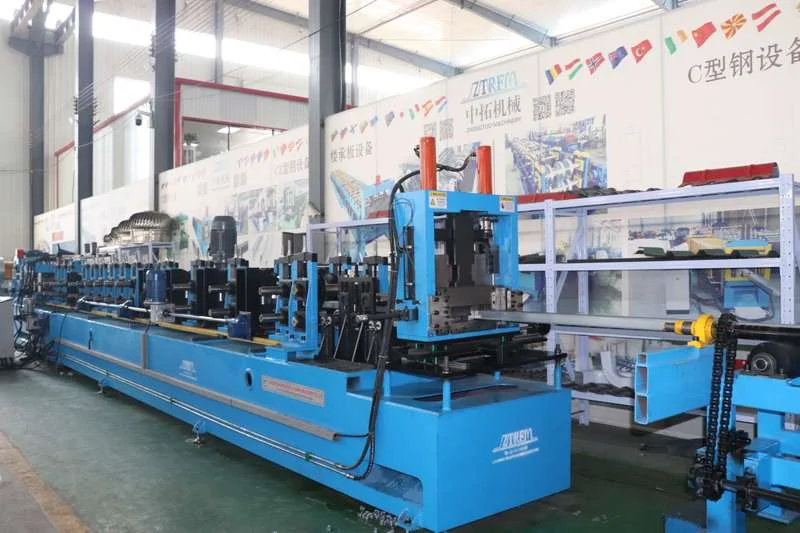

Machine image:
