Ceiling panels, as indoor ceiling decorations and functional components, are widely used in various places such as residential buildings, office buildings, and shopping malls. Their production and processing cannot be separated from professional Metal Roof Ceiling Panel Roll Forming Machine. This type of equipment uses automated or semi automated production processes to process metals, gypsum PVC、 Processing raw materials such as aluminum alloy into ceiling panels that meet architectural design requirements, with both decorative and functional properties.
Main Features：
- High degree of automation and significant production efficiency
- High production accuracy and stable product quality
- Flexible adaptation of raw materials and diverse product categories
- Strong cost control ability and high comprehensive cost-effectiveness
- Function integration, adapted to modern decoration needs

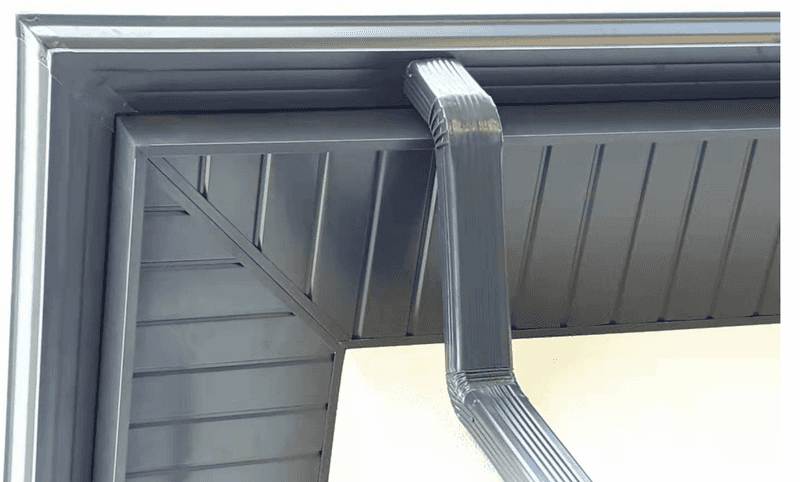

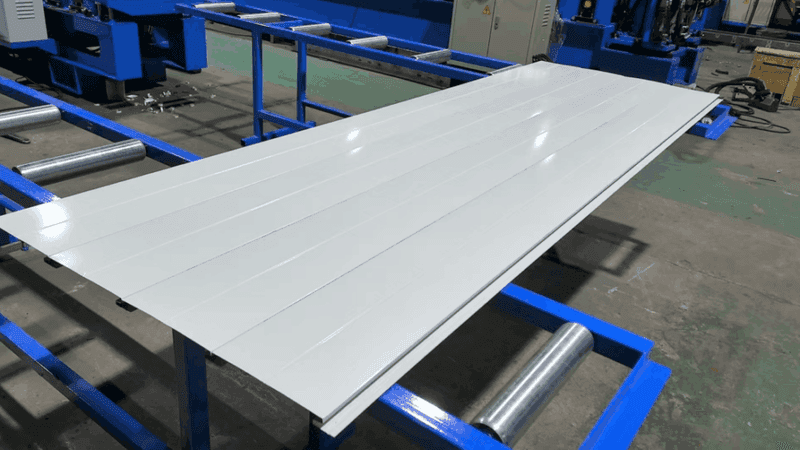

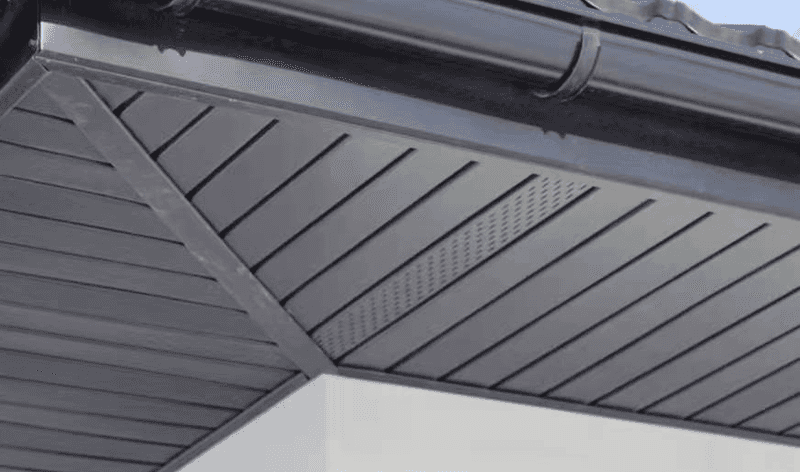

Finished product image:
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:0.5-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive way | gear | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 8T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 30m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

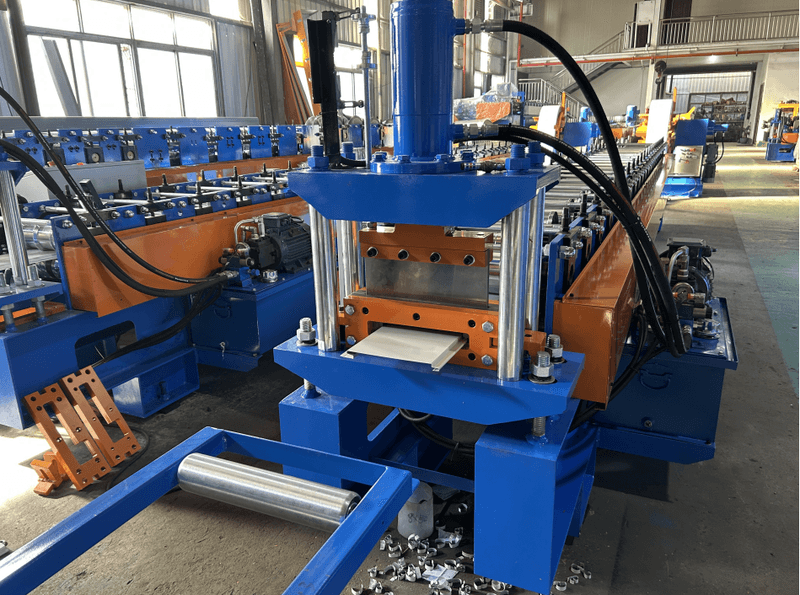

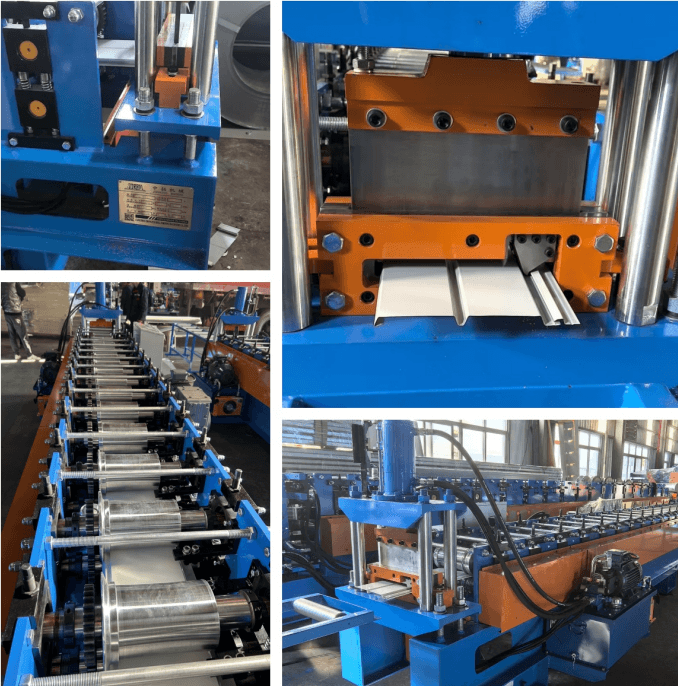

Product images：
