- Industrial plant

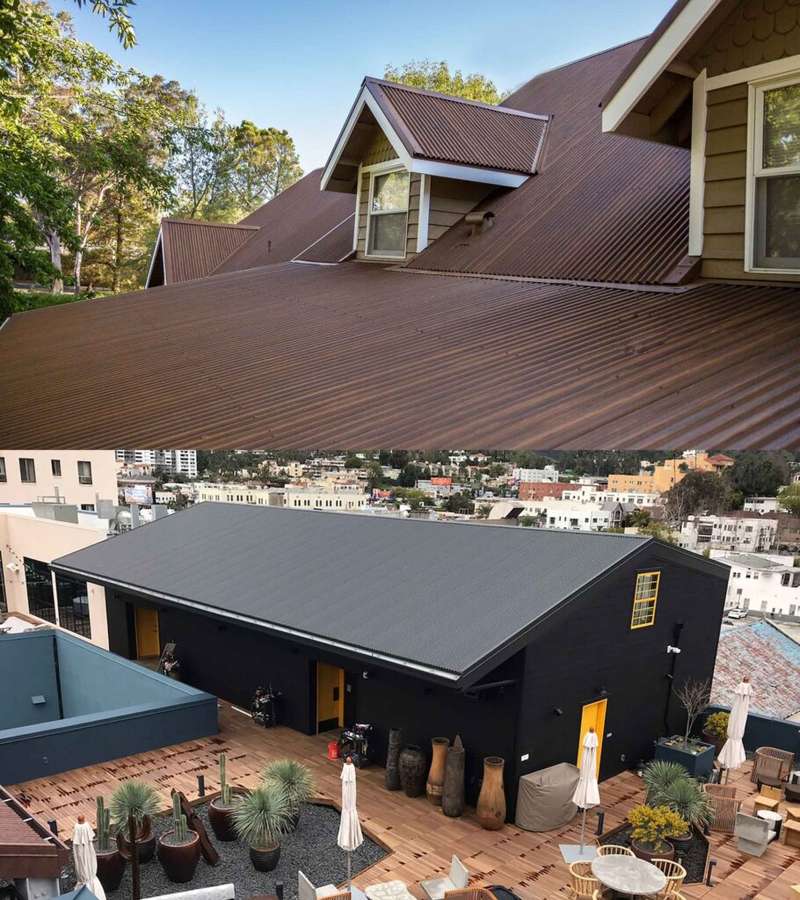

Corrugated roofs can improve drainage efficiency, reduce water accumulation problems, and optimize the overall structural stability of the factory building. - Public and commercial buildings
Corrugated roofs are commonly used in public buildings to enhance the artistic quality of the building, protecting the original curved roof structure while ensuring construction safety and durability. - Featured residential buildings
Corrugated roofs can improve indoor lighting and ventilation conditions, and are commonly used in scenes such as villas and characteristic residences that require high aesthetic standards.
Corrugated roof tiles are widely used in villas, cultural and tourism towns, retro style public buildings, and other scenarios due to their smooth curved shape, excellent waterproof performance, and rich decorative effects.

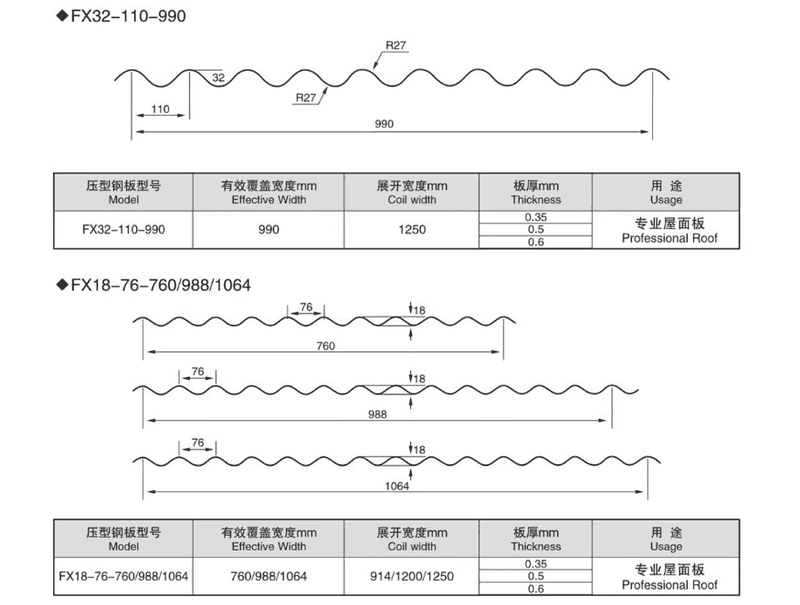

Pattern diagram:

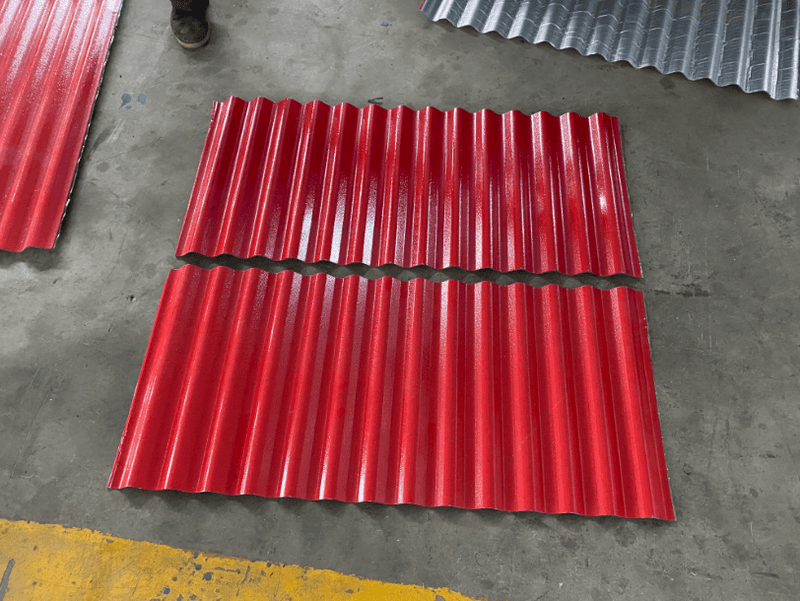

Finished product image:
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 18 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 350 H steel | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 7500*1600*1600(customize) | |||
| Weight | 4.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 4KW | ||
| Hydraulic system power | 3KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

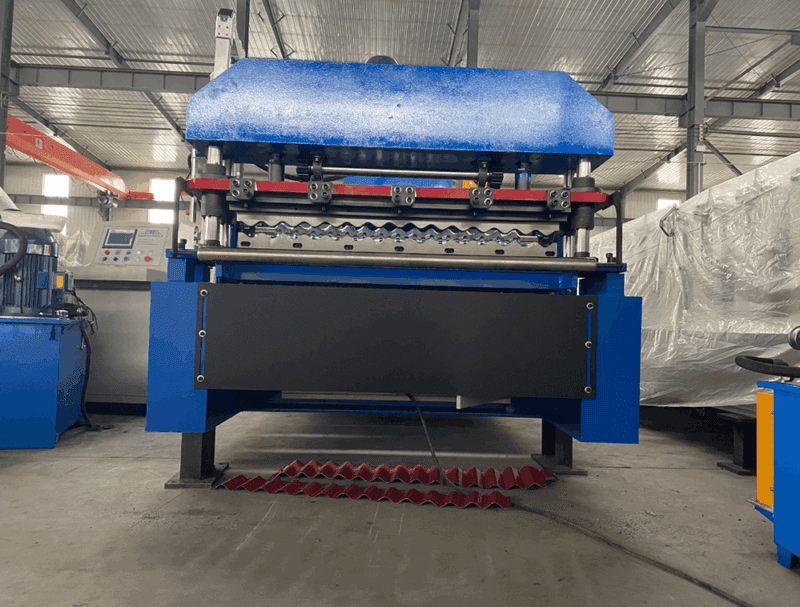

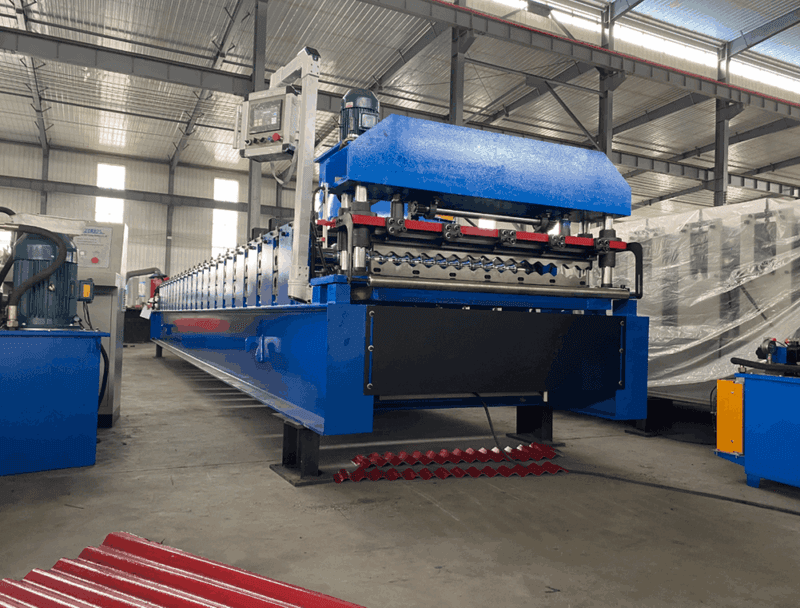

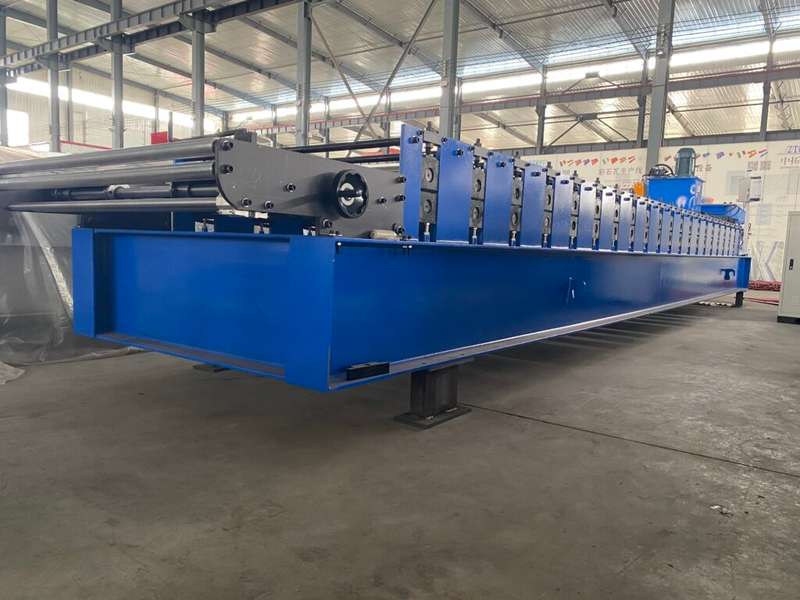

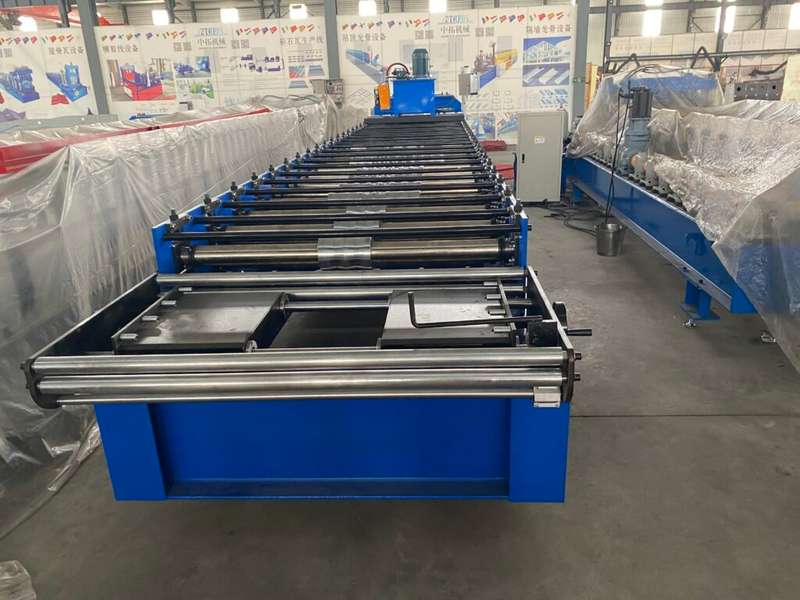

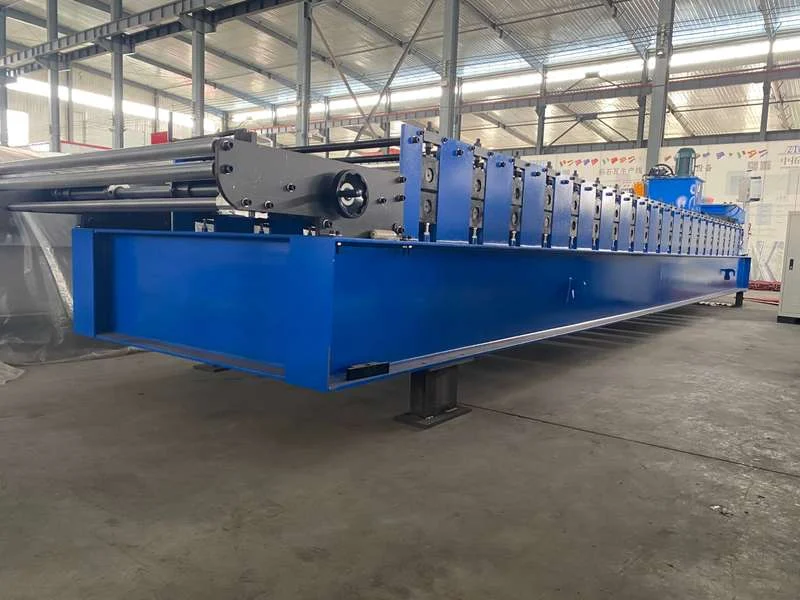

Product images：
