In the fields of steel structure construction, storage shelves, photovoltaic brackets, etc., traditional steel processing often faces three major challenges: limited specifications, cumbersome mold changes, and insufficient accuracy: either it cannot flexibly adapt to the profile requirements of different projects, or mold changes take more than 2 hours, resulting in production capacity gaps, or forming accuracy deviations affect installation stability. CZ Purlin Structural Steel Profile for Eave Struts Making Machine, with the advantages of “dual use, intelligent and efficient, precise and stable”, has become a key equipment to solve these pain points.

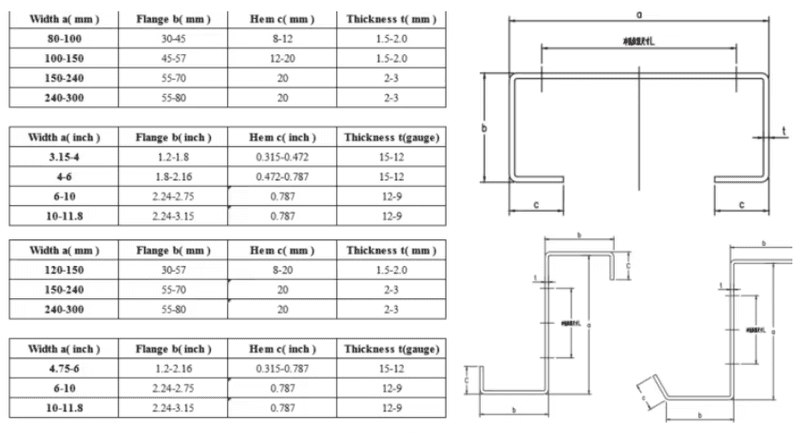

Pattern diagram:
From practical applications, this machine has become a “production mainstay” in multiple industries:
1.A certain prefabricated construction enterprise uses its processing plant purlins to not only meet the C/Z steel switching requirements of different buildings, but also reduce on-site installation errors through precise molding, shortening the project duration by 15%;
2.With the help of its efficient production capacity, a certain photovoltaic bracket manufacturer has increased its monthly bracket production to 5000 sets, successfully undertaking orders for large-scale photovoltaic power plants and increasing its profit margin by 12%;
3.Small and medium-sized shelving factories prefer its “low input, high output” feature, which can cover the production of multi specification shelving beams without the need for multiple equipment inputs, and increase customer order response speed by three times.
Core performance meets industry demands:
- Dual use, flexible adaptation:
Without the need to replace the host, the production of C-shaped steel and Z-shaped steel can be quickly switched through molds. It is suitable for processing cold-formed steel with a height of 50-300mm and a thickness of 1.5-4.0mm, meeting more than 90% of steel application scenarios and saving factory space and equipment costs. - Intelligent and efficient, reducing costs and increasing production:
Integrated automatic feeding, CNC cutting, and continuous forming, with a feeding speed of 15-20 meters per minute and a 40% increase in forming efficiency; Quick mold change within 15 minutes, the daily output of a certain factory increased from 8 tons to 13 tons after introduction, saving 2 people per shift. - Accurate and stable, quality assurance:
20mm thick steel plate body with precision transmission and servo positioning, forming accuracy ± 0.5mm, straightness error ≤ 1mm/m; Equipped with material breakage protection and overload alarm, the continuous operation failure rate is less than 0.5%, reducing the risk of shutdown maintenance.
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:1.5-3mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | Gcr 15 with quenched teeatment | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 9500*800*1200(customize) | |||
| Weight | About 7T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 15KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 60-70m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

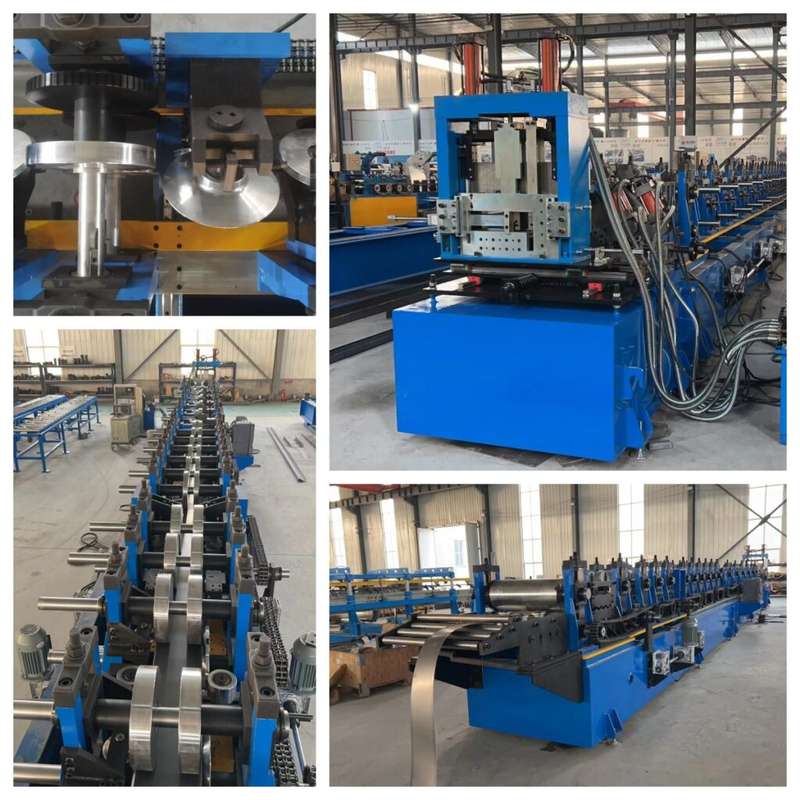

Machine image:
