In modern construction engineering, downspouts, as key components for roof drainage, directly affect the aesthetic appearance of building exterior walls and the safety of wall structures. As the core equipment for large-scale production of downspouts, the Downspout Cold Roll Forming Machine undertakes the important task of processing metal coils into standardized and high-precision downspout pipes.

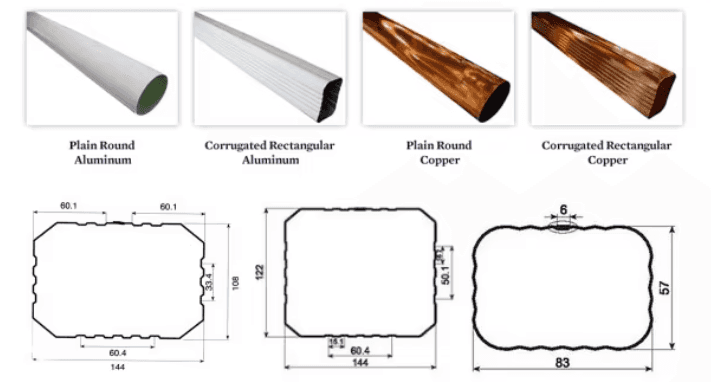

Pattern diagram:

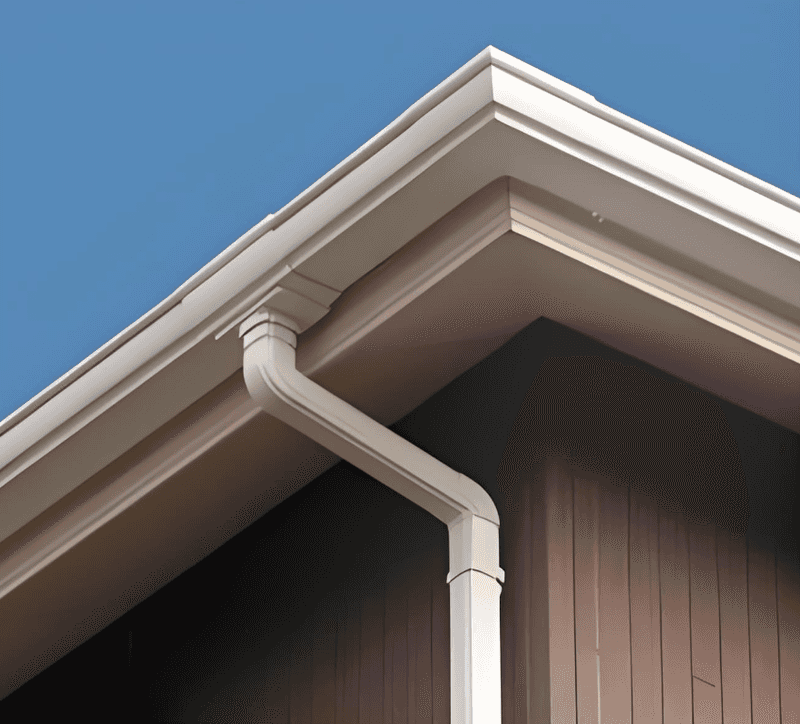

Applicable scenarios:
Downpipe machines are mainly used in building materials production enterprises and can be divided into three categories according to application scenarios:
1.Production of civil building materials:
2.Industrial building materials production:
3.Customized production:

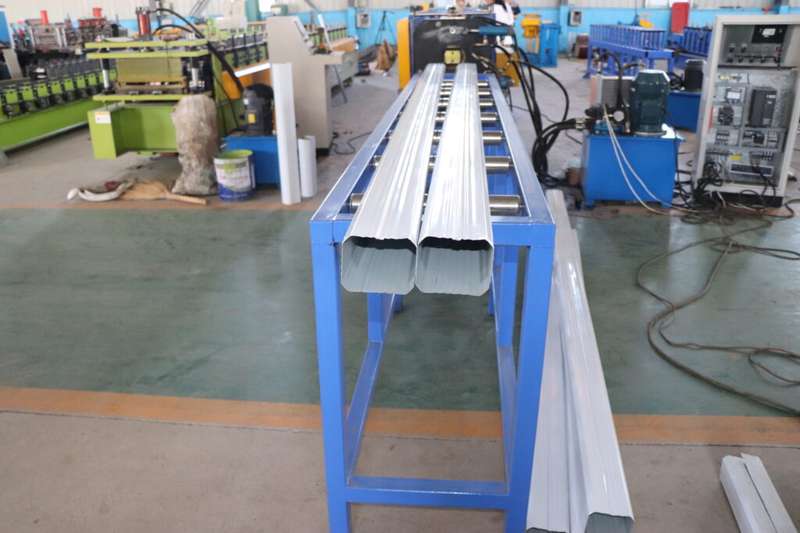

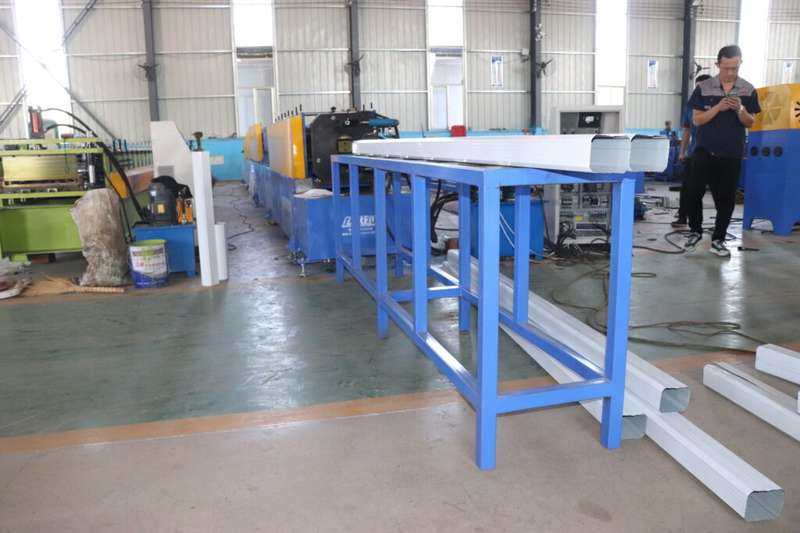

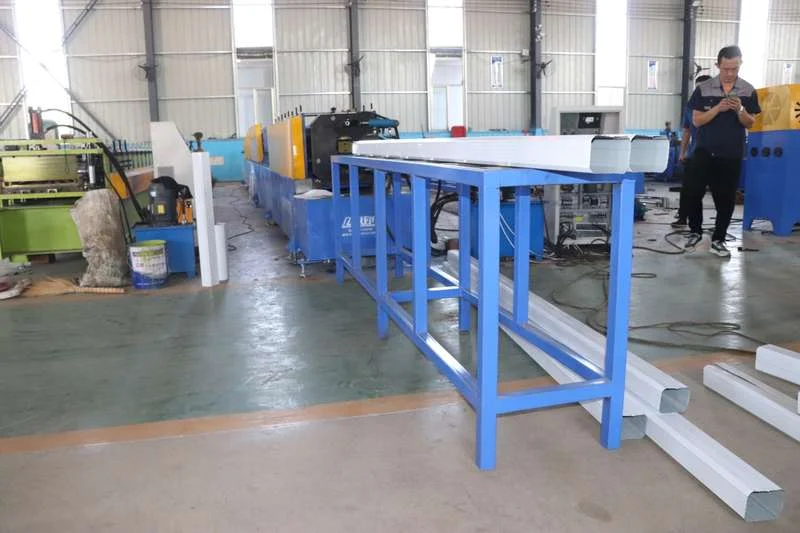

Finished product image:
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI,SS | Thickness:0.3-0.8mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 18 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 350 H steel | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 9500*1600*1600(customize) | |||
| Weight | 6.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

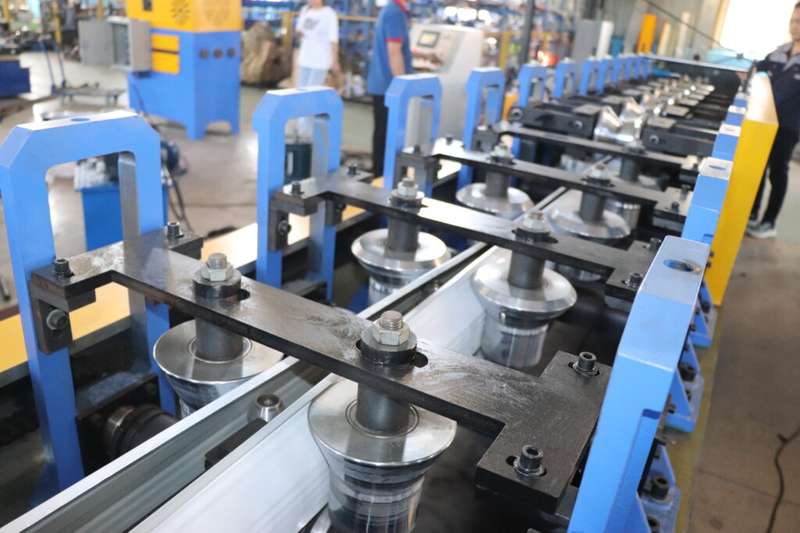

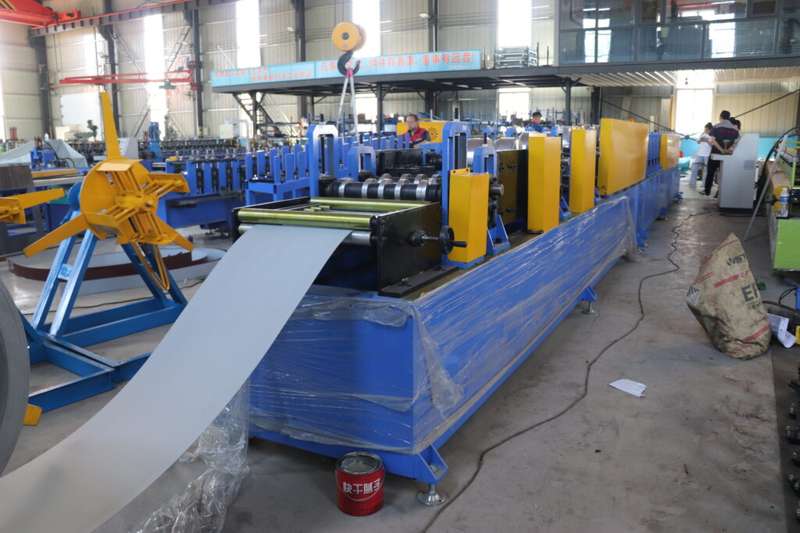

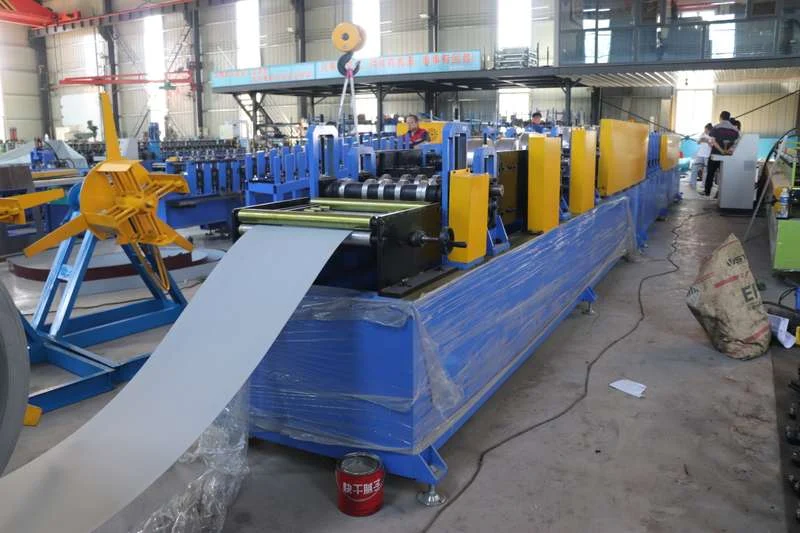

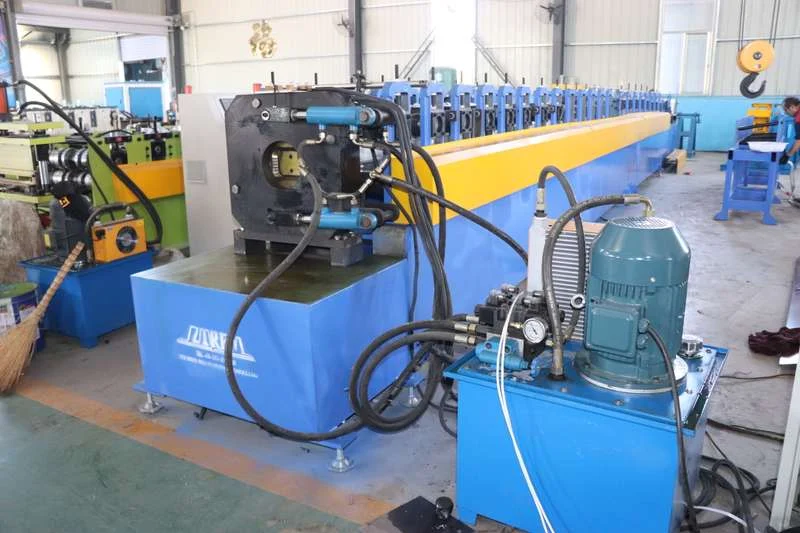

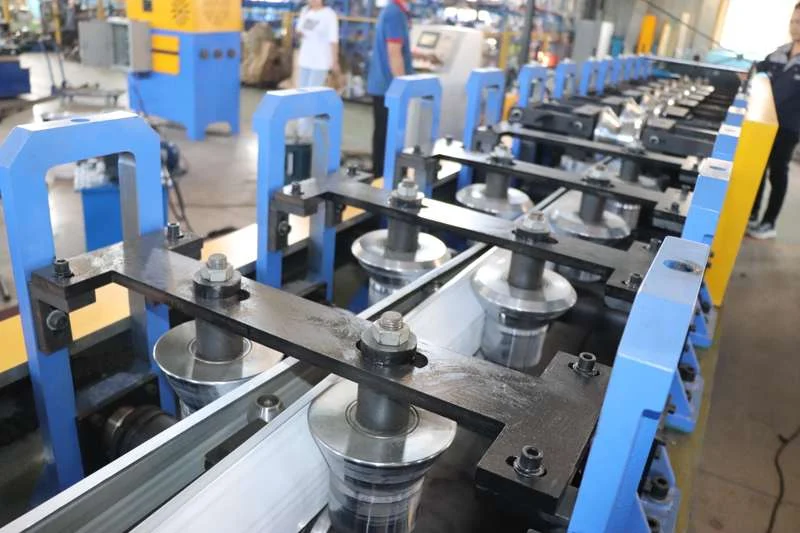

Product images：
