In the field of modern architectural decoration and structural construction, the keel serves as a critical skeleton for supporting walls, ceilings, and floors, with its installation quality directly impacting the overall stability and service life of the building. Traditional keel construction often faces issues such as low installation efficiency, uneven grouting, and high labor costs. The emergence of grouting keel roll forming machine has completely transformed this landscape, becoming the core equipment for achieving standardized and efficient keel construction.
Core applicable scenarios：
- Prefabricated buildings:
Used for grouting the keel of prefabricated walls and composite floor slabs, achieving rapid connection between components and substrates, and meeting the construction requirements of “efficient and environmentally friendly” prefabricated buildings. - Interior decoration:
Suitable for grouting reinforcement of light steel keel ceilings and partitions, solving the problems of hollowing and cracking that are prone to occur with traditional manual grouting, and improving the stability and sound insulation effect of ceilings and partitions. - Industrial plant:
For the keel grouting of heavy equipment foundations (such as machine tools and crane track keels), precise grouting is used to ensure the load-bearing capacity of the keel and avoid displacement or vibration during equipment operation. - Renovation of old houses:
In wall reinforcement and ground renovation projects, secondary grouting repair is used for old keels to extend the service life of building structures and reduce demolition and reconstruction costs.

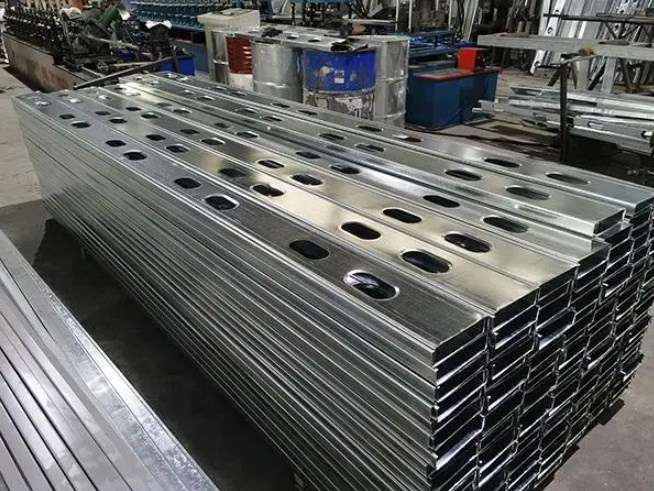

Finished product image:
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:0.5-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 16 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gear transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 4.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW*2 sets | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-45m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

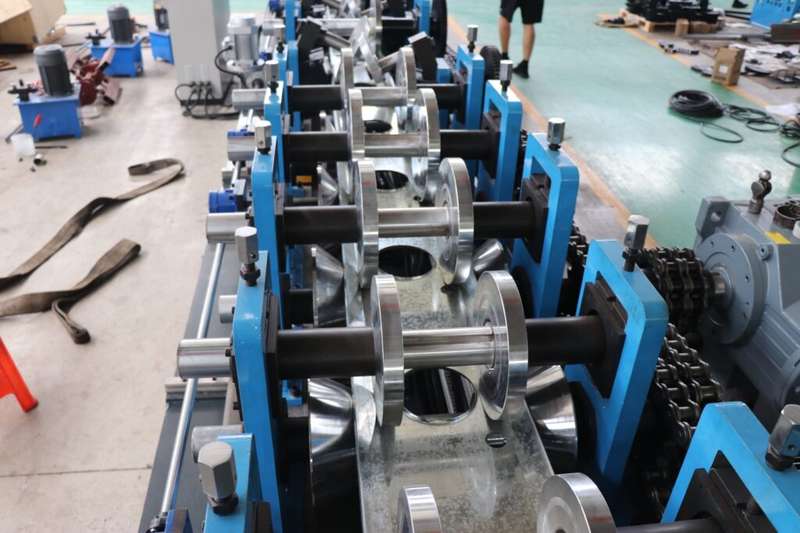

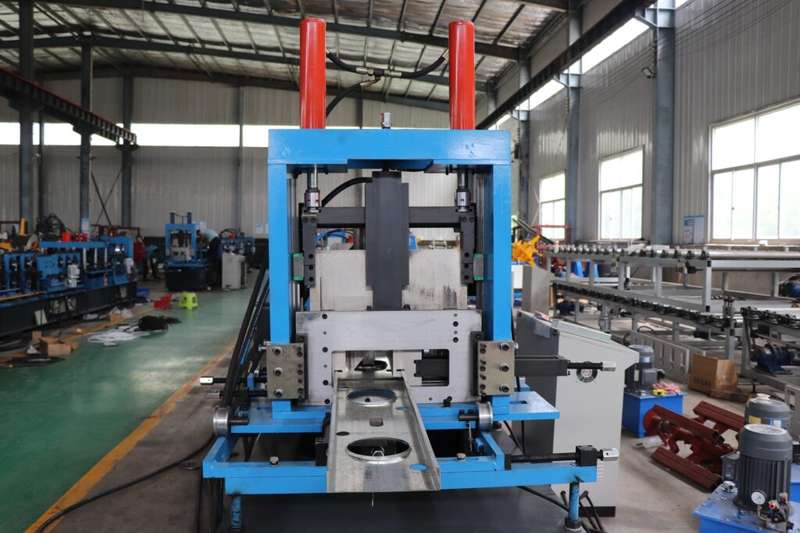

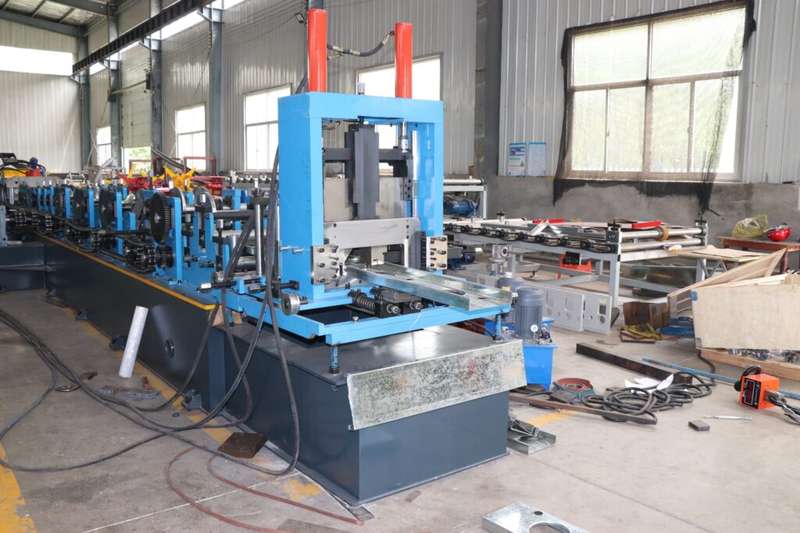

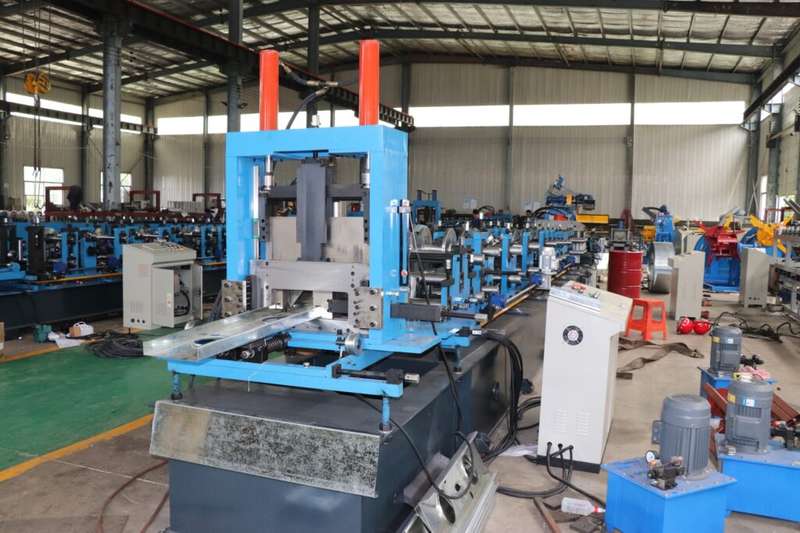

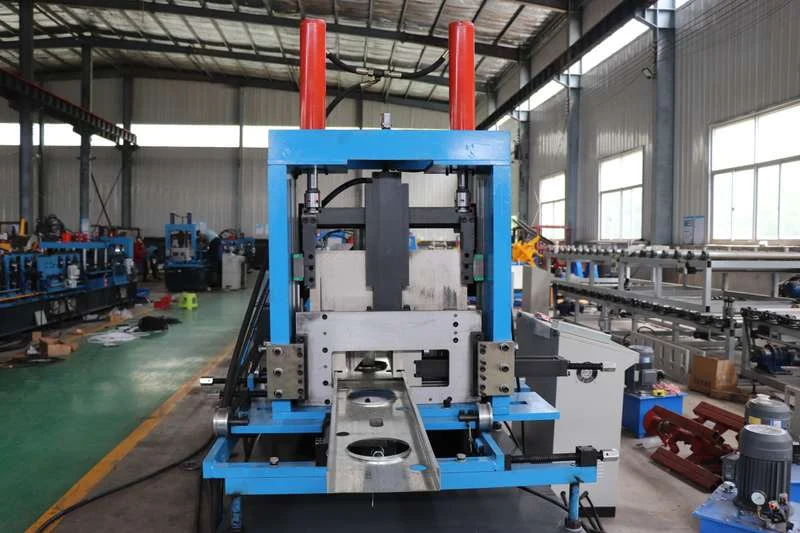

Product images：
