The emergence of Floor Deck Roll Forming Machine Metal Decking Sheet Making Machine, as automated forming equipment designed specifically for metal floor support plates (such as galvanized floor support plates, aluminum magnesium manganese floor support plates), can process flat metal coils into floor support plates with high-strength rib structures in one go, directly used as “permanent templates” and “load-bearing components” for floor construction.

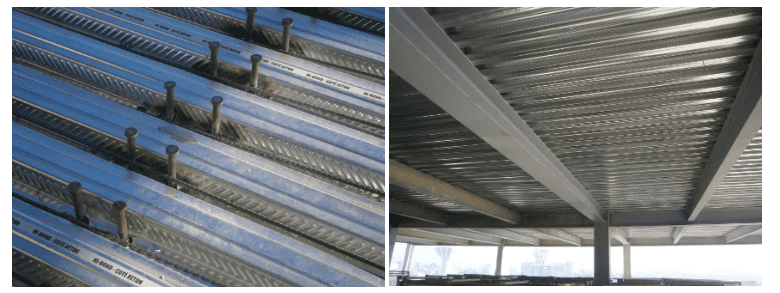

Application Scenario:
- Industrial buildings
Suitable for scenarios such as steel structure factories, warehouses, equipment workshops, etc. that require bearing large spans and high loads. - Public buildings
Suitable for large spatial structures that require rapid construction, such as airports, train stations, and sports venues. - Commercial buildings
Suitable for floor structures such as shopping centers and logistics bases that are poured with concrete in layers, its high-strength characteristics can meet the dense pedestrian and cargo load requirements of commercial scenes.

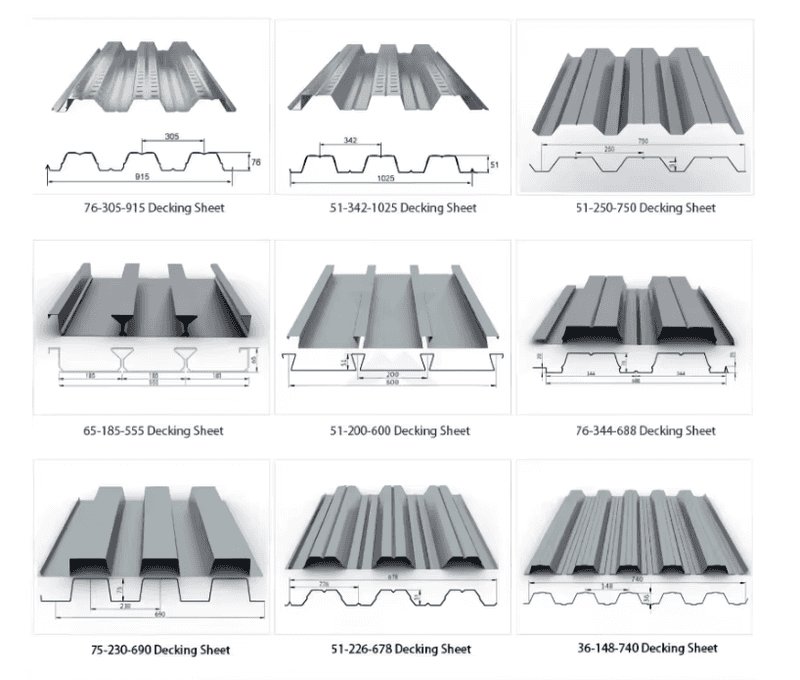

Pattern diagram:
Product Attributes ：
| 1.Formed Material | GI | Thickness:0.7-1.2mm Width:1220mm (as request) | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 33 rows(As your requirement) | ||
| Diameter of shaft | 90mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 400 H steel | |||
| Drive | Gearbox transmission | |||
| Dimension(L*W*H) | 15000*1800*1600(customize) | |||
| Weight | 15T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 11KW*2 sets,Siemens brand | ||
| Hydraulic system power | 7.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

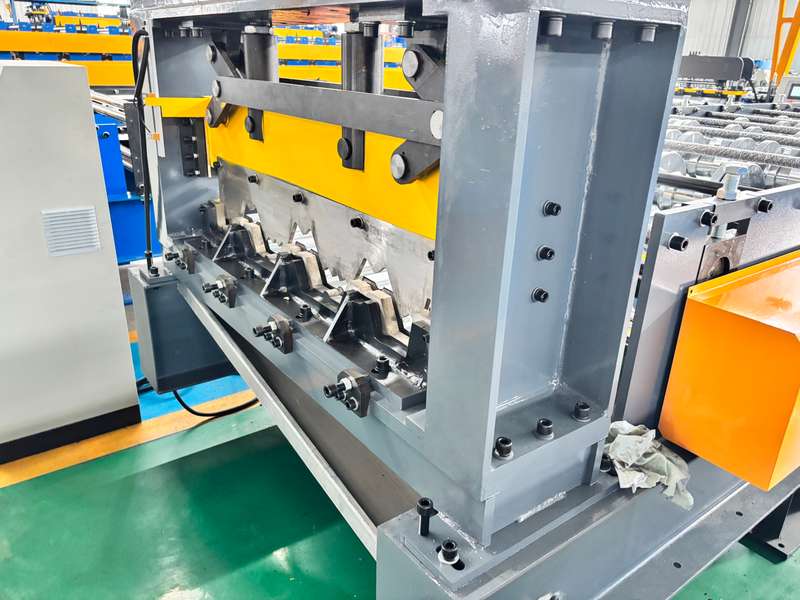

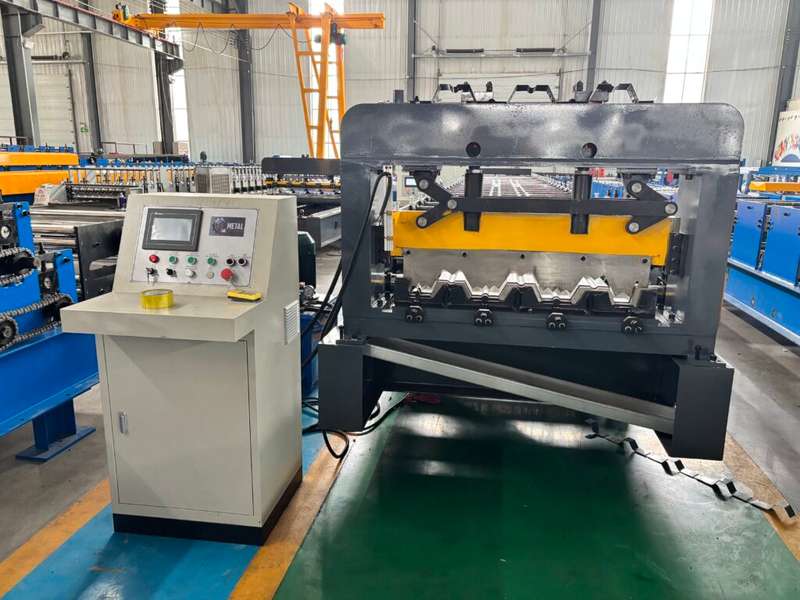

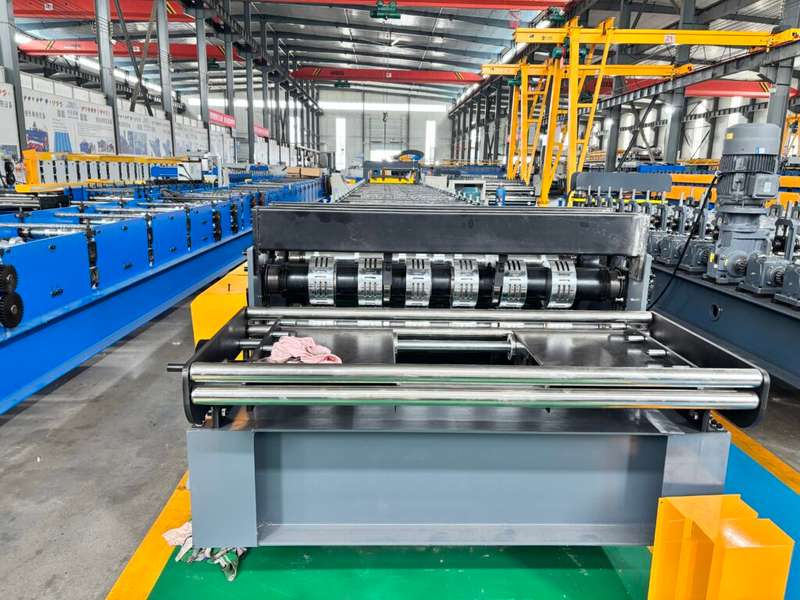

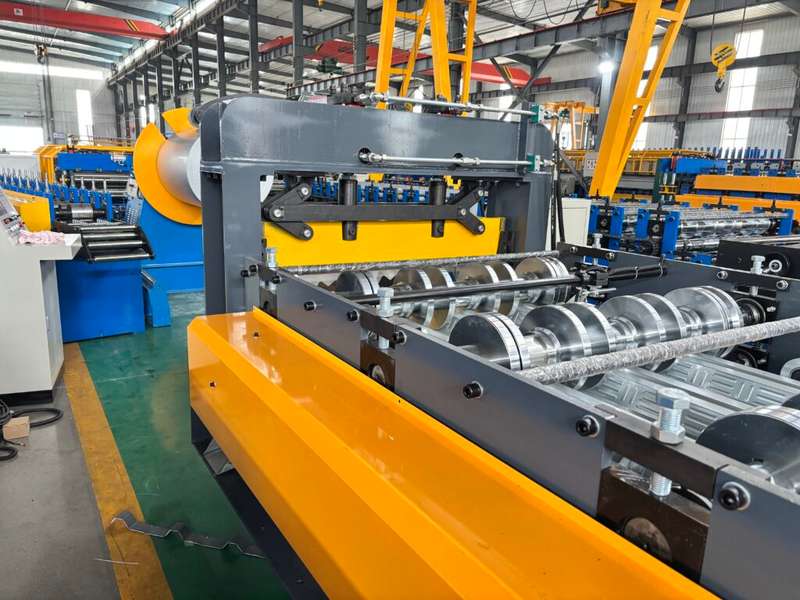

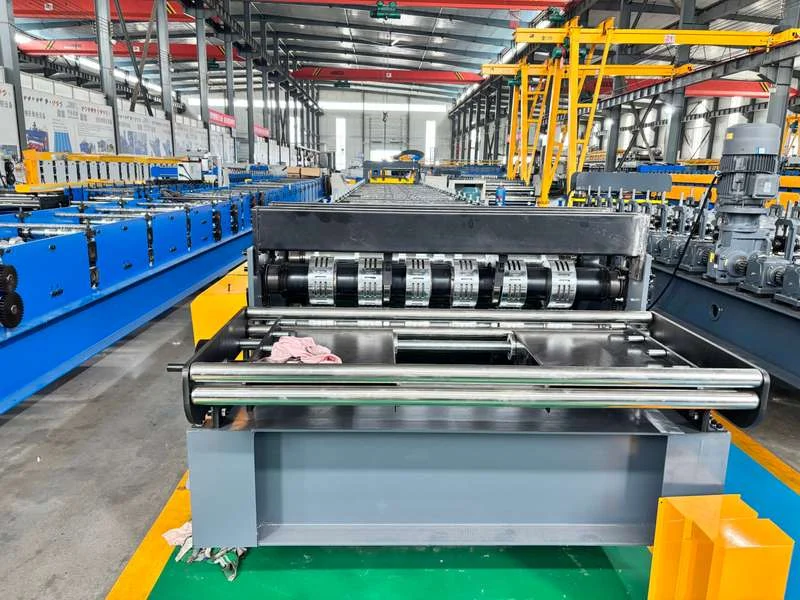

Product images：
