High Quality Hot Selling Floor Decking Machine

At a time when prefabricated buildings and steel structure buildings are developing rapidly, High Quality Hot Selling Floor Decking Machine , with its automated and high-precision production capabilities, has become a key equipment for constructing core components of building floor slabs, profoundly changing the current situation of low efficiency and unstable quality in traditional floor slab construction.

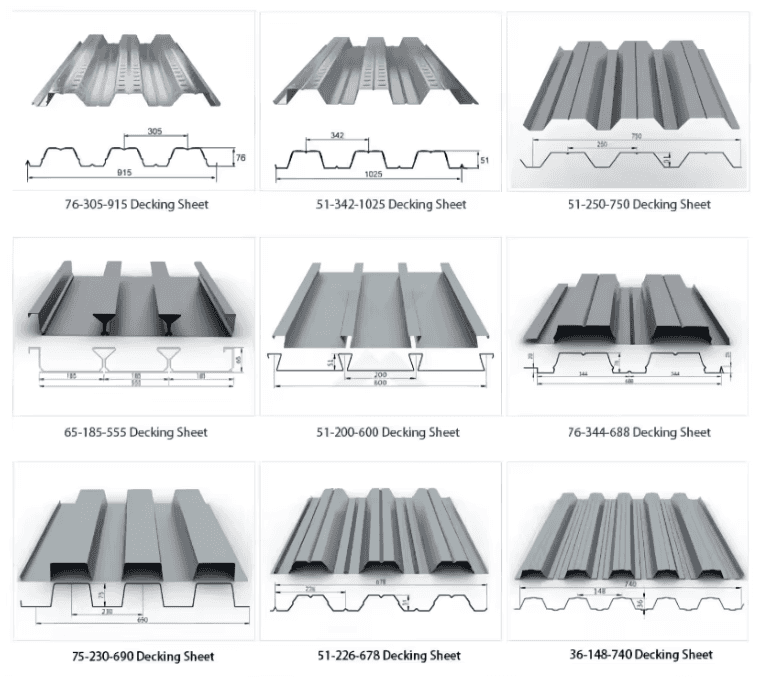

Pattern drawing:

The core advantages of the equipment:

1. Efficient Production:
   Traditional hand-cast floor slabs require formwork construction and curing, which can take weeks. However, the floor decking equipment can operate continuously 24 hours a day, producing several meters of finished product per minute, significantly shortening the construction cycle.
2. Controllable Precision:
   The equipment uses a CNC system to control the forming rollers, which can control waveform errors to the millimeter level. This ensures tight joints between the floor decks, prevents concrete leakage, and improves the overall load-bearing capacity of the floor slabs.
3. Cost Savings:
   Automated production reduces reliance on manual labor. Furthermore, the floor deck itself can replace some formwork steel, reducing material loss. Overall construction costs are 15%-20% lower than traditional methods.

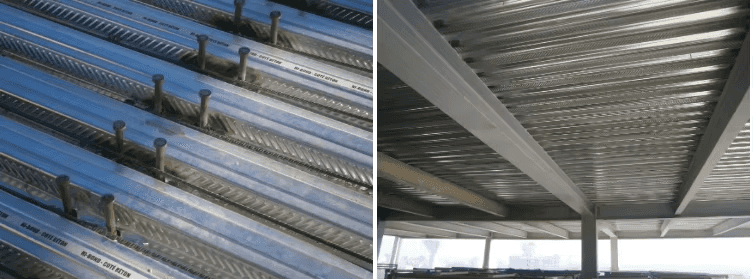

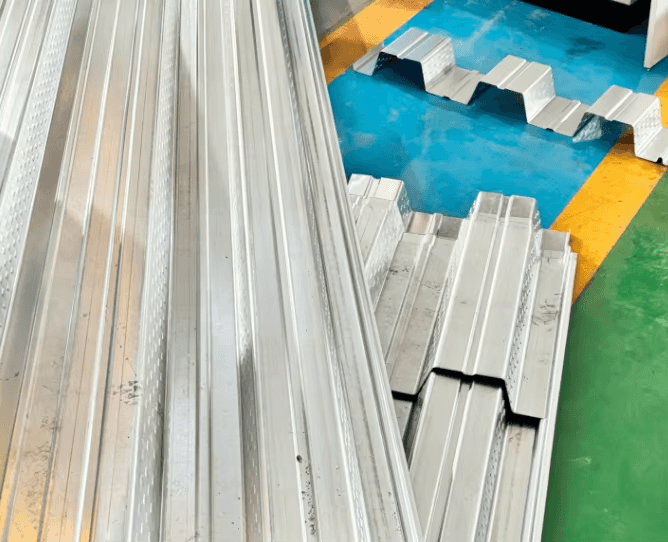

Finished product image:

Product Attributes ：

Size of main part	about 15000 х 1850 х 1500 mm
Weight of main part	about 15.5 t
Processing material	galvanized coils yield strength till 550 Mpa
Material thickness	0.8-1.5 mm
Input material width	1220mm
Effective width after forming	914mm
Voltage	480 v 60 hz 3 phase or as request
Frame	400 H beam steel welded
Roller fixer	Middle plate (thickness 20mm)
Drive mode	2 inches double chain with chain tensors(gearbox type optional)
Material of rollers	Gcr15 quenching treat HRC58-60
Material of shafts	45# steel precision-machined
Diameter of shafts	φ 95 mm
Number of rollers	about 28 rollers
Drive motor power	18.5 kw x 2 sets
Forming speed	0-15 m per minute

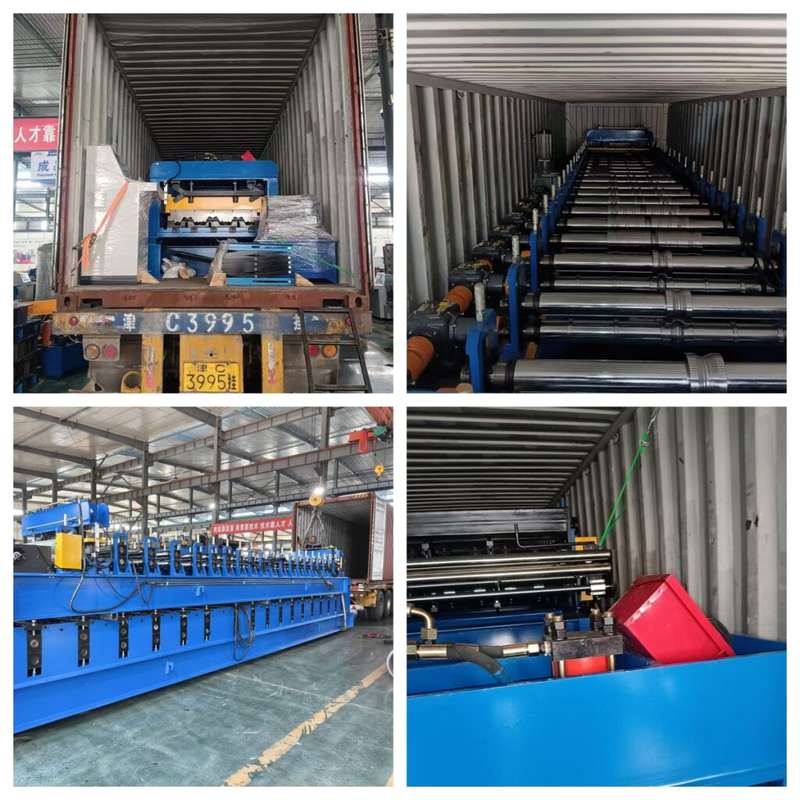

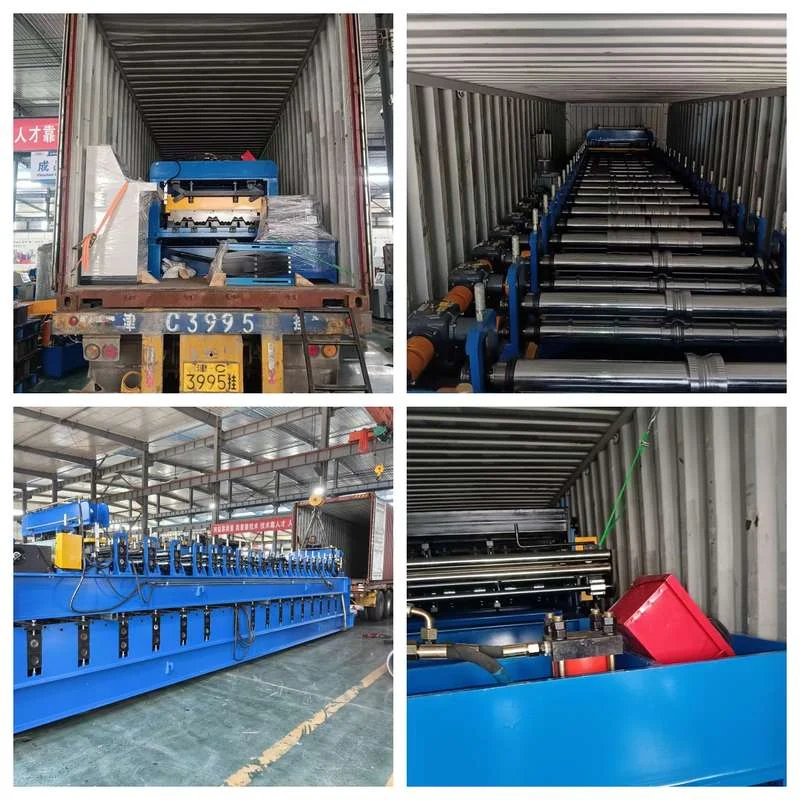

Shipping pictures:

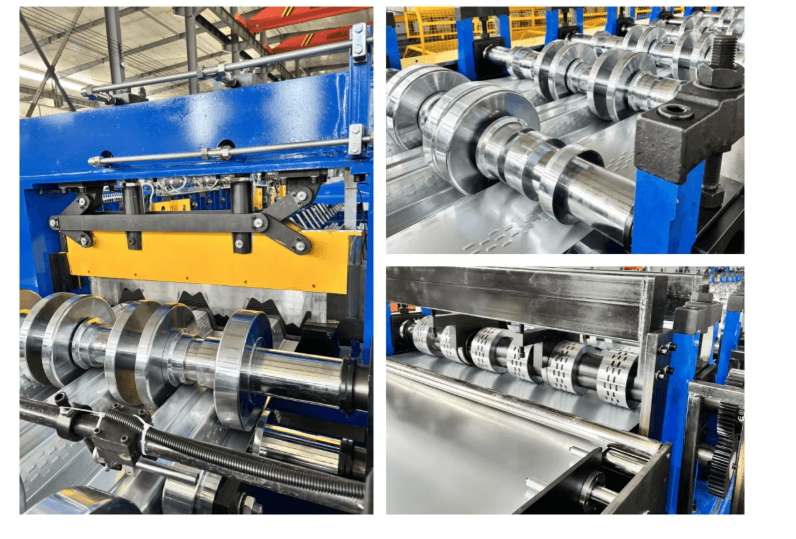

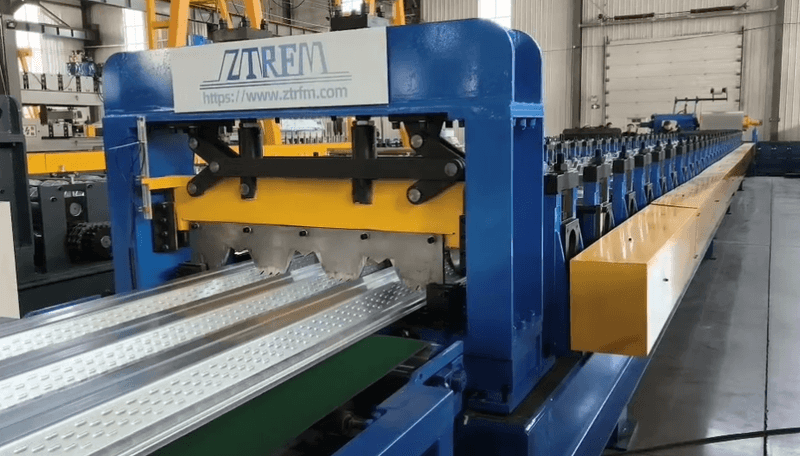

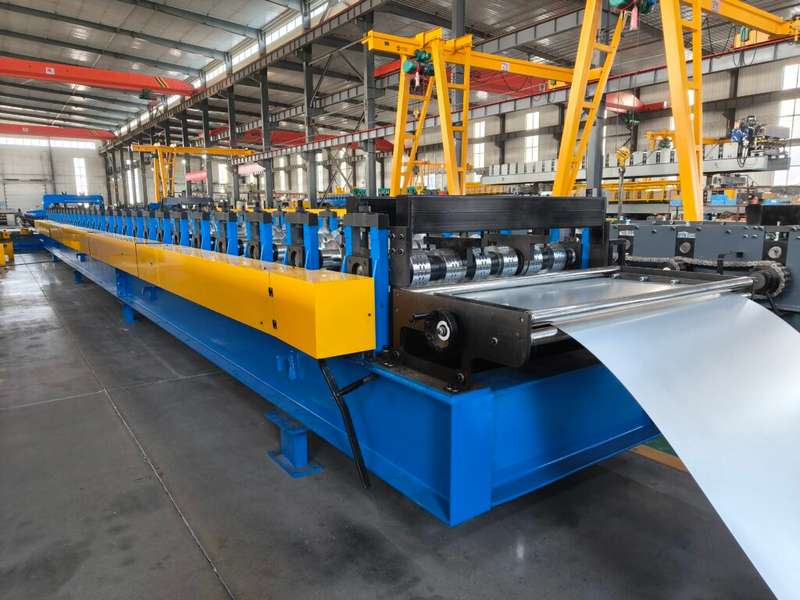

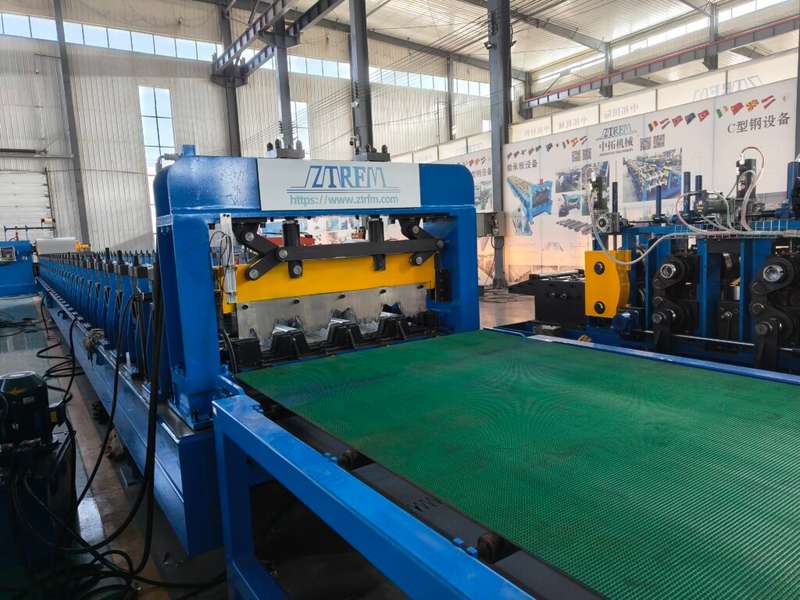

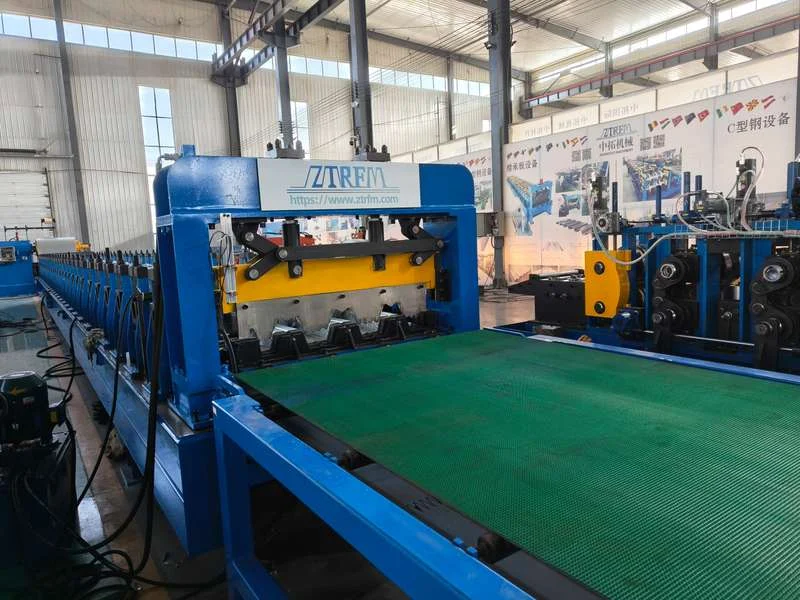

Product images：
