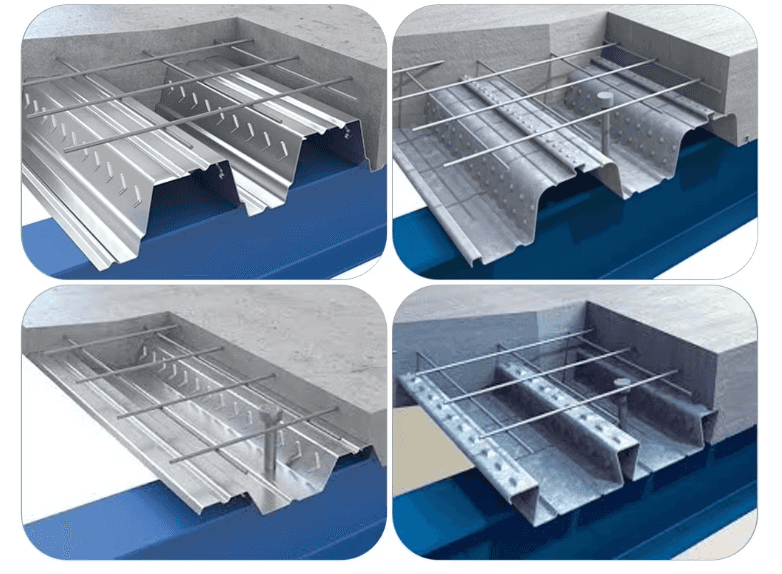

Metal Floor Decking Tile Roll Forming Making Machine is a metal processing equipment used for producing floor decking tiles . Floor decking tiles are important components used in the construction industry to support the load-bearing capacity of buildings, usually installed between building beams. The decking tiles produced by the Metal Floor Decking Tile Roll Forming Making Machine are widely used in industrial buildings, commercial buildings, and civil buildings, such as factory buildings, shopping centers, office buildings, residential buildings, etc. They can provide reliable load-bearing support for buildings.

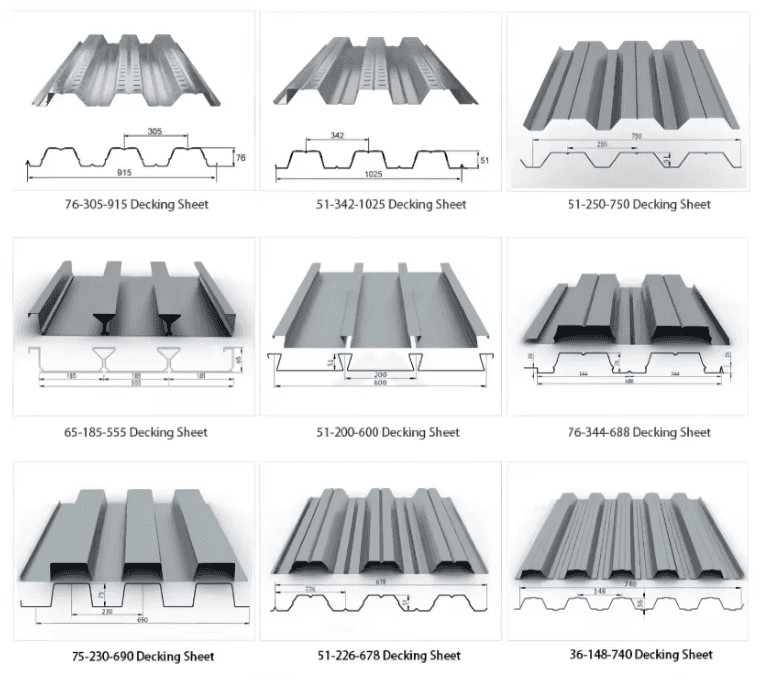

Pattern diagram:
Equipment features:
- High production efficiency
- Low energy consumption
- Stable product quality
- Strong adaptability
Product Attributes ：
| 1.Formed Material | GI、Steel | Thickness:1.5-2mm Width:1220mm (as request) | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 33 rows(As your requirement) | ||
| Diameter of shaft | 90mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 400 H steel | |||
| Drive | Gearbox transmission | |||
| Dimension(L*W*H) | 15000*1800*1600(customize) | |||
| Weight | 13T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 11KW*2 sets,Siemens brand | ||
| Hydraulic system power | 7.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

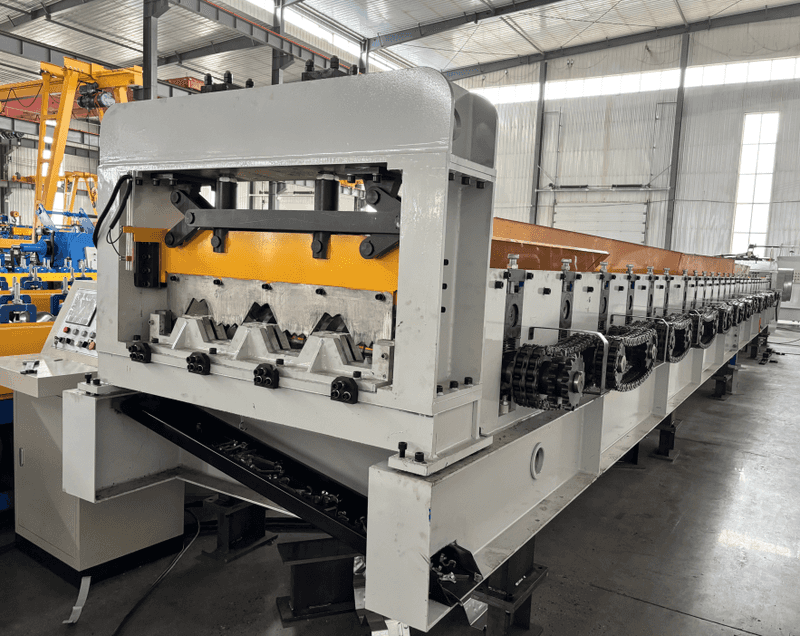

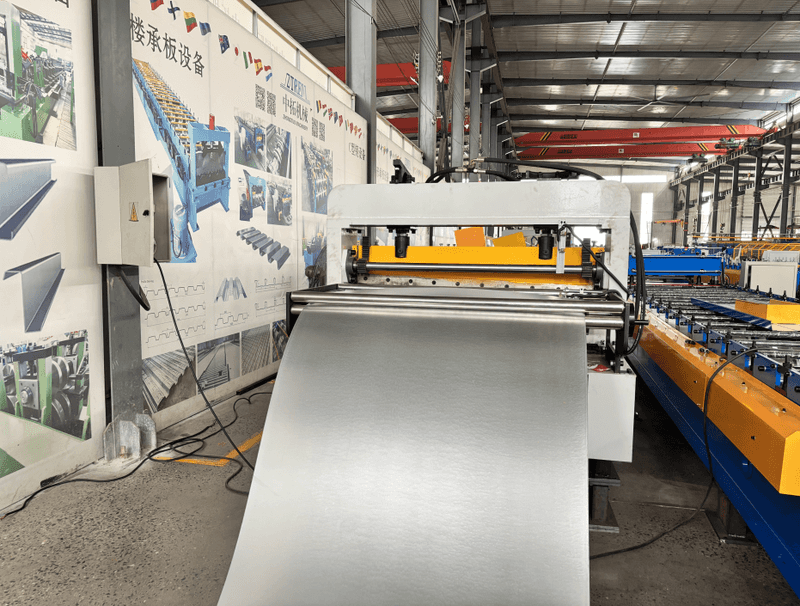

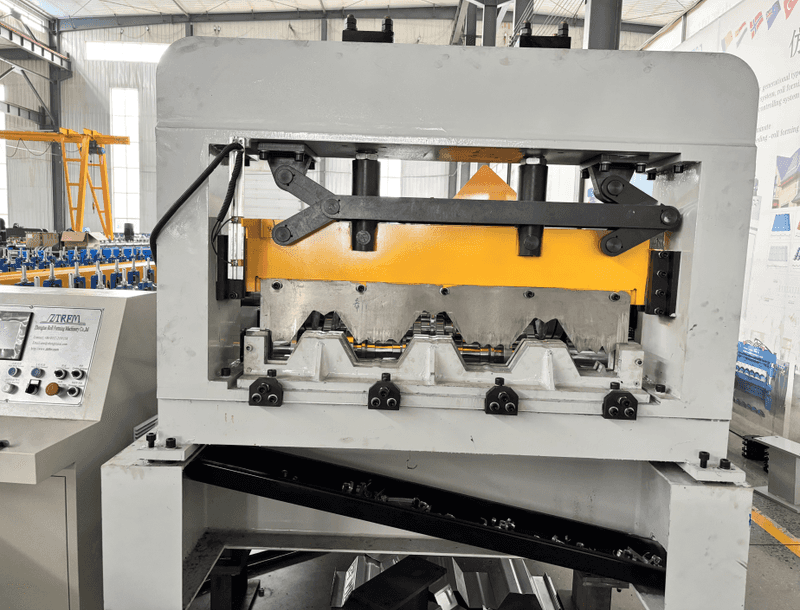

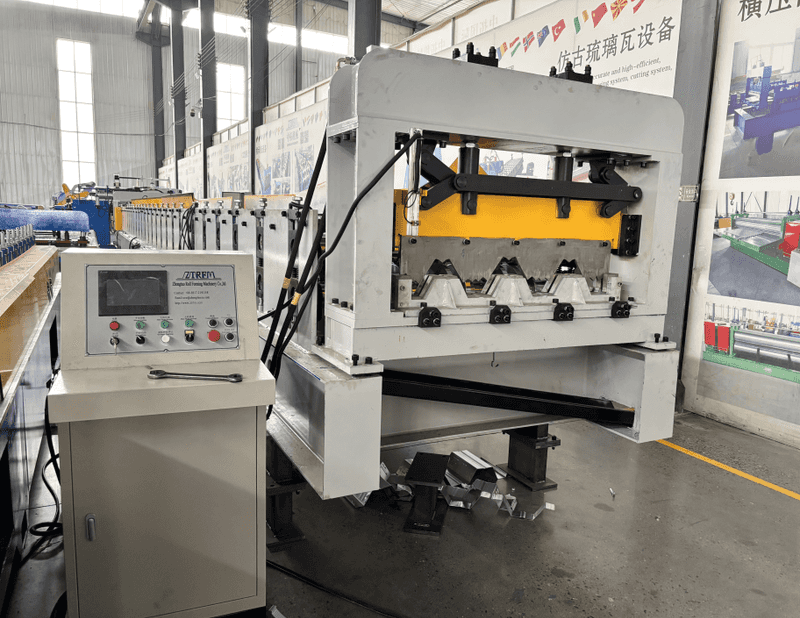

Product images：
