The emergence of Metal Galvanized Steel Gutter Cold Roll Forming Machine, as automated processing equipment designed specifically for metal materials such as color steel plates and aluminum magnesium manganese alloys, can process flat metal coils into various cross-sectional downspouts such as circular, square, rectangular, etc. that meet engineering requirements in one go. With the core advantages of “high precision, high speed, and high adaptability”, it has become a “hardcore equipment” for the construction and building materials industry to improve production capacity and ensure quality.
Application Scenario:
1、 Residential buildings: from high-rise communities to high-end villas, balancing efficiency and quality
2、 Commercial buildings: Service complexes and office buildings, balancing functionality and aesthetics
3、 Industrial architecture: adapted to factories and logistics parks, focusing on durability and efficiency
4、 Public buildings: Empowering venues and transportation hubs to meet high loads and requirements

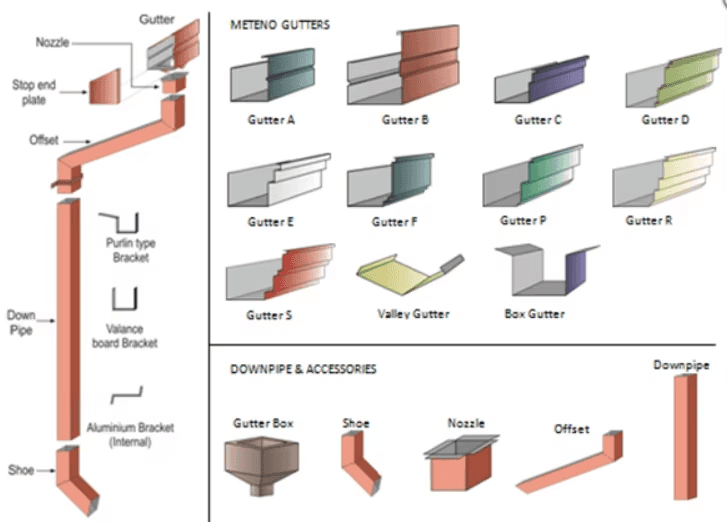

Pattern diagram:
Product Attributes ：
| 1.Formed Material | GI | Thickness: 0.3-0.8 mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 15-17 roller stations (The exact roller station will depend on the profile drawing) | ||
| Diameter of shaft | 50 mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 7500*1200*1600(customize) | |||
| Weight | About 3T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5 KW | ||
| Hydraulic system power | 3 KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 20-25m/min(customized) | Speed is adjustable according to customer’s request | ||

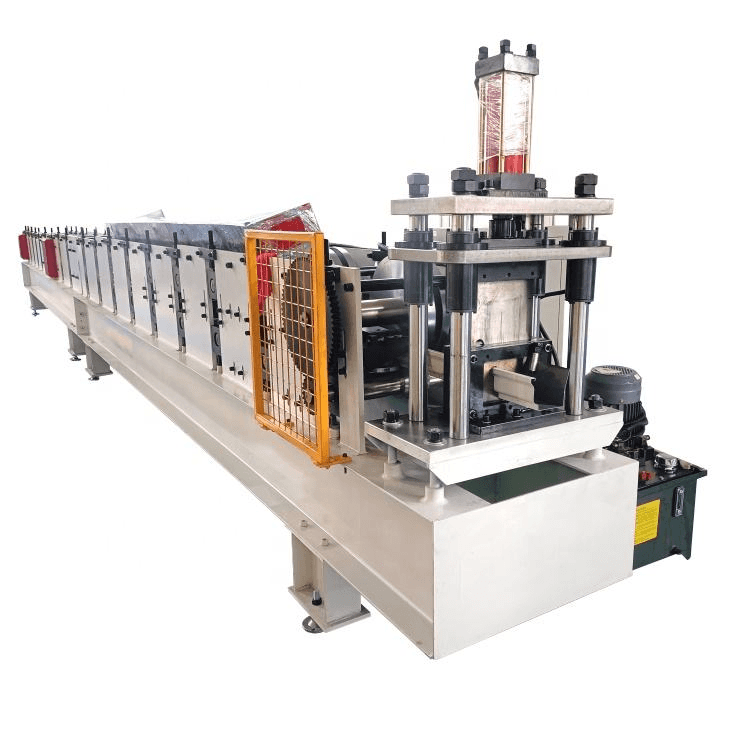

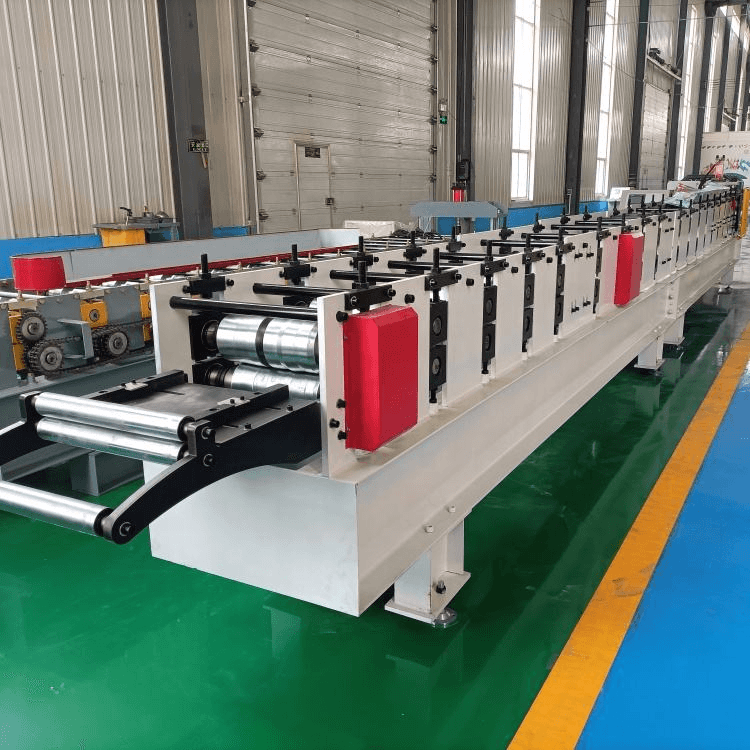

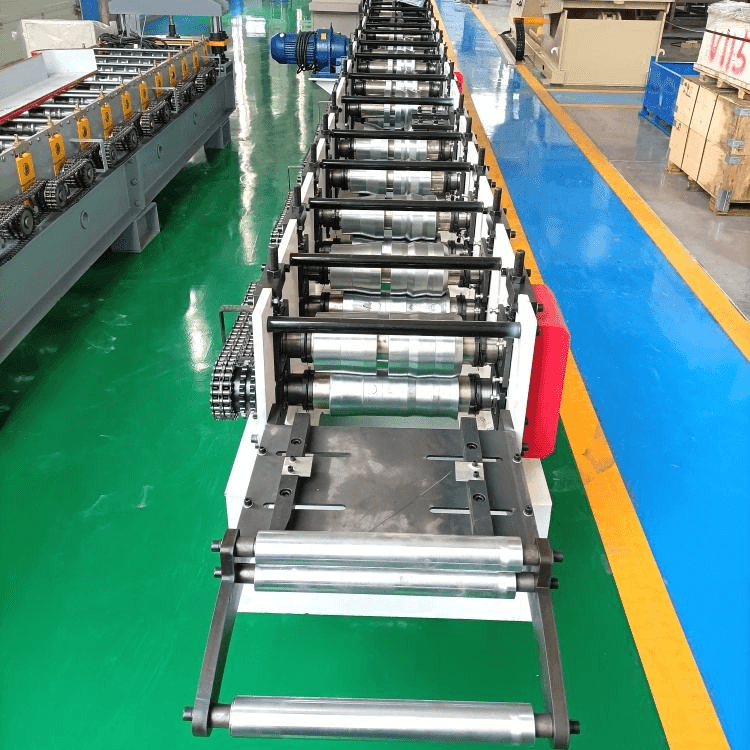

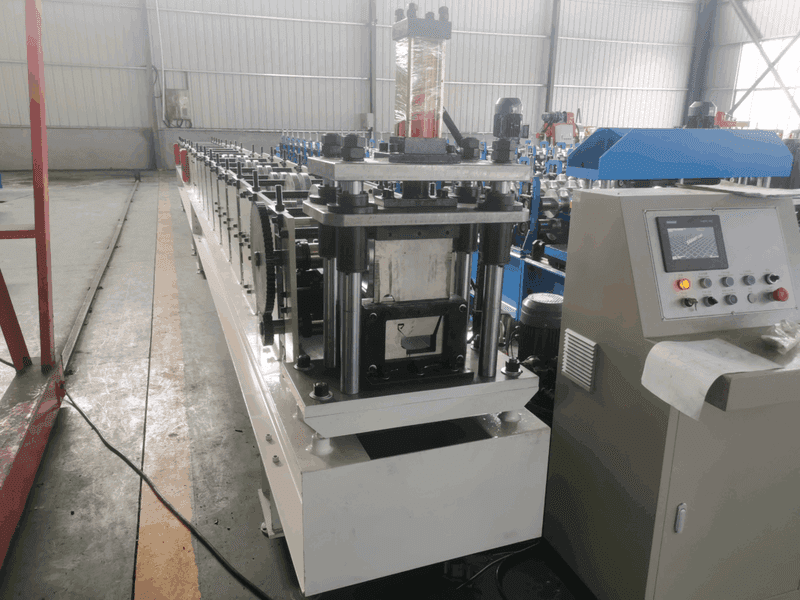

Product images：
