This metal sheet embossing machine is equipped with an advanced CNC intelligent system, with core performance that stands as an industry benchmark. It achieves an embossing speed of 15-20 meters per minute, offering over 30% efficiency improvement compared to traditional equipment and significantly reducing production cycles. The embossing precision is controlled within ±0.02mm, enabling precise replication of intricate textures and complex custom patterns to ensure every product maintains a consistently high-quality appearance. Additionally, the machine boasts an exceptionally wide adaptability range, effortlessly handling various metal materials such as stainless steel, aluminum, copper, and iron, with thickness coverage spanning 0.1-3mm. From lightweight metal decorative panels to thick building material panels, perfect embossing results can be achieved.
Other design：

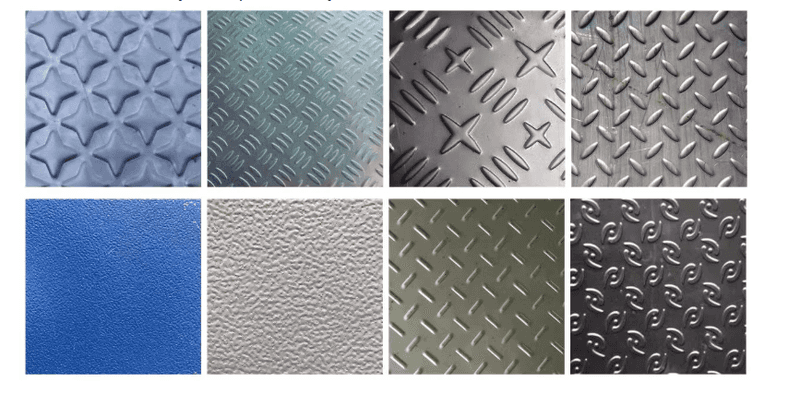

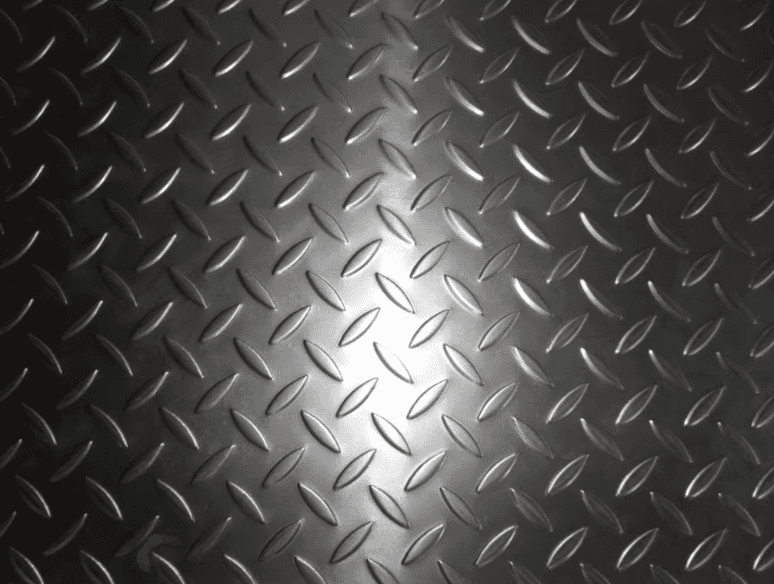

Different designed patterns can be embossed by changing the designing of roller dies on the embossing machine. A metal sheet embosser produce the patterns on each every fed piece of metal sheets, while a metal sheet embossing machine line can produce designed patterns continuously on uncoiled or unrolled metal sheet and after the embossing process, the embossed metal sheet will be re-rolled or re-coiled for other purposes.
Machine features:
- Efficient processing
The metal embossing machine adopts ultrasonic or high-frequency vibration technology, which can complete embossing, welding, cutting and other processes in a short time, with fast processing speed and high yield, significantly improving production efficiency. - Precise control
By adjusting the amplitude and speed, high-precision machining can be achieved, avoiding pattern deformation or misalignment issues. - Multi functional integration
In addition to conventional embossing, it also supports processes such as welding, trimming, and hot stamping to meet personalized customization needs. Some models are equipped with fully automatic fabric feeding systems to simplify the operation process. - Wide applicability
Suitable for processing metal sheets such as stainless steel, aluminum alloy, copper plate, etc., with a thickness range of usually 0.1-1.2 millimeters, covering fields such as automotive anti-skid panels, home appliance panels, and building panels.
Product Attributes ：
1. Roller specifications: DIA450~500mm, width: 1000~2000mm.
2. Take the roll surface hard chromium plating
3. Suitable for pressing plate: 1-6 mm
4.Frame steel plate welded structure, polished, tempering, machining, solid wall plate Q235 90 mm thick
5. Pattern processed by laser engraving.
6. The pattern making: according to the buyer to provide the sample pattern
7. Pressure mode: hydraulic 50~100T.
8. Working speed: 0-10m/min, speed changed by frequency converter .
9. Voltage 380V/50Hz/3PH or customize
10. Safety shield shell
11. Beautiful appearance

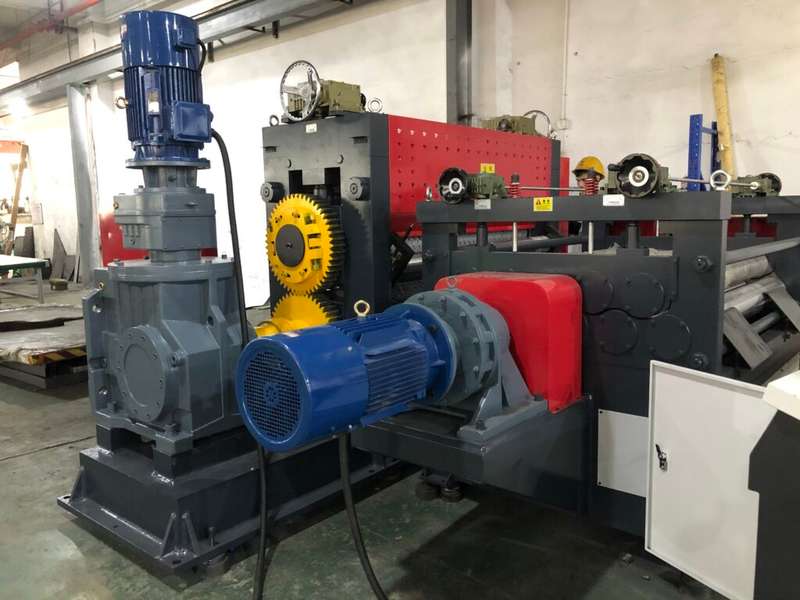

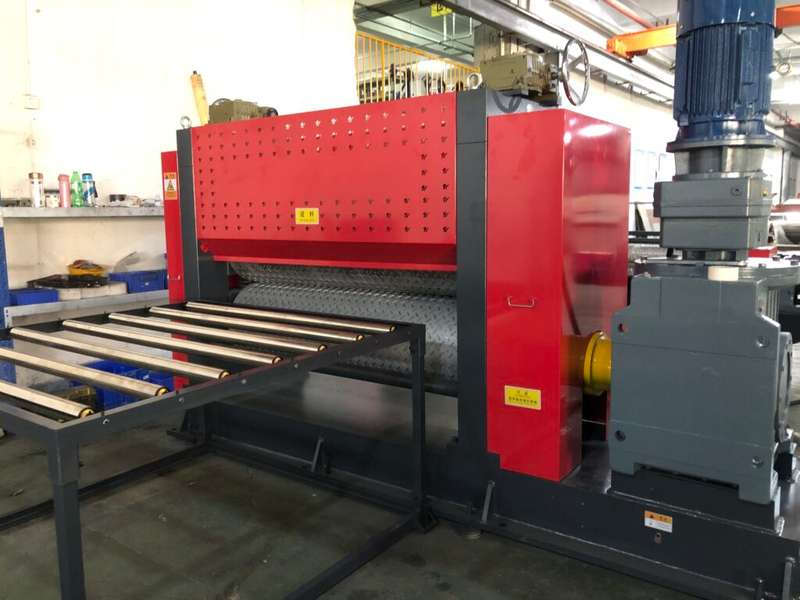

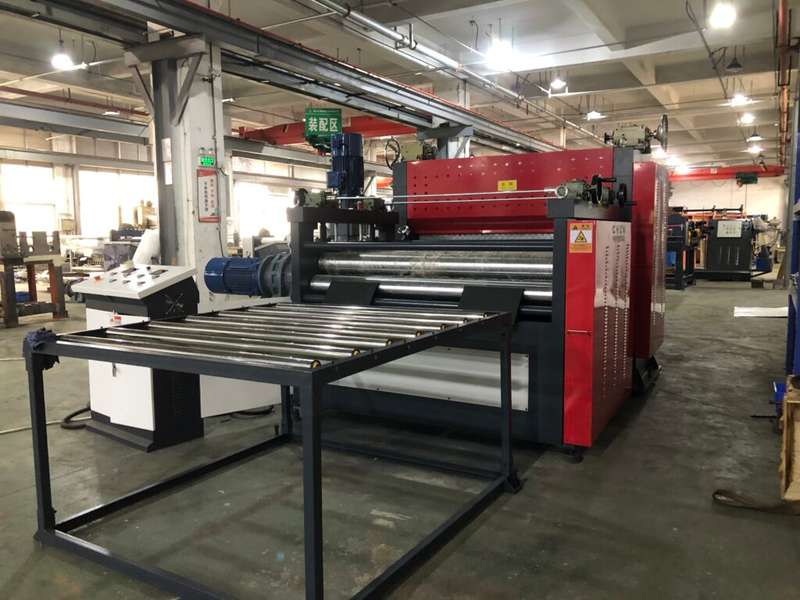

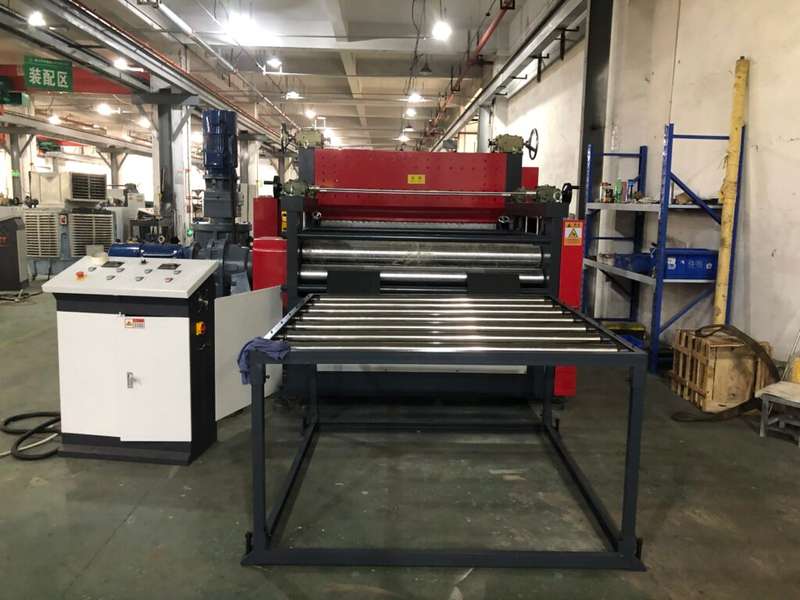

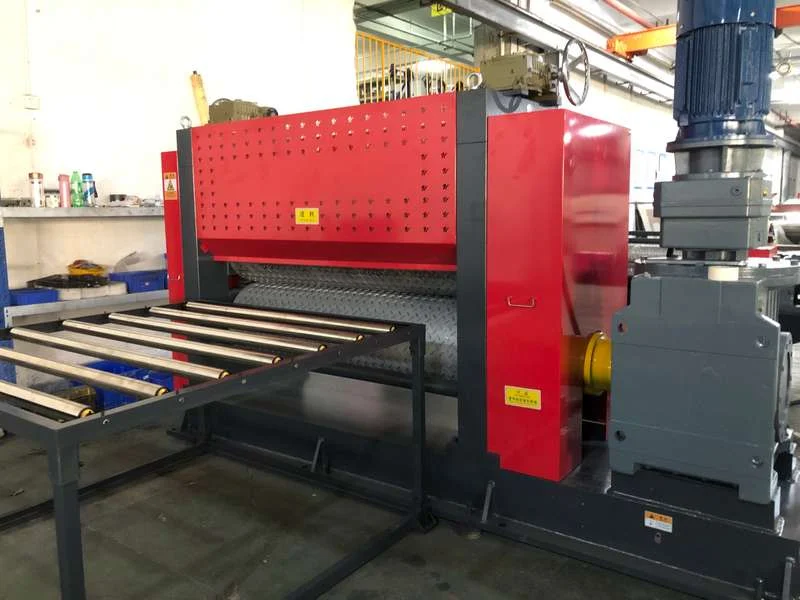

Machine image:
