Metal Wall Panel Roll Forming Machine for Wall Cladding

In the context of the transformation of the construction industry towards greenization, industrialization, and efficiency, Metal Wall Panel Roll Forming Machine integrates cutting-edge intelligent technology and practical construction experience to achieve precise molding and efficient production of wall panels through integrated design. It can stably output various types of wall panels that meet national high standards, providing construction enterprises with efficient, high-quality, and environmentally friendly wall solutions. It is the core equipment that promotes the innovation of wall construction mode and helps the high-quality development of the industry.

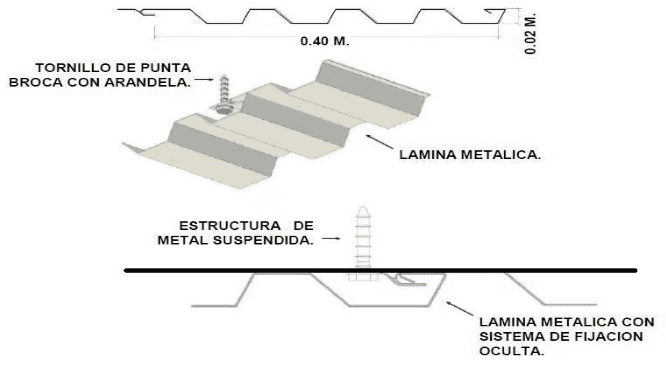

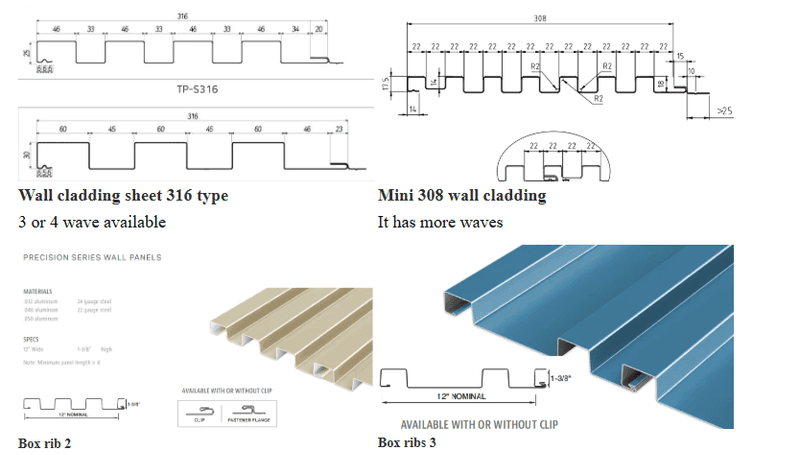

Pattern diagram:

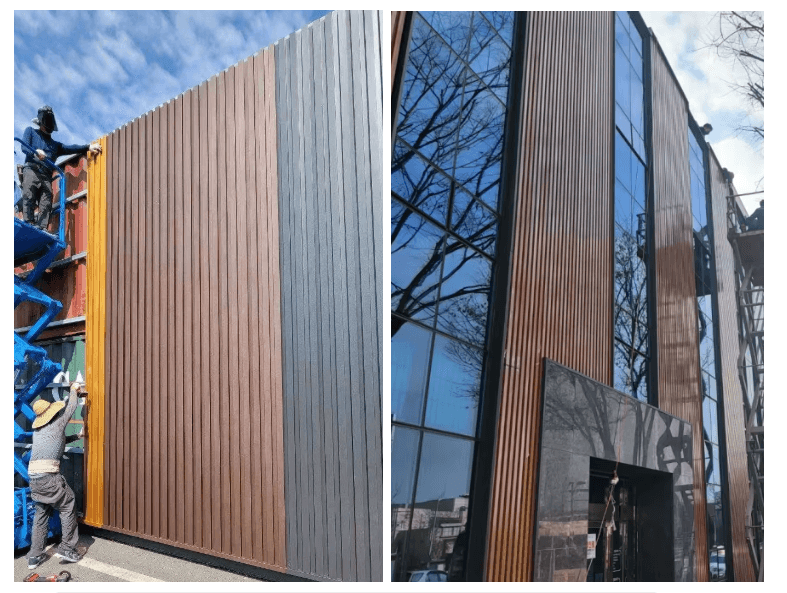

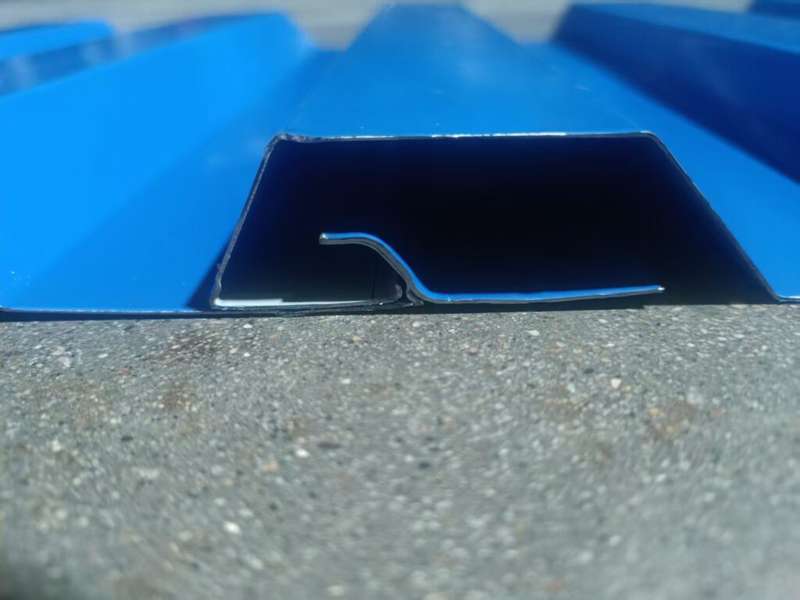

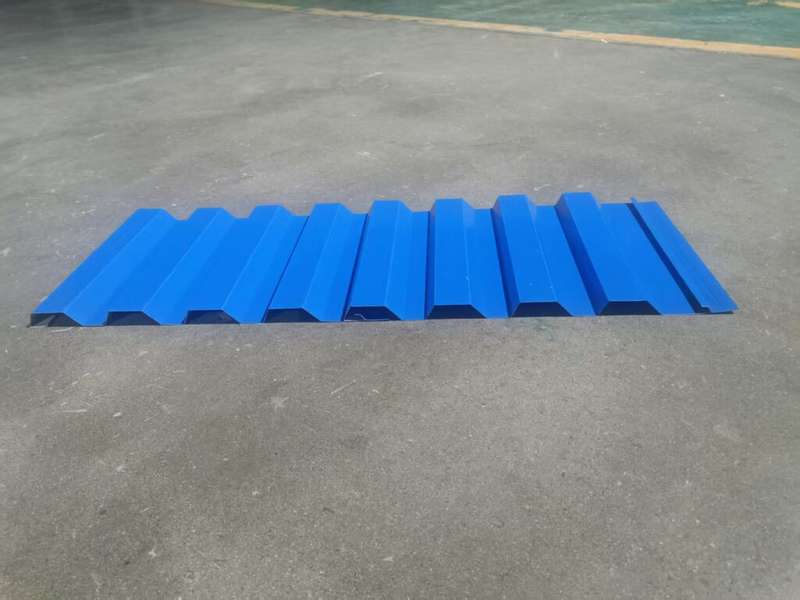

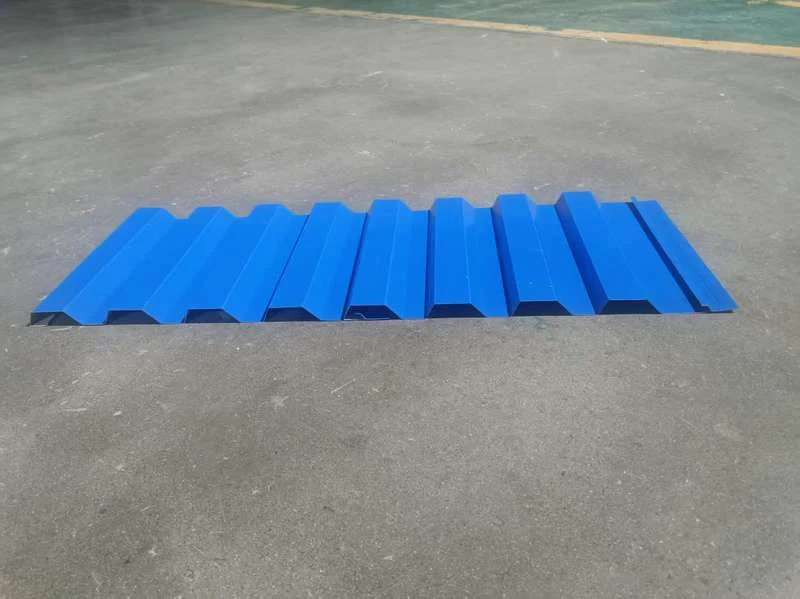

Finished product image:

Core features:

• Efficient mass production, controllable construction period:
• Precise quality control and excellent performance:
• Green environmental protection, policy adaptation:
• Convenient and worry free after-sales service:

Application Scenario:

1. Residential buildings:
   Whether it is commercial housing, affordable housing, or rural self built houses, the lightweight and high-strength characteristics of finished wall panels can reduce the weight of the building. At the same time, the performance of sound insulation, heat preservation, moisture resistance, and mold prevention can improve living comfort and adapt to various wall requirements such as indoor partition walls and partition walls.
2. Commercial buildings:
   In commercial complexes, office buildings, shopping malls and other projects, the advantage of efficient mass production of equipment can match the batch demand of large-scale projects. The performance of fire-resistant and flame-retardant finished products can improve the safety level of commercial buildings and adapt to scenarios such as public area partitions and office partitions.
3. Industrial buildings:
   Industrial plants, warehouses, and other places have high requirements for the strength and fire resistance of walls. The wall panels produced by this equipment can meet the load-bearing assistance and safety protection needs of industrial buildings. At the same time, the convenient installation method can adapt to the fast-paced construction of factories.
4. Public buildings:
   Hospitals, schools, sports centers, and other public facilities have strict requirements for environmental protection, sound insulation, and safety. The finished wall panels have environmentally friendly, odorless, sound insulation, and fire-resistant properties that can accurately match the needs, making them suitable for scenarios such as ward partitions, classroom partitions, and venue auxiliary walls.

Product Attributes：

1.Formed Material	PPGI		Thickness:0.3-0.6mm
2.Decoiler	Hydraulic decoiler		3 tons
3.Main body	Roller station		26 rows(As your requirement)
	Diameter of shaft		65mm solid shaft
	Material of rollers		45# steel,with heat treatment
	Machine frame		350mm H beam structure,18mm middle plate
	Drive		Chain transmission
	Dimension(L*W*H)		9500*1600*1600mm
	Weight		7.5T
4.Cutter	Automatic		Gcr12 steel
5.Power	Motor Power		5.5KW
	Hydraulic system power		4KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
	Language		Support multiple languages
	PLC		Can set batch, length, quantity, etc.
18.Forming Speed	15-20m/min		The speed is adjustable

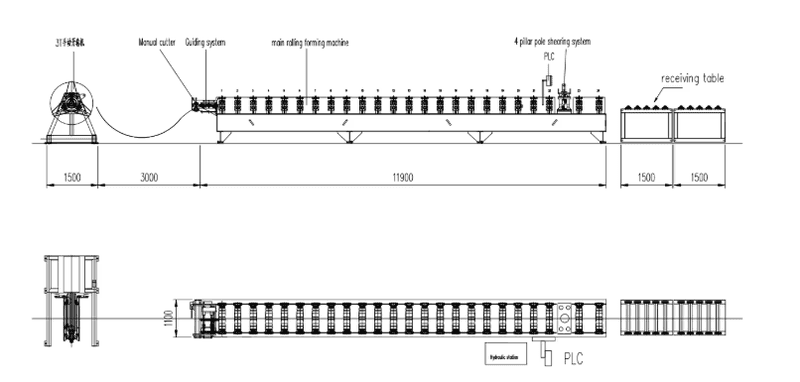

Working flow:

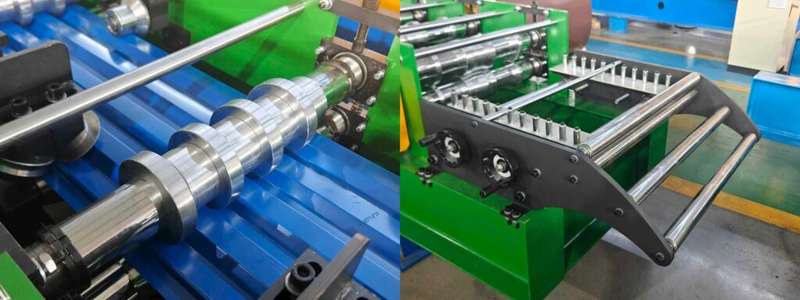

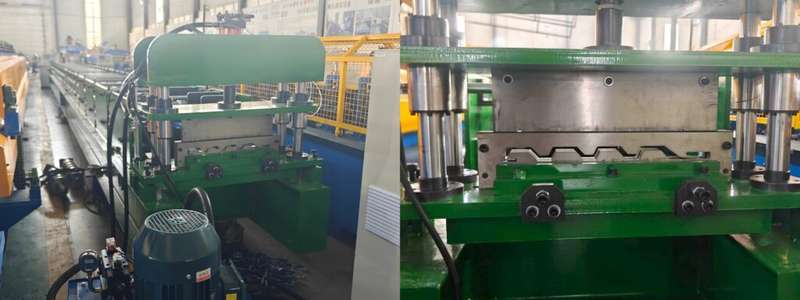

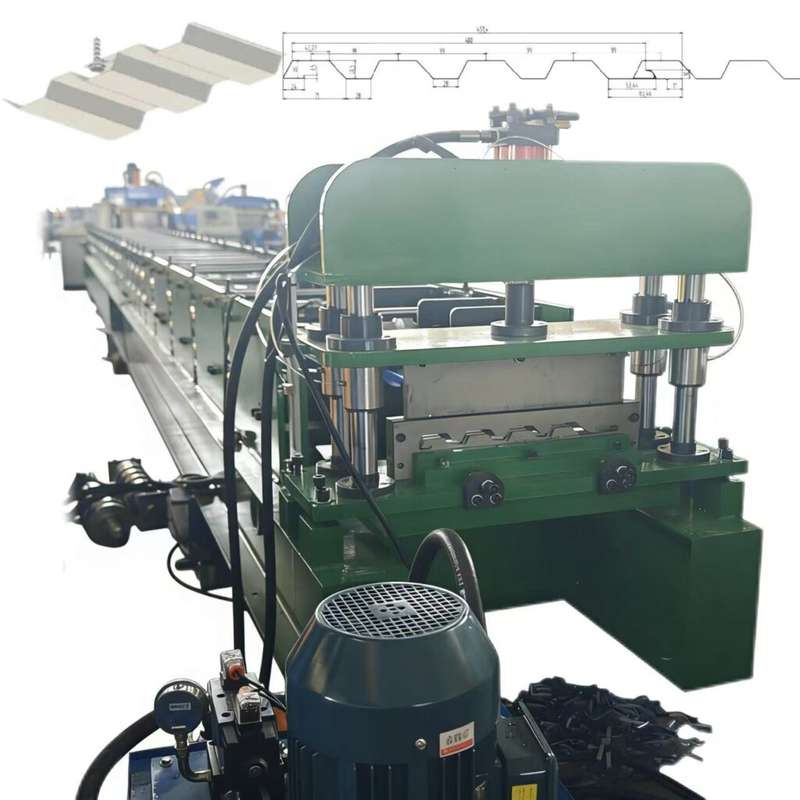

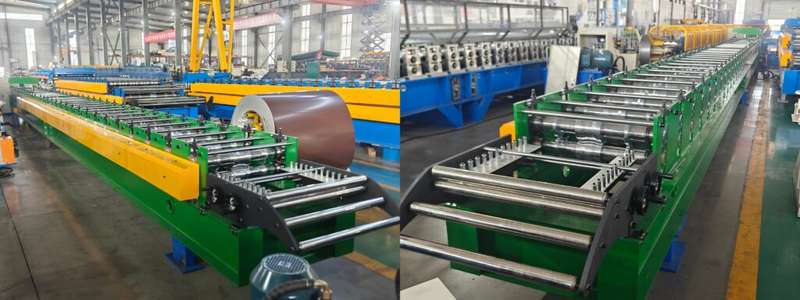

Machine image:
