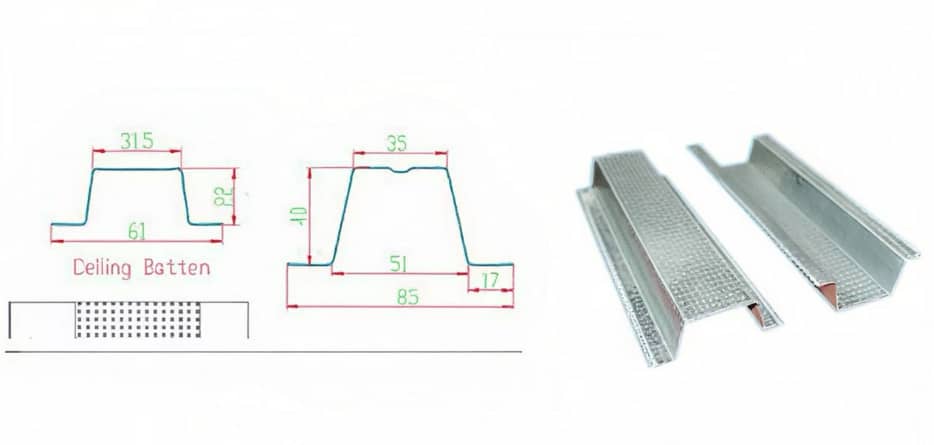

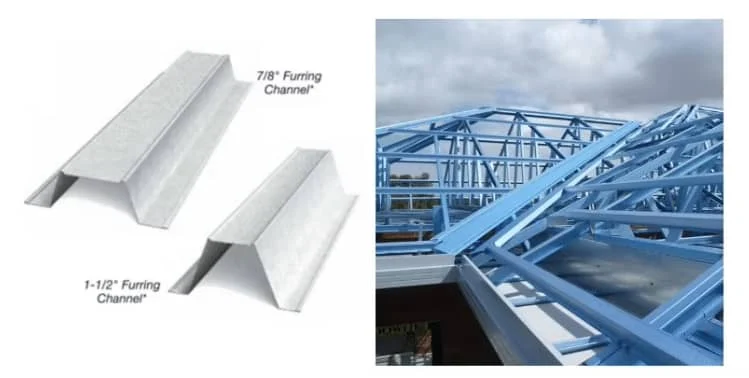

Omega Furring Channel is a light steel profile with a cross-section in the shape of the Greek letter Ω, widely used in dry hanging ceiling and partition systems to level, enhance sound insulation, and secure gypsum boards.
Omega Furring Channel Cold Roll Forming Machine Light Steel Framing Machine continuously cold bends galvanized steel coils through multiple passes of rollers, ultimately forming them into the desired cross-section, and completing punching and cutting to length online. The entire line is usually composed of the following units:
1.Uncoiler (manual or hydraulic tensioning)
2.Feeding leveling device
3.Servo punching system (used for ceiling holes, water and electricity holes, etc.)
4.Cold bending forming host (usually 12-20 rolling passes, depending on the complexity of the section)
5.Hydraulic cutting device (fixed length flying saw or shutdown cutting)
6.PLC control system (touch screen operation, can set length, quantity, speed)
7.Discharge platform (automatic coding or manual material receiving)
Core advantages：
1.High cross-sectional accuracy and good consistency
2.Highly automated, labor-saving
3.Flexible production, quick changeover
4.Online punching, process integration
5.Stable operation and long lifespan
6.Save materials and reduce costs

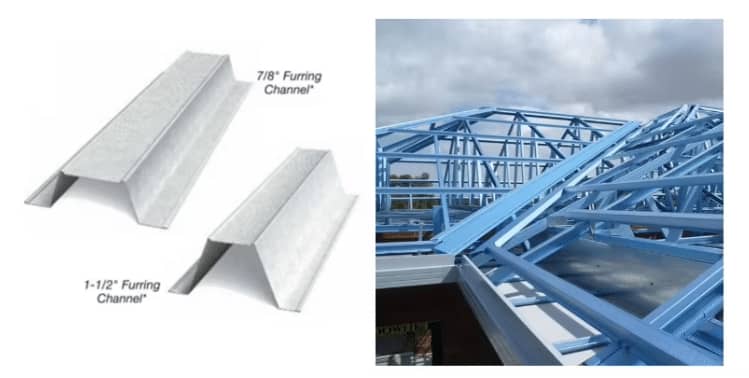

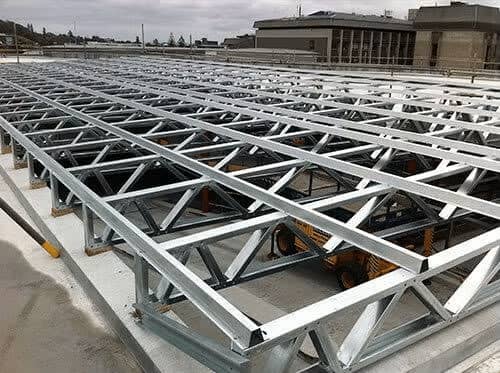

Application Scenarios：
- Commercial building ceiling:
Light steel keel ceiling system for office buildings, shopping malls, hotels, hospitals, and schools, combined with the main keel (Carrying Channel) and hanging components to form a flat gypsum board surface layer. - Residential interior decoration:
used for ceiling leveling, especially suitable for laying soundproof cotton floor soundproofing structures. - Partition wall system:
As a secondary wall keel, it is fixed on the vertical keel and covered with gypsum board to improve the impact resistance and sound insulation performance of the wall.
Product Attributes:
| 1.Formed Material | GI | Thickness:0.7-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chains transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-45m/min(customized) | Speed is adjustable according to customer’s request | ||

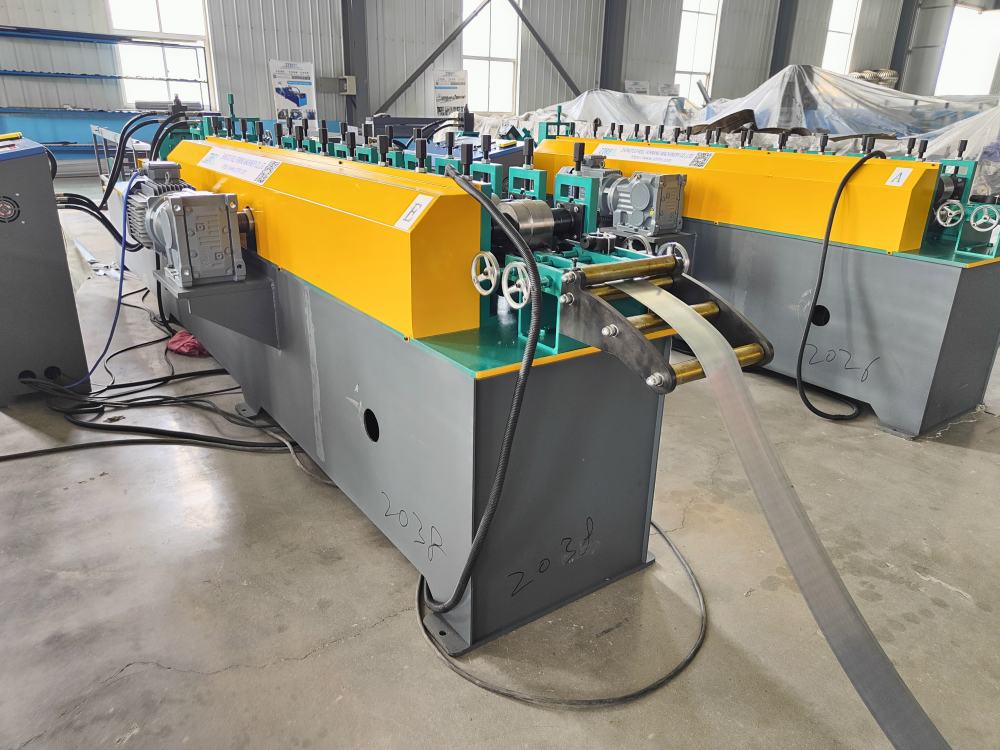

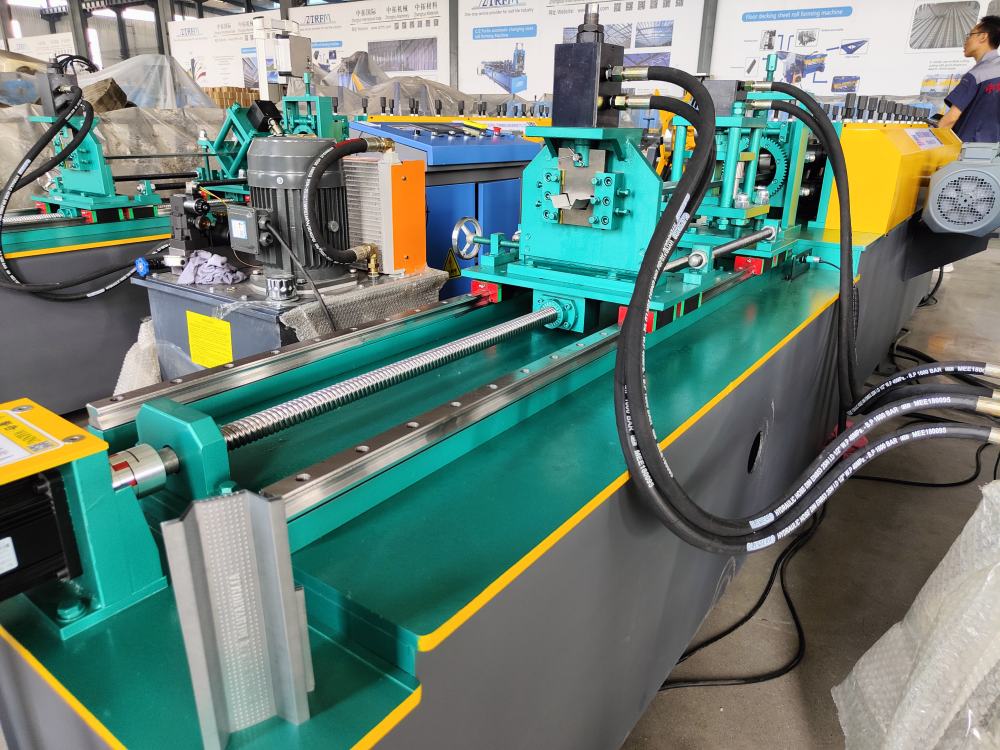

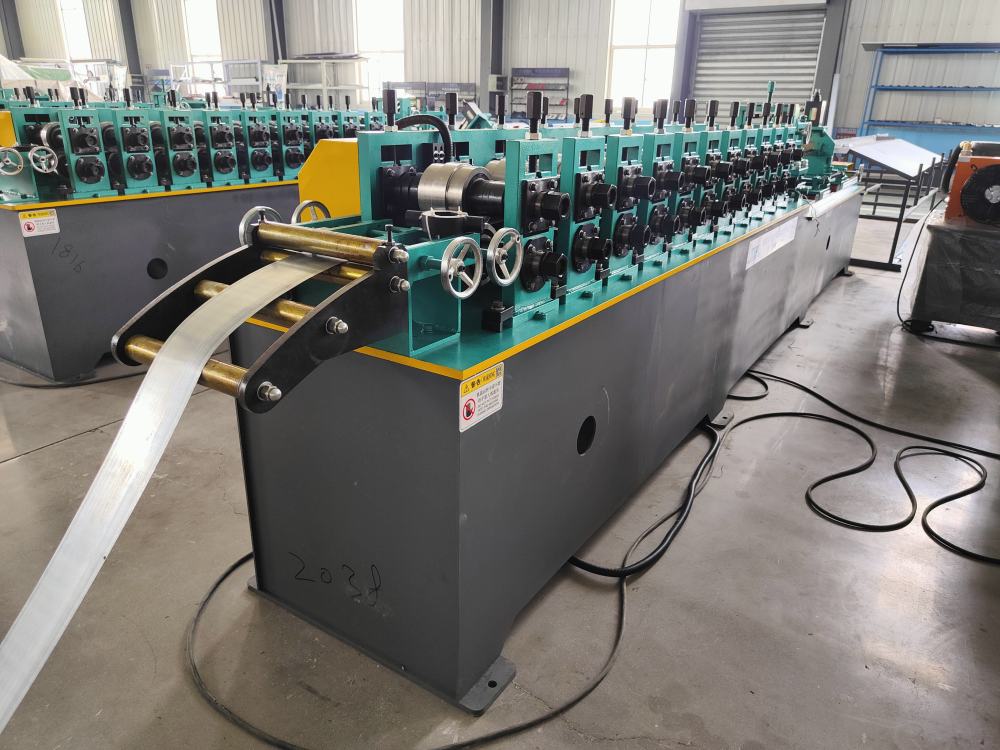

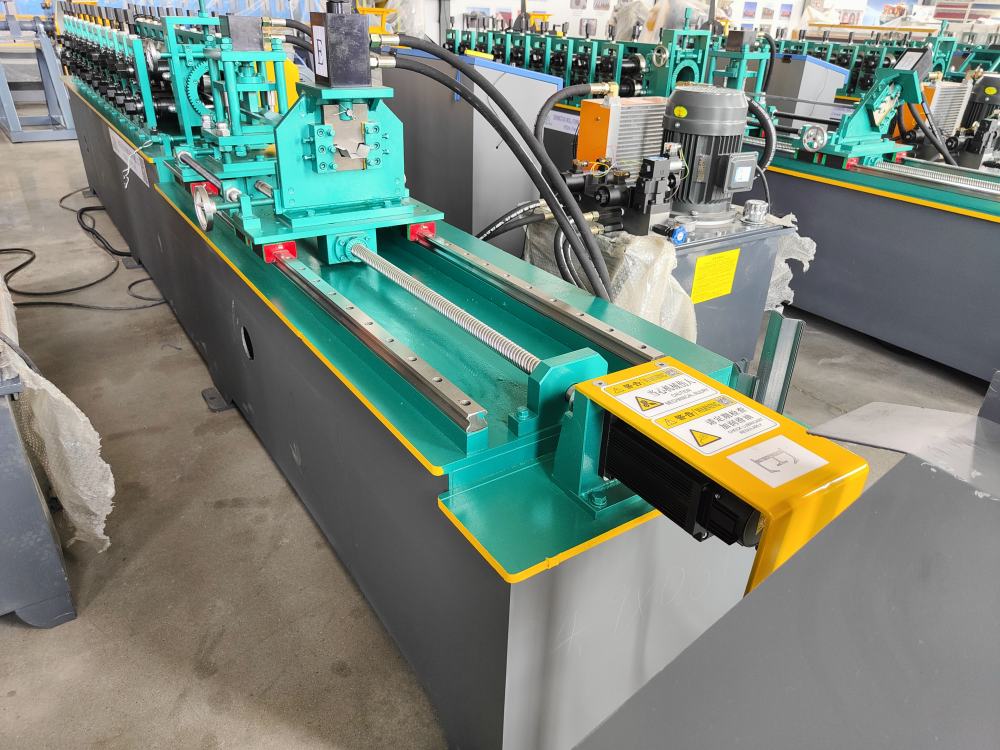

Products Display:
Frequently Asked Questions (QA):
Q1: What specifications of Omega keel can this machine produce?
A: Common heights include 25mm, 32mm, 50mm, etc., with an opening width of 40-60mm and a material thickness of 0.4-0.8mm. The cross-sectional dimensions and hole patterns can be customized according to customer samples or drawings.
Q2: What is the production speed?
A: The pure forming speed is usually 15-25 m/min, and the speed with online punching is about 10-18 m/min (depending on the number and spacing of holes).
Q3: Minimum order quantity and delivery time?
A: The degree of equipment customization is high, with a general minimum order quantity of 1 unit. The delivery time for standard models is 30-45 days, while special customization requires 50-60 days.
