The Portable vertical seam roll forming machine is a lightweight mobile cold bending equipment. It breaks through the traditional production mode and can process metal coils into vertical seam roof tiles on site. With modular design and precise technology, it combines efficiency and accuracy, and is suitable for scenarios such as light construction and emergency engineering.

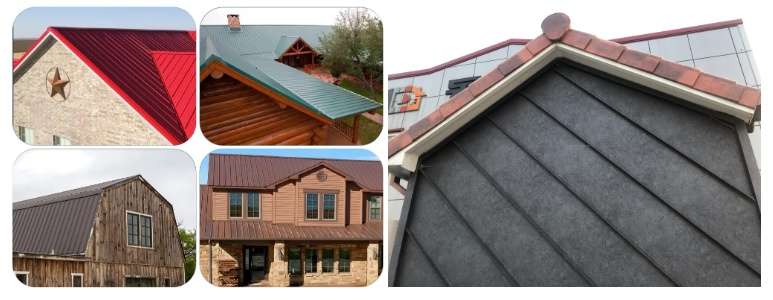

Core advantage: Why choose portable vertical seam roof tiles?
- Easy installation, reducing construction costs
- Strong waterproof and adaptable to various climates
- Wide adaptability, balancing functionality and aesthetics
Core advantages and industry value:
1.Break venue restrictions and reduce transportation costs
- Support on-site production on construction sites to avoid deformation and damage during transportation of large-sized tiles (over 10 meters), and reduce material waste rates to below 3%.
- Adapting to inconvenient transportation scenarios such as mountainous areas, the equipment can be disassembled/towed for transportation, reducing logistics costs by over 30%.
2.Improve construction efficiency and flexibly respond to demands
- It only takes a few minutes to produce finished tiles from rolls, with a daily production capacity of 800-1500 meters, and the "production and installation integration" reduces the construction period by 50%.
- Support real-time adjustment of finished product length, suitable for irregular roofs, without the need for secondary processing.
3.Ensure product quality and reduce operational barriers
- PLC precise control+hardened roller forming, vertical seam error ≤ 0.5mm, coating non-destructive, performance far exceeds manual.
- The touch screen is easy to operate and can be operated by 1-2 people, saving training costs.

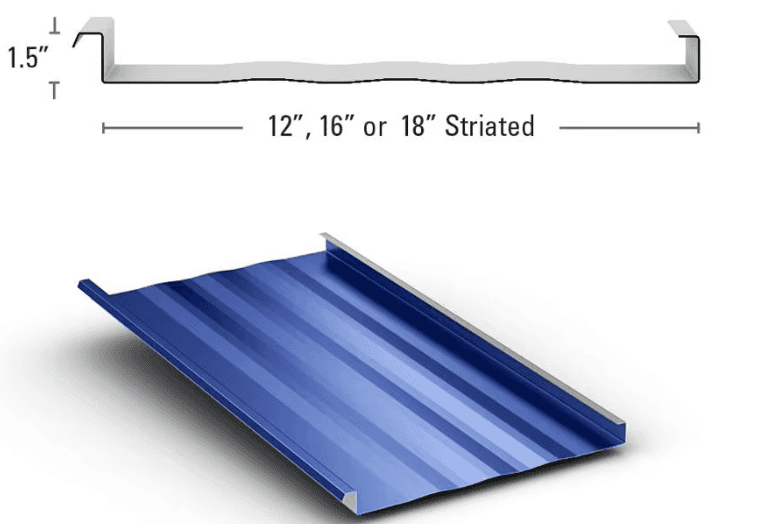

Profile drawing：
Product Attributes：
| Material | Raw material | Galvanized steel or PPGI，PPGL，AI | ||
| Thickness | 0.3-0.8 mm | |||
| Decoiler | Operation | Manual（buy machine give you free) Or Hydraulic | ||
| Weight capacity | 3T 5T 7T 10T | |||
| Machine | Roller station | 10-18(depend on customer' drawing) | ||
| Shaft diameter | 70-80mm | |||
| Body frame | 350H steel | |||
| Roller material | Cr12 | |||
| Machine size | About 4.5*1.2*1.0 m | |||
| Machine weight | 2-4 tons | |||
| Drive | gear and Double Chain | |||
| Working speed | 12-15 m/min | |||

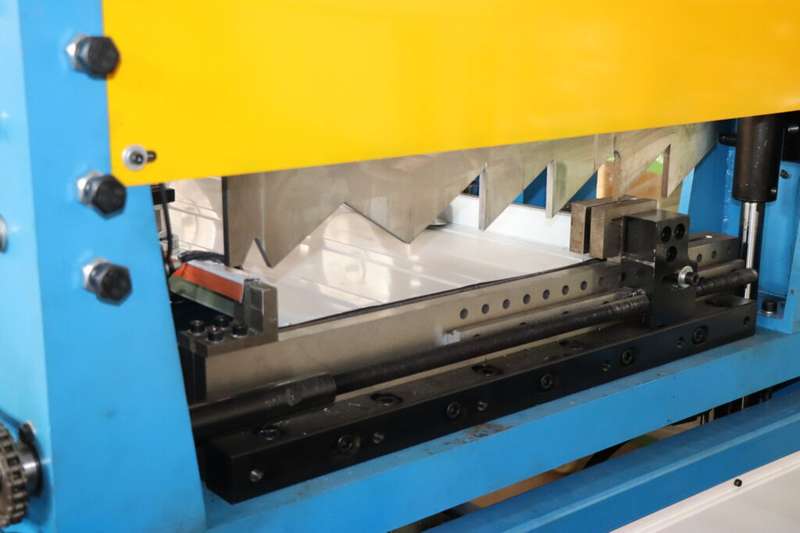

| Hydraulic Cutting | Cutter Hardness | 50-65 HRC | ||
| Cutter Material | Cr12 | |||
| Cutting tolerance | ± 1mm | |||
| Power | Main motor | 5.5kw | ||
| Pump motor for cutter | 7.5kw | |||
| Control system | PLC brand | Delta or Siemens | ||
| Touch screen | Delta or Siemens | |||
| Language | 6000+ languages customized according to customer needs | |||
| Voltage | 380V/50HZ, 3P | customized according to customer needs | ||
