As a key decorative and protective component of the Metal Roof Ridge Cap Roll Forming Machine, the production and processing of ridge tiles rely on professional ridge tile machines. This type of equipment processes raw materials such as metal, cement, and resin into ridge tile products that meet building needs through standardized and automated production processes, and is widely used in construction fields such as residential buildings, factories, and ancient building repairs.

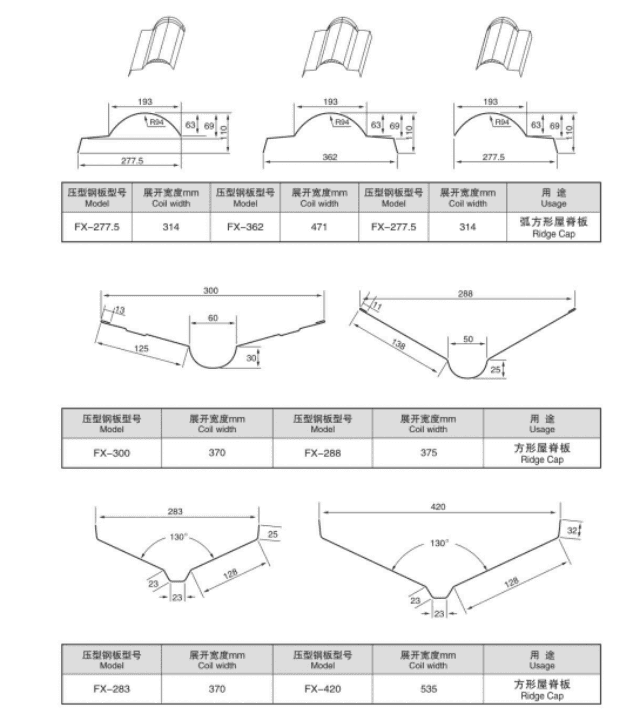

Pattern diagram:
Machine function:
1.Efficient Production: Breaking through the limitations of manual labor and meeting the needs of scale
2.Standardized production: ensuring stable product quality and reducing rework risks
3.Cost optimization: reduce raw material and labor consumption, improve cost-effectiveness
4.Product innovation: Expand the category of roof tiles to meet diverse building needs
Product Attributes ：
| Formed Material | PPGI, GI, AI | Thickness:0.3-0.8mm |
| Decoiler | Hydraulic automatic decoiler | manual decoiler (will give you as free) |
| Main body | roller station | 13 rows (as your requirement) |
| diameter of shaft | 70mm solid shaft | |
| material of rollers | 45# steel, hard chrome plated on the surface | |
| machine body frame | 350 H steel | |
| drive | chain transmission | |
| dimension(L*W*H) | 5500mm*1600mm*1600mm (customized) | |
| weight | 2.5T | |
| Cutter | automatic | Cr12mov material, no scratches, no deformation |
| Power | motor power | 4kW |
| hydraulic system power | 3KW | |
| Voltage | 380V 50HZ 3PH | as your requirement |
| Control system | electric box | customized (famous brand) |
| language | English (support multiple languages) | |
| PLC | automatic production of the whole machine. can set batch, length, quantity, etc | |
| 3-5m/min | The speed depends on the final cutting length |

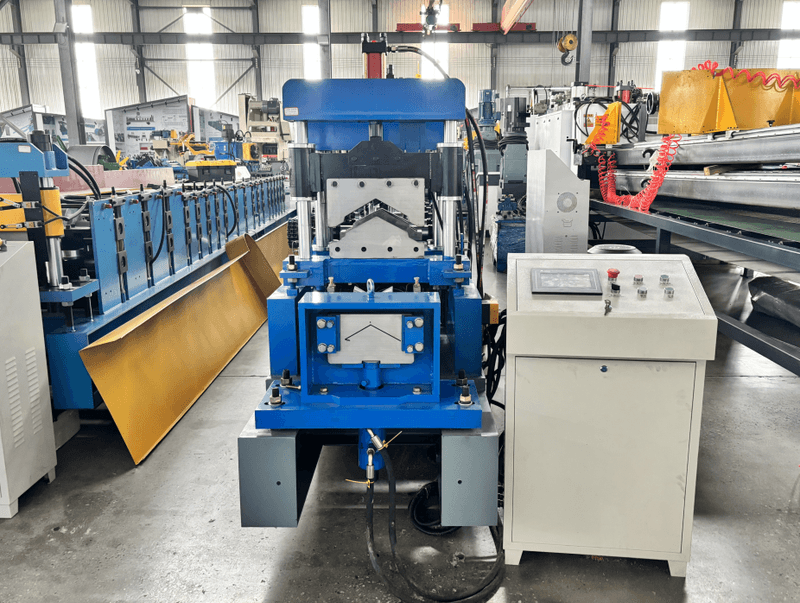

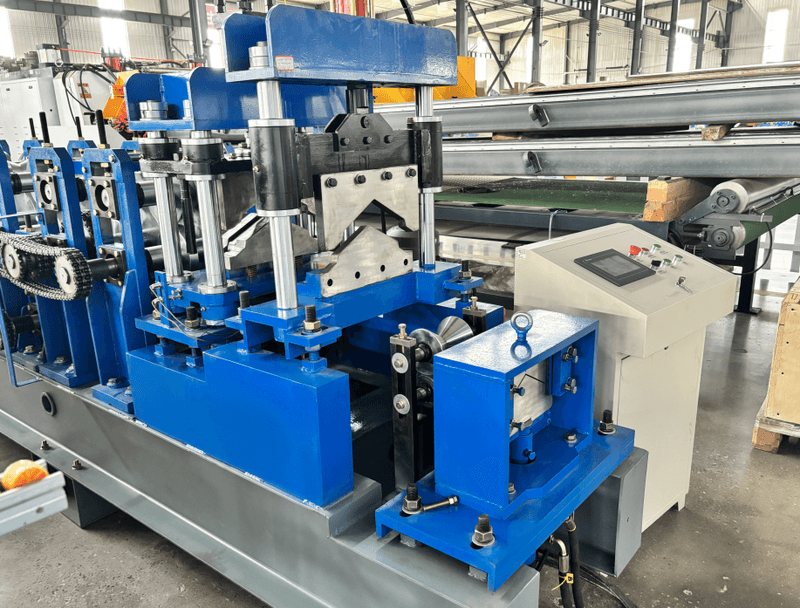

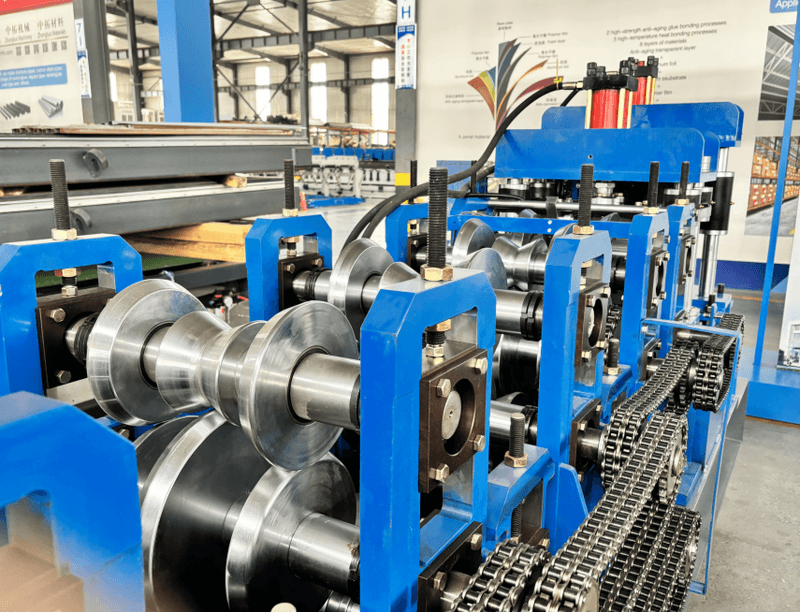

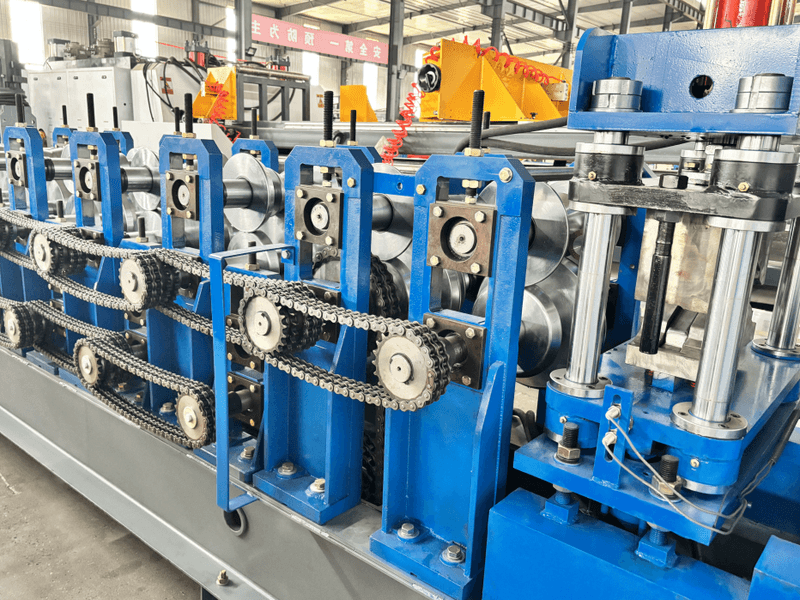

Product images：
