In various scenarios such as commercial, industrial, and civilian use, rolling shutter doors have become a popular category in the door and window market due to their convenient opening and closing, anti-theft and space saving characteristics. As the core production equipment, Shutter Up Door Roll Forming Machine innovates with automation and high-precision technology, overcomes the problems of low efficiency and unstable quality in traditional manual processing, and helps enterprises seize the market high ground.

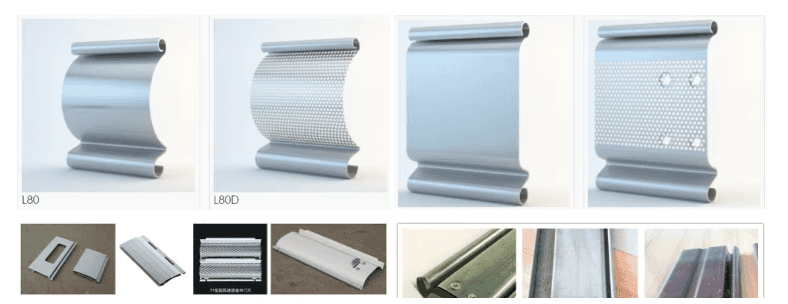

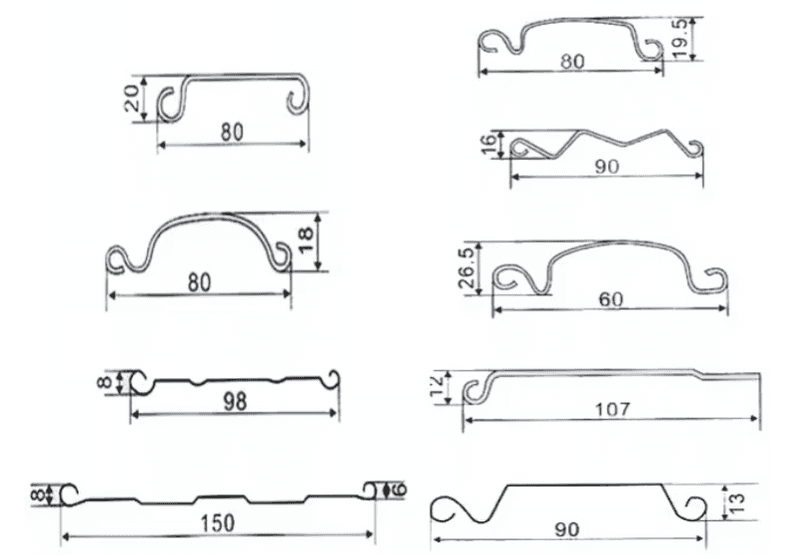

Pattern diagram：
Technical advantages: efficient, precise, flexible, empowering production upgrades
- Ultra high efficiency:
The continuous rolling process achieves a processing speed of 8-20 meters per minute, and the daily production capacity of a single production line is 300-800 square meters, which is 5-8 times more efficient than traditional manual methods and meets the needs of large-scale orders. - Accurate and stable:
PLC numerical control system combined with servo motor, precise control of roll pressure and cutting parameters, curtain size error ≤ 0.3mm, length error ± 1mm, angle deviation ≤ 0.2 °, quality meets industry standards. - Flexible production:
Rapid replacement of roller sets within 1.5-3 hours, supporting multi material production with a width of 50-100mm and a thickness of 0.3-1.2mm, suitable for fire-resistant, wind resistant and other types of rolling shutter doors. - Energy saving and cost reduction:
Variable frequency drive adjusts energy consumption as needed, saving 20% -30% energy; The material utilization rate exceeds 98%, with no waste generated, reducing overall costs.
Product Attributes：
| 1.Formed Material | GI | Thickness:0.6-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 27 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 20-25m/min(customized) | Speed is adjustable according to customer’s request | ||

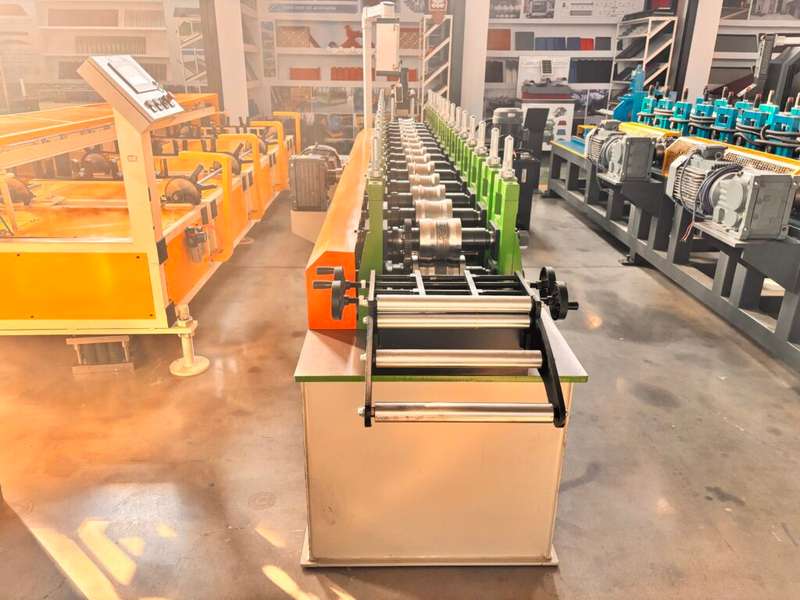

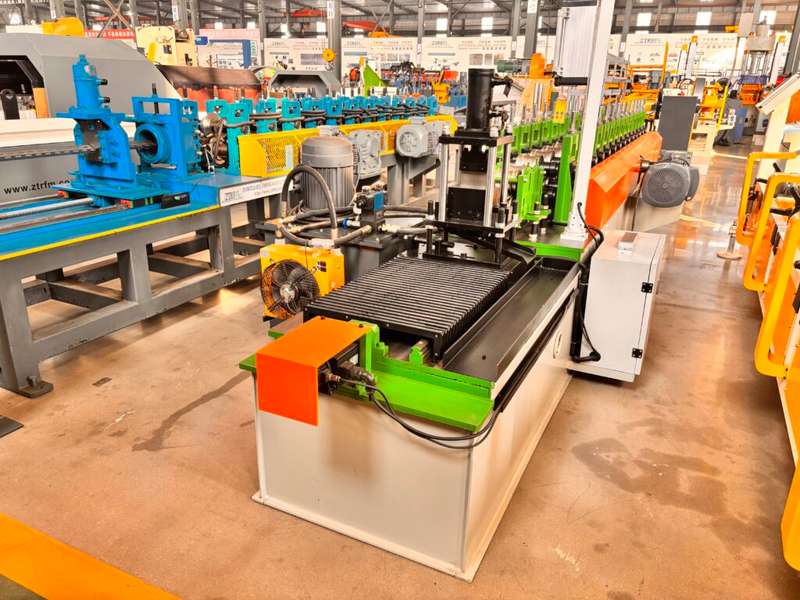

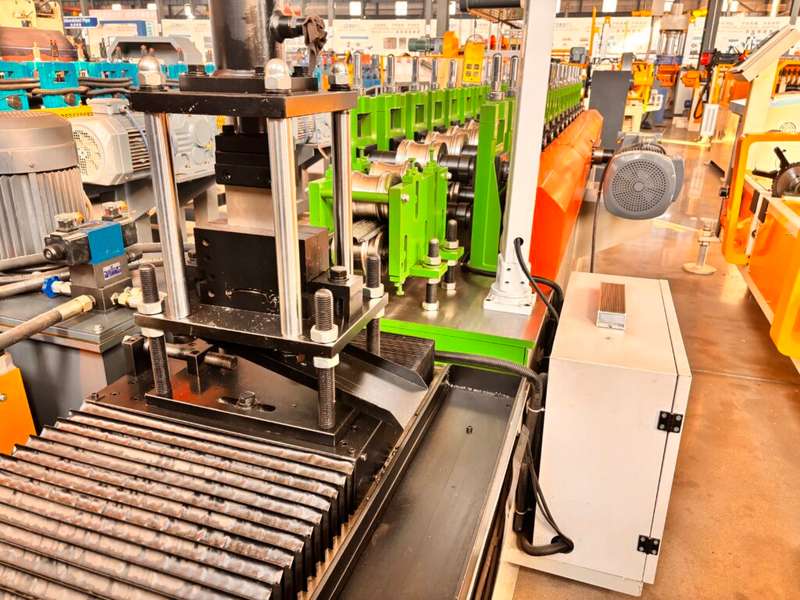

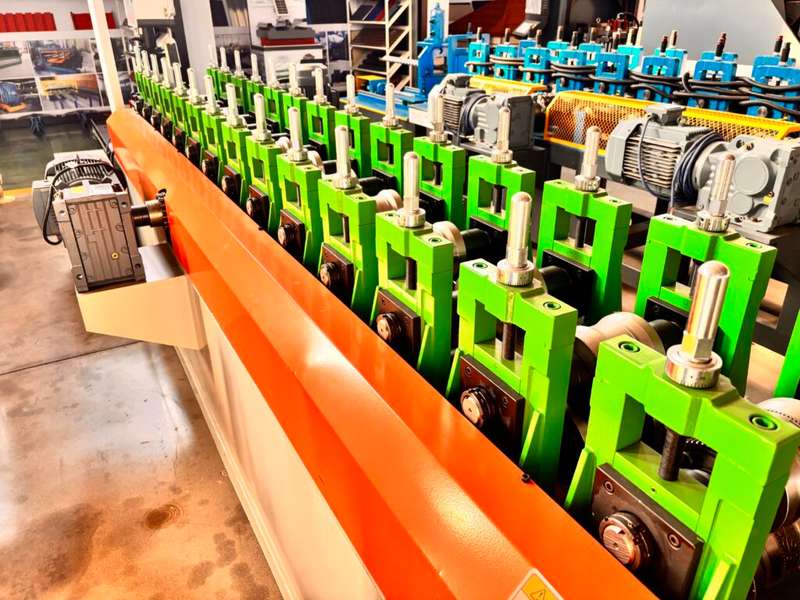

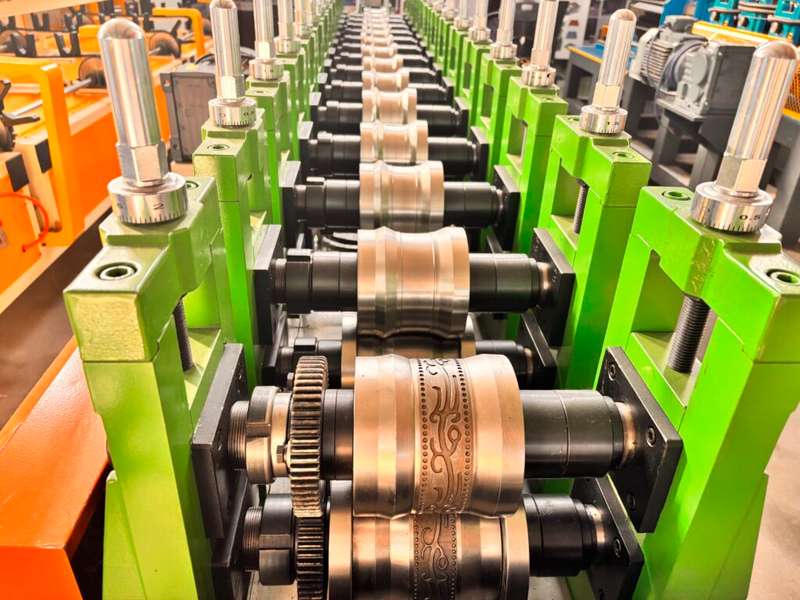

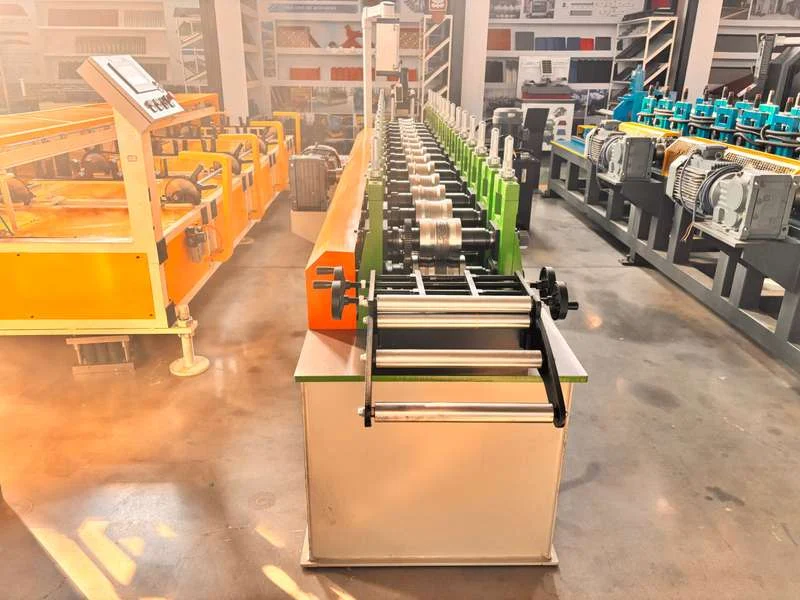

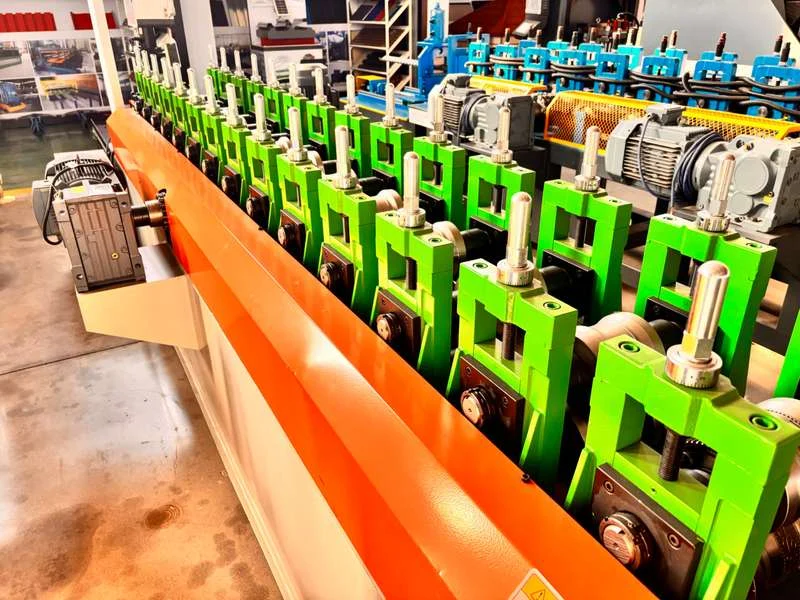

Machine image:
