Fully Automatic Z Purlin Forming Machine is a type of cold bending machinery specifically used for producing Z Purlin, which has a wide range of applications in the field of steel structure processing. Z Purlin, as a common type of cold-formed thin-walled steel, is named after its Z Purlin cross-section. It has the characteristics of light weight, high strength, and excellent cross-sectional performance. Z Purlin Forming Machine is the key equipment for achieving efficient and precise production of Z purlins.
Pattern diagram:
Equipment advantages:
1、 High production efficiency:high degree of automation, significant cost reduction and efficiency improvement.
2、 High molding accuracy: ensuring profile quality and improving engineering stability.
3、 Strong material adaptability: compatible with multiple materials, meeting the needs of different scenarios.
4、 Energy conservation and consumption reduction: reduce energy consumption and material waste, in line with green production.
5、 Stable structure and low operation and maintenance costs.
6、 The product has a wide range of application scenarios and strong market adaptability.
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:1.5-3mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | Gcr 15 with quenched teeatment | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 9500*800*1200(customize) | |||
| Weight | About 7T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 6.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 7.Forming Speed | 60-70m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

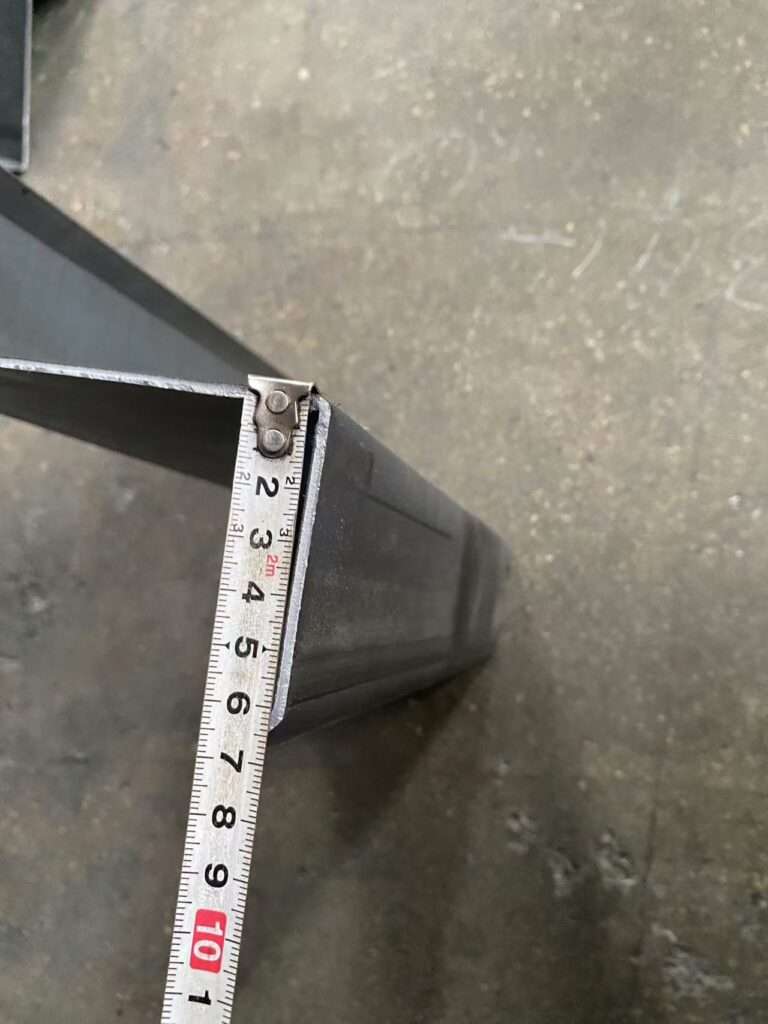

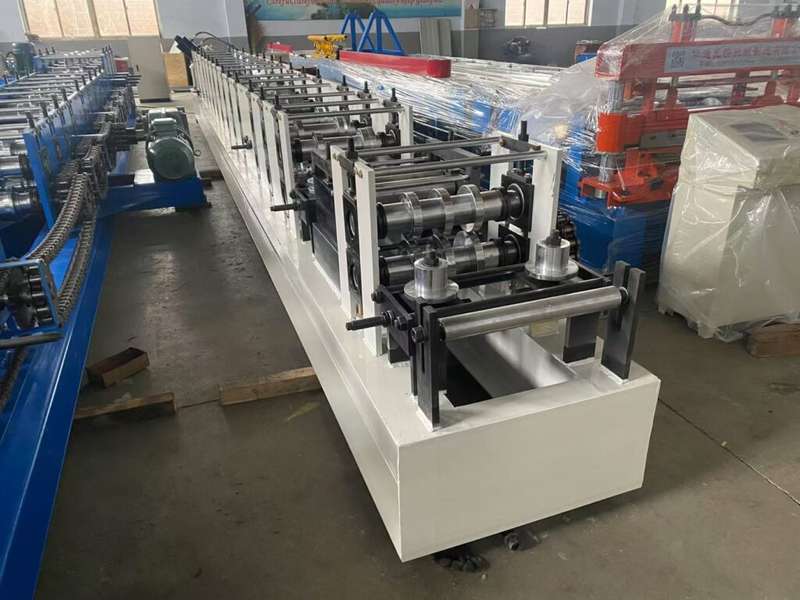

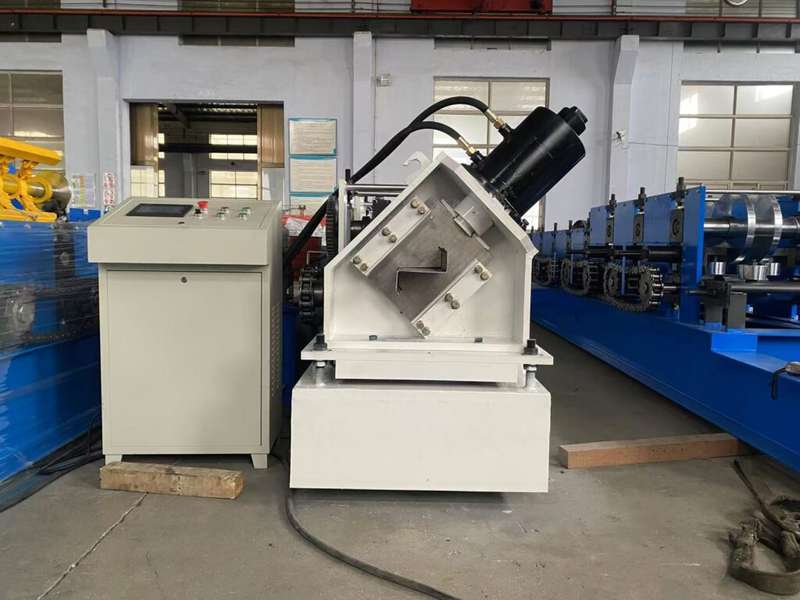

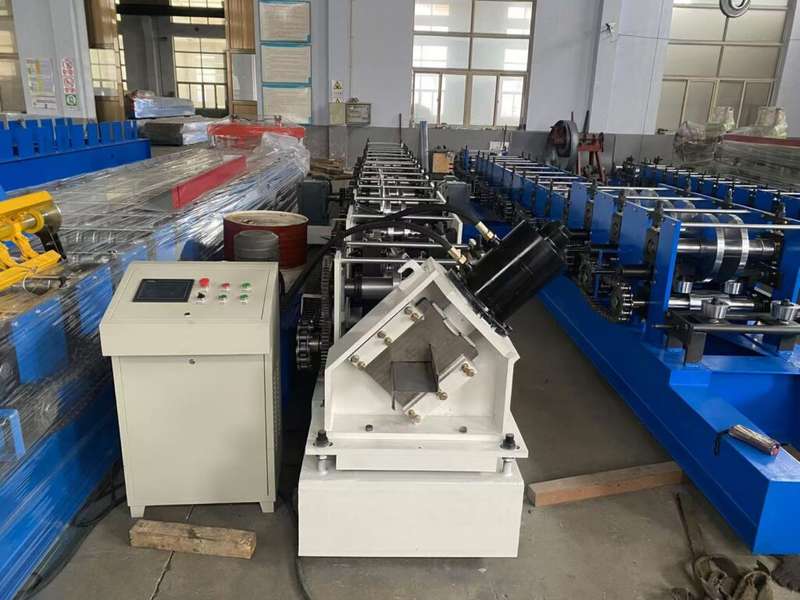

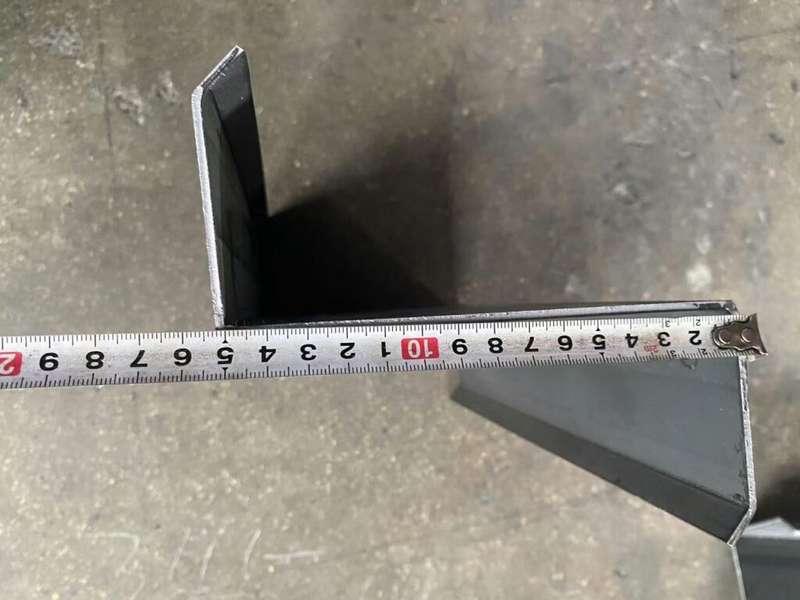

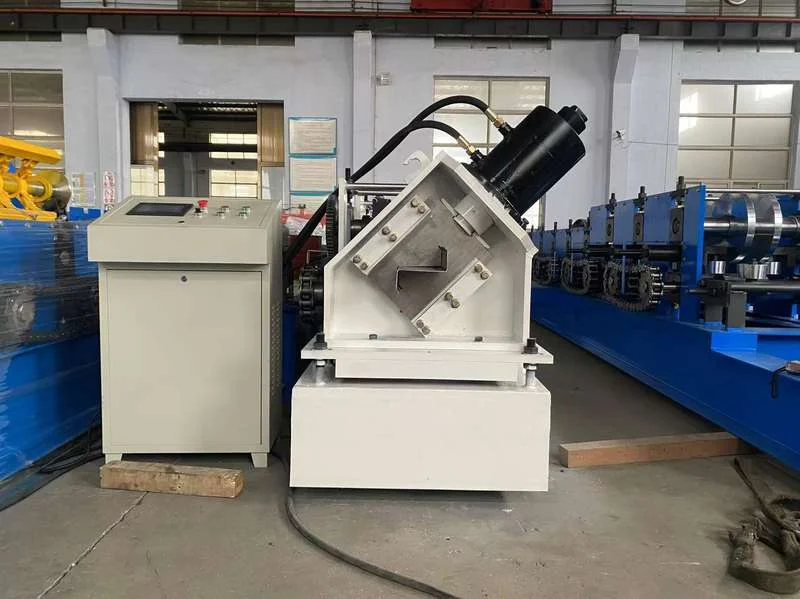

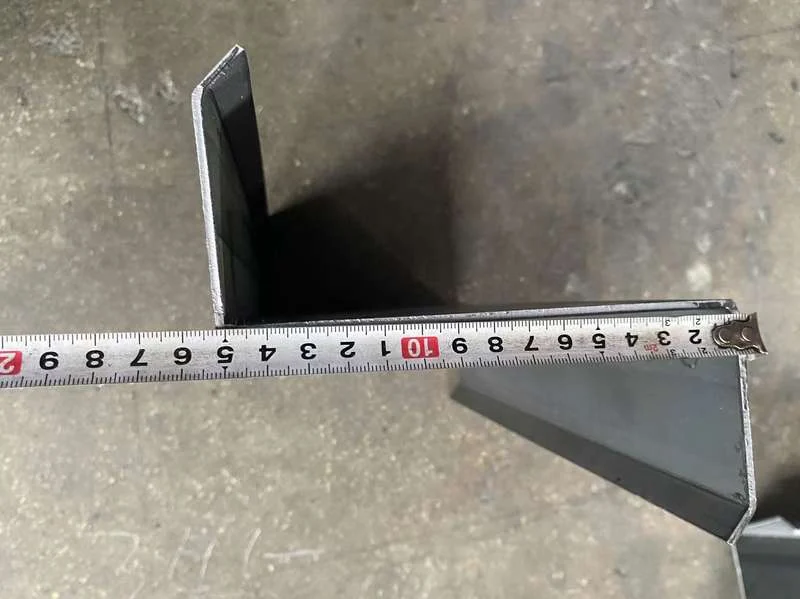

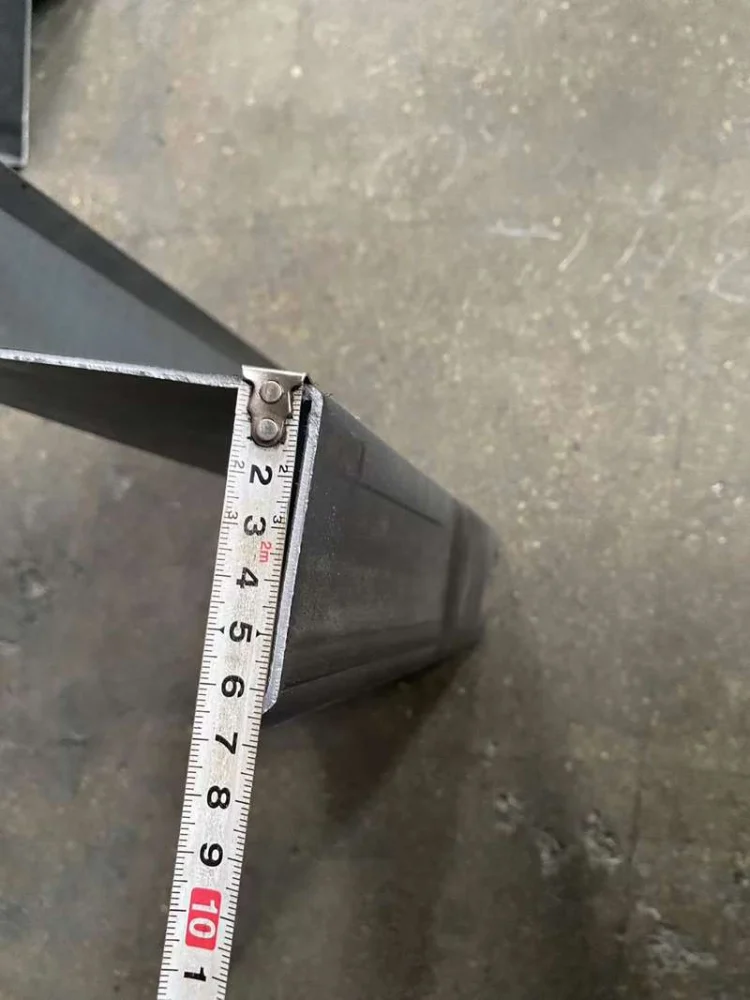

Product images：
